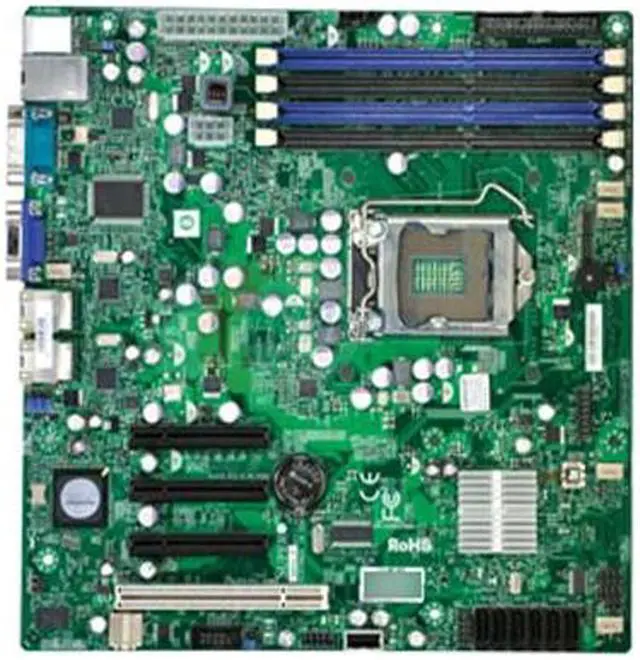

SUPERMICRO X8SIL-F Micro ATX Server Motherboard LGA 1156 Intel 3420 DDR3 1333
- LGA 1156
- Intel 3420
- 4 x 240pin
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro X8SIL-F
| Brand | SUPERMICRO |
|---|---|
| Model | X8SIL-F |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Intel Xeon X3400 series Intel Xeon L3400 series Intel Core i3 Intel Pentium G6950 Intel Celeron G1101 |
| North Bridge | Intel 3420 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1333 |
| Maximum Memory Supported | 32GB |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express x8 | 2 x PCI Express x8 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 1 x 32-bit PCI slot |
| SATA | 6 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| Onboard Video Chipset | Matrox G200eW 16MB DDR2 |
|---|
| LAN Chipset | Intel 82574L |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel 82574L |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1x Fast UART 16550 serial port |
| Video Ports | 1x VGA port |
| USB 1.1/2.0 | 2 x USB rear ports 1 x USB on-board 2 x USB internal header (4 ports) |
| Features | Intel Xeon X3400 / L3400 series, Core i3 & Pretium processors with LGA 1156 socket Intel 3420 Chipset Up to 32GB DDR3 1333/1066/800MHz, ECC Registered DIMM / 16GB, Unbuffered DIMM Dual Intel 82574L Gigabit Ethernet Controllers 6x SATA (3 Gbps) Ports, RAID 0, 1, 5, 10 2 (x8) PCI-Express 2.0, 1 (x4) PCI-Express (using x8 slot), 1 32-bit PCI slot Integrated IPMI 2.0 with KVM and Dedicated LAN 7x USB (2 rear, 1 on-board, 2 headers) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" (24.4cm x 24.4cm) |
| First Listed on Newegg | November 23, 2010 |
|---|
