Can someone recommend a heatsink that is compatible with this motherboard? I have now tried 2 that don't fit despite the box saying they are socket 2011 compatible. The RAM slots are proving to make things very difficult.

SUPERMICRO SNK-P0050AP4 Heatsink for Supermicro X9DR3-F Motherboard I utilized this exact heatsink with the X9SRL-F motherboard without any problems. Clearances are fine for this combo.

Does this board ship with BIOS version 3 to support E5-2600 v2 chips?

The motherboard that I received included BIOS version 3.0a I did not have to update the BIOS version. I was able to install a Xeon E5-2630 v2 without any problems. This is a GREAT MB and runs ESXi 5.5 perfectly.

Does this board support more than 25 watts of power in the PCI-e slots? My storage card requires 50 watts (75 would be even better). Thanks

PCI-E specs are 75w maximum draw, I assume this is true for any motherboard that utilizes PCI-E slots. I have a Radeon 270x in one of the PCI-E 16x slots (with additional 6-pin power of course) and I've had no problems whatsoever.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

SuperMicro;X9SRL-F;X9SRL-F - Ingram Micro

SuperMicro;X9SRL-F;USER'S MANUAL X9SRL X9SRL-F - Supermicro FTP Site

SuperMicro;X9SRL-F;USER'S MANUAL X9SRL X9SRL-F - Supermicro

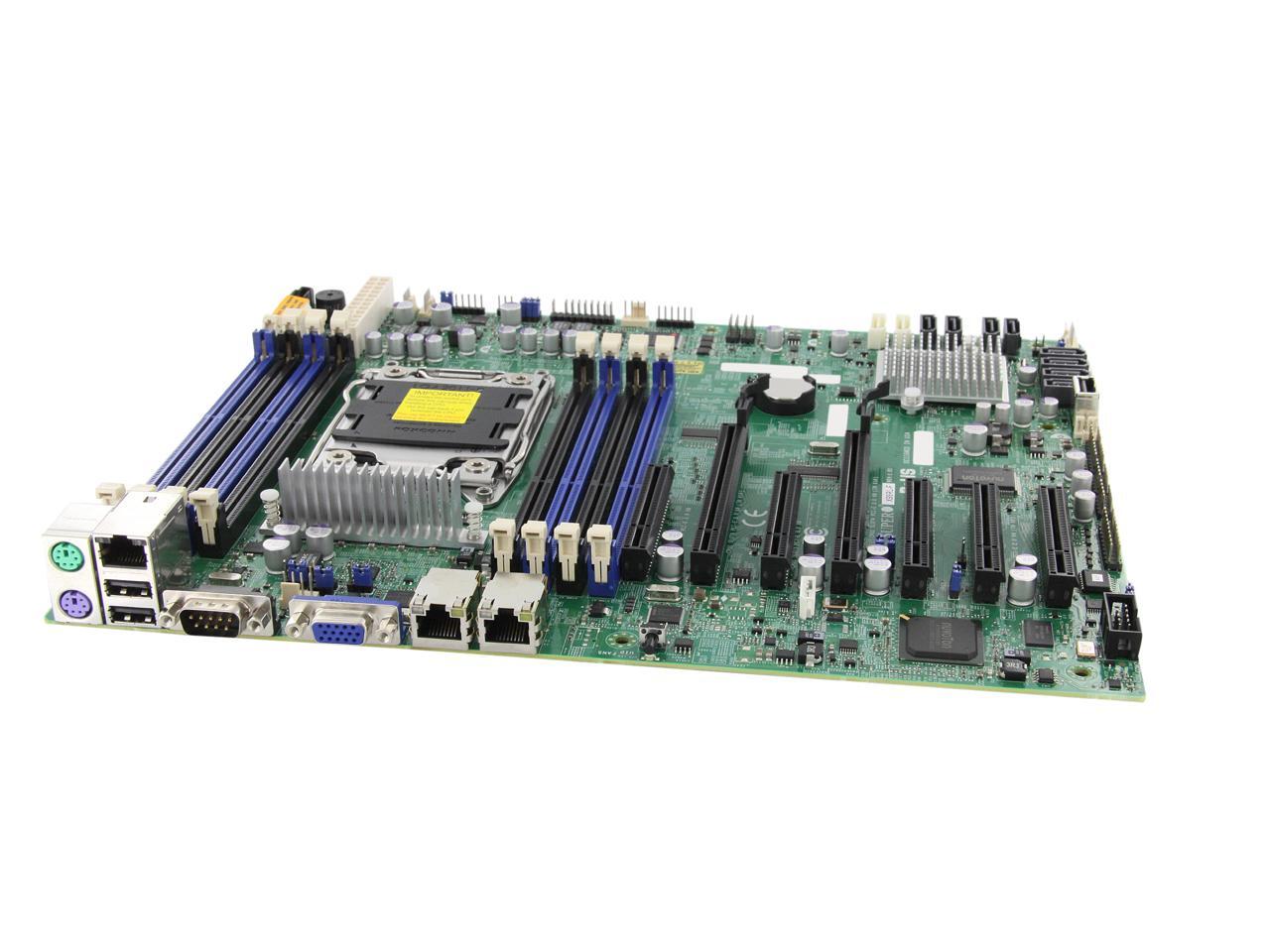

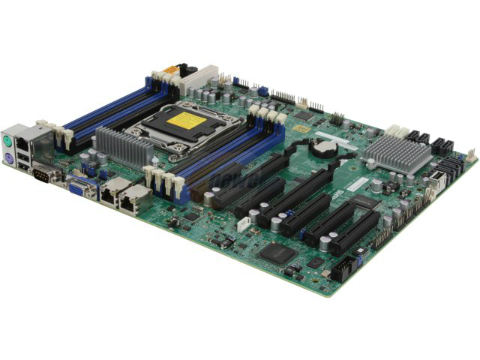

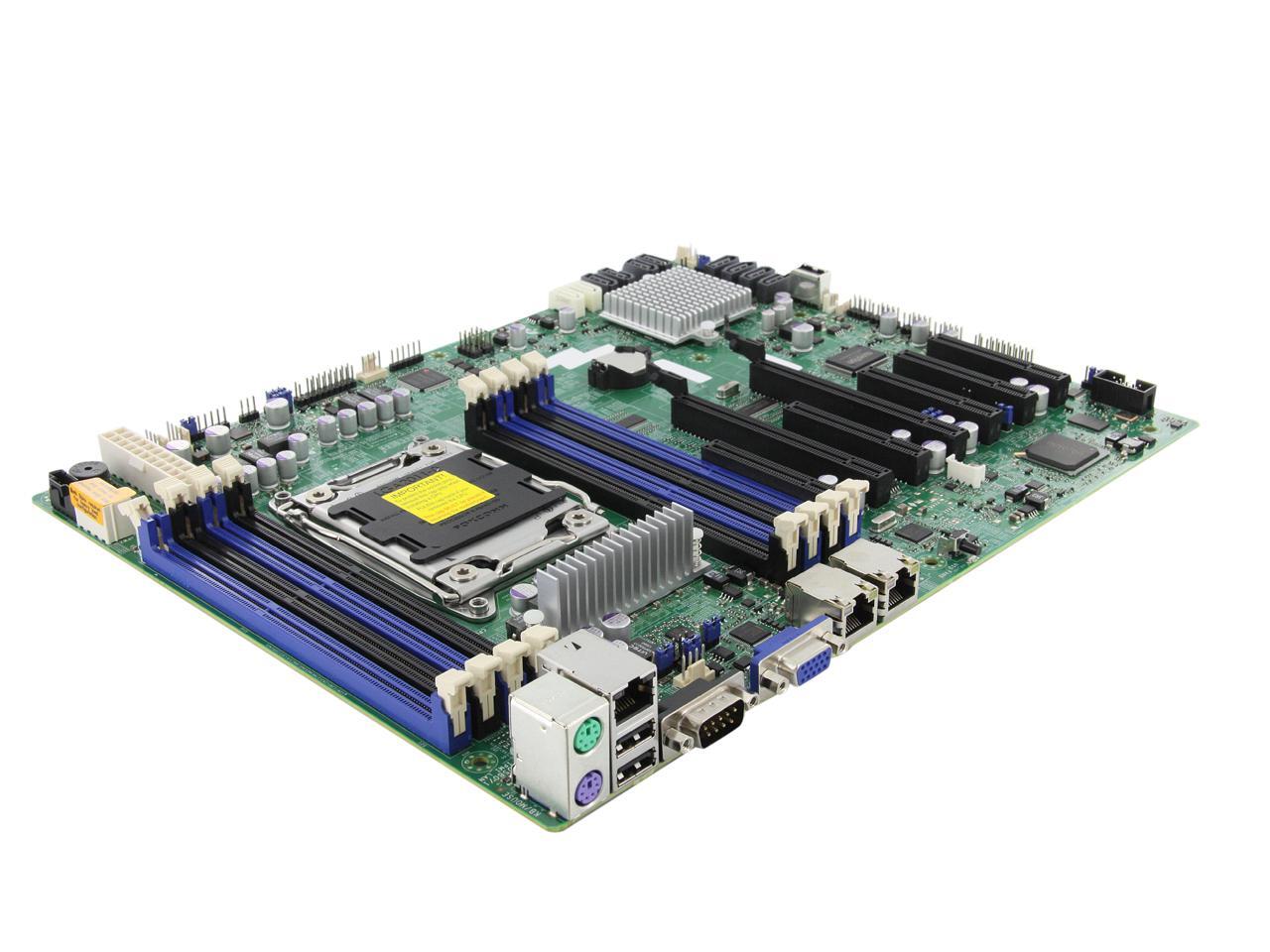

Main image of SUPERMICRO X9SRL-F ATX Server Motherboard LGA 2011 DDR3 1600

100%

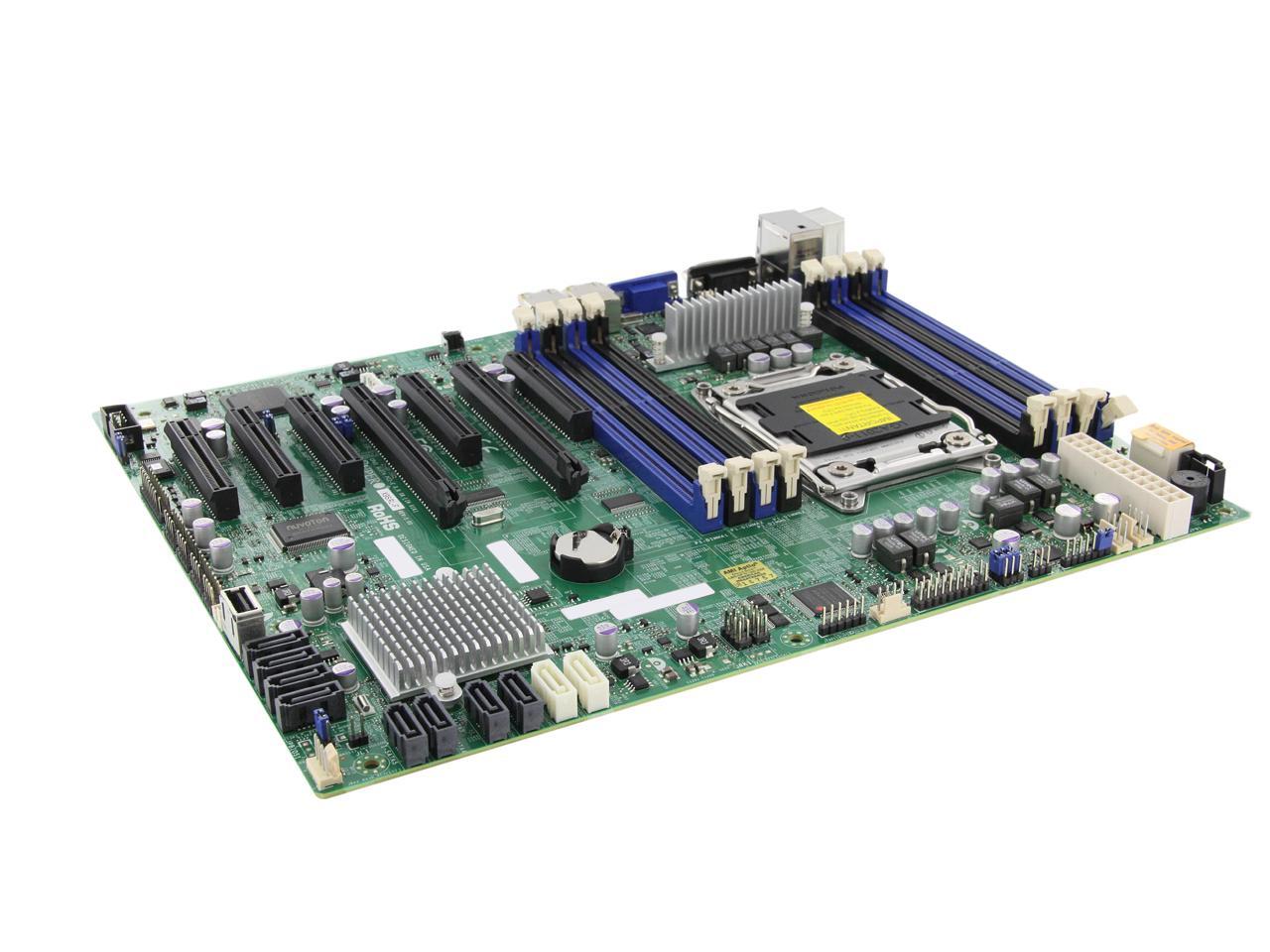

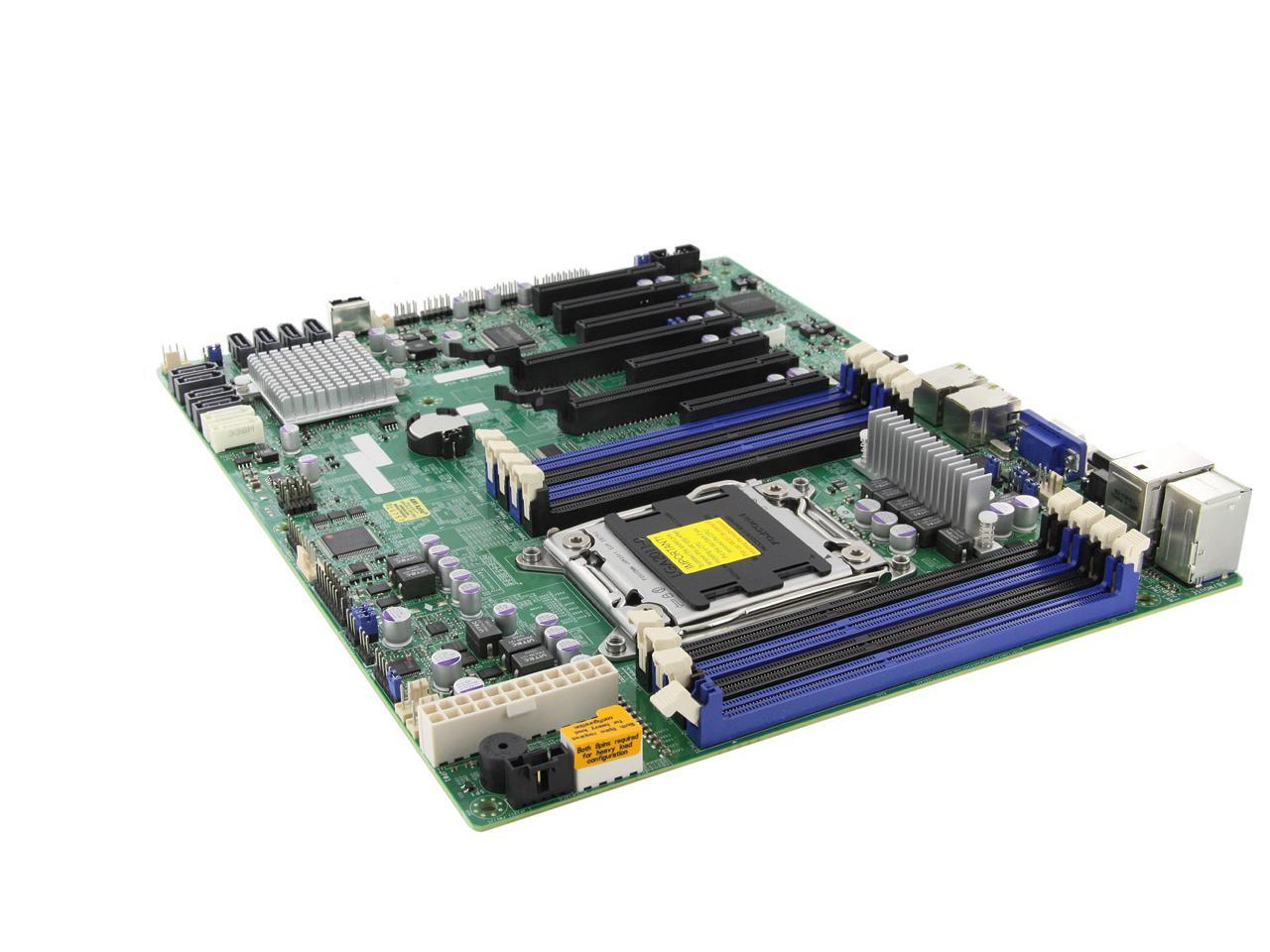

Alt view image 2 of 5 - SUPERMICRO X9SRL-F ATX Server Motherboard LGA 2011 DDR3 1600

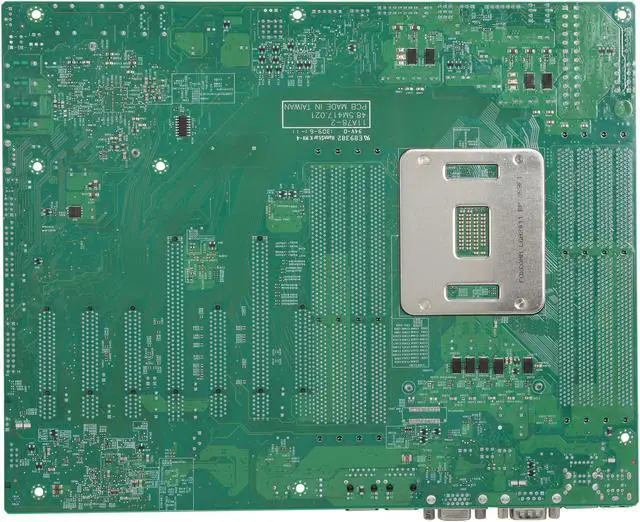

Alt view image 3 of 5 - SUPERMICRO X9SRL-F ATX Server Motherboard LGA 2011 DDR3 1600

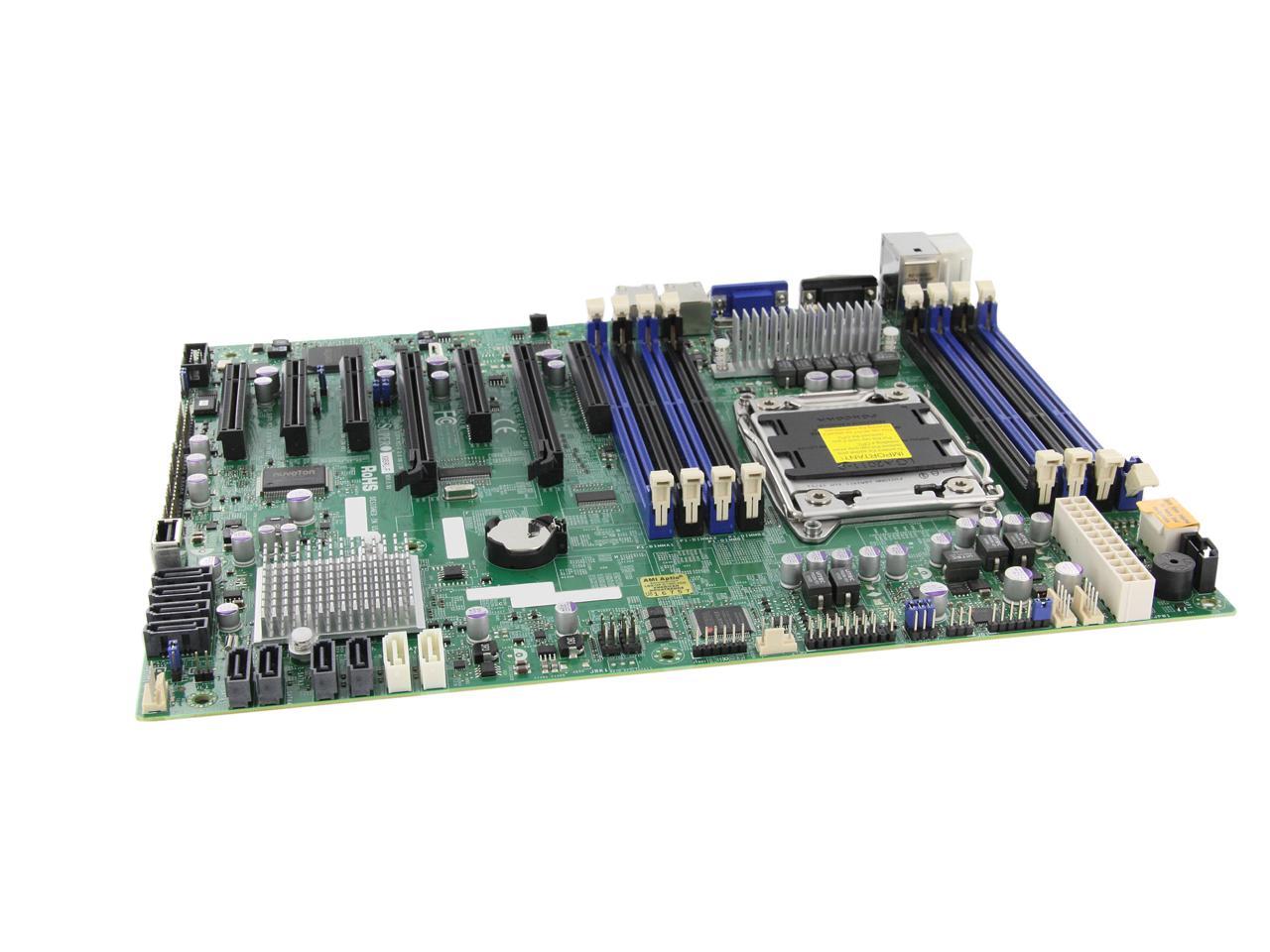

Alt view image 4 of 5 - SUPERMICRO X9SRL-F ATX Server Motherboard LGA 2011 DDR3 1600

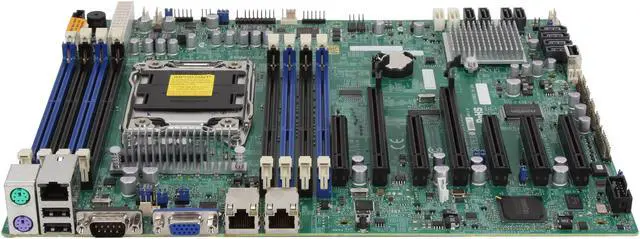

Alt view image 5 of 5 - SUPERMICRO X9SRL-F ATX Server Motherboard LGA 2011 DDR3 1600

360^°

Shop All Supermicro Products

SUPERMICRO X9SRL-F ATX Server Motherboard LGA 2011 DDR3 1600

(12) Write a Review

LGA 2011
Intel C602 Chipset
8 x 240pin

Overview

Specs

Reviews (12)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO X9SRL-F ATX Server Motherboard

Features

Single socket R (LGA 2011) supports Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family†
Intel® C602 chipset; QPI up to 8.0GT/s
Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
Expansion slots: 2 PCI-E 3.0 x8, 2 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8), 1 PCI-E 2.0 x4 (in x8)
Intel® 82574L Dual port GbE LAN
2 SATA3 (6Gb/s), 4 SATA2 (3Gb/s), & 4 SATA2 (3Gb/s) ports via SCU
Integrated IPMI 2.0 and KVM with Dedicated LAN
9 USB 2.0 ports (2 rear + 6 via header + 1 Type A)
DOM power connector support

Specifications

Product SKUs
MBD-X9SRL-F -B	X9SRL-F (Bulk Pack)
Physical Stats
Form Factor	ATX
Dimensions	12" x 9.6", (30.5cm x 24.4cm)
Processor/Cache
CPU	Single Socket R (LGA 2011) Intel® Xeon® processor E5-2600/1600 and E5-2600/1600 v2 family† (up to 12 cores and up to 130W)
Note	BIOS version 3.0 or above is required E5-1600 series CPU does not support LRDIMM type memory
System Memory
Memory Capacity	8x 240-pin DDR3 DIMM slots Up to 512GB DDR3 ECC LRDIMM Up to 256GB DDR3 ECC RDIMM Up to 64GB DDR3 ECC/non-ECC UDIMM
Memory Type	1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	32GB, 16GB, 8GB, 4GB, 2GB, 1GB, 64GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel C602 chipset
SATA	SATA3 (6Gb/s) and SATA2 (3Gb/s) RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450RA0BX
Network Controllers	Intel® 82574L Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio	Matrox G200eW 16MB DDR2 graphics
Input / Output
SATA	2 SATA 3.0 ports (6Gb/s) 4 SATA 2.0 ports (3Gb/s)
SCU	4 SATA ports (3Gb/s) via SCU
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	9 USB 2.0 ports total (2 rear + 6 via header + 1 Type A)
Video	1 VGA port
Keyboard/Mouse	2 PS/2 Keyboard/Mouse ports
Serial Port / Header	1 serial port, 1 by headers
DOM	1 DOM (Disk on Module) power connector
TPM	1 TPM 1.2 20-pin Header

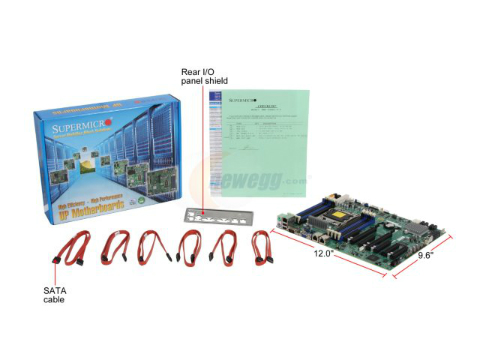

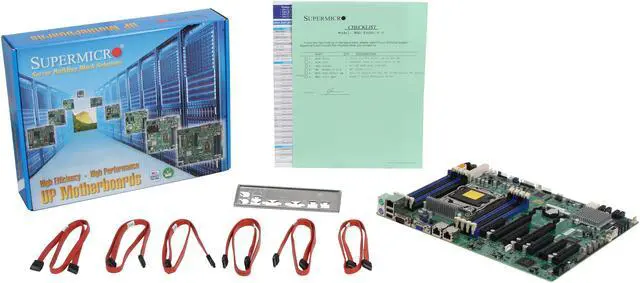

Whats in the Box

Model
Brand	SUPERMICRO
Model	X9SRL-F

Supported CPU
CPU Socket Type	LGA 2011
CPU Type	Intel Xeon E5-2600 Series

Chipsets
Other Chipset	Intel C602 Chipset

Memory
Number of DDR3 Slots	8 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	Up to 256GB RDIMM or 64GB ECC/non-ECC UDIMM

Expansion Slots
PCI Express x8	2 PCI-E 3.0 x8 (in x16 slot), 2 PCI-E 3.0 x8 (in x8 slot)
PCI Express x4	2 PCI-E 3.0 x4 (in x8 slot), 1 PCI-E 2.0 x4 (in x8 slot)

Storage Devices
SATA	4 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID	0/1/10/5
Additional SATA	4 x SATA 6Gbps from SCU
Additional SATA RAID	0/1/5/10

Onboard LAN
LAN Chipset	Intel 82574L
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel 82574L
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
COM	1
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Onboard Ports
Onboard USB	6 by headers, 1 Type-A

Features
Features	Connectors: 1 x Serial Header 6 x 4-pin PWM FAN Connector DOM (Disk on Module) Power Connector Support TPM 1.2 20-pin Header, Intel TXT support Intel Node Manager 2.0 support IPMI 2.0 with Dedicate LAN 8 Layers PCB

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Additional Information
First Listed on Newegg	July 09, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
