Swann SWDVR-41000H-US 4 Channel D1 DVR
- H.264
- Recording Resolution NTSC: D1 (704 x 480), CIF (352 x 240) PAL: D1 (704 x 576), CIF (352x 288)
- 4 x Channels BNC
- 500GB SATA HDD (installed) Up to 2TB Storage Installed
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

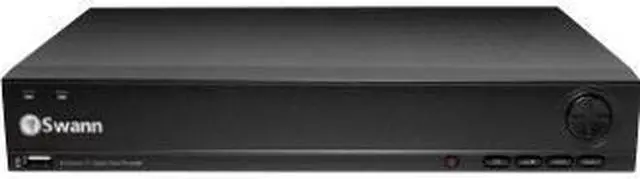

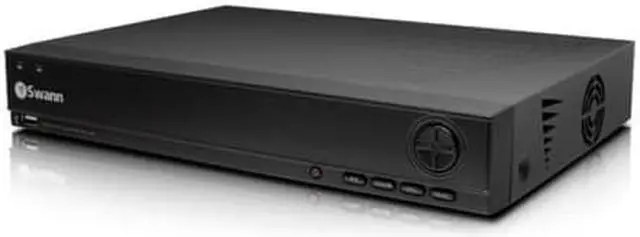

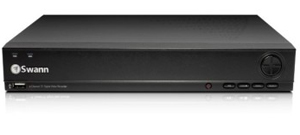

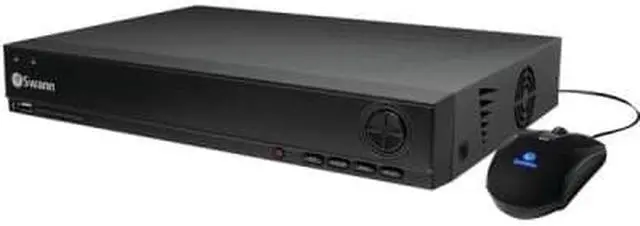

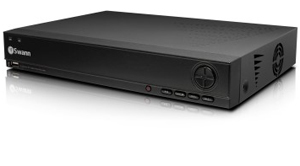

Swann DVR4-1000 4 Channel D1 Digital Video Recorder
4 Channel D1 Digital Video Recorder / Larger, Clearer, Full Screen High Res Video in Real-Time / Pre-installed 500GB HDD / Easier 'My DVR' network set-up / High Def HDMI & VGA output / Live viewing on Internet & Smartphone, D1 means larger, clearer real-time video & easy set up.
Product Description

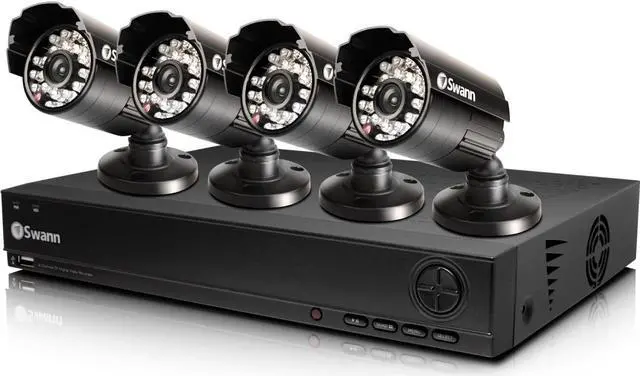

- View & record from 4 cameras simultaneously during the day, night, indoors or outdoors
- Just add cameras to view & record 4 video streams simultaneously
- Set & forget by recording continuously from 4 cameras for 30 days+ onto a massive 500GB hard drive, even longer with motion detection
- Save time & have peace of mind by easily locating incident video, then transfer to USB flash drive
- Surveillance in the palm of your hand with live viewing on 3G/4G-enabled Smartphones & tablets including iPhone, iPad & Android devices with remote notification via email
- Remote viewing is easier than ever to set up with UPnP (Universal Plug n Play) auto network configuration
- Fight back against crime by deterring intruders, protecting your property& knowing what’s happening at all times
- An affordable & expandable solution for any home or business wanting complete protection 30 days recording achieved using lower settings, default settings give 6 days recording
* Monitor, tablet and mobile phones not included. Not all handsets supported
** Applies to modems that have UPnP function
Specifications
| Video | |
|---|---|
| Video Signal Type | NTSC or PAL |
| Video Inputs | 4 x Channels BNC |
| Video Outputs | VGA, HDMI |
| Display Resolution | 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080 |
| Display Frame Rate | NTSC: 30fps per channel / PAL: 25fps per channel |
| Audio | |
| Inputs | 4 RCA Input |
| Outputs | 1 RCA Output |
| Recording | |
| Compression Format | H.264 |
| Recording Resolution |
NTSC: D1 (704 x 480), CIF (352 x 240) PAL: D1 (704 x 576), CIF (352x 288) |
| Recording Frame Rate | NTSC: 30fps per channel / PAL: 25fps per channel |
| Recording Mode | Manual / Motion / Schedule |
| HDD Size & Interface | 500GB SATA HDD (installed) |
| HDD Capacity | Up to 2TB |
| Network | |
| LAN Connection | Yes |
| Network Interface | One RJ45 port |
| Network Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP |
| Remote Operation | IE, MyDVR, CMS, SwannView |
| DNS Support | Yes |
| UPnP Support | Yes |
| General | |
| Operating Power | DC 12V |
| Dimensions | 10.23" x 9.0" x 1.6" / 260mm x 230mm x 40mm |
| Weight | 3.3lbs / 1.5kg |
| Backup Method | USB to Flash Drive / Network |
| Mouse Support | Yes |
| Remote Control | Yes (uses 2 x AAA, included) |
Diagram

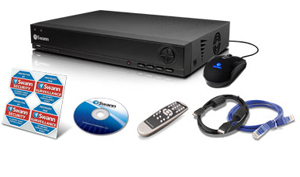

What's Included
- DVR4-1000
- 500GB Hard Drive (installed)
- HDMI Cable
- Power Adapters
- Remote Control
- Software CD
- USB Mouse
- Ethernet Cable
- Operating Instructions
- Theft Deterrent Stickers
