Question 1

Any issues with this card and Windows 10?

Accepted Answer

I have not had any problems with this card and windows 10. I had installed this card while I was using Windows7. Upgraded to windows 10 and there was no issue with the upgrade or this card.

Question 2

Can this card be installed in a PCI-Express 2.0 port?  I want to get two of these and only have one PCI-E port.

Thanks :)

Accepted Answer

Yes it can be slotted in any pci-e bus. However the bus data rate will be faster in a 2.0 port. These particular cards have a connection to support 3.0 USB ports on your front header of your case (presuming that they are 3.0) perfect for motherboards that don't have that feature natively. There are splitters that let you connect multiple front 3.0 USB headers to a single connection allowing  you to save expansion slots.

Question 3

Is there a USB 3.0 header on the card to attach a computer case USB 3.0 port?

Accepted Answer

Yes, that's why I purchased this particular card and have installed in my current PC attached to the cases eternal USB 3.0 connectors

Question 4

Can't get driver to work; windows 8.1?

Accepted Answer

I have it installed in an older PC, ASUS P5Q Pro and windows 8.1 with no problems. Drivers' were found automatically.

Question 5

how do I get the cable that connects this card to the psu for added power?

Accepted Answer

My tower came with extra long plugs for that sorry

Question 6

is this thing compatible with windows 8, 8.1 and 10?

Accepted Answer

Yes, I installed it on Win 8 and have upgraded to each new version on the computer in which i have it installed. Still working on Win 10.

Question 7

hello, I noticed that many of these pci-e usb 3.0 cards have a molex or a sata power jack.  why is that there if its already plugged into a expansion slot which can supply power?

thanks

Accepted Answer

The PCIe interface does indeed supply power, but not enough power to run devices that you might connect to the USB 3.0 port. By supplying power directly from the power supply, you'll be able to connect anything you want to the USB 3.0 without issues. Some USB devices only need a small amount of power, but most do require more power than the PCIe interface can supply on it's own. This is why many high-end video cards require an extra power connection.

Question 8

What's the difference between this model, with an internal 19 Pin USB 3.0 Head, & one with an internal 20 Pin one? Is one better, somehow? Faster, maybe?

Accepted Answer

It's my understanding that the additional pin just acts as an added keyed feature to keep you from plugging the connector in upside down.  Probably just overkill, since you can't connect them incorrectly.

Question 9

Will this product work in a dell xps 8300?

Accepted Answer

Pretty sure it will. Dell 8300 already has the NEC/Renesas USB 3.0 controller onboard, so as long as you have an available PCI Express slot (haven't added anything else) this should use the same drivers. USB 3.0 hubs work too.

Question 10

My PC's power supply is maxed out.  Can I use this with a powered USB 3 hub instead and get full USB 3 speed?

Accepted Answer

My power supply is still not reach the maximum output, so I can't answer your question. Anyway, the SYBA USB 3.0 PCI-e Card works pretty good with my computer. I connect it with an external hard drive and most the time, the transfer speed close to the full USB 3 speed. My operating system is VISTA Home premium and power supply is 750W.

Brand	SYBA
Model	SD-PEX20139

Type	PCI Express to USB Card
External USB Ports	2x USB Ports
Internal USB Ports	1 x USB 3.0 19-pin Header
Internal Ports	1 Molex 5V Power Feed Connector
Standard	USB 3.0
Operating Systems Supported	Microsoft Certified WHQL Drivers for: Windows 7 32/64-bit Vista 32/64-bit Windows XP 32/64-bit Server 2008 R2 64-bit
Specifications	Based on Renesas USB 3.0 Host Controller IC Compliant with Intel's Extensible Host Controller Interface (xHCI) Specification Revision 1.0 Supports Standard and Low-profile Desktop Computer PCI-Express Interface: - PCI-Express 2.0 1-Lane (x1) Interface - Compliant with PCI Express Base Specification 2.0 - Supports PCI-Bus Power Management Interface Specification Revision 1.2 USB Interface: - Compliant with Universal Serial Bus 3.0 Specification Revision 1.0 - USB 3.0 Super-Speed (5Gbps) Host Ports, Backward Compatible with USB 2.0 High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps) Interface - Supports All USB Compliant Data Transfer Types (Control/Bluk/Interrupt/Isochronous) - Supports All USB Compliant Peripherals (e.g. Keyboard, Mouse, Monitor, Joystick, Etc.) - Full Support of Real Time Dynamic Insertion and Removal of USB Devices - Internal HDD Power Connector for Supplying +5V Power to the USB Ports

Meet Your Seller

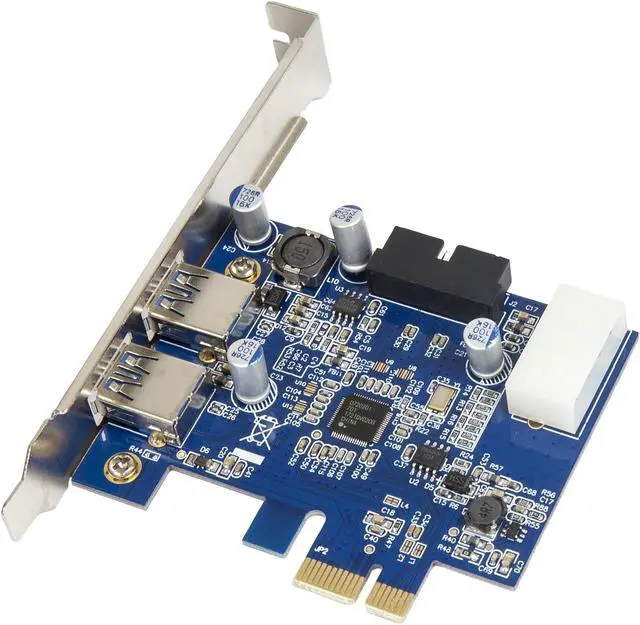

SYBA SD-PEX20139 2 Ports USB 3.0 PCI-e x1 2.0 Card with Internal 19 Pin USB 3.0 Header

Syba SD-PEX20139 2-Port USB 3.0 + 19-Pin Internal Header PCI-e 2.0 x1 Card
