SYBA SD-CF-IDE-A IDE to Compact Flash Adapter

SYBA SD-CF-IDE-A IDE to Compact Flash Adapter -

• The SD-CF-IDE-A is an adapter for connecting a compact flash memory card to a 3.5” IDE host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive. Support Ultra DMA mode.
• Linux-based set-top boxes, routers, firewalls
• Diskless network clients
• Industrial computers
• Any other device requiring rugged solid-state storage
• Supports Ultra DMA mode CF Card

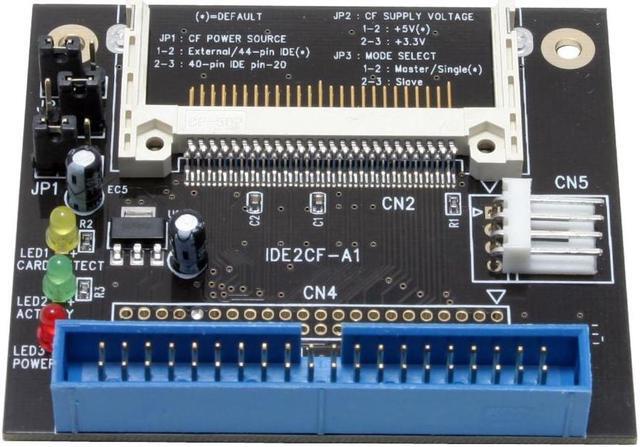

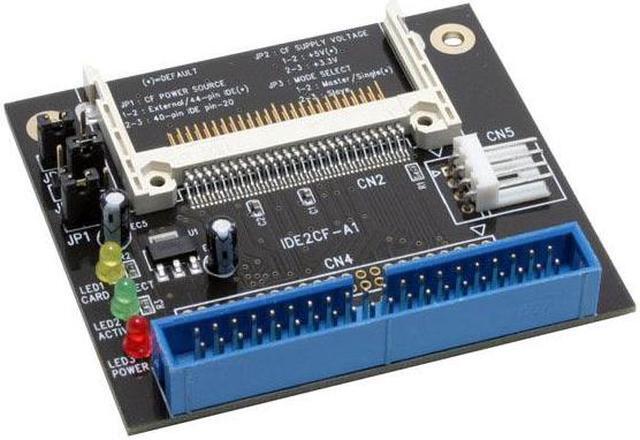

• Board size: 70mm x 63mm x 0.8mm (W, L, T)
• On-board LED indicators for power-on and compact flash access
• Voltage selection for +3.3V or +5V compact flash
• Master or slave mode selection
• Power input: +5V, floppy disk drive power connector
• Fully compatible with Compact Flash Type I, Type II, and Micro-drive
• 40-way (2.54mm) standard IDE connector
• 44-way (2mm) laptop IDE connector (optional)
• Mounting holes for rear bracket (optional)
• This adapter does NOT support hot insertion of CF card
• Connect 3.5" IDE & CF memory card
