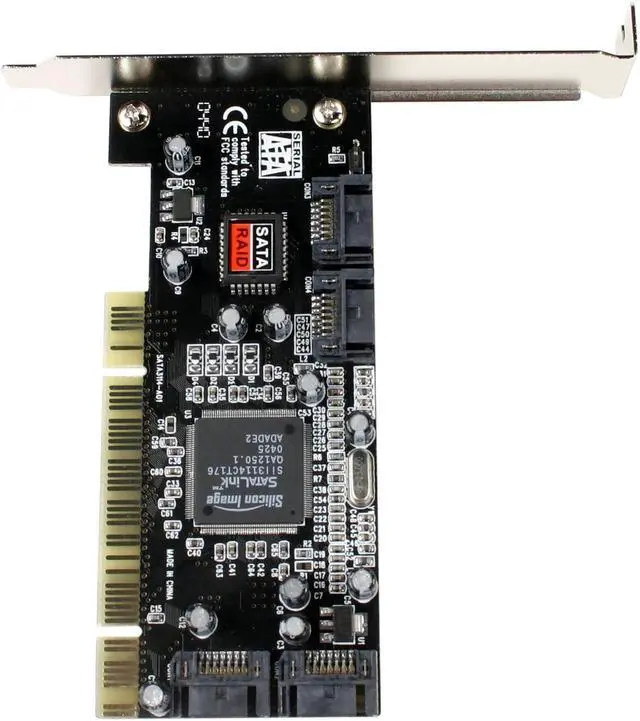

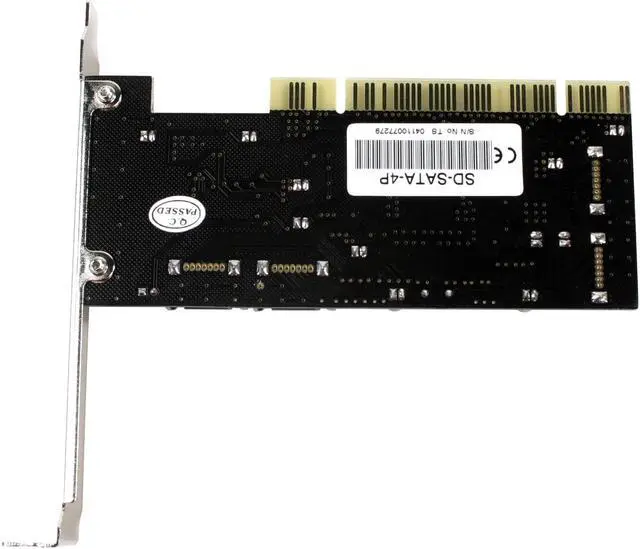

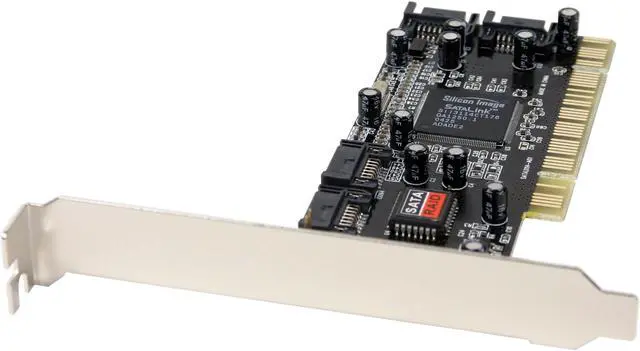

Whether you need more connections for your SATA hard drives, or you’re setting up a RAID array, Syba's SD-Sata-4P is ready to heed your call. Handling four SATA drives, they can each work independently for greater storage, or combined into a single RAID array to offer faster information transfer or more secure storage.
The connected SATA devices can be hard drives of varying sizes or optical drives such as CD-Roms and DVD-roms, to offer that extra bit of flexibility to the average user. It will certainly make a big impact on your storage needs.
Whether you need more connections for your SATA hard drives, or you’re setting up a RAID array, Syba's SD-Sata-4P is ready to heed your call. Handling four SATA drives, they can each work independently for greater storage, or combined into a single RAID array to offer faster information transfer or more secure storage.
The connected SATA devices can be hard drives of varying sizes or optical drives such as CD-Roms and DVD-roms, to offer that extra bit of flexibility to the average user. It will certainly make a big impact on your storage needs.
SATA 1.5 Gb/s CompliantThe SYBA SD-SATA-4P features 4 hot-pluggable point-to-point SATA ports to support 1.5 Gb/s data transfer rates for optimum performance, efficiency, convenience and flexibility.
PCI InterfaceThe SYBA SD-SATA-4P features a PCI interface compliant with Plug-n-Play. Simply install the card into your PC's free PCI slot without powering down the system!
Learn more about the Syba SD-SATA-4P
Model
Brand
SYBA
Model
SD-SATA-4P
Details
Type
SATA
Internal Connectors
4 x SATA 150
Interface
PCI
Transfer Rate
Up to 1.5Gb/s
RAID
Software RAID 0/1/0+1
Operating Systems Supported
MS Windows 98SE/Me/2000/XP/NT 4.0
Features
Features
PCI Specification Revision 2.3 compliant Serial ATA Specification Revision 1.0 compliant Compliant with programming interface for Bus Master IDE Controller, Rev 1.0 Silicon Image SIL 3114 host controller chip Compliant with Serial ATA 1.0 specification Support 66Mhz PCI with 32-bit data Support programmable and EEPROM, FLASH & EPROM loadable PCI class mode Support ATAPI devices: CD-ROM, DVD-ROM, etc Integrated SATA Transport, Link Logic & PHY layer 48-Bit sector addressing Virtual DMA
RAID function Supports software RAID 0 (striped), RAID 1 (mirror), and RAID 0+1 Supports co-exist RAID set and Non-RAID HDD Allows HDDs with different sizes to be configured in a RAID set Software monitoring utility
