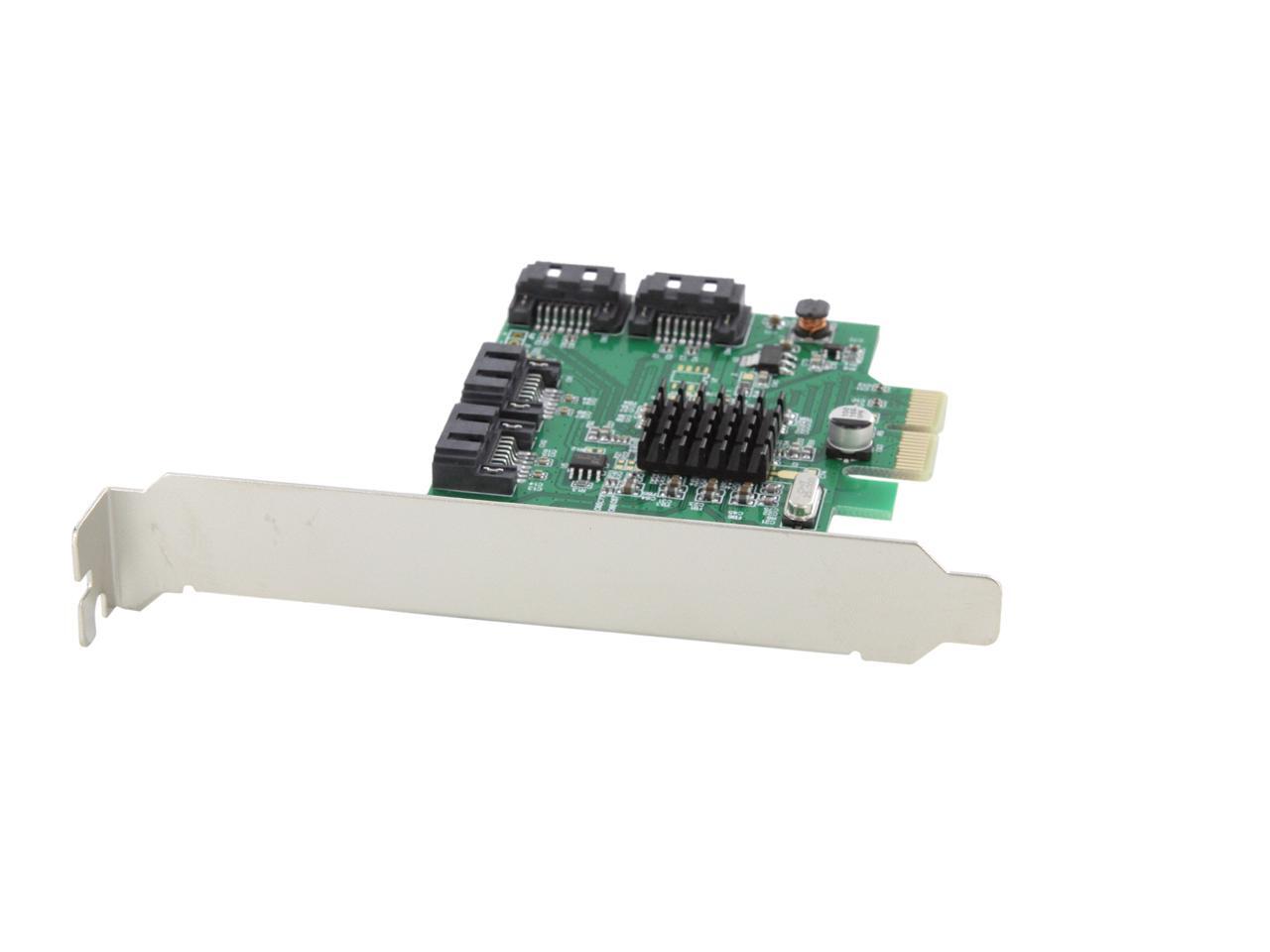

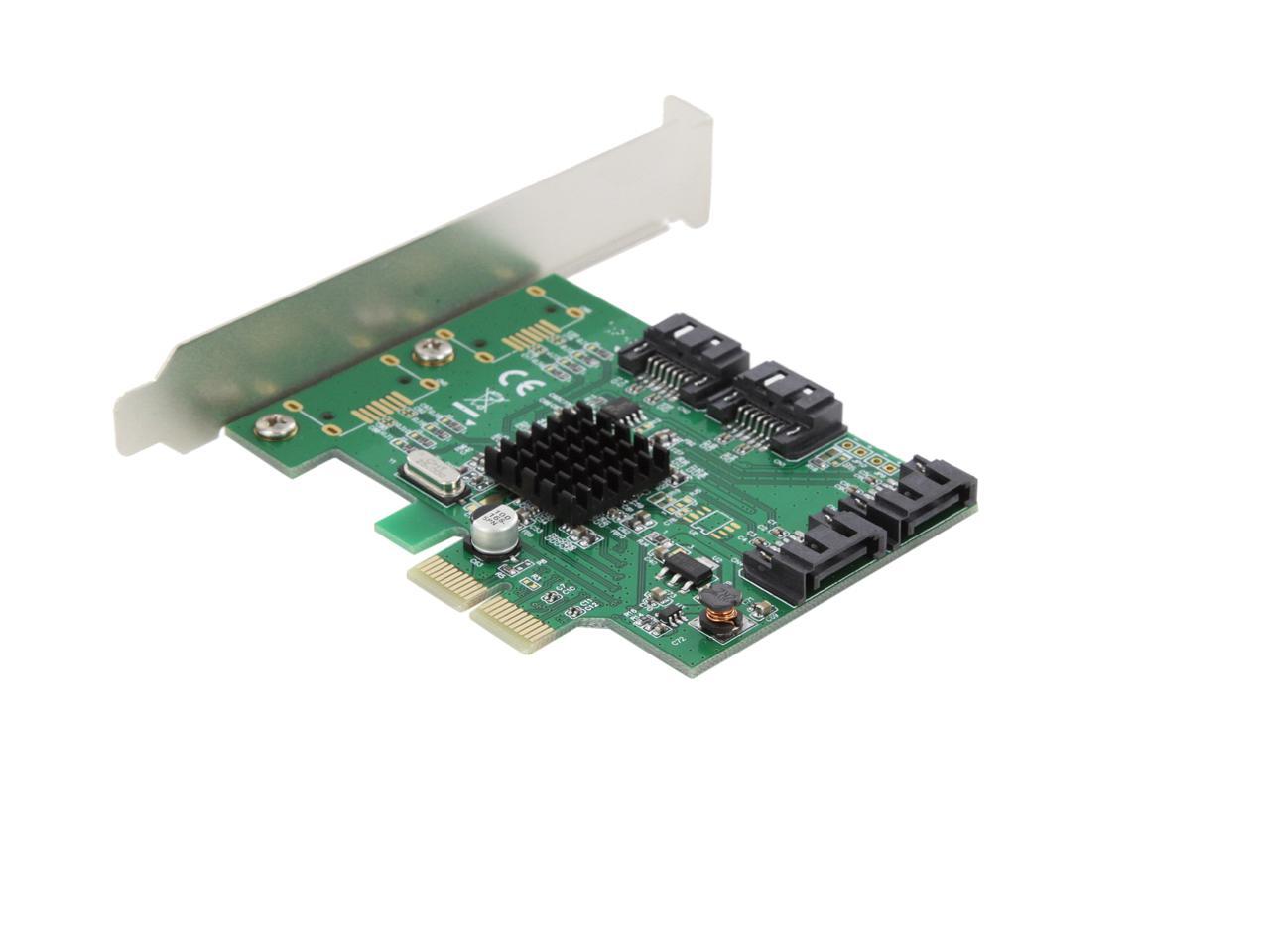

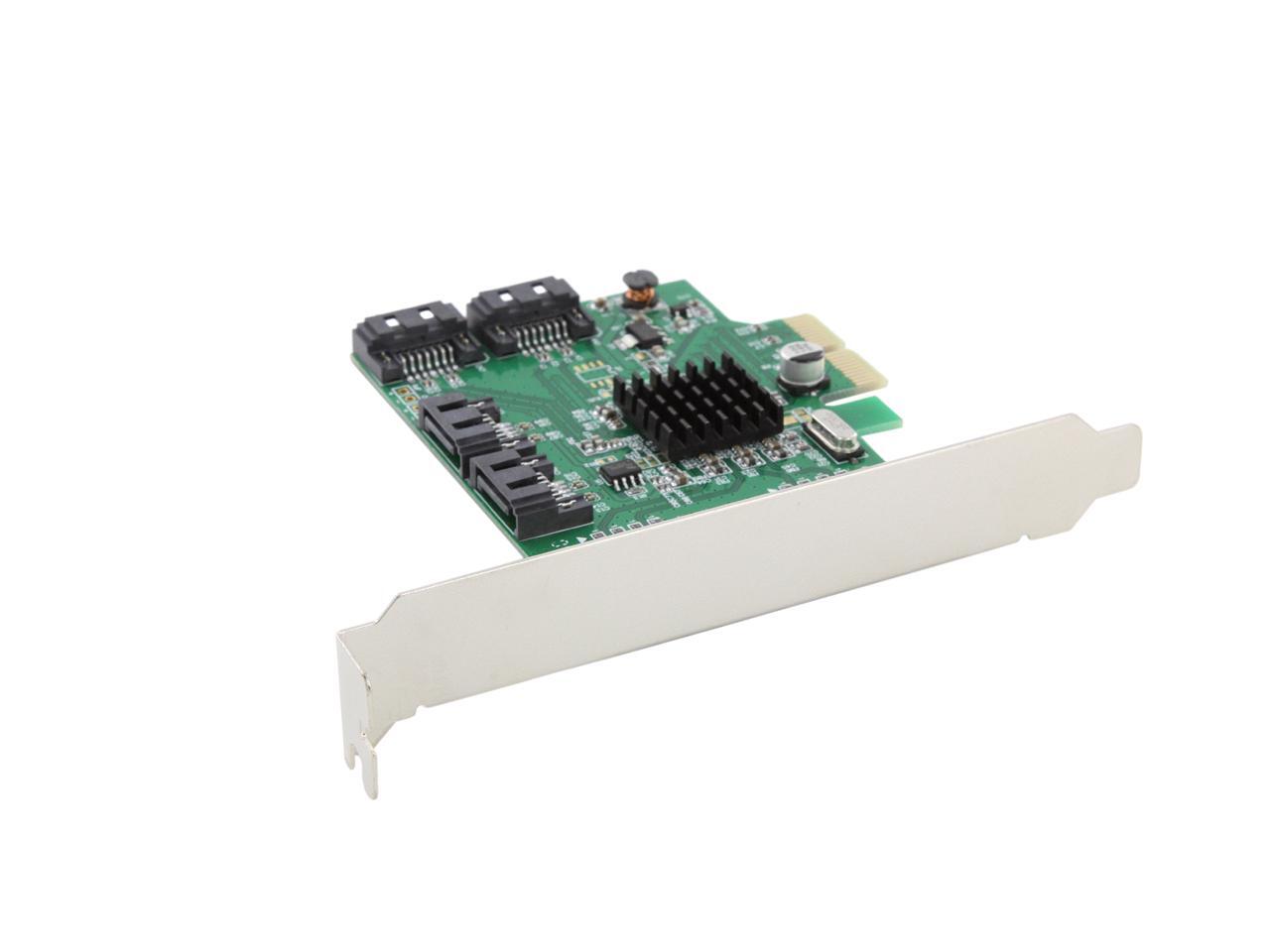

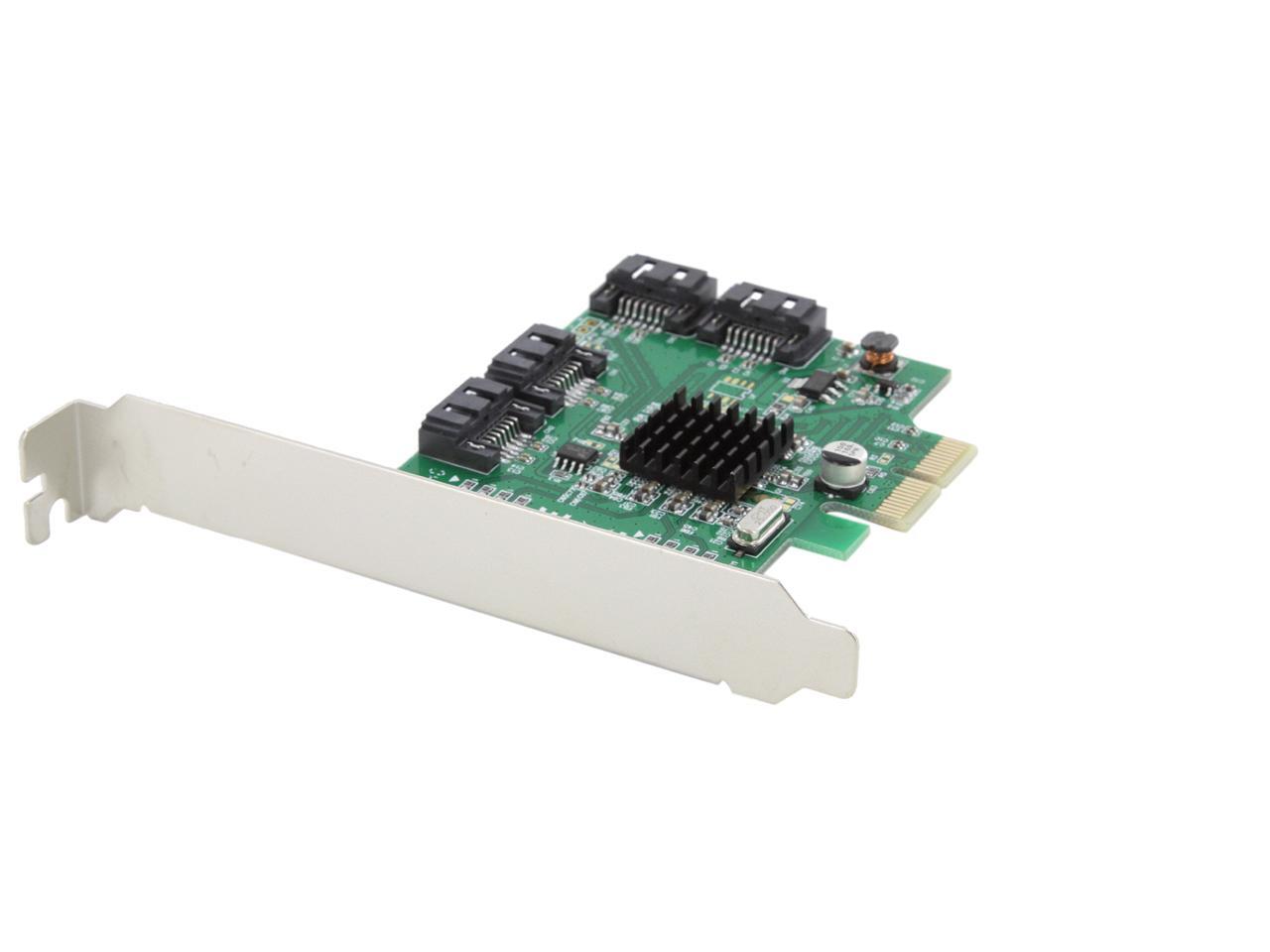

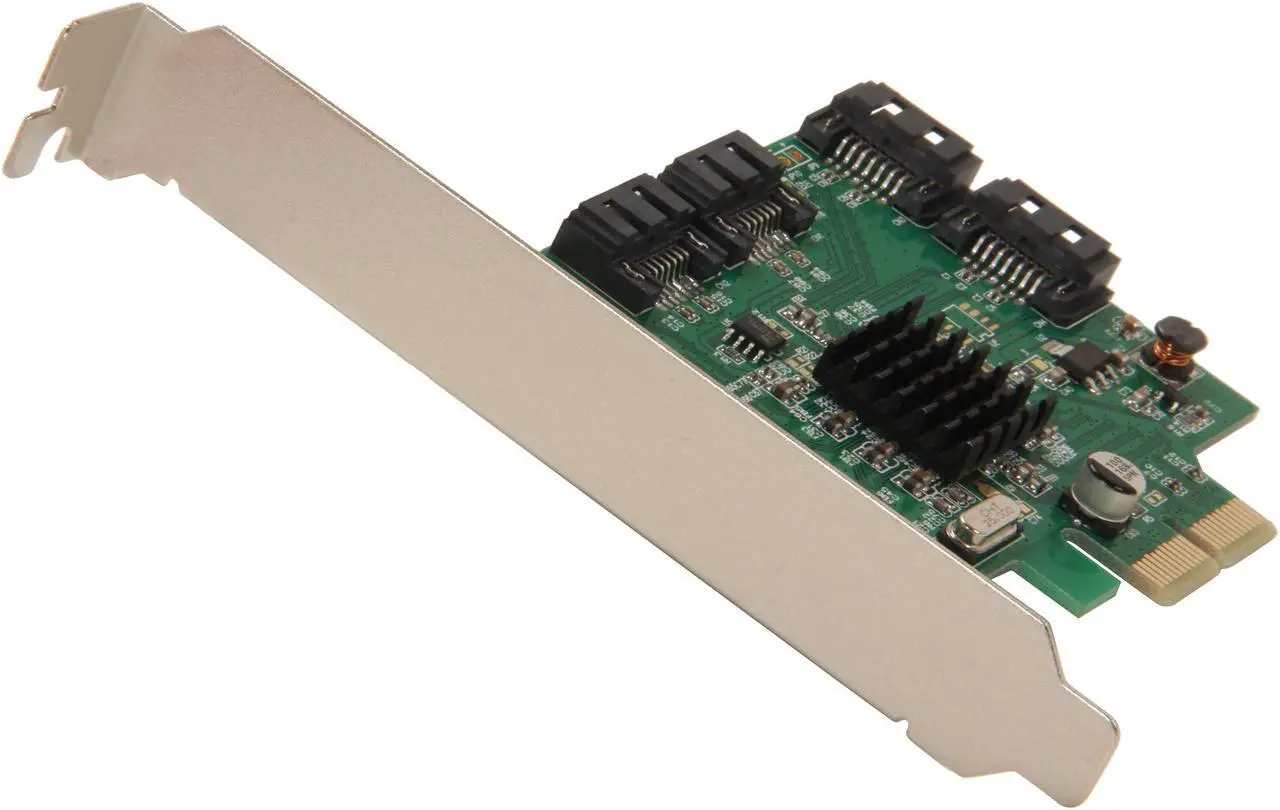

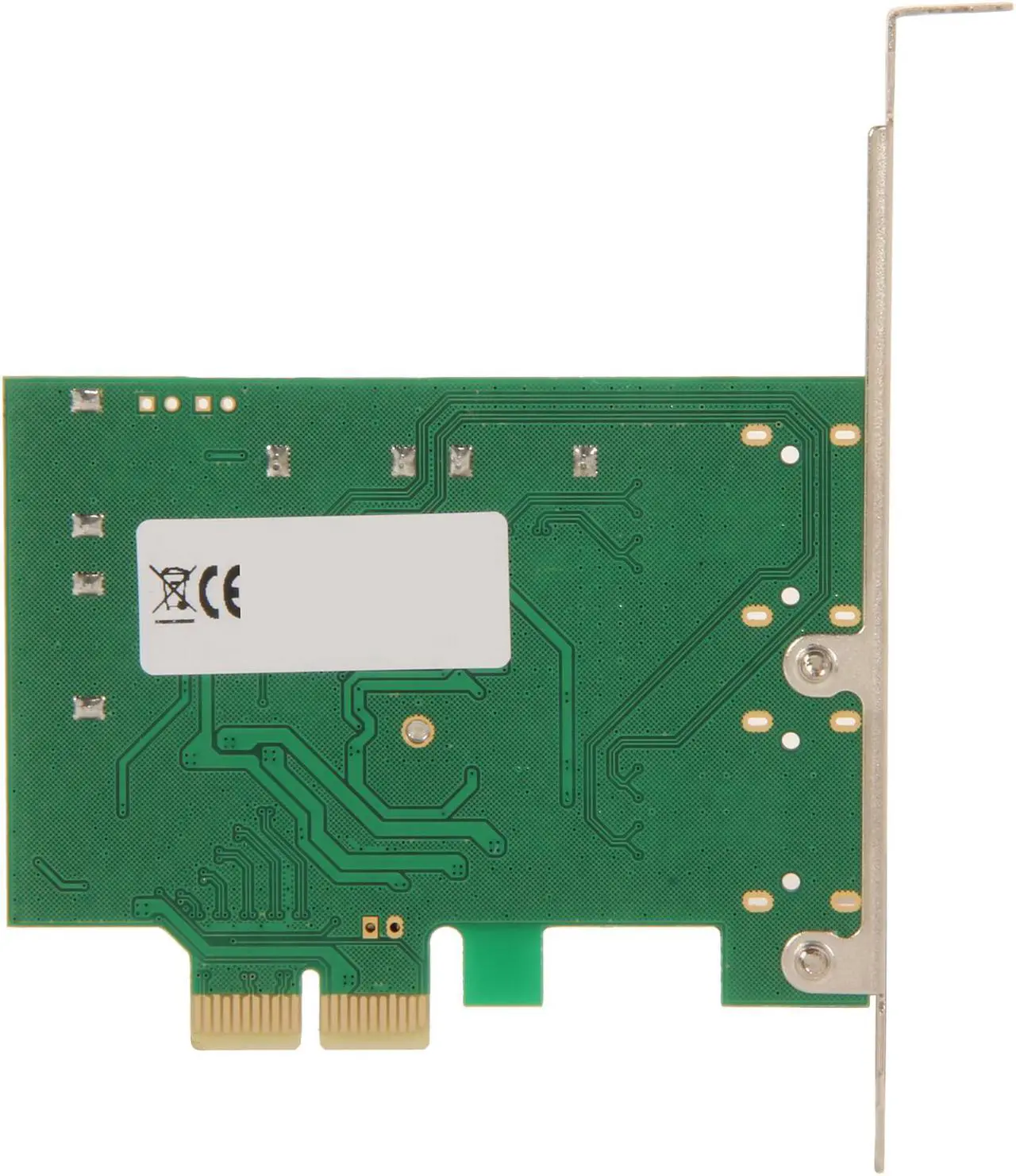

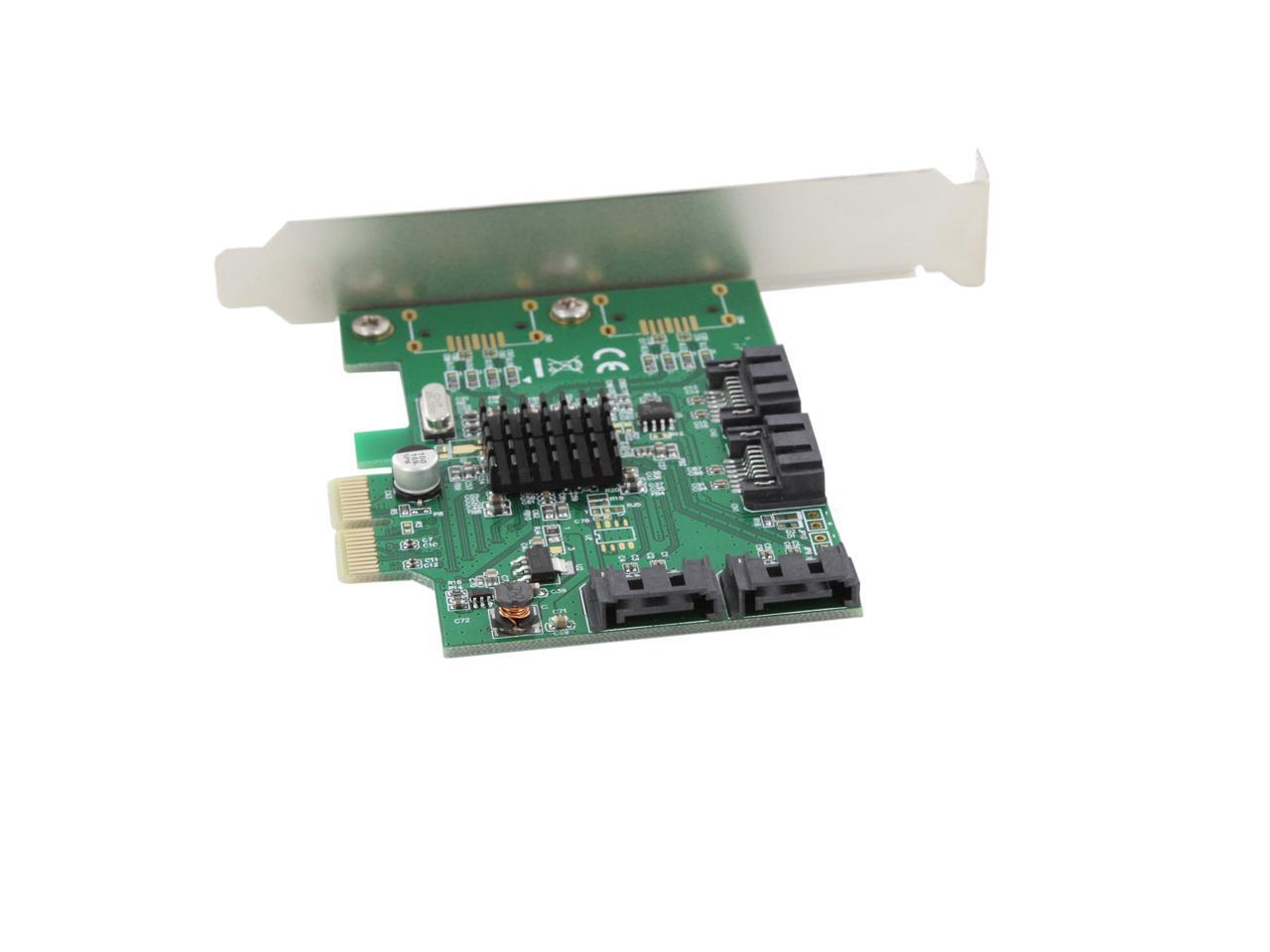

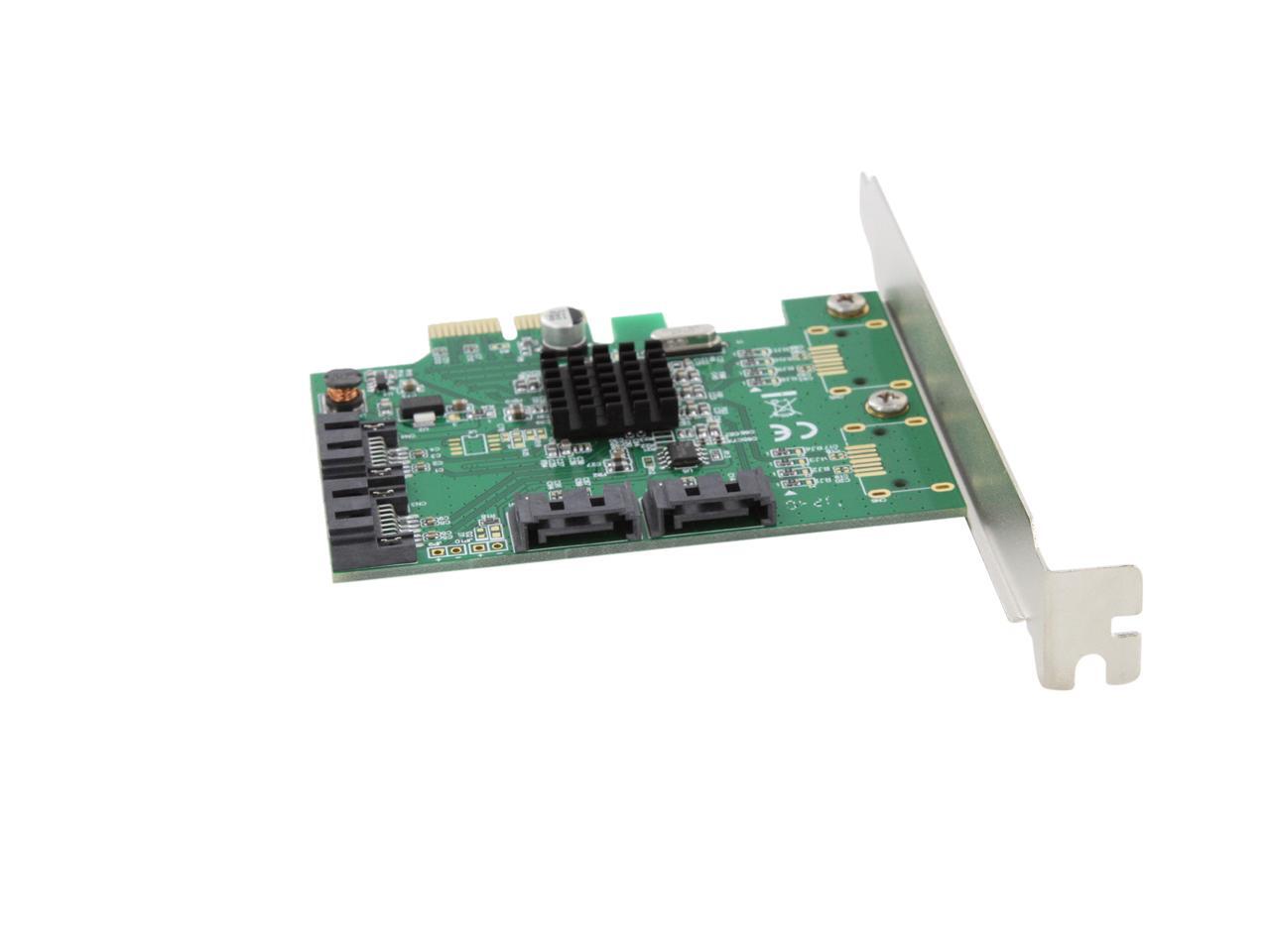

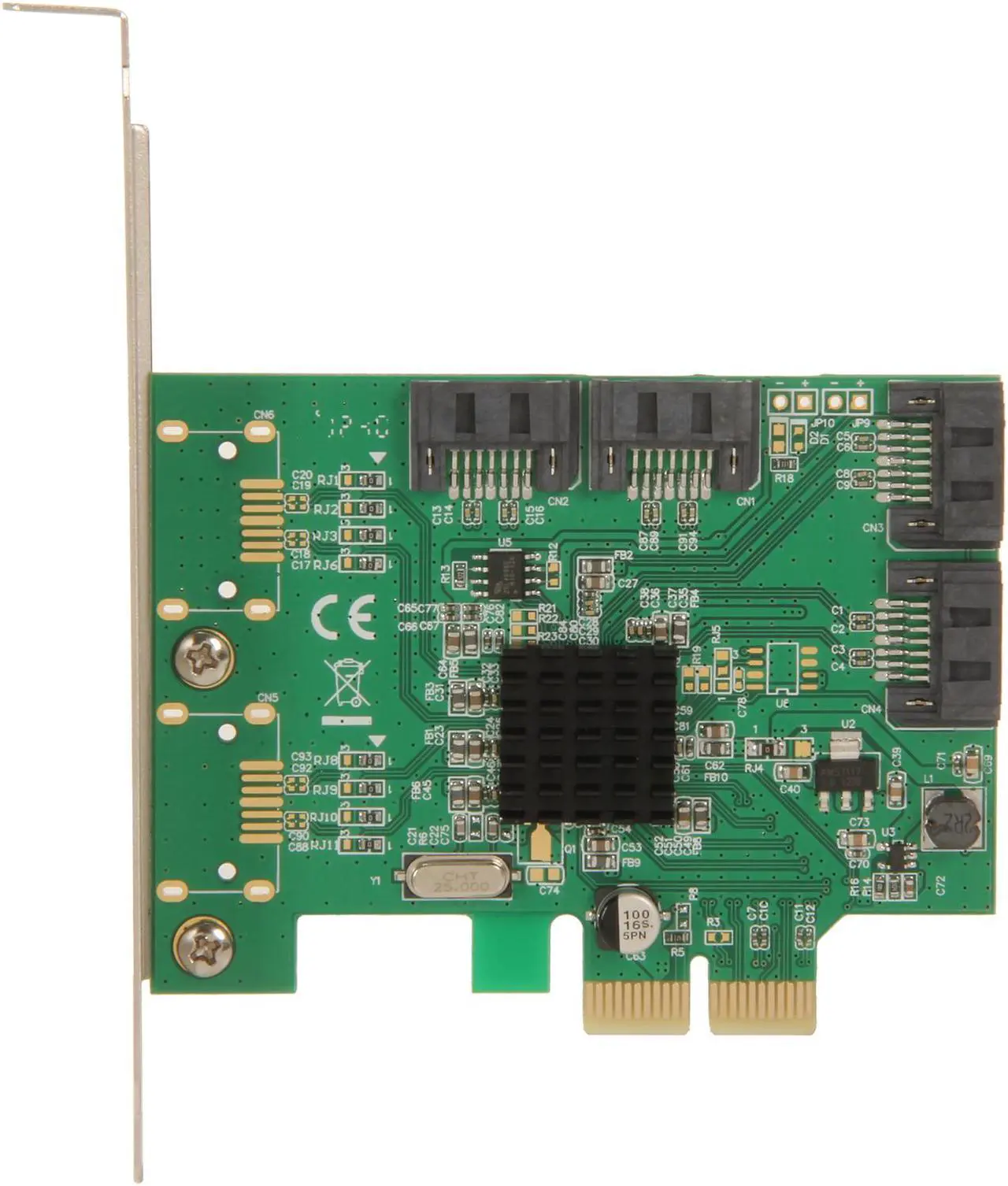

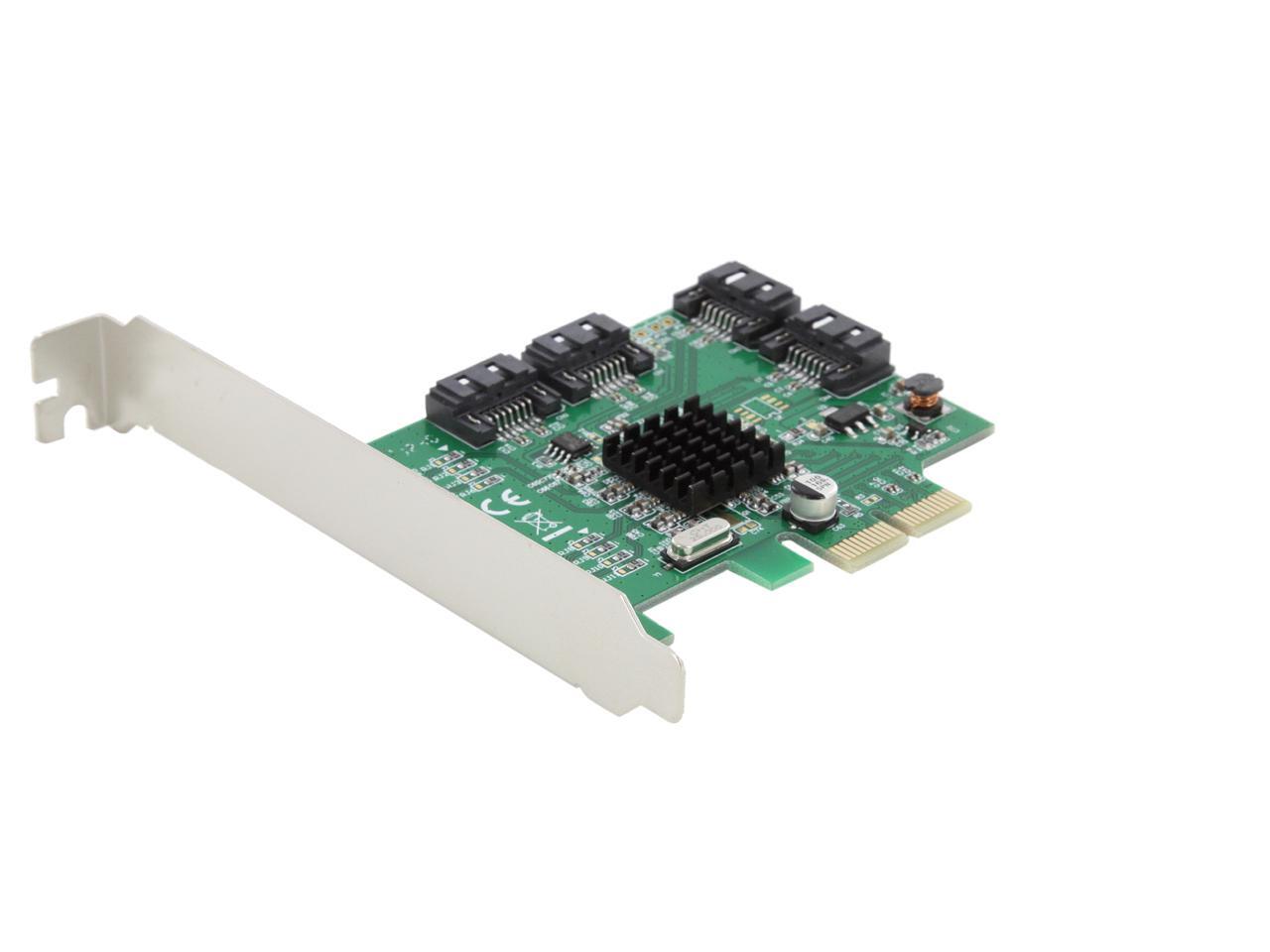

SYBA SI-PEX40057 PCI-Express 2.0 x2 Low Profile SATA III (6.0 Gb/s) 4-port RAID Card
- RAID 0 / 1 / 10
- 4 x SATA 6.0 Gb/s Internal Connectors
- Up to 6 Gb/s
+
+
Overview
Specs
Reviews (47)
A PCI-e version 2.0, x2 slot card from IOCREST, uses the est Marvell 88SE9230 Chipset single chip 4-port Gen III 6Gb/s host controller. Each PCI-Express 2.0 lane provides up to 500Mb/s of throughput.
Manufacturer Part NumberSI-PEX40057Product Name4-port SATA III PCI-e Version 2.0, x2 Slot Controller CardProduct TypeSATA ControllerHost InterfacePCI Express 2.0 x2Controller TypeSerial ATA/600RAID SupportedYesRAID Levels
Manufacturer Part NumberSI-PEX40057Product Name4-port SATA III PCI-e Version 2.0, x2 Slot Controller CardProduct TypeSATA ControllerHost InterfacePCI Express 2.0 x2Controller TypeSerial ATA/600RAID SupportedYesRAID Levels
- 0
- 1
- 10

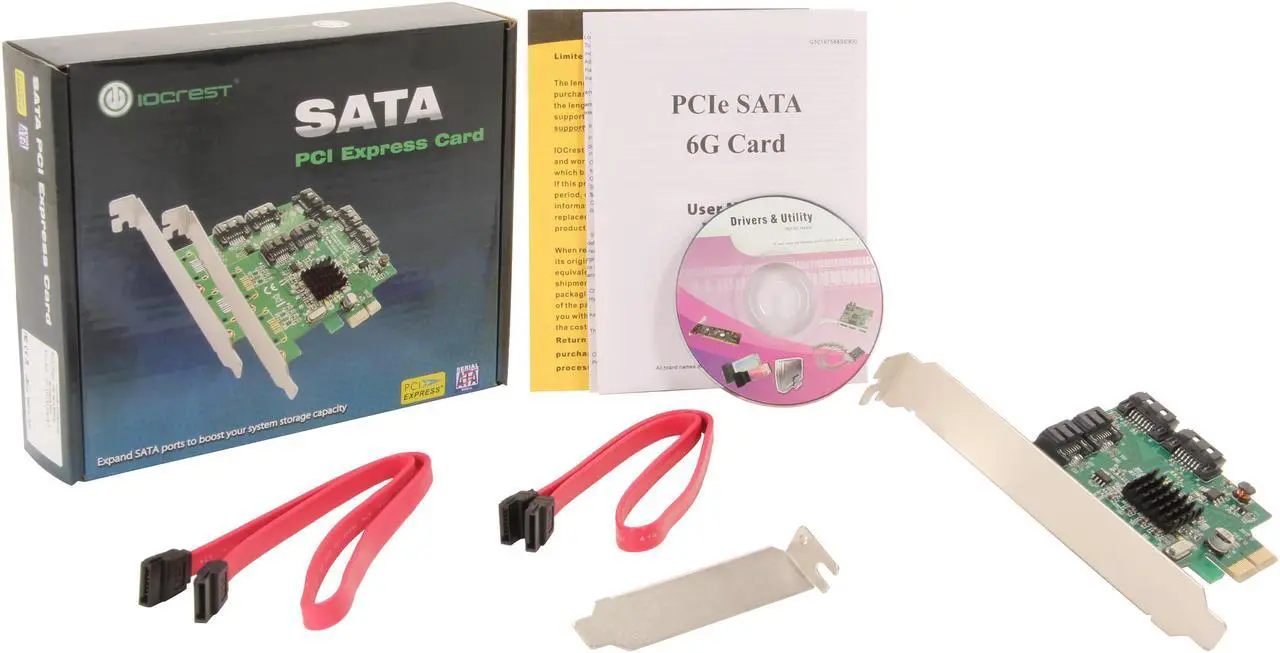

- 4-port SATA III PCI-e Version 2.0, x2 Slot Controller Card
- 2 x 19" SATA Cables
- Driver CD

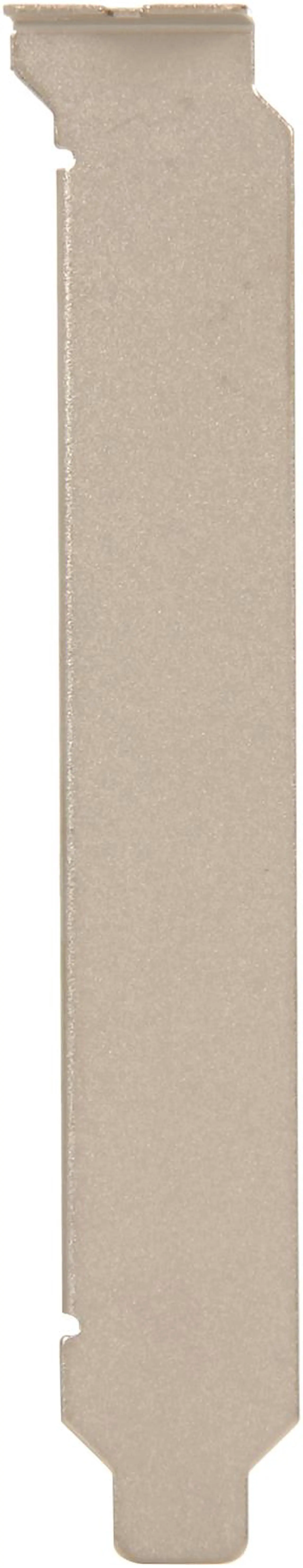

- Standard and Low Profile Brackets
- User Manual
The SYBA SI-PEX40057 RAID card gives you an easy way to add additional four internal SATA III ports to your computer, through a single PCI Express slot. The SATA III ports offer a blazing-fast speed of 6Gbps, while remaining backward compatible with the SATA I and SATA II specifications. It provides full RAID functionalities, and supports Port Multiplier FIS Based or Command Based switching, ensuring maximum performance.
Additionally, this card is bootable, and features hot plug and hot swap functions. The included low-profile bracket makes installation in compact cases a breeze.
Four SATA III ports
The SYBA SI-PEX40057 RAID card adds up to four internal SATA III ports to your computer system, allowing you to easily connect four additional HDD/SSD drives.
High Speed
The SATA III ports deliver a blistering fast data transfer speed of up to 6Gbps, letting you transfer monstrous amounts of data in seconds. They are also backward compatible with SATA I (1.5Gbps) and II (3Gbps) standards.
Excellent RAID Function
The SYBA SI-PEX40057 RAID card boasts a rich set of RAID functionalities, including:
- RAID 0-Striping (Stripe Size: 32K, 64K)
- RAID 1-Disk Mirroring
- RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
- HyperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Port Multiplier Support
Thanks to the built-in support for SATA Port Multipliers with FIS-based switching or Command Based switching, this card can allows you to easily connect more HHDs/SSDs at once.
Note: *This card does not support more than four Drives for Linux and Mac OS. Even if used with a port multiplier, max drives accepted is four drives.
Native Command Queue (NCQ) Support
This card supports Native Command Queue (NCQ), allowing hard disk drives to internally optimize the order in which received read and write commands are executed. This can reduce the amount of unnecessary drive head movement, resulting in increased performance.
Hot- Swapability
This card supports hot plug and hot swap functions. Simply plug it into your computer system, and it’s ready to work.
Great Compatibility
The SYBA SI-PEX40057 RAID card is compliant with PCI-Express specification V2.0. The PCI-Express x2 interface is compatible with PCI-Express x4, x8, and x16 slots.
Low Profile Ready
With the included low-profile bracket, this card can be effortlessly installed into desktop computers of various sizes.
