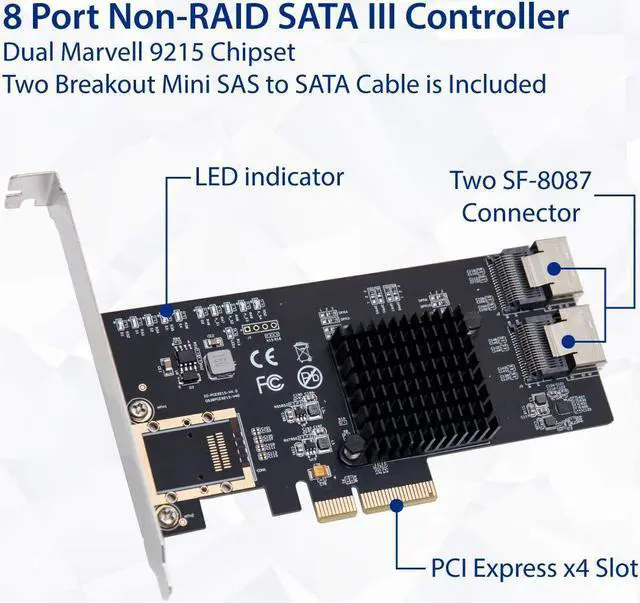

SYBA SIPEX40137 8 Port SATA III PCI-e x4 Controller Card - Dual SFF-8087 Interface Marvell 9215 Chipset

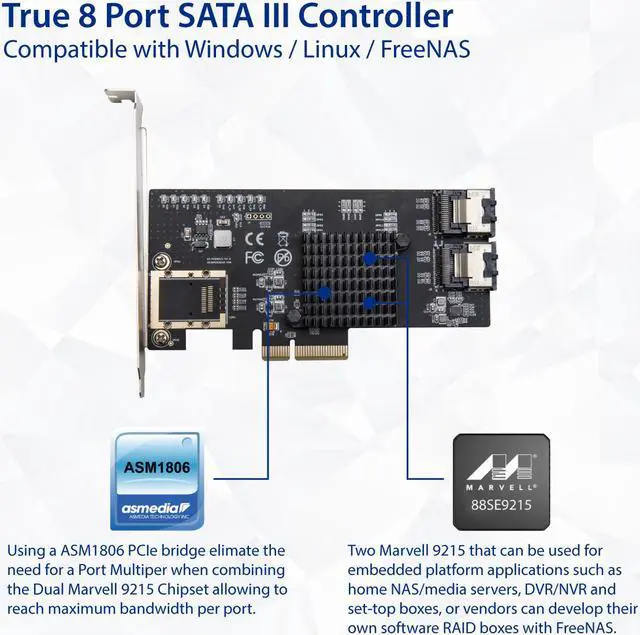

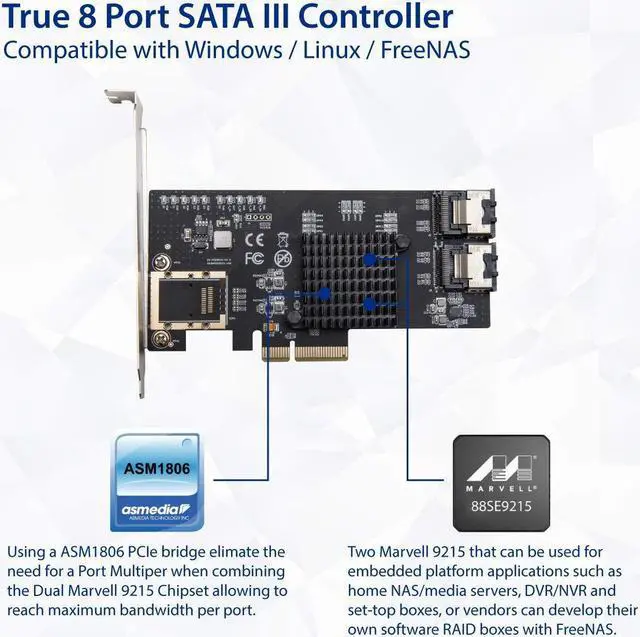

- Using a ASM1806 PCIe bridge elimate the need for a Port Multiper when combining the Dual Marvell 9215 Chipset allowing to reach maximum bandwidth per port
- Compliant with PCI-Ecpress Specification v2.0 and backwards compatible with PCI-E 1.x
- Supports Communication Speeds: 6.0 Gbps, 3.0 Gbps, 1.5 Gbps
- Support Native Command Queue (NCQ). Support Hot plug and Hot Swap
- Supports AHCI 1.0 programming interface registers for the SATA controller
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

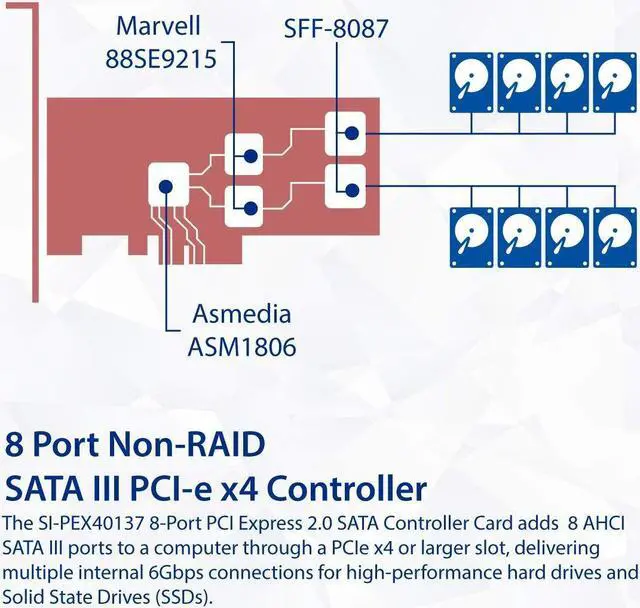

The SI-PEX40137 8-Port PCI Express 2.0 SATA Controller Card adds 8 AHCI SATA III ports to a computer through a PCIe x4 or larger slot, delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). The SI-PEX40137 uses two Marvell 9215 that can be used for embedded platform applications such as home NAS/media servers, DVR/NVR and set-top boxes, or vendors can develop their own software RAID boxes with FreeNAS. This PCIe SATA 6gbps card is backed by a 3-year sybausa. com warranty and free lifetime technical support.
Host Interface: PCI Express 2.0 x4Controller
Type: Serial
ATA/600RAID Supported: YesTotal Number of
SAS Ports: 8Number of
SAS Ports (Internal): 8SAS
Connector Details: 2
SFF-8087Form Factor: Plug-in

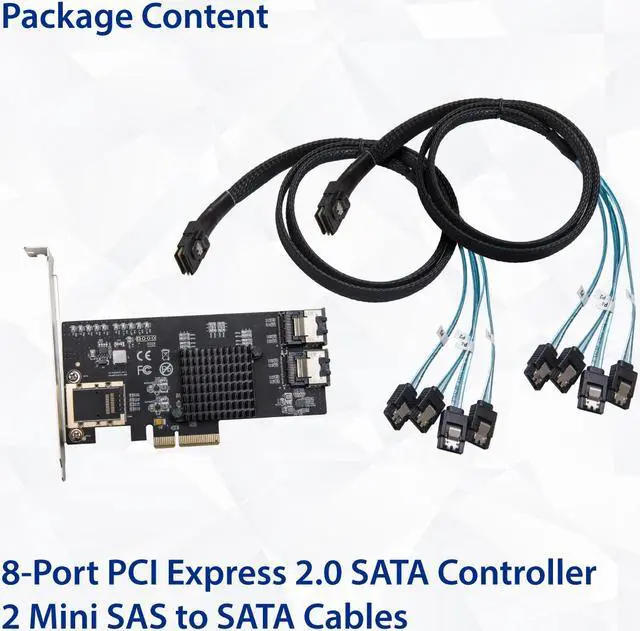

CardPackage Contents: 8 Port SATA PCIe x4 Controller Card 2 x Mini SAS to 4 SATA Break Out Cable 1 x Low Profile Bracket 1 x User Manual 1 x Driver CD
Platform Supported: PCPlatform
Supported: LinuxEnvironmentally
Friendly: YesEnvironmental
Certification: WEEE
Limited Warranty: 3 YearPackage Contents 8 Port SATA PCIe x4 Controller Card 2 x Mini SAS to 4 SATA Break Out Cable 1 x Low Profile Bracket 1 x User Manual 1 x Driver CD
Host Interface: PCI Express 2.0 x4Controller
Type: Serial
ATA/600RAID Supported: YesTotal Number of
SAS Ports: 8Number of
SAS Ports (Internal): 8SAS
Connector Details: 2
SFF-8087Form Factor: Plug-in
CardPackage Contents: 8 Port SATA PCIe x4 Controller Card 2 x Mini SAS to 4 SATA Break Out Cable 1 x Low Profile Bracket 1 x User Manual 1 x Driver CD
Platform Supported: PCPlatform
Supported: LinuxEnvironmentally
Friendly: YesEnvironmental
Certification: WEEE
Limited Warranty: 3 YearPackage Contents 8 Port SATA PCIe x4 Controller Card 2 x Mini SAS to 4 SATA Break Out Cable 1 x Low Profile Bracket 1 x User Manual 1 x Driver CD
