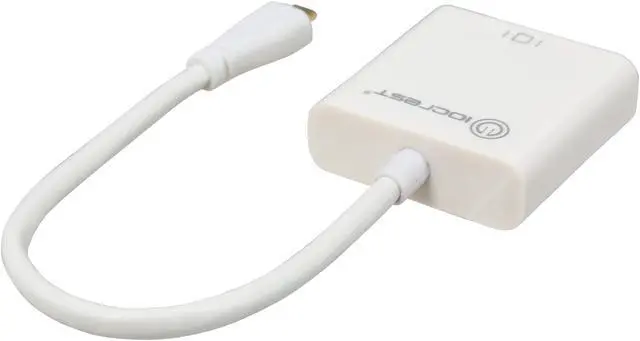

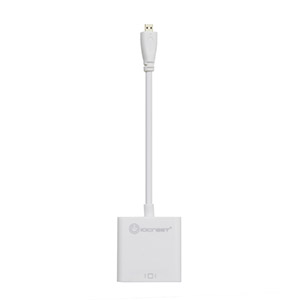

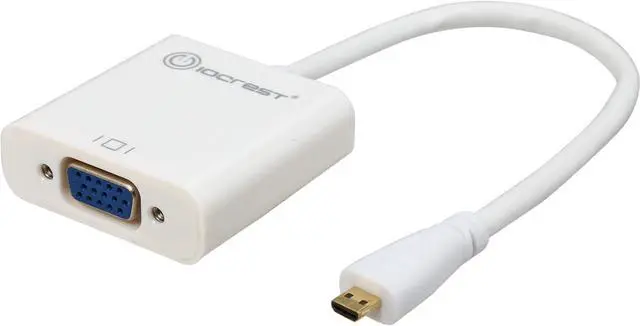

SYBA SY-ADA31045 Micro HDMI Male to VGA Female Adapter
Enables connection of micro HDMI devices to your VGA display and allows you to increase the workspace area for smaller devices. This is a low-power semiconductor that consists of an HDMI receiver, and three separate 9-bit video Digital-to-Analog Converters (DACs), which can convert HDMI signals into VGA outputs at a maximum conversion rate of 200MHz. The HDMI receiver is compliant with HDMI1.4b. The DACs are based on current source architecture, and the VGA output meets VESA VSIS v1r2 clock jitter target.
Specifications
- Supports Micro HDMI Standard Norm
- Compliant with HDMI 1.4 specification
- Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.
- Supports VESA and CEA timing standards up to WUXGA 1920 x 1200 @ 60MHz and 1920 x 1080 @ 60MHz.
- Integrated EDID buffer
- VGA/HDMI connection detection supported
- Supports Auto Power Saving mode and low stand-by current
- Plug and Play, Driverless Installation
- Adapter is 9.8 in. Long (Cable is 6.4 in.)
What's in the Box

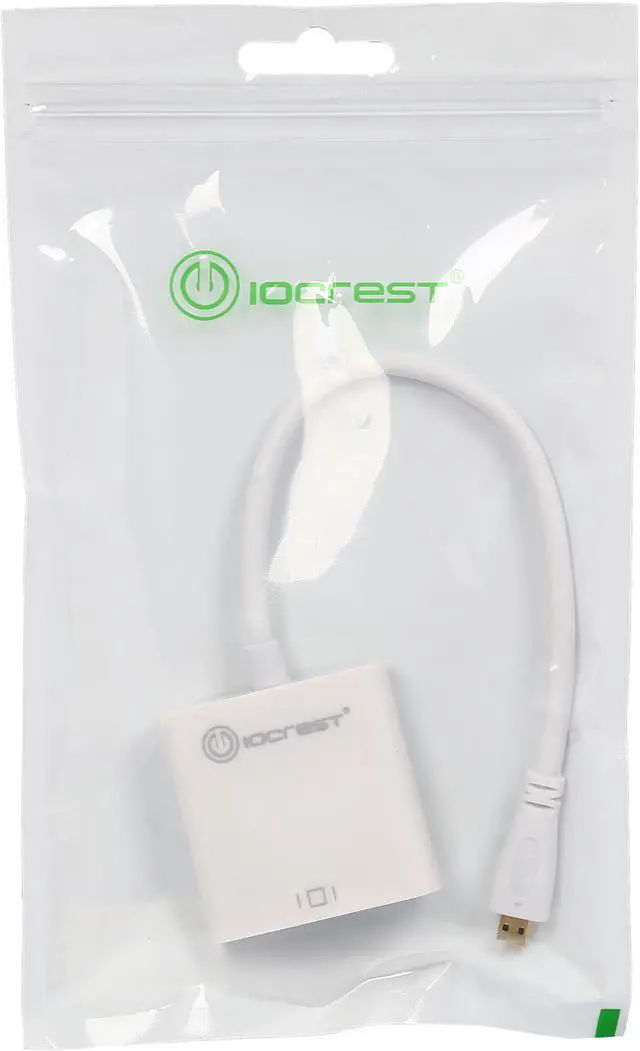

- Micro HDMI to VGA Adapter
Enables connection of micro HDMI devices to your VGA display. Allows you to increase the workspace area of smaller devices. This is a low power semiconductor that consists of an HDMI receiver, three separate 9-bit video Digital-to-Analog Converters(DAC) and audio encoder, which can convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with IIS or SPDIF audio output. The HDMI receiver is compliant with HDMI1.4b. The DACs are based on current source architecture, and the VGA output meets VESA VSIS v1r2 clock jitter target.Cable Type: HDMI/VGACable Length: 6.40Connector on First End: 1 x HDMI (Micro Type D) Male Digital Audio/VideoConnector on Second End: 1 x 15-pin HD-15 Female VGADevice Supported: Video DeviceColor: WhiteLimited Warranty: 1 Year"
