Syba SY-MRA25060 2.5" U.2 NVMe Drive to PCI Express x16 Slot Card or SATA III SSD/HDD PCI Mount

U.2 NVMe drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0.

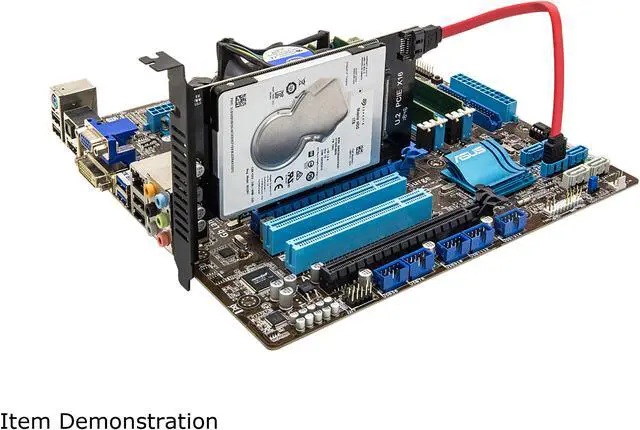

The 2.5” SATA Drive is directly powered by the PCIe slot, but the data is not pass-through the PCIe slot. A SATA cable is require to connected to the SATA port and connect it directly to any free SATA port on the motherboard.
When install OS with NVMe SSD, please make sure Motherboard BIOS can be support PCIE SSD to boot up. For Windows Server 2012 R2 or the latest OS have included NVMe SSD driver. When use the old OS that you must install the driver that provide from the SSD vendor.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

2.5IN U 2 NVME TO PCIE X16 CARD SATA III SSD/HDD PCI MOUNT

Details
Mobile Rack Drives Support	1 x 2.5" Drive to PCI Slot
Mobile Rack Interface	U.2
Protection Case	Single Drive
Compatible Products	2.5"

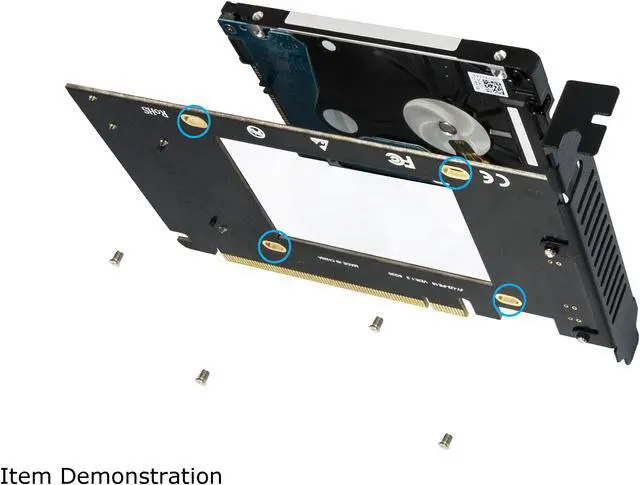

Specifications	The SY-MRA25060 allows you to install a 2.5-inch PCIe-NVMe U.2 SSD drive (such as Intel 750 U.2 SFF) on a PCI Express 3.0 x16 card slot to your PC System without any cables. It's the best and easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets! The SY-MRA25060 have a dual function able to mount a standard 2.5" SATA III HDD. The 2.5" SATA Drive is directly powered by the PCIe slot, but the data is not pass-through the PCIe slot. A SATA cable is require to connected to the SATA port and connect it directly to any free SATA port on the motherboard.

Features
Features	PCIE X4 transfer protocol M.2 NGFF solid-state hard drive is divided AHCI protocol and NVME protocol two, Windows 7 can not recognize the NVME protocol solid-state hard drive, which requires special attention! U.2 NVMe drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. The 2.5" SATA Drive is directly powered by the PCIe slot, but the data is not pass-through the PCIe slot. A SATA cable is require to connected to the SATA port and connect it directly to any free SATA port on the motherboard. When install OS with NVMe SSD, please make sure Motherboard BIOS can be support PCIE SSD to boot up. For Windows Server 2012 R2 or the latest OS have included NVMe SSD driver. When use the old OS that you must install the driver that provide from the SSD vendor.
Package Contents	1 x U.2 PCIe x16 Adapter 1 x Screw driver 4 x Screws 1 x SATA Cable 1 x PCI Screw

Additional Information
First Listed on Newegg	November 18, 2019

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days
