    Sysracks 42U Floor Standing Server Rack Cabinet, 24-Inch Deep, for 19-Inch EIA-310 Equipment, Mesh Doors and Thermostat

    • 32U
    • 37U
    • 42U
    • 42U Floor Standing Server Rack Cabinet - Enclosed 19-Inch rack cabinet for IT installers and network integrators deploying switches, patch panels, routers, servers, UPS, AV and telecom equipment.
    • 24-Inch Deep Network Rack - Cabinet measures 42U high by 24 inches wide by 24 inches deep, with 21-Inch usable depth for network closets, IT rooms and office infrastructure layouts.
    • 1600 lbs Static Load Capacity - Reinforced steel frame supports network switches, UPS units, servers and other rackmount infrastructure hardware.

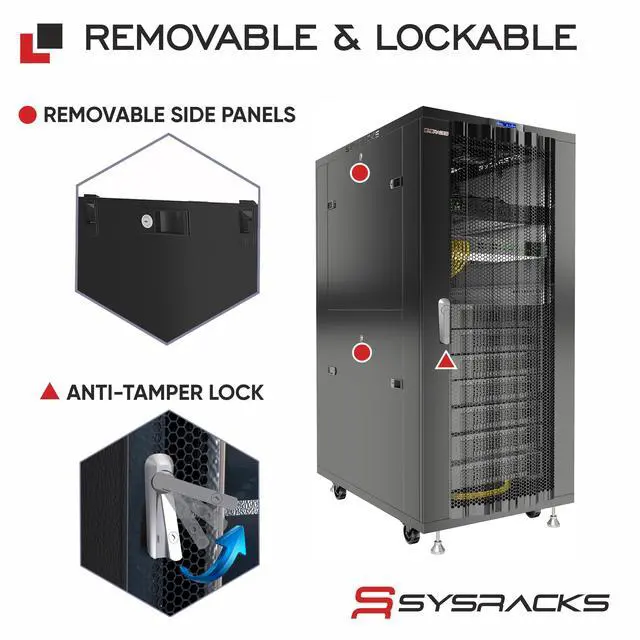

    • High-Airflow Mesh Doors - Steel mesh front and rear doors with hexagonal perforation plus lockable and removable side panels support secure access and ventilation.
    • Deployment Accessories Included - Includes 4-fan cooling panel rated at 440 m3/h, thermostat with sensors, LCD screen, 8-socket PDU, fixed vented shelf, casters, leveling feet, brush cable entries and mounting hardware.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Ventilated Floor-Standing Server Rack Cabinets

    Ventilated Floor-Standing Server Rack Cabinets

    Merchant Video

    Mesh-door floor-standing rack cabinets optimized for airflow and heat dissipation in IT, network and AV installations using full-size 19-inch equipment.

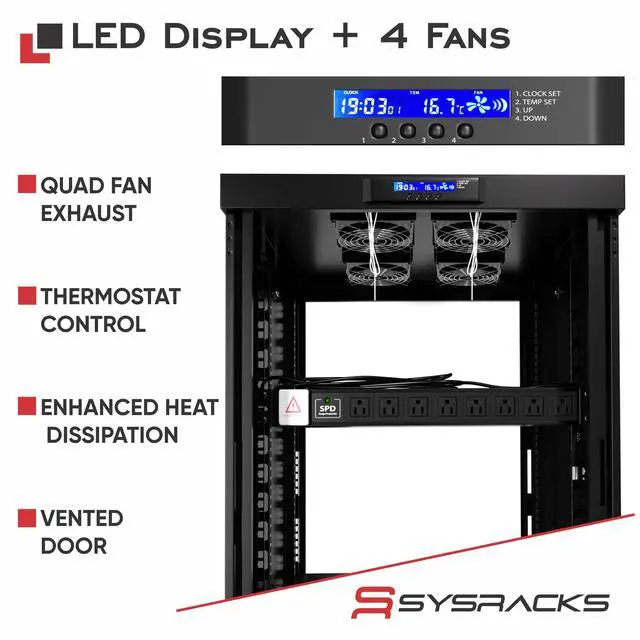

    Smart Temperature-Activated Cooling

    Server rack showing cool air drawn in through side panels and warm air rising toward top fans.

    Server rack showing cool air drawn in through side panels and warm air rising toward top fans.

    Sysracks Core Strengths

    Close-up view of a server rack frame corner

    Industrial-Grade Steel

    Thick steel frame and reinforced construction provide high rigidity and load stability for professional IT equipment

    Close-up of a perforated server rack panel.

    Whisper-Quiet Cooling

    Perforated panels and fan-ready airflow paths ensure efficient cooling while maintaining low noise levels

    ultra-clean macro product photography image

    Precision-Built Quality

    Laser-cut components and precise alignment deliver clean geometry, tight tolerances, and long-term durability

    Interior view of a server rack with neatly organized cabling

    Organized Cabling

    Multiple cable entry points and internal routing channels keep layouts clean, accessible, and airflow-friendly

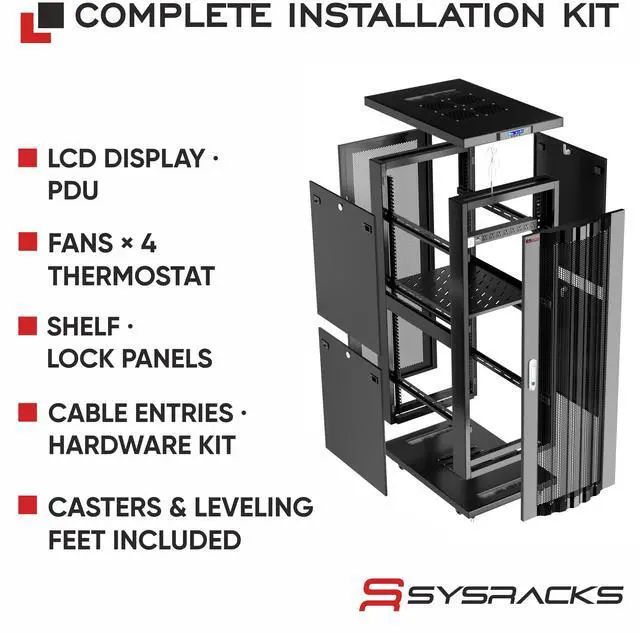

    Included Accessories for Complete Deployment

    Server rack accessories displayed on white background including rackmount PDU cooling fans

    Includes rackmount PDU, cooling fans, steel shelf, locking casters, leveling feet, cage nuts, mounting hardware and brush cable entry panels.

    19” EIA-310 Compliant Rack Cabinet System

    TECH SPECS MATRIX floor standing racks MESH BLACK

    Designed around the 19-inch EIA-310 standard with defined depth options, adjustable mounting rails and support for professional IT and AV equipment.

    • Mesh maximizes airflow for high-density equipment.

      It supports efficient heat removal.

    • Yes, it helps remove hot air faster.

      This lowers operating temperatures

    • Slightly, but it greatly improves cooling performance.

      Most IT rooms benefit from better airflow.

    • Yes, especially in dedicated IT areas.

      They balance performance and accessibility.

    • Absolutely, PoE systems generate more heat.

      Mesh doors help maintain thermal stability.

    Ventilated Floor-Standing Server Rack Cabinets

    Ventilated Floor-Standing Server Rack Cabinets

    Merchant Video

    Mesh-door floor-standing rack cabinets optimized for airflow and heat dissipation in IT, network and AV installations using full-size 19-inch equipment.

    Smart Temperature-Activated Cooling

    Server rack showing cool air drawn in through side panels and warm air rising toward top fans.

    Server rack showing cool air drawn in through side panels and warm air rising toward top fans.

    Sysracks Core Strengths

    Close-up view of a server rack frame corner

    Industrial-Grade Steel

    Thick steel frame and reinforced construction provide high rigidity and load stability for professional IT equipment

    Close-up of a perforated server rack panel.

    Whisper-Quiet Cooling

    Perforated panels and fan-ready airflow paths ensure efficient cooling while maintaining low noise levels

    ultra-clean macro product photography image

    Precision-Built Quality

    Laser-cut components and precise alignment deliver clean geometry, tight tolerances, and long-term durability

    Interior view of a server rack with neatly organized cabling

    Organized Cabling

    Multiple cable entry points and internal routing channels keep layouts clean, accessible, and airflow-friendly

    Included Accessories for Complete Deployment

    Server rack accessories displayed on white background including rackmount PDU cooling fans

    Includes rackmount PDU, cooling fans, steel shelf, locking casters, leveling feet, cage nuts, mounting hardware and brush cable entry panels.

    19” EIA-310 Compliant Rack Cabinet System

    TECH SPECS MATRIX floor standing racks

    Designed around the 19-inch EIA-310 standard with defined depth options, adjustable mounting rails and support for professional IT and AV equipment.

    • Mesh maximizes airflow for high-density equipment.

      It supports efficient heat removal.

    • Yes, it helps remove hot air faster.

      This lowers operating temperatures

    • Slightly, but it greatly improves cooling performance.

      Most IT rooms benefit from better airflow.

    • Yes, especially in dedicated IT areas.

      They balance performance and accessibility.

    • Absolutely, PoE systems generate more heat.

      Mesh doors help maintain thermal stability.

    42U 24" Depth Server Rack Cabinet Sysracks SRF 42.6. 6 M Vented Mesh Hexagonal Perforation Front/Rear Doors. 42U 24" Depth Server Rack Cabinet Sysracks SRF 42.6. 6 M - Black 37U 24" Deep Server Rack Cabinet SRF-Series is latest edition in the Sysracks product line. Fully lockable, on casters and leveling feet, LCD Screen reporting working parameters, 8-socket Power Distribution Unit, improved ventilation system and other features will be a great asset in your next IT project. Improved Assembly Process (Supplied in 5 boxes), renewed design and HQ parts/hardware will absolutely surprise any user, no need special abilities or tools.


    Technical parameters:

    Dimensions: 42U 24"x24"x84"

    Depth: 24" (600mm)

    Color: Black

    Loading Capacity: Up to 1600 lbs.

    Coating: Powder paint with decreasing and anti-corrosive phosphate

    Weight: 202 lbs.

    Ventilation: Active - 4 cooling fan module (all models) and Temperature Control System Passive - air flow circulation due to perforated front door

    Features: Compatibility 19 Standard Server and other It/Telecommunication Equipment No need to pay extra to complete your next IT project - HQ Accessories Over $190

    Included: 4 fan cooling panel, capacity 440m3/h Air Temperature Control System (THERMOSTAT with sensors) 8-socket Power Distribution Unit Fixed vented shelf Heavy duty feet and casters with "brake" option Lockable latch handles Mounting hardware (Set of bolts/nuts - 50 pcs) Front / Rear doors - steel mesh Hexagonal Perforation (optionally, glass with hexagon perforated metal frame) Lockable and removable doors, side and rear panels dust-tight brush strip panels for cable entry U-marking mounting rails.


    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • CONTACT

    Return Policies

    Manufacturer Contact Info

    LOADING...

    The Sysracks SRF 42.6.6 M is a 42U enclosed server rack for IT installers and network integrators who need to house 19-inch rackmount servers, switches, UPS units, AV or telecom equipment, with a 1,600 lb static load capacity and cooling accessories included.

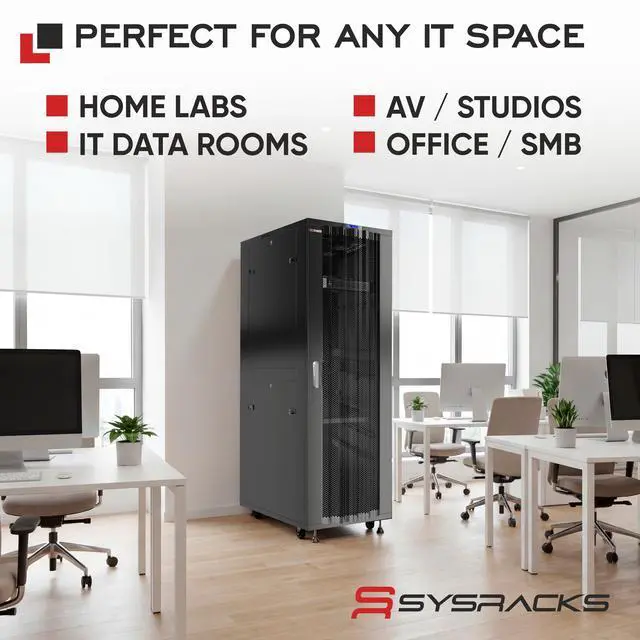

    Recommended For

    • Small-business IT teams and network integrators outfitting a dedicated equipment room with rackmount switches, routers, patch panels, and other 19-inch network gear.
    • Home-lab and self-hosting builders who want a full-height enclosed rack for expanding a NAS, server, and networking setup in a room with dedicated floor space.
    • Installers using switches, patch panels, and other relatively short equipment who need a 24-inch-deep cabinet rather than a deeper server enclosure; check each device’s depth and cable clearance before buying.
    • IT or telecom buyers who prefer an enclosed rack with mesh doors and want basic deployment accessories—such as fans, a thermostat, PDU, and shelf—included rather than sourcing each separately.

    Real-World Use Scenarios

    • In a small-office or building network closet, an installer can bring patch panels, switches, routers, and other short-depth network equipment into one lockable cabinet; the result is a more orderly, accessible place to manage connections. Check each device’s depth and rear-cable clearance before installation.
    • For a home lab built mainly around switches, patch panels, routers, and other shallow equipment, the cabinet can consolidate gear that might otherwise sit on shelves or in smaller racks, with room to add more rack-mounted equipment over time. Its 21-inch usable depth makes it a poor fit for many full-depth servers, so verify equipment and rail requirements first.
    • When replacing a shelf-based or open setup in an office or utility room, the enclosed cabinet can bring networking and telecom equipment behind lockable doors and provide a single place to route cables and access devices. Allow for its full height and for space to open the doors and service the rear.
    • In a closet or equipment room with rack-mounted devices that produce heat, the mesh doors and thermostat-controlled fans can support airflow through the cabinet. They help circulate air inside the rack but do not replace adequate room ventilation or cooling.
    • For a communications or AV installation with some non-rackmount devices, the included shelf can hold compatible equipment alongside rack-mounted gear, keeping related hardware in one cabinet. Confirm that each device fits the shelf and that its cables have enough room to connect.
