Brand | Tagan |
---|---|
Model | TG900-U96 |
Type | ATX12V / EPS12V |
---|---|
Maximum Power | 900 W |

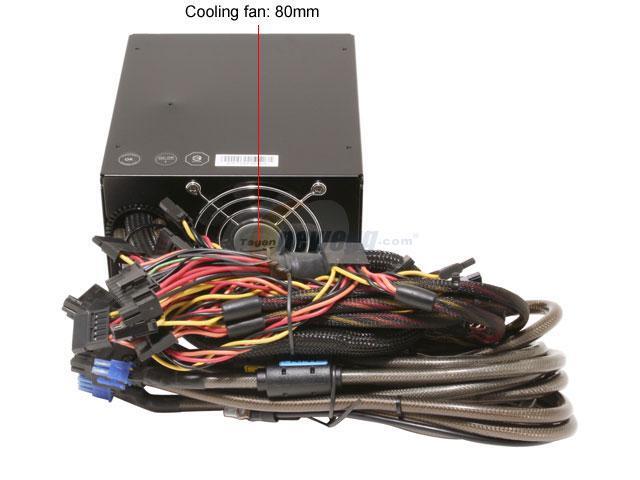

Fans | Dual Push-Pull Fans |
PFC | Active |

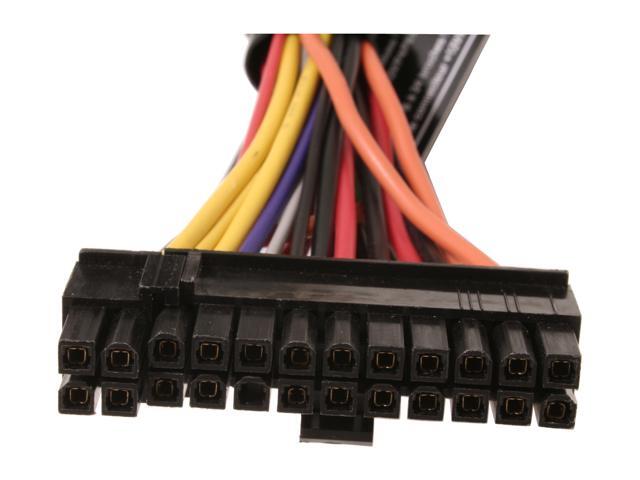

Main Connector | 20+4Pin |
+12V Rails | 6 |
PCI-Express Connector | 4 x 6-Pin |
SLI | SLI Certified |
CrossFire | CrossFire Ready |
Modular | No |
Hold-up Time | 16ms min. |
Efficiency | 75% minimum at 230VAC, 900W output. |
Over Voltage Protection | Yes |
Input Voltage | 100 - 240 V |
Input Frequency Range | 50/60 Hz |
Input Current | 15/8A |

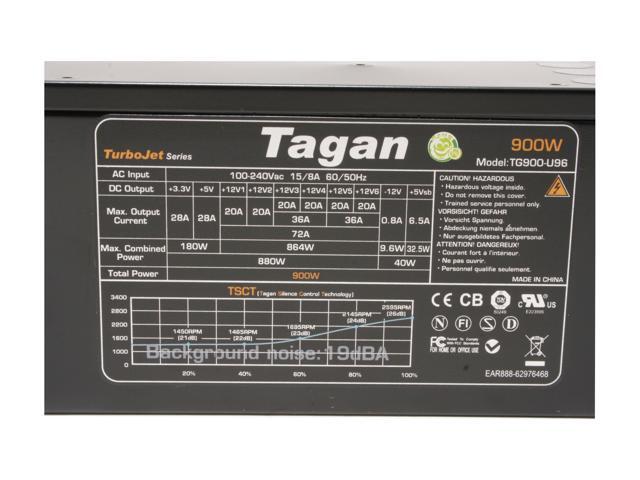

Output | +3.3V@28A,+5V@28A,+12V1@20A,+12V2@20A,+12V3@20A, +12V4@20A,+12V5@20A,+12V6@20A,-12V@0.8A,+5VSB@6.5A |
Approvals | TUV, UL, CE, FCC |

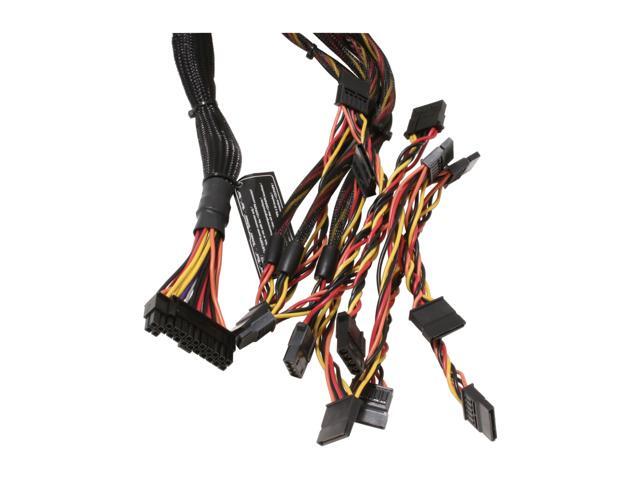

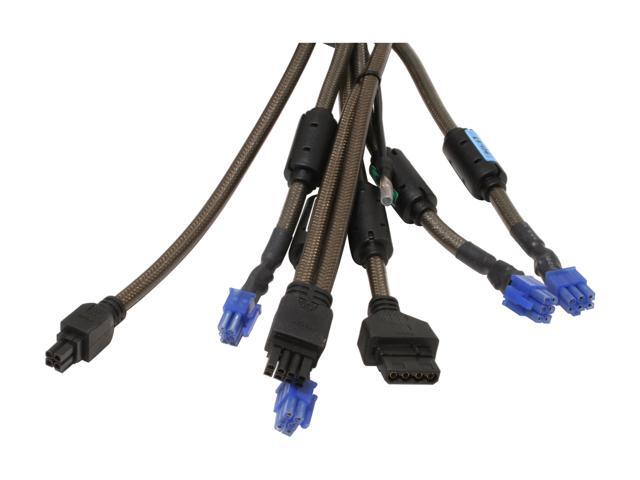

Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 3 x Peripheral 4 x PCI-E 6Pin 1 x VGA 4Pin 10 x SATA 2 x Floppy Combo-S2M Adapter (SATA to Molex) |
Features | Quad-SLi, Four Graphic Card |
---|
Date First Available | December 19, 2006 |
---|
Pros: Powerhouse. Tagan delivers. I checked reviews prior to buying Tagan the first time, and I've never been disappointed. This one is no exception.
Cons: Make sure you have a sufficiently sized Mid Tower or larger, as the modular cable design is NOT used with this PSU. Which is actually a good thing, as it's been known to cause issues and loss of capacitance.
Overall Review: It comes with it's own Leather briefcase??? This power supply weighs a lot! Be prepared for chiropractic care if you travel to LAN parties.
