TEAC AG-790 AM/FM Stereo Receiver

The affordable AG-790 is an AM/FM stereo receiver with an impressive amplifier section. Five inputs are switchable from the front panel or wireless remote – Video/Aux, Tape, Phono, CD and the Tuner. Included in the tuner section are 60 presets, and the Quartz PLL synthesized system allows manual or auto tuning.

Two sets of speakers can be switched from the AG-790. It drives 100 watts per channel to 8 ohm speakers, and a headphone output is also provided. For an affordable home, office or installation, the TEAC AG-790 offers flexibility with great sound quality.

• Discrete Output Circuit Configuration
• 100W + 100W RMS Output Power at 8Ω
• Quartz PLL Synthesized Tuning System
• 30FM and 30AM Station Presets
• Manual / Auto / Preset Tuning
• Multi-Function Fluorescent Display
• A/B Speaker Selection
• Binding Post Speaker Terminals
• Front Panel Headphone Output

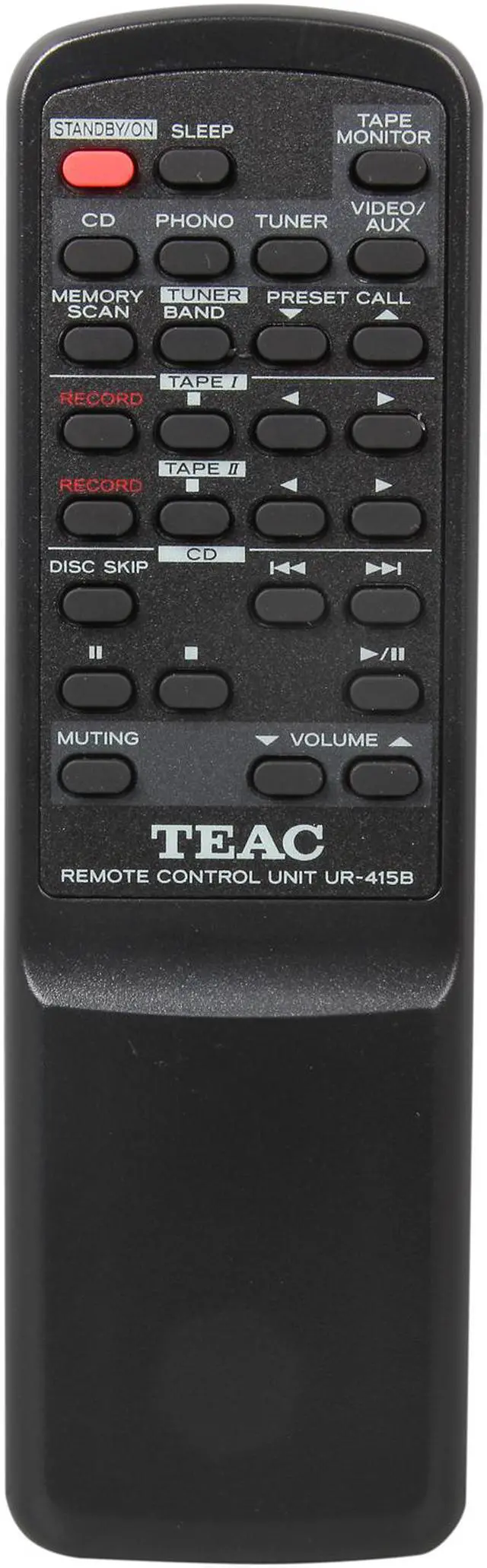

• Full Function TEAC "UR" Remote Control
• Output Power: 100W + 100W (6Ω, 1kHz, 0.9% THD)
  90W + 90W (8Ω, 1kHz, 0.9% THD)
• Audio Input: x 4
• Audio Output: x 1
• Speaker Terminal: Binding Post (four pairs)
• Auxiliary AC Outlet: x 2 (switched and unswitched, 1A max)
• Operation: 120VAC, 60Hz (US version)
• Dimension (W x H x D): 17-1/8 x 5-1/2 x 13 inches (435 x 140 x 330mm)
• Weight: 16.3lbs (7.4kg)
