Top specification breaks through the limit, unleashing the ultimate power

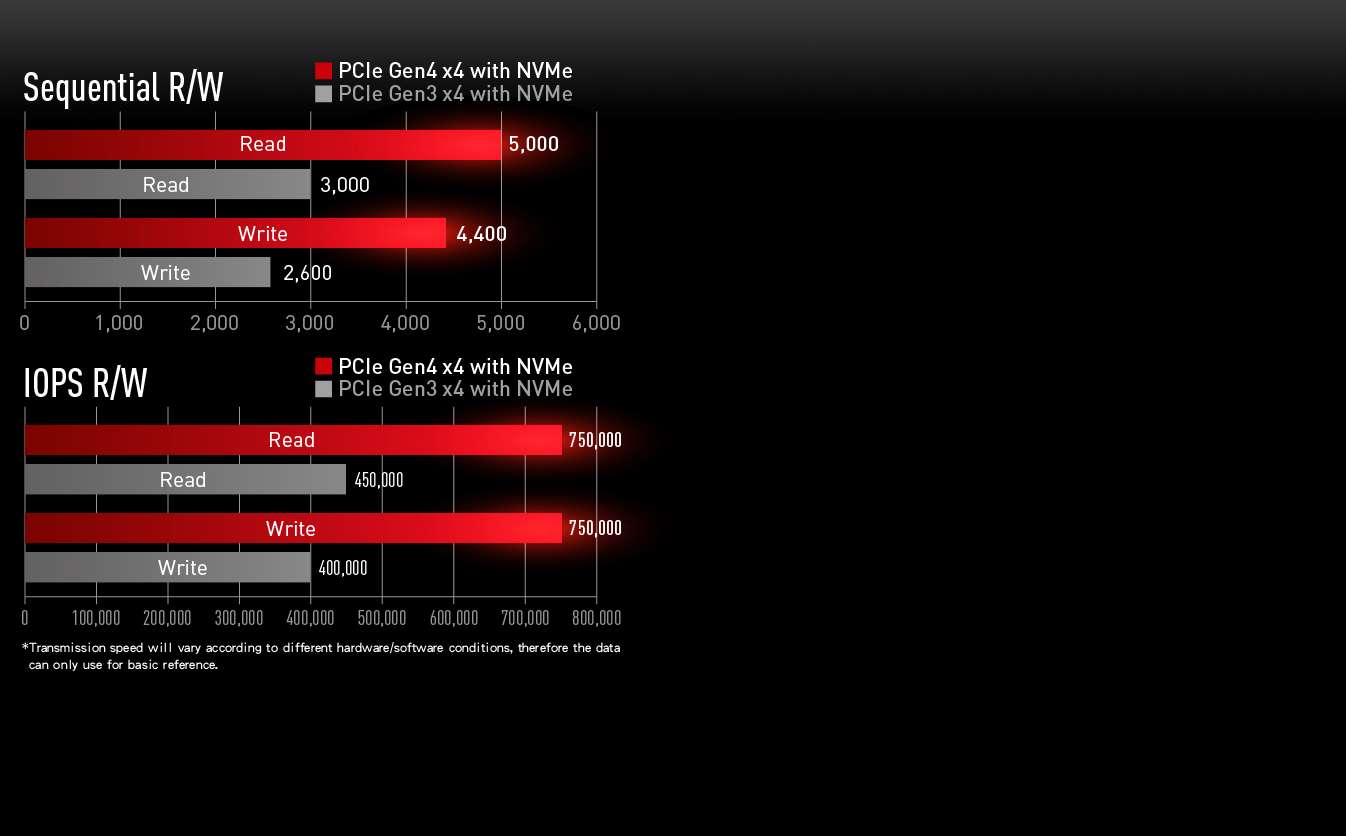

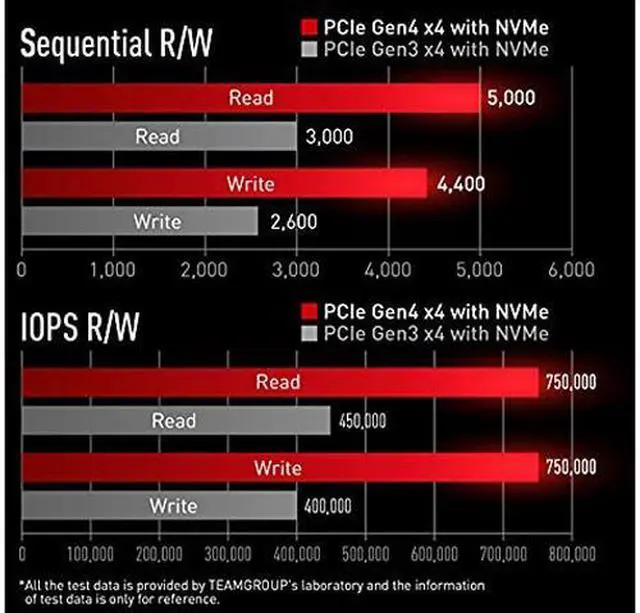

With NVMe 1.3 specification, and using the latest, ultra-fast M.2 PCIe Gen4 x4 interface, and 3D NAND which is stacked in a three-dimensional way to offer up to 2TB of large storage, the sequential raead/write speeds can reach as high as 5,000/4,400 MB/s[1]. The speed is nearly 10 times faster[2] than SATA SSD and 1.65 times faster[3] than the M.2 PCIE Gen3 x4 SSD. Also, it is completely downward compatible with the current PCIe 3.0 platform, improving gamers' performance for gaming and daily work.
[1] Transmission speed will vary according to different hardware/software conditions, therefore the data can only be used for basic reference.
[2] The related data is compared using the reading speed of TEAMGROUP GX2 2.5" SATAIII SSD 240GB and T-FORCE CARDEA Ceramic C440 M.2 NVMe PCIe Gen4 x4 1TB Solid State Drive. The actual speed may vary depending on platform hardware and software conditions.
[3] The related data is compared using the reading speed of TEAMGROUP MP34 M.2 PCIe Gen3 x4 SSD 1TB and T-FORCE CARDEA Ceramic C440 M.2 NVMe PCIe Gen4 x4 1TB Solid State Drive. The actual speed may vary depending on platform hardware and software conditions.

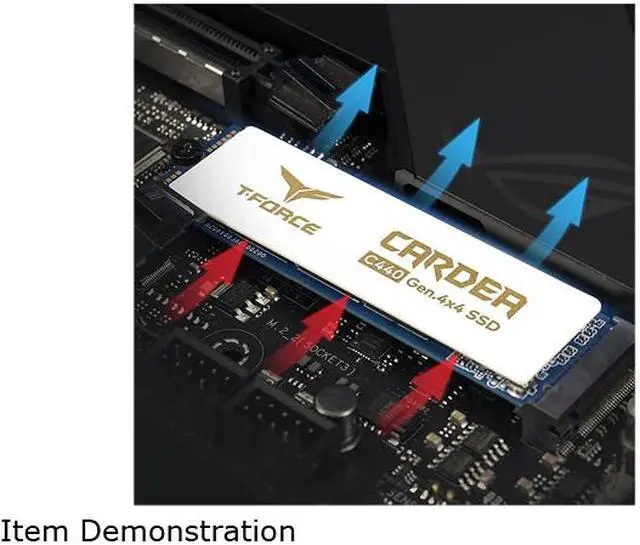

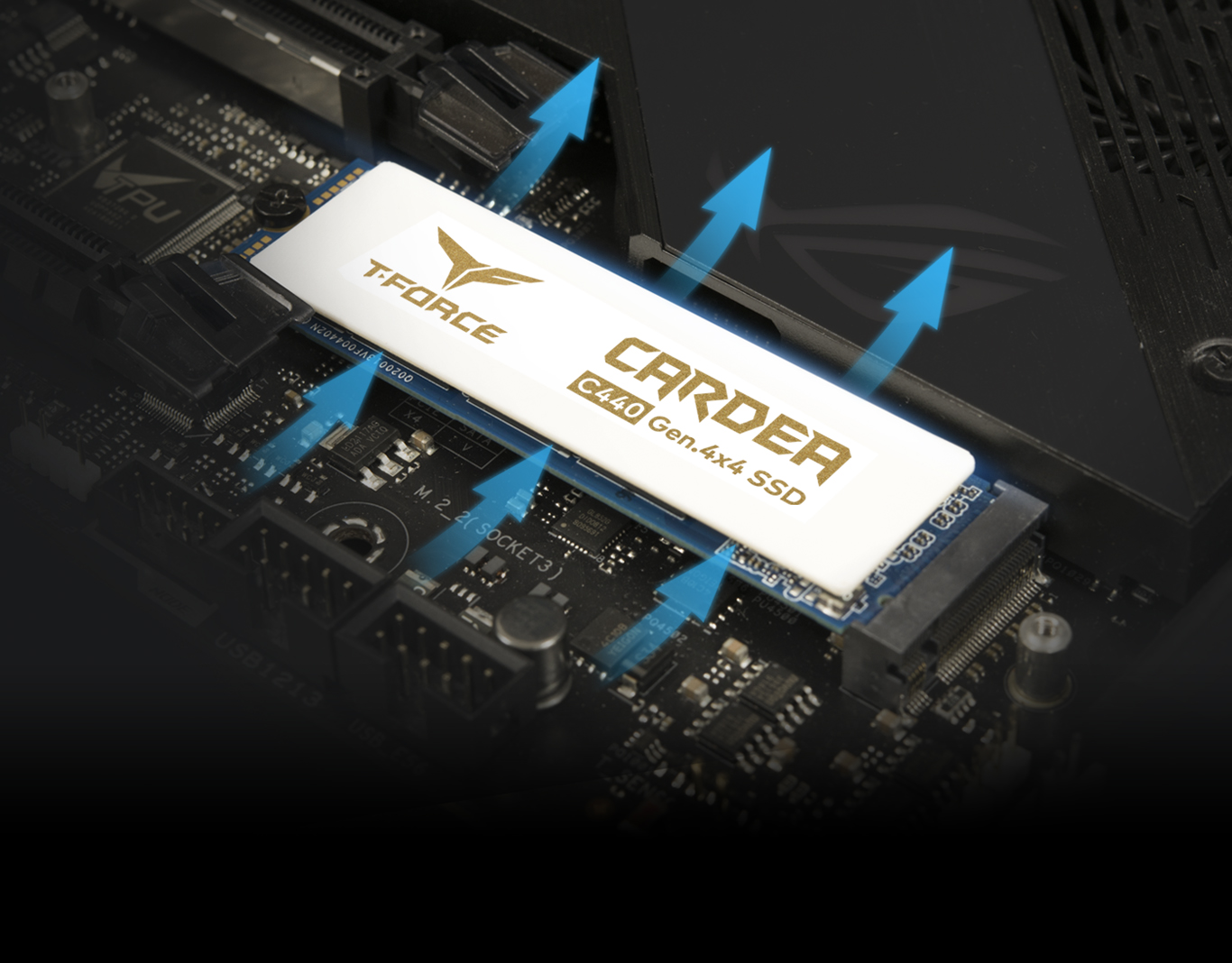

Aerospace ceramic material for better heat dissipation
T-FORCE uses the innovative aerospace ceramic material to create the heat spreader of CARDEA Ceramic C440 SSD. The ceramic heat spreader not only offers a better heat dissipation (Direct heat dissipation. No heat buildup), but it is also lightweight and thin, anti-electromagnetic interference, high temperature resistant, extreme temperature shock resistant. Besides, it is made of environmentally friendly materials, which is RoHS compliant.

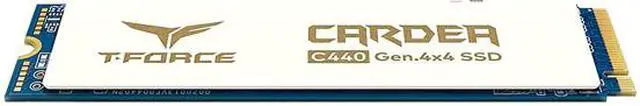

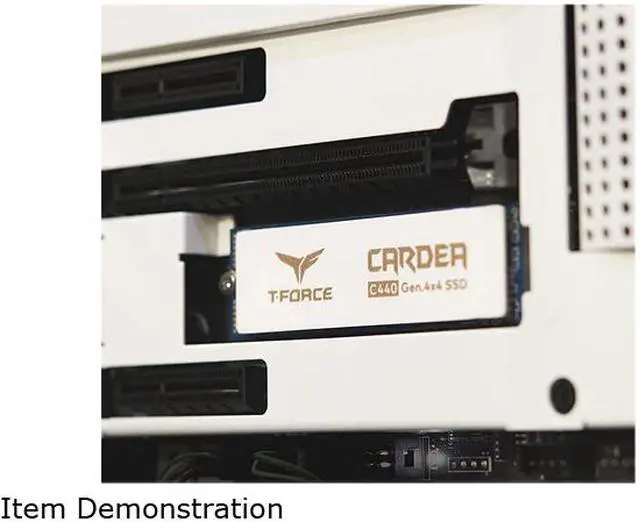

Beautiful and thin as a snowflake
Made with ceramic cooling composite materials, it shows not only the white of ceramics, but the golden printing which is the perfect match for white motherboards and cases. The thickness is only about 1mm which can fit in limited installation space.
Trustworthy smart management technology
CARDEA Ceramic C440 supports S.M.A.R.T function and its built-in smart algorithm management mechanism has functions including GC (garbage collection), TRIM command, LDPC (Low Density Parity Check Code) error correction mechanism, E2E Data Protection, etc. which are able to help in operation efficiency and prolong the service life of the SSD.
Specification
| Interface | PCIe Gen4 x4 with NVMe 1.3 |
| Capacity | 1TB / 2TB[1] |
| Voltage | DC +3.3V |
| Operation Temperature | 0°C to 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Terabyte Written | 1TB / 1800TB 2TB / 3600TB[2] |
| Performance | Crystal Disk Mark: 1TB Read/Write: up to 5,000/4,400 MB/s 2TB Read/Write: up to 5,000/4,400 MB/s[3] IOPS: 1TB Read/Write: 750K/750K IOPS Max 2TB Read/Write: 750K/750K IOPS Max[3] |
| Weight | 13.5g |
| Dimensions | 80.0(L) x 22.0(W) x 4.75(H) mm |
| Humidity | RH 90% under 40°C [operational] |
| Vibration | 80Hz ~ 2000Hz/20G |
| Shock | 1500G/0.5ms |
| MTBF | 1,700,000 hours |
| Operating System | System Requirements:
|
| Warranty | 5-year limited warranty[5] |
[1] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000.000,000 Bytes/1024/1024/1024= 0.93GB
[2] Definition and conditions of TBW (Terabytes WrittenJare based on JEDEC standard
[3] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
[4] PCIe SSD works best under WIN8.1 and WIN 10 operating system. Windows Operating Systems earlier than Windows 8.1 does not support NVMe Driver natively. Users will need to install
NVMe Driver prior installing the SSD.
[5]The S5D is based on the TBW or Warranty period.
*All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference.
We reserve the right to modify product specifications without prior notice.
