High speed read/write performance unleashes the full power

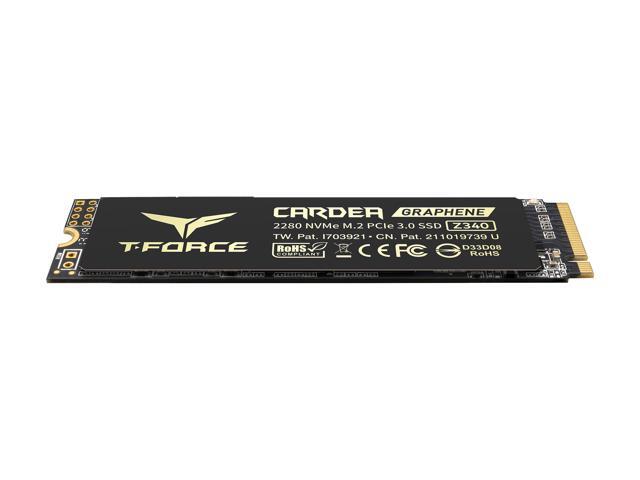

T-FORCE CARDEA ZERO Z330 and Z340 PCIe M.2 SSD use the latest, ultra-fast PCIe Gen3x4 interface.
For T-FORCE CARDEA ZERO-Z330 PCIe M.2 SSD, the sequential read/write speeds can hit 2,100/1,700MB/s.
For T-FORCE CARDEA ZERO Z340 PCIe M.2 SSD, with DRAM Cache Buffer and NVMe 1.3 specification, it boosts the sequential read/write speeds to 3400/3000MB/s[1].
[1] This product is compatible with Intel and AMD platforms, and the performance result is tested on a motherboard that supports PCIe 4.0 interface by the T-FORCE internal laboratory. The actual speed may vary depending on the software and hardware conditions of the platform.
Ultra-thin structure
T-FORCE CARDEA ZERO Z330 and Z340 M.2 SSD have patented graphene copper foil cooling module developed by the T-FORCE laboratory. The graphene, copper foil and insulation layer are glued together by special stacking technology. The thickness is less than 1mm which can effectively eliminate the problem of limited installation space.
Ultimate Graphene Thermal Solution: 9% better cooling performance

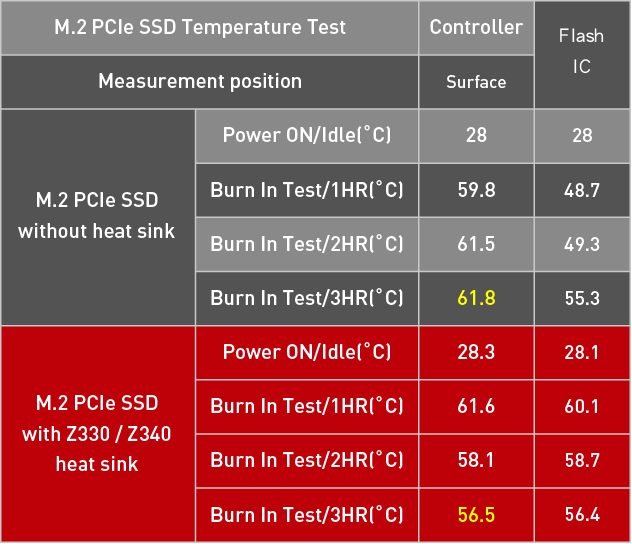

T-FORCE CARDEA ZERO Z330 and Z340 M.2 SSD have passed the long and rigorous test and burn-in test by T-FORCE internal laboratory. During 3 hours of continuous reading/writing, they are able to provide more than 9%[2] of cooling effect! These three elements showcase a superb three in one heat dissipation performance: thermal conduction (graphene), thermal radiation (graphene) and thermal capacity (copper).
[2] The experimental data is based on T-FORCE internal laboratory's test result. Under the same condition, the temperature test data is according to the comparison of the non-heat spreader M.2 PCIe Gen4 x4 SSD and the T-FORCE CARDEA ZERO Z340 Solid State Drive. The relevant test environment is simulated under a fanless environment using mask. The actual speed may vary depending on the software and hardware conditions of the platform.
All-around smart management technology

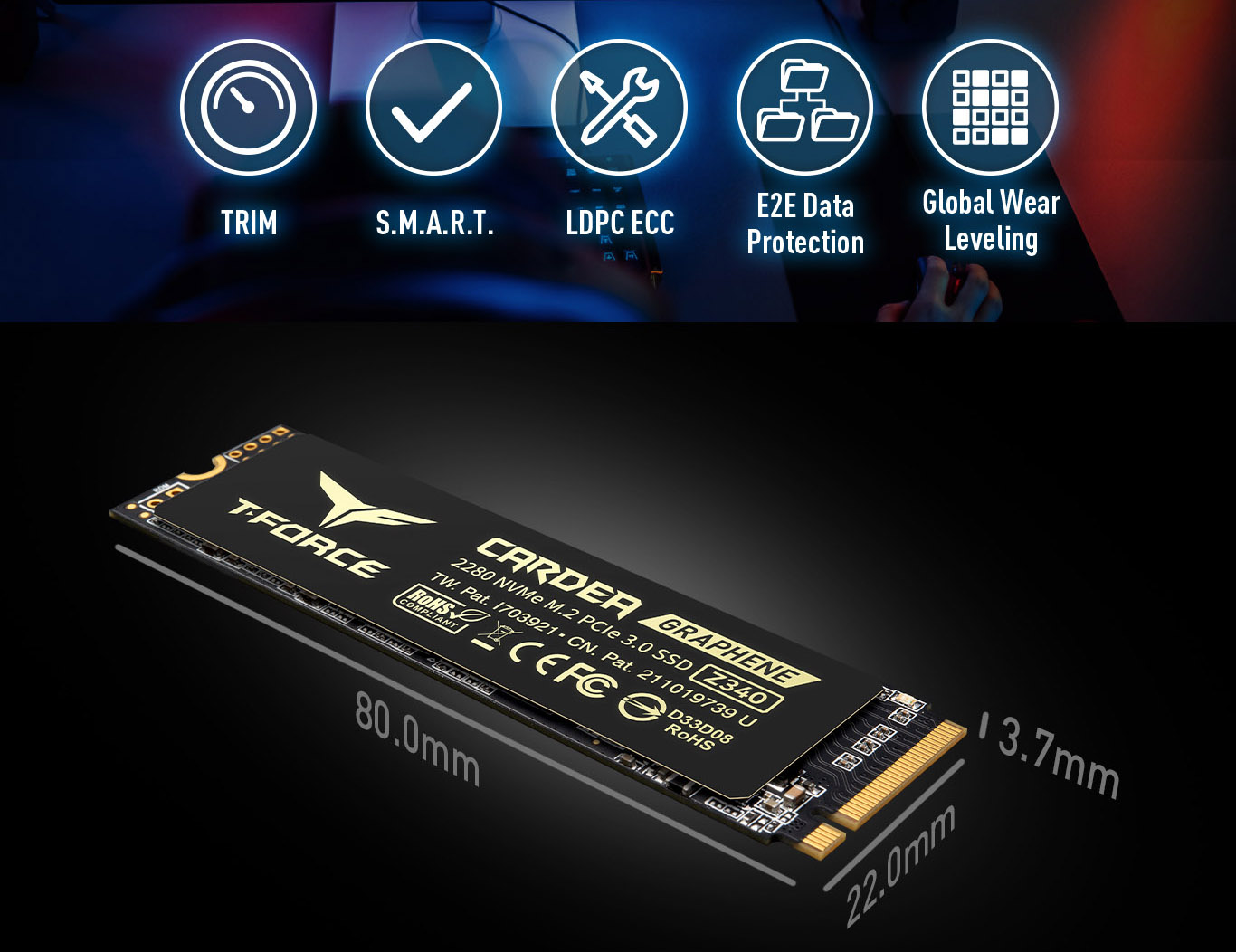

T-FORCE CARDEA ZERO Z330 and Z340 M.2 SSD support TRIM command, S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology), LDPC ECC (Error-correcting code), E2E Data Protection, Global Wear Leveling, etc. They are able to improve data operation efficiency and prolong the service life of the solid state drive. They also allow gamers to keep their data secure and maximize the performance and stability of data transfer.
Specification
| Model | CARDEA ZERO Z330 | CARDEA ZERQ Z340 |
| Interface | PCIe Gen3 x4 with NVMe 1.3 | PCIe Gen3 x4 with NVMe 1.3 |
| Capacity | 512GB / 1TB / 2TB[1] | 256GB / 512GB / 1TB[1] |
| Voltage | DC +3.3V | DC +3.3V |
| Operation Temperature | 0°C ∼ 70°C | 0°C ∼ 70°C |
| Storage Temperature | -40°C ∼ 85°C | -40°C ∼ 85°C |
| Terabyte Written | 512GB - 600TB 1TB - 1,000TB 2TB - 1,000TB[2] |
256GB - 380TB 512GB - 800TB 1TB - 1,665TB[2] |
| Performance | Crystal Disk Mark: 512GB Read/Write: up to 1,800/1,500 MB/s 1TB Read/Write: up to 2,100/1,700 MB/s 2TB Read/Write: up to 2,100/1,600 MB/s[3] IOPS: 512GB Read/Write: 220K/200K IOPS Max 1TB Read/Write: 220K/200K IOPS Max 2TB Read/Write: 220K/200K IOPS Max[3] |
Crystal Disk Mark: 256GB Read/Write: up to 3,000/1,000 MB/s 512GB Read/Write: up to 3,400/2,000 MB/s 1TB Read/Write: up to 3,400/3,000 MB/s[3] IOPS: 256GB Read/Write: 200K/200K IOPS Max 512GB Read/Write: 350K/300K IOPS Max 1TB Read/Write: 450K/400K IOPS Max[3] |
| Weight | 9g | 9g |
| Dimensions | 80.0(L) x 22.0(W) x 3.7(H) mm | 80.0(L) x 22.0(W) x 3.7(H) mm |
| Humidity | RH 90% under 40°C (operational) | RH 90% under 40°C (operational) |
| Vibration | 80Hz ∼ 2,000Hz/20G | 80Hz ∼ 2,000Hz/20G |
| Shock | 1,500G/0.5ms | 1,500G/0.5ms |
| MTBF | 1,500,000 hours | 2,000,000 hours |
| Operating System | System Requirements:
|
System Requirements:
|
| Warranty | 5-year limited warranty[5] | 5-year limited warranty[5] |
[1] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
[2] Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard
[3] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
[4] PCIe SSD works best under WIN8.1 and WIN10 operating system. Windows Operating Systems earlier than Windows 8.1 does not support NVMe Driver natively. Users will need to install NVMe Driver prior installing the SSD.
[5] The SSD is based on the TBW or Warranty period.
* All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference. We reserve the right to modify product specifications without prior notice.
