WORLD’S FIRST WATER COOLING M.2 SSD
T-FORCE CARDEA Liquid is the world’s first, water cooling M.2 PCIe SSD specially built for gaming/high performance PC. It has water cooling M.2 SSD module with patented design of TEAMGROUP (Taiwan Utility Model Patent No. M574264).
LOWER THE TEMPERATURE DOWN ABOUT 10 DEGREES
After laboratory’s rigorous testing and burn-in tests, by using the self-circulation cooling effect, CARDEA Liquid is proven it can effectively lower the temperature down about 10 degrees.
THE ONLY PATENTED WATER COOLING DESIGN IN THE WORLD

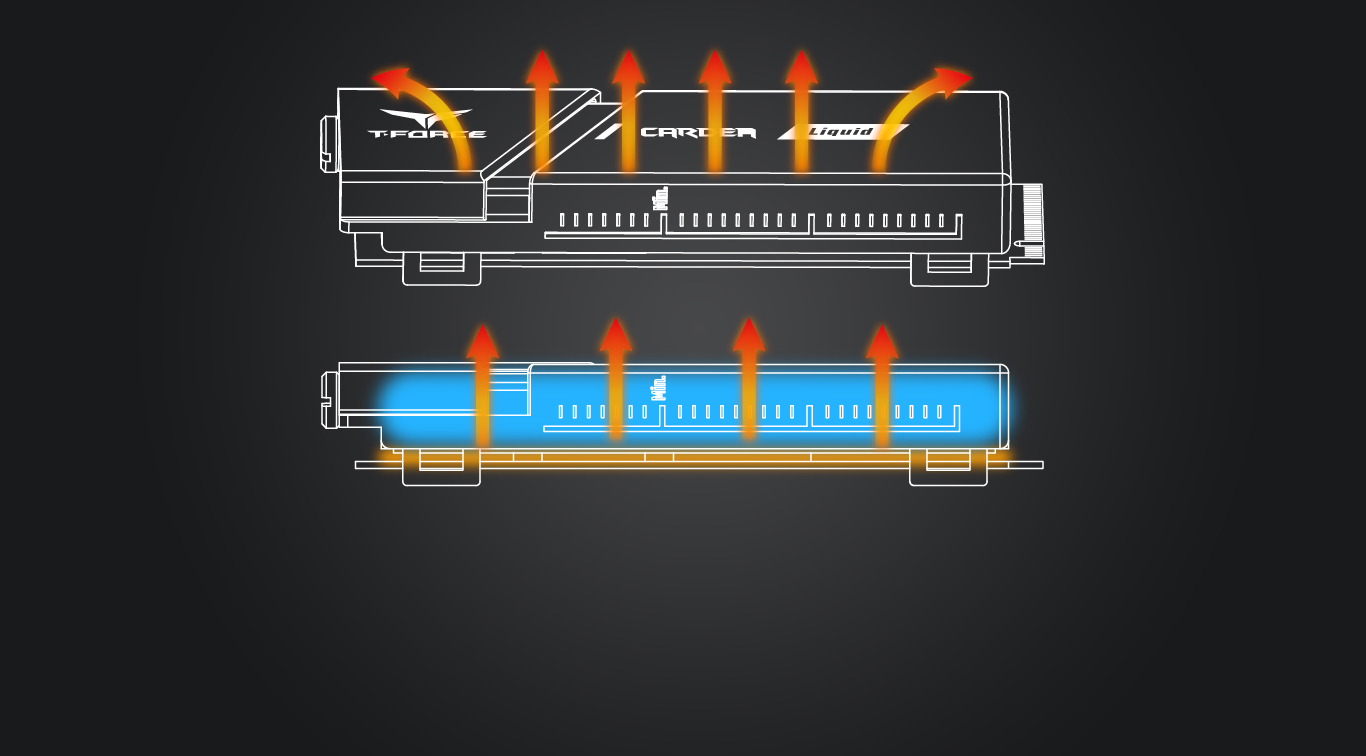

The concept of the self-cooling design is to transfer the heat source of the M.2 SSD to the aluminum alloy heat sink through the silicone thermal conductive pad, and using water-cooling liquid to lower the temperature quickly. Then, to further lower the temperature, the heat of the water cooling M.2 SSD module can be transferred with convection produced by the computer case fan.
THE PERFECT COMBINATION OF CRAFTSMANSHIP AND FASHION

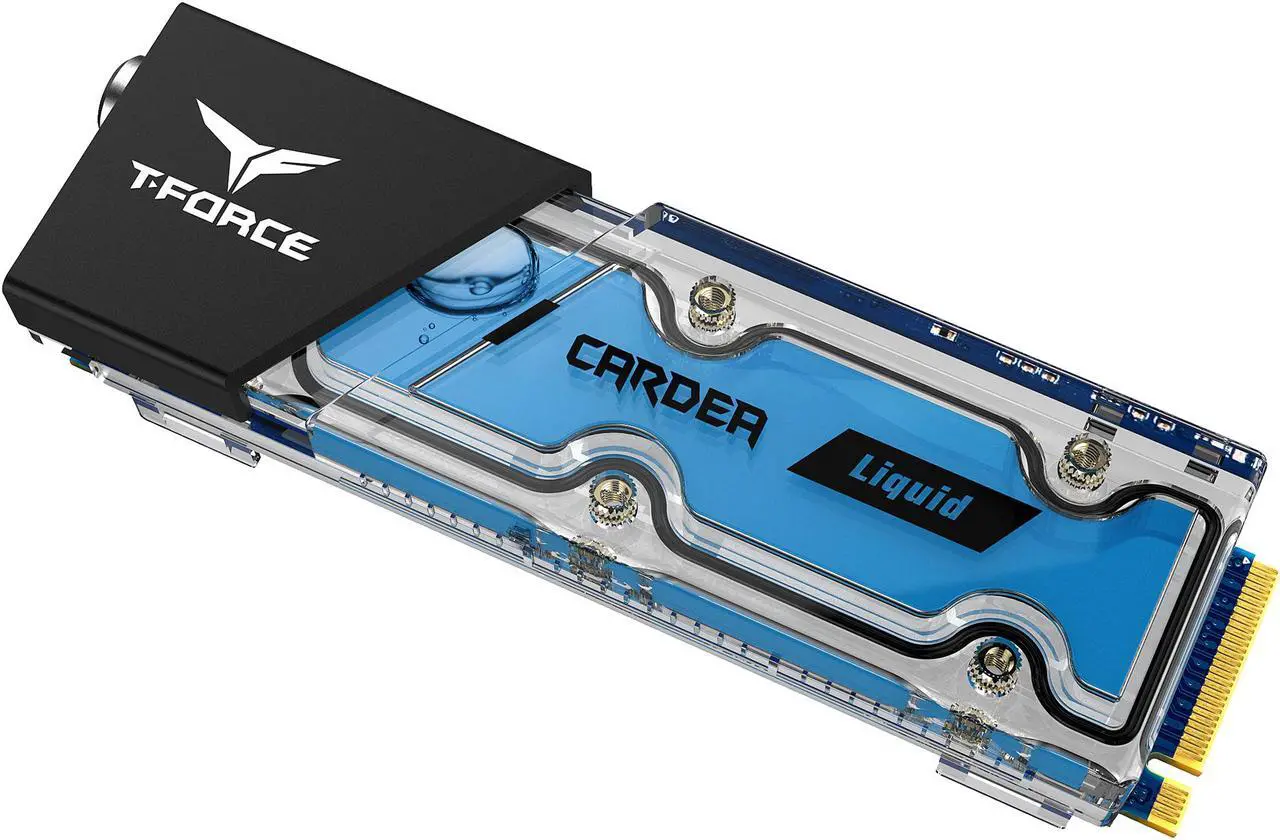

T-FORCE CARDEA Liquid uses crystal-clear structure design with high quality, environmental friendly water-cooling liquid. T-FORCE LOGO’s metal trim and the sliding rail are designed to provide great decoration and style.

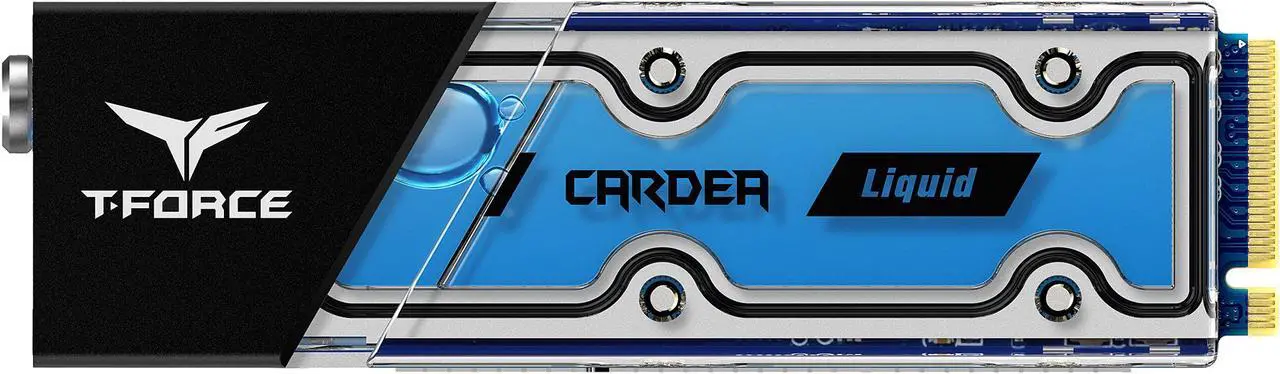

In addition, considering that gamers will adjust and refill the water-cooling liquid by themselves, there is a translucent scale on the left side of the product to allow gamers accurately adjust the ration between the liquid and the air. This ensures an excellent cooling efficiency and also offers gamers a new water cooling experience.
SUPERIOR PERFORMANCE
CARDEA Liquid has PCIe Gen3 x4 high speed interface and supports latest NVMe1.3 protocol. Intelligent SLC Caching and DRAM Cache Buffer are built-in.

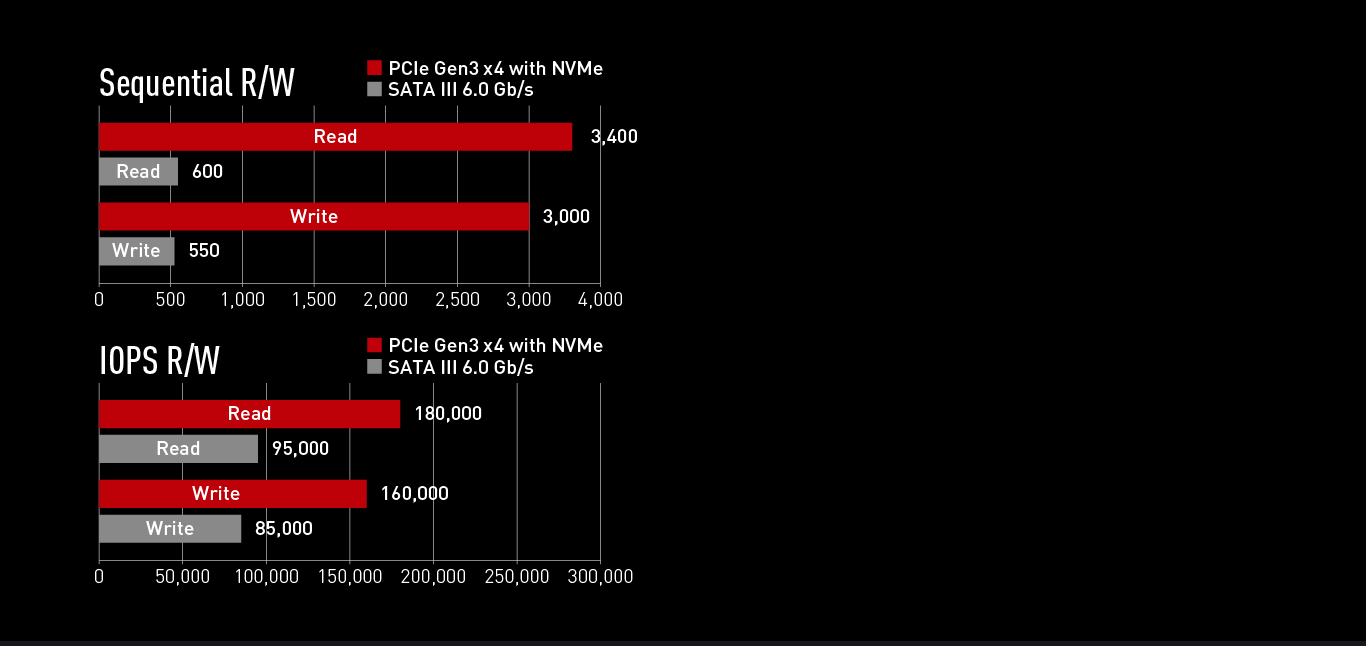

With superior performance, the sequential read/write speed is up to 3400/3000 MB/s, and random read/write speed is up to 180K/160K IOPS. It offers the smoothest, finest gaming experience, and an undelayed extreme performance.
SMART MANAGEMENT HIGH RELIABILITY
T-FORCE CARDEA Liquid SSD supports S.M.A.R.T function and its built-in smart algorithm management mechanism has functions such as GC (garbage collection) and TRIM command which are able to ensure operation efficiency, prolong the service life of the SSD and bring it to its maximum performance. Meanwhile, the powerful Wear-Leveling technology and ECC (Error Correction Code) function can ensure data security and transfer stability.
Specification
| Interface | PCIe 3.0x4 with NVMe 1.3 |
| Capacity | 256GB / 512GB / 1TB[1] |
| Voltage | DC +3.3V |
| Operation Temperature | 0°C ~ 70°C |
| Storage Temperature | -40°C ~ 85°C |
| Terabyte Written | 256GB / >380TB 512GB / >800TB 1TB / >1,665TB[2] |
| Performance | Crystal Disk Mark: 256GB Read/Write: up to 3,000/1,000 MB/s 512GB Read/Write: up to 3,400/2,000 MB/s 1TB Read/Write: up to 3,400/3,000 MB/s[3] IOPS: 256GB/512GB Read/Write: 180K/150K IOPS Max 1TB Read/Write: 180k/160k IOPS Max[3] |
| Weight | 42g |
| Dimensions | 83.9(L) x 24.3(W) x 14.1(H) mm |
| Humidity | RH 90% under 40°C [operational] |
| Vibration | 80Hz ~ 2,000Hz/20G |
| Shock | 1,500G/0.5ms |
| MTBF | 2,000,000 hours |
| Operating System | 1. System Requirements:
|
| Warranty | 5-year limited warranty |
[1] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000.000,000 Bytes/1024/1024/1024= 0.93GB
[2] Definition and conditions of TBW (Terabytes WrittenJare based on JEDEC standard
[3] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
[4] PCIe SSD works best under WIN8.1 and WIN 10 operating system. Windows Operating Systems earlier than Windows 8.1 does not support NVMe Driver natively. Users will need to install
NVMe Driver prior installing the SSD.
*All the test data is provided by TEAMGROUP's laboratory and the information of test data is only for reference. We reserve the right to modify product specifications without prior notice.
