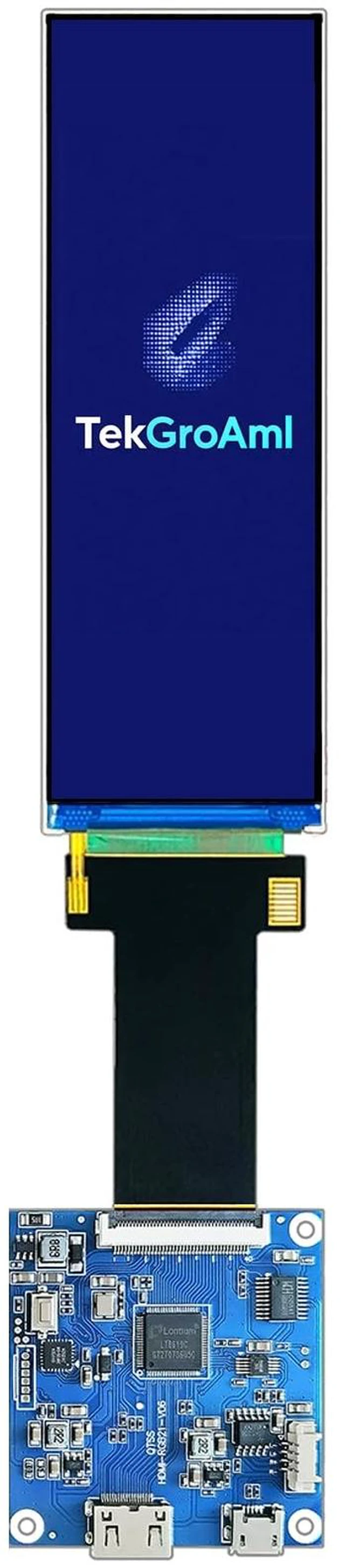

TekGroAml 4.58 Inch 320x960 700 cd/m2 Brightness IPS LCD Display Module Narrow Screen with H/D Controller Board,USB 5V Power,40 Pin FPC,for DIY Dashboards and Embedded Projects

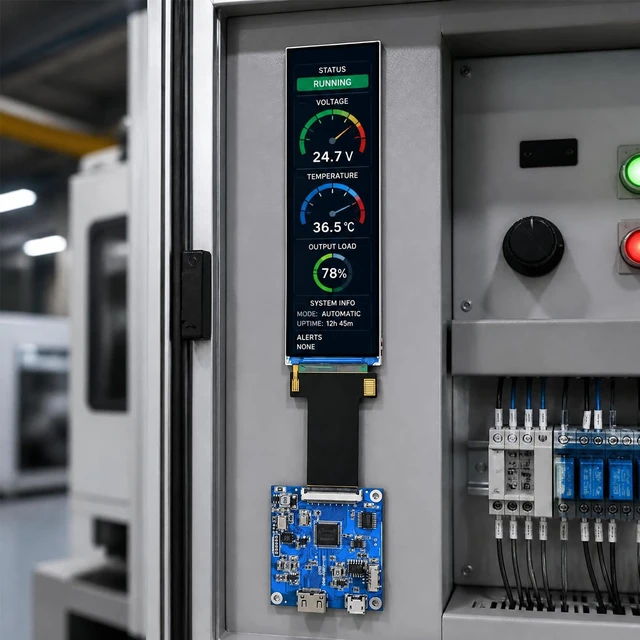

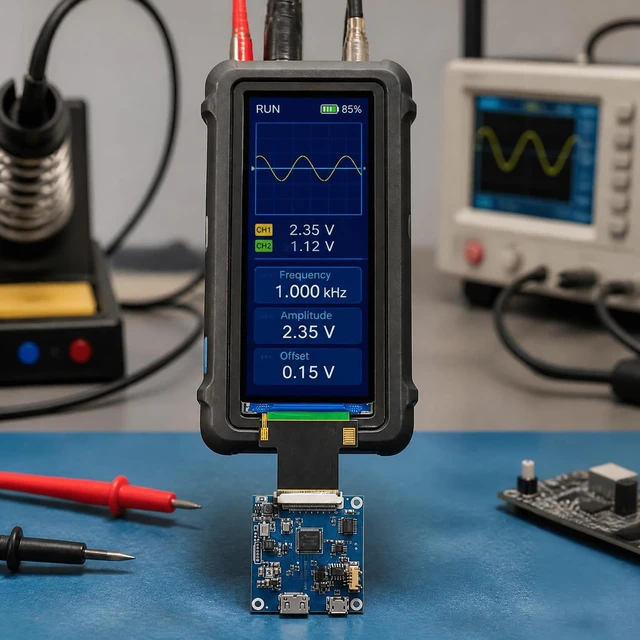

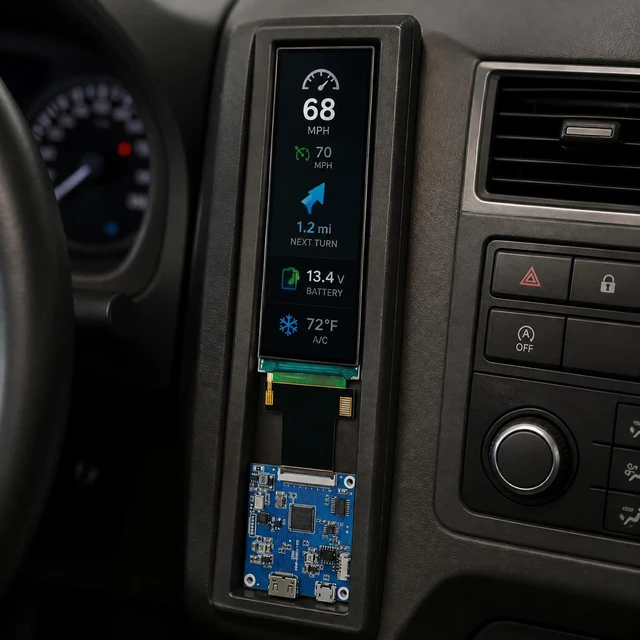

- **4.58 Inch Narrow Display:** This display kit uses a 4.58 inch vertical TFT LCD panel with 320 RGB x 960 resolution, suitable for compact dashboards, status panels, equipment displays, and embedded project layouts.
- **Bright Visual Output:** Source specifications list 700 cd/m2 typical brightness, 800:1 typical contrast ratio, 80/80/80/80 typical viewing angle, WLED backlight, and a normally black transmissive display structure.
- **Mini H/D Controller Board:** The included controller board supports mini H/D video input and H/D 1.4 signal.
- **Power input** USB 5V with a supply rated above 1A, and the board enters standby mode when there is no input signal.
- **Project-Ready Hardware:** The LCD source data lists a 49.17 x 128.9 x 4 mm outline size, 36.77 x 110.3 mm display area, 40-pin FPC interface, and 1.8V/3.3V typical LCD input voltage for integration planning.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This display kit uses a 4.58 inch vertical TFT LCD panel with 320 RGB x 960 resolution, suitable for compact dashboards, status panels, equipment displays, and embedded project layouts
