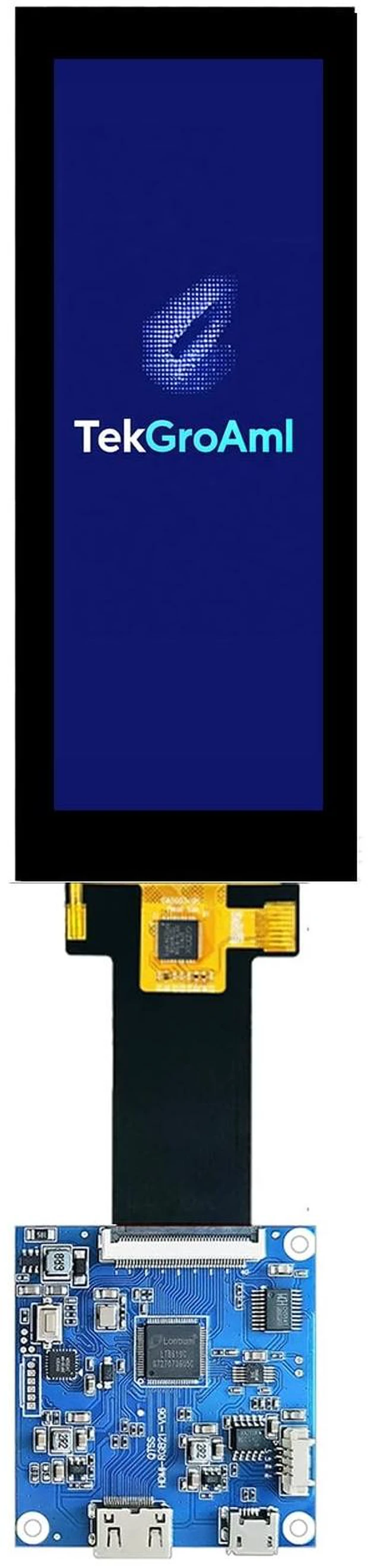

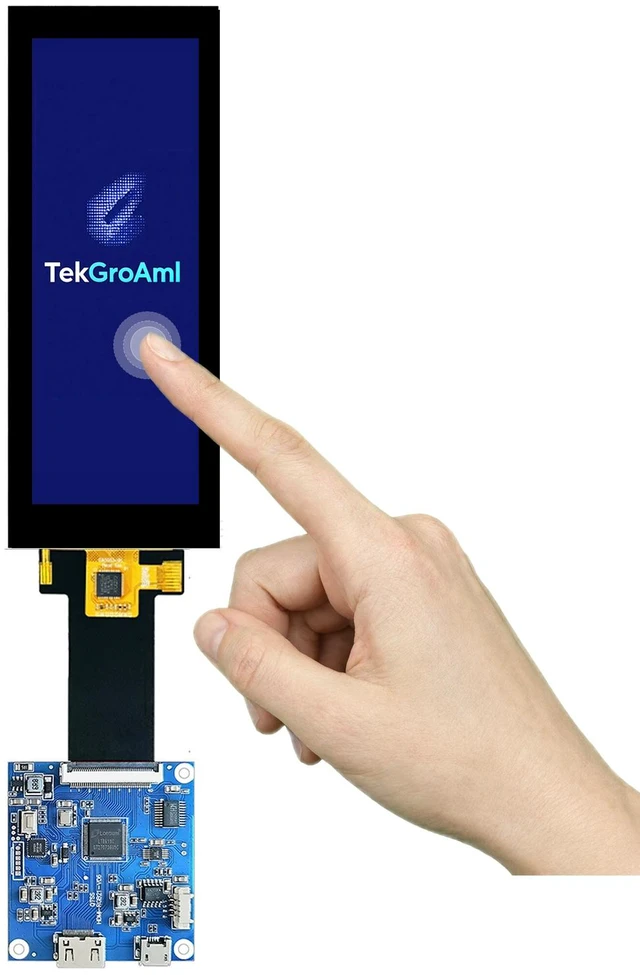

TekGroAml 4.58 Inch Capacitive Touch TFT LCD Display,320x960 Narrow Screen 700 cd/m2 Brightness with H/D Controller Board, for DIY Touch HMI Projects
- **Screen Parameters:** Source specifications list 700 cd/m2 typical brightness, 800:1 typical contrast ratio, 80/80/80/80 typical viewing angle, WLED backlight, and a normally black transmissive display structure.

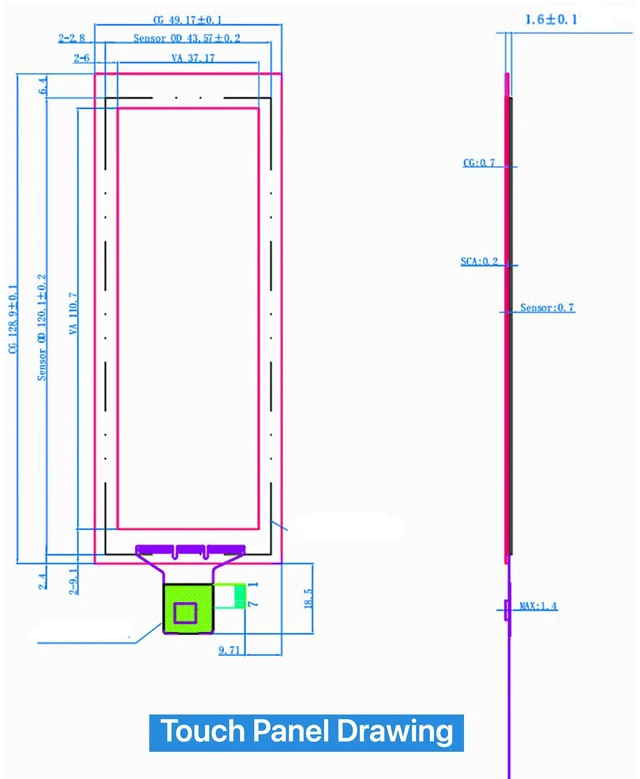

- **4.58 Inch Touch Display:** This display kit uses vertical capacitive touch TFT LCD panel with 320 RGB x 960 resolution for compact touch dashboards, control panels, and embedded HMI layouts.36.77 x 110.3 mm display area.
- **Capacitive Touch Version:** This is the 4.58 inch version with capacitive touch hardware for compatible touch-style dashboards and control interfaces after host-side setup.
- **Mini H/D Controller Board:** The included controller board supports mini H/D video input and H/D 1.4 signal.
- **Power input** USB 5V with a supply rated above 1A, and the board enters standby mode when there is no input signal.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This display kit uses vertical capacitive touch TFT LCD panel with 320 RGB x 960 resolution for compact touch dashboards, control panels, and embedded HMI layouts. 36.77 x 110.3 mm display area.
