6.2 Inch 360x960 Square LCD Display with Control Board
Different mini LCD Screen and H/D Board
6.2 inch LCD Display |
2 inch LCD Display |
4 inch LCD Display |
4.58 inch LCD Display |
5 inch LCD Display |
6.8 inch LCD Display |
|
|---|---|---|---|---|---|---|
|
Customer Reviews
|
—
|
— | — |
—
|
—
|
— |
|
Price
|
— | — | — | — | — | — |
|
Screen size
|
6.2 inch | 2.0 inch | 4 inch | 4.58 inch | 5 inch | 6.8 inch |
|
Resolution
|
360(H) x 960 (V) | 480x360 | 720x720 | 320x960 | 720x1280 | 480x1280 |
|
Dimension
|
59.9(H)× 156(V) mm | 46.00 (H) x 40.87 (V)mm | 74.45 (H) x 78.28 (V)mm | 40.37 (H) x 117.90 (V)mm | 64.6 (H) x117.43 (V)mm | 65.7 (H) x 171.69(V)mm |
|
Display Area
|
55.3 (H) x147.46 (V) mm | 40.8 (H) x 30.6 (V)mm | 71.93(H) x 71.93 (V)mm | 36.77 (H) x 110.30(V)mm | 61.78 (H) x 109.82 (V)mm | 60.19 (H) x160.51 (V) mm |
|

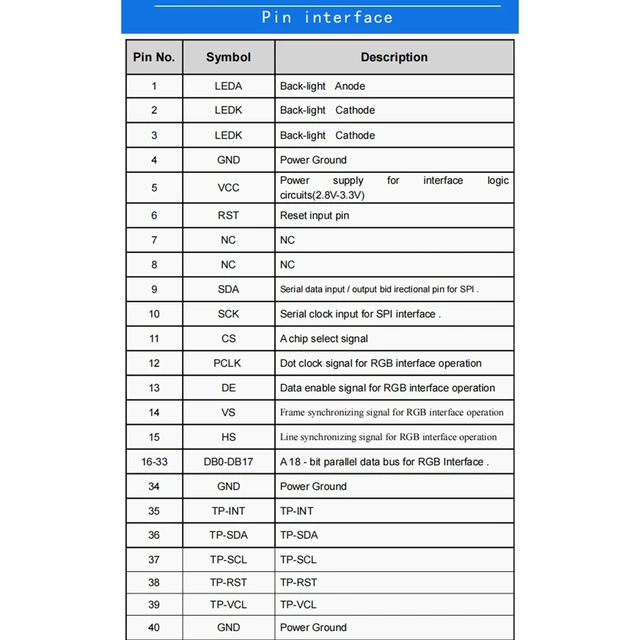

Data interface
|
SPI3W + RGB18bit | RGB 18bit | 3WSPI+RGB18BIT | SPI3W+RGB18BIT | 3SPI+RGB18BIT | MIPI |
|
Backlight
|
15 White LEDs in Parallel | 6 White LED | 10 White LEDs In Parallels | 8 White LEDs In Parallels | 12 White LEDs In Parallels | 16 White LED |
Specification
-
Why does my screen show "snow," horizontal lines, or flickering
? This is usually not a hardware defect but a signal sync or power issue.
? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.
? 2: Use a dedicated 5V 2A USB power adapter.
-
The display is upside down or in portrait mode by default. Can I rotate it?
? Yes! Orientation is controlled by your Operating System.
? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."
? RPi: Add display_rotate=2 (for 180°) to your config.txt file.
-
Why does the screen stay on even after I shut down my PC?
? Most DIY boards stay powered as long as the USB port provides 5V standby power.
? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.
-
Is it truly "Plug & Play" for R Pi?
It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.
-
Is it compatible with Mac (MacBook, Mac Mini, Mac Studio)?
Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.

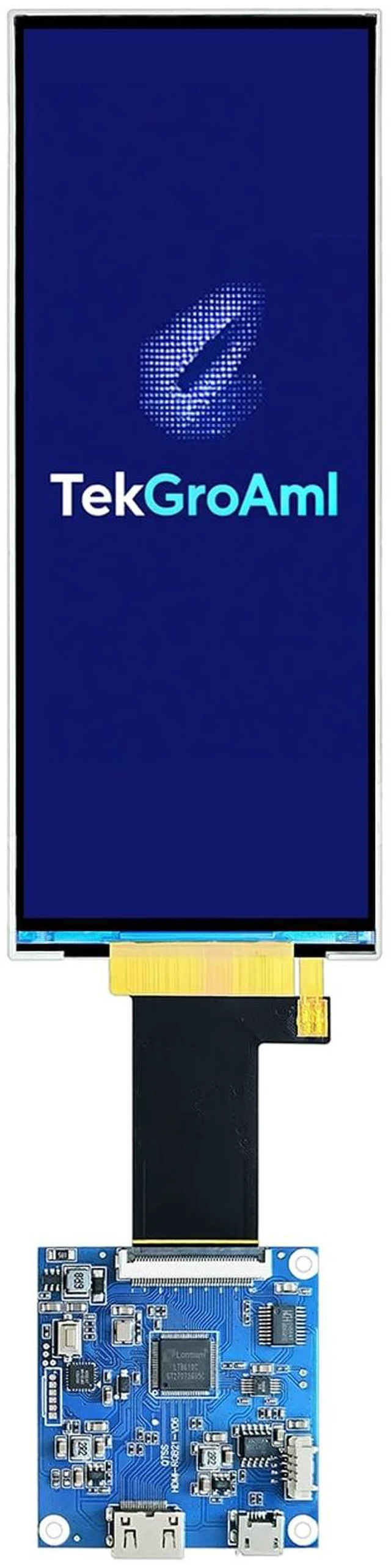

6.2 Inch 360x960 Square LCD Display with Control Board
Different mini LCD Screen and H/D Board
|
6.2 inch LCD Display |
2 inch LCD Display |
4 inch LCD Display |
4.58 inch LCD Display |
5 inch LCD Display |
6.8 inch LCD Display |
|---|---|---|---|---|---|
| Customer Reviews | |||||
|
—
|
— | — |
—
|
—
|
— |
| Price | |||||
| — | — | — | — | — | — |
| Screen size | |||||
| 6.2 inch | 2.0 inch | 4 inch | 4.58 inch | 5 inch | 6.8 inch |
| Resolution | |||||
| 360(H) x 960 (V) | 480x360 | 720x720 | 320x960 | 720x1280 | 480x1280 |
| Dimension | |||||
| 59.9(H)× 156(V) mm | 46.00 (H) x 40.87 (V)mm | 74.45 (H) x 78.28 (V)mm | 40.37 (H) x 117.90 (V)mm | 64.6 (H) x117.43 (V)mm | 65.7 (H) x 171.69(V)mm |
| Display Area | |||||
| 55.3 (H) x147.46 (V) mm | 40.8 (H) x 30.6 (V)mm | 71.93(H) x 71.93 (V)mm | 36.77 (H) x 110.30(V)mm | 61.78 (H) x 109.82 (V)mm | 60.19 (H) x160.51 (V) mm |
| Data interface | |||||
| SPI3W + RGB18bit | RGB 18bit | 3WSPI+RGB18BIT | SPI3W+RGB18BIT | 3SPI+RGB18BIT | MIPI |
| Backlight | |||||
| 15 White LEDs in Parallel | 6 White LED | 10 White LEDs In Parallels | 8 White LEDs In Parallels | 12 White LEDs In Parallels | 16 White LED |

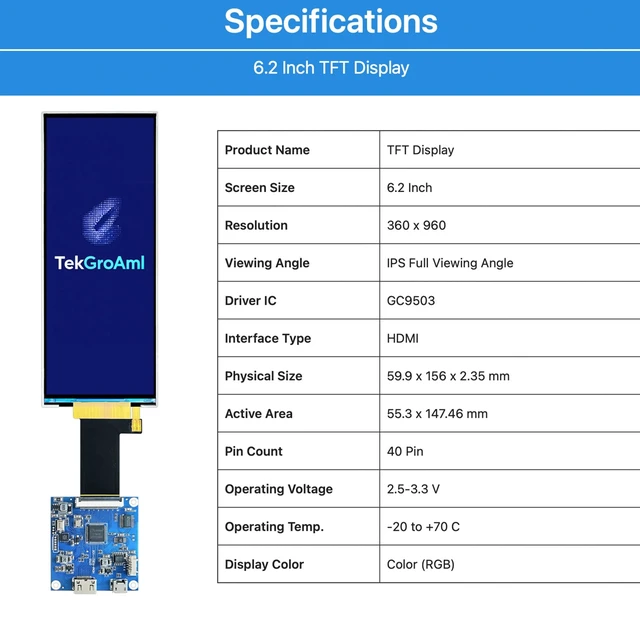

Specification
| Screen size | 6.2 Inch |
|---|---|

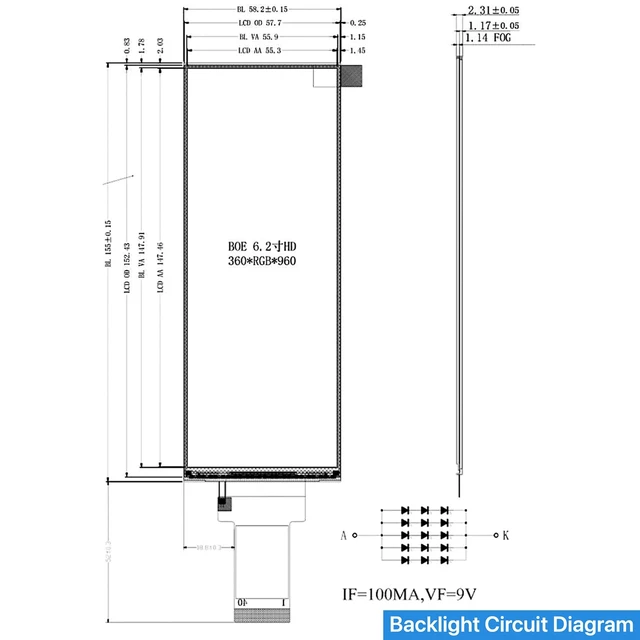

| LCM outline size | 59.9(H)× 156(V) mm |
| Active area) | 55.3 (H) x147.46 (V) mm |
| Number of pixels | 360x960 pixels |
| Viewing direction | ALL o'clock |
| Controller / Driver | mini H/D |
| Touch | No ,There is touch screen can be choosed . |
-
Why does my screen show "snow," horizontal lines, or flickering
? This is usually not a hardware defect but a signal sync or power issue.
? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.
? 2: Use a dedicated 5V 2A USB power adapter.
-
The display is upside down or in portrait mode by default. Can I rotate it?
? Yes! Orientation is controlled by your Operating System.
? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."
? RPi: Add display_rotate=2 (for 180°) to your config.txt file.
-
Why does the screen stay on even after I shut down my PC?
? Most DIY boards stay powered as long as the USB port provides 5V standby power.
? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.
-
Is it truly "Plug & Play" for R Pi?
It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.
-
Is it compatible with Mac (MacBook, Mac Mini, Mac Studio)?
Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.
-
