Focuses on trading high-quality electronic products. We primarily sell display solutions such as TFT LCD, OLED, and AMOLED panels.
Our experienced sourcing and quality control teams work closely with international suppliers to deliver dependable products and responsive service.
-
-
mini round screen
-
-
mini round screen
-
-
-
mini square screen
-
-
Long Strip Screen with board
-
mini square screen with board
-
-
6.2 inch PC Case Display
-
7 inch 1280x800 Touch Monitor
-
Portable LCD monitors
-
16 inch 144HZ 2K IPS Monitor
-

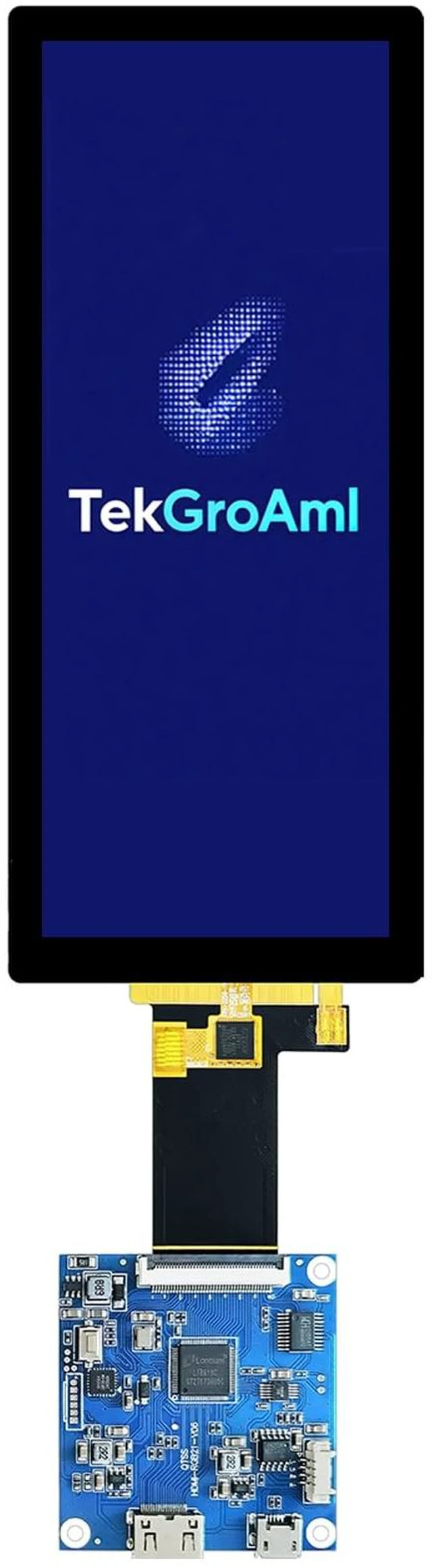

6.2 Inch 360x960 Square LCD Display with Control Board
Different mini LCD Screen and H/D Board
6.2 inch LCD Display |
2 inch LCD Display |
4 inch LCD Display |
4.58 inch LCD Display |
5 inch LCD Display |
6.8 inch LCD Display |
|
|---|---|---|---|---|---|---|
|
Customer Reviews
|
—
|
— | — |
—
|
—
|
— |
|
Price
|
— | — | — | — | — | — |
|
Screen size
|
6.2 inch | 2.0 inch | 4 inch | 4.58 inch | 5 inch | 6.8 inch |
|
Resolution
|
360(H) x 960 (V) | 480x360 | 720x720 | 320x960 | 720x1280 | 480x1280 |
|
Dimension
|
59.9(H)× 156(V) mm | 46.00 (H) x 40.87 (V)mm | 74.45 (H) x 78.28 (V)mm | 40.37 (H) x 117.90 (V)mm | 64.6 (H) x117.43 (V)mm | 65.7 (H) x 171.69(V)mm |
|
Display Area
|
55.3 (H) x147.46 (V) mm | 40.8 (H) x 30.6 (V)mm | 71.93(H) x 71.93 (V)mm | 36.77 (H) x 110.30(V)mm | 61.78 (H) x 109.82 (V)mm | 60.19 (H) x160.51 (V) mm |
|
Data interface
|
SPI3W + RGB18bit | RGB 18bit | 3WSPI+RGB18BIT | SPI3W+RGB18BIT | 3SPI+RGB18BIT | MIPI |
|
Backlight
|
15 White LEDs in Parallel | 6 White LED | 10 White LEDs In Parallels | 8 White LEDs In Parallels | 12 White LEDs In Parallels | 16 White LED |
Specification
-
Why does my screen show "snow," horizontal lines, or flickering
? This is usually not a hardware defect but a signal sync or power issue.
? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.
? 2: Use a dedicated 5V 2A USB power adapter.
-
The display is upside down or in portrait mode by default. Can I rotate it?
? Yes! Orientation is controlled by your Operating System.
? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."
? RPi: Add display_rotate=2 (for 180°) to your config.txt file.
-
Why does the screen stay on even after I shut down my PC?
? Most DIY boards stay powered as long as the USB port provides 5V standby power.
? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.
-
Is it truly "Plug & Play" for R Pi?
It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.
-
Is it compatible with Mac (MacBook, Mac Mini, Mac Studio)?
Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.
6.2 Inch 360x960 Square LCD Display with Control Board
Different mini LCD Screen and H/D Board
|
6.2 inch LCD Display |
2 inch LCD Display |
4 inch LCD Display |
4.58 inch LCD Display |
5 inch LCD Display |
6.8 inch LCD Display |
|---|---|---|---|---|---|
| Customer Reviews | |||||
|
—
|
— | — |
—
|
—
|
— |
| Price | |||||
| — | — | — | — | — | — |
| Screen size | |||||
| 6.2 inch | 2.0 inch | 4 inch | 4.58 inch | 5 inch | 6.8 inch |
| Resolution | |||||
| 360(H) x 960 (V) | 480x360 | 720x720 | 320x960 | 720x1280 | 480x1280 |
| Dimension | |||||
| 59.9(H)× 156(V) mm | 46.00 (H) x 40.87 (V)mm | 74.45 (H) x 78.28 (V)mm | 40.37 (H) x 117.90 (V)mm | 64.6 (H) x117.43 (V)mm | 65.7 (H) x 171.69(V)mm |
| Display Area | |||||
| 55.3 (H) x147.46 (V) mm | 40.8 (H) x 30.6 (V)mm | 71.93(H) x 71.93 (V)mm | 36.77 (H) x 110.30(V)mm | 61.78 (H) x 109.82 (V)mm | 60.19 (H) x160.51 (V) mm |
| Data interface | |||||
| SPI3W + RGB18bit | RGB 18bit | 3WSPI+RGB18BIT | SPI3W+RGB18BIT | 3SPI+RGB18BIT | MIPI |
| Backlight | |||||
| 15 White LEDs in Parallel | 6 White LED | 10 White LEDs In Parallels | 8 White LEDs In Parallels | 12 White LEDs In Parallels | 16 White LED |
Specification
| Screen size | 6.2 Inch |
|---|---|
| LCM outline size | 59.9(H)× 156(V) mm |
| Active area) | 55.3 (H) x147.46 (V) mm |
| Number of pixels | 360x960 pixels |
| Viewing direction | ALL o'clock |
| Controller / Driver | mini H/D |
| Touch | No ,There is touch screen can be choosed . |
-
Why does my screen show "snow," horizontal lines, or flickering
? This is usually not a hardware defect but a signal sync or power issue.
? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.
? 2: Use a dedicated 5V 2A USB power adapter.
-
The display is upside down or in portrait mode by default. Can I rotate it?
? Yes! Orientation is controlled by your Operating System.
? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."
? RPi: Add display_rotate=2 (for 180°) to your config.txt file.
-
Why does the screen stay on even after I shut down my PC?
? Most DIY boards stay powered as long as the USB port provides 5V standby power.
? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.
-
Is it truly "Plug & Play" for R Pi?
It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.
-
Is it compatible with Mac (MacBook, Mac Mini, Mac Studio)?
Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.
-
