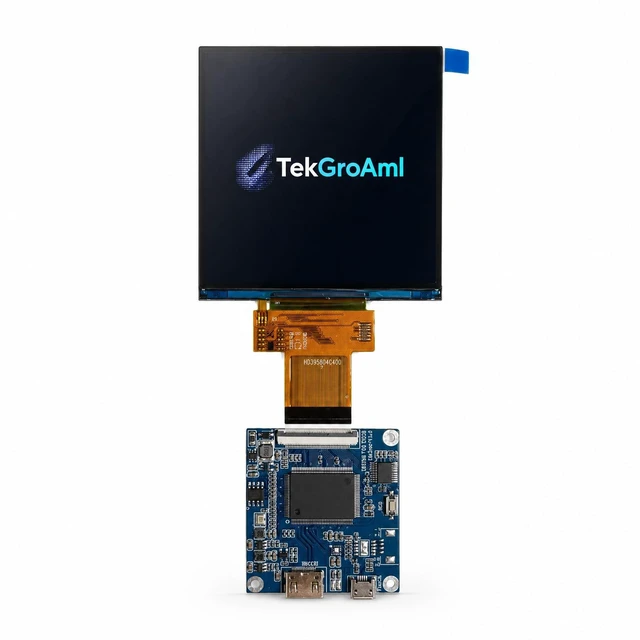

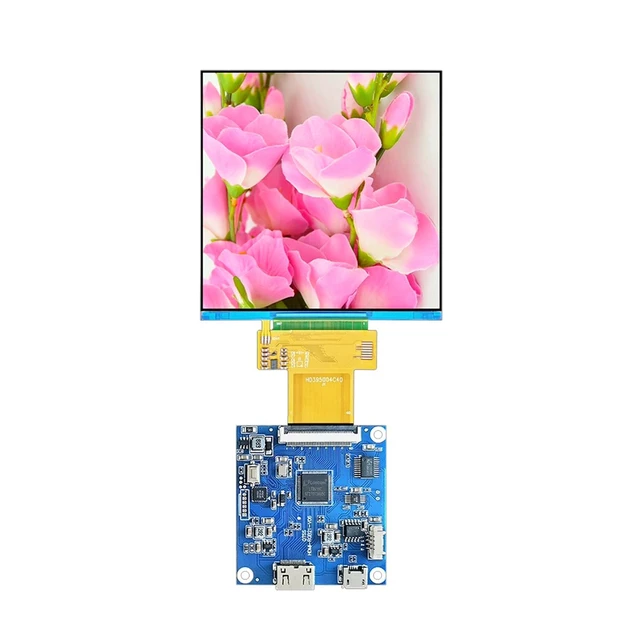

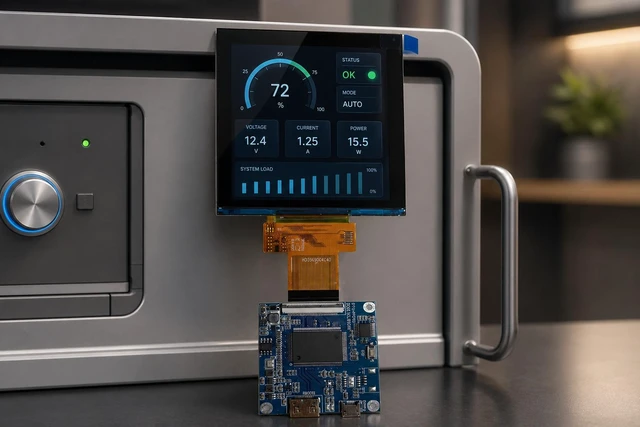

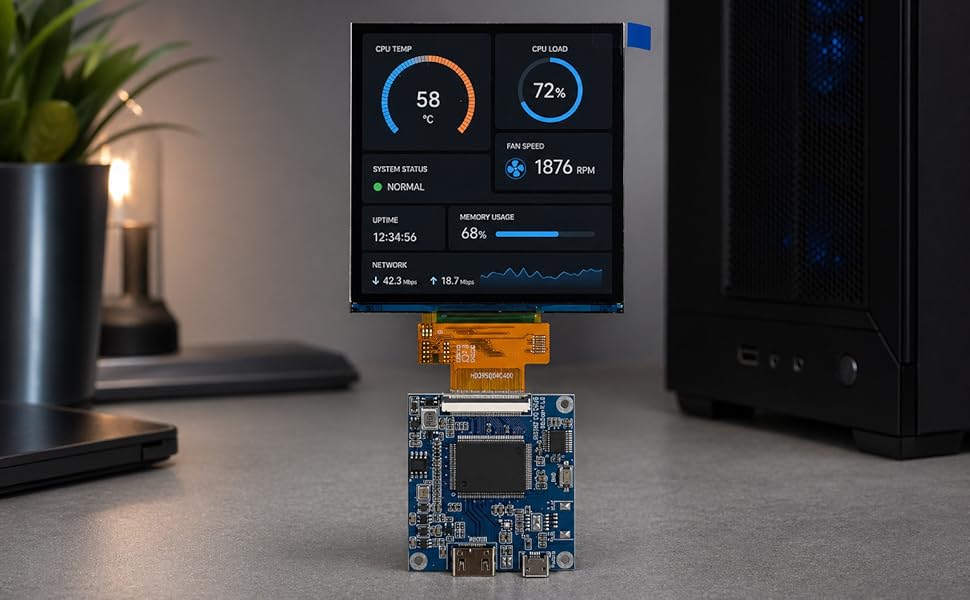

TekGroAml 4 inch IPS Square LCD Display 720x720 300 nits , H/D Video Port for DIY Embedded Smart Machine, DIY Video Retro Gaming

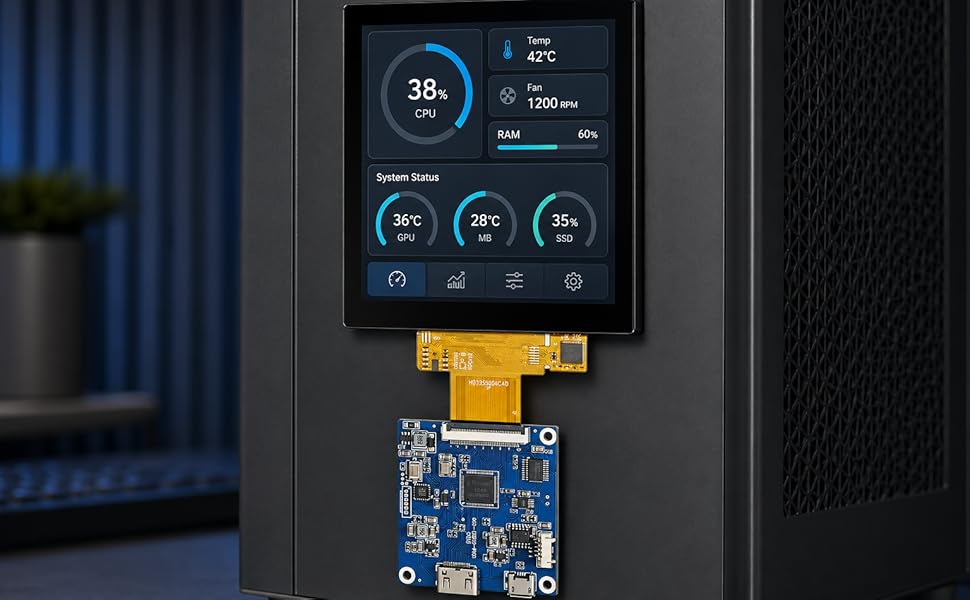

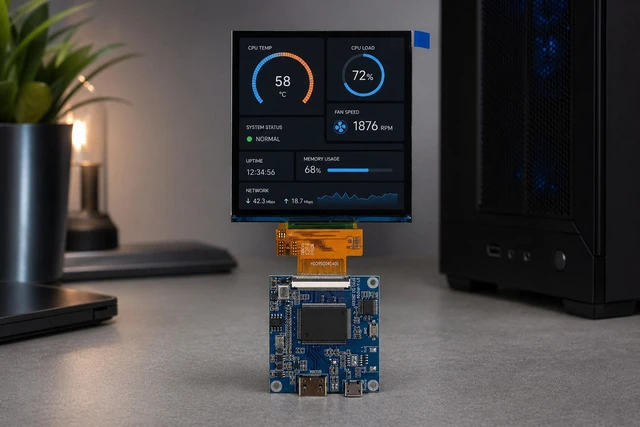

- High Resolution Square Display: This 4 inch square display kit features 720 x 720 resolution providing a compact screen format for gauges, status panels, control pages, simulator dashboards, and embedded DIY user interfaces with a-Si TFT, RGB stripe / Normally Black technology
- H/D Controller Board Included: The kit includes a controller/driver board with H/D signal input requiring a stable power source according to the final board requirement, compatible with H/D-output hosts and single-board-computer projects that may require display configuration
- Power Requirements: Input power specification of 5V 1A must be prepared separately by the user, and there is no OSD setting available for this display

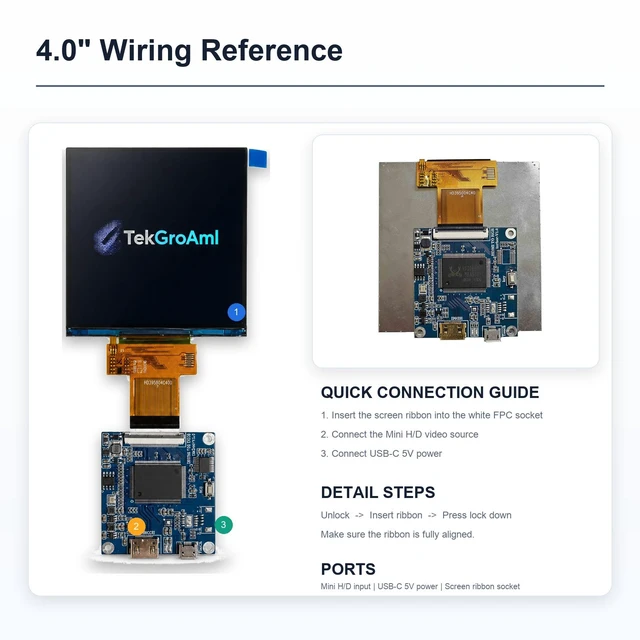

- Plug and Play Installation: Simple setup by directly connecting the power cable and signal cable allows the screen to work immediately, ensuring the screen and board operate in an insulated environment for safety
- Versatile Application Support: This display is suitable for various kinds...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Key Product Data:
Item:
Specification: Product
Type: 4 inch square LCD display kit with
H/D controller board: Screen
Size: 4
inch: Display
Shape:
square:
Resolution: 720
x 720: Display
Type: a-Si TFT, RGB stripe /
Normally Black from related source:
Touch: Not
included: Active

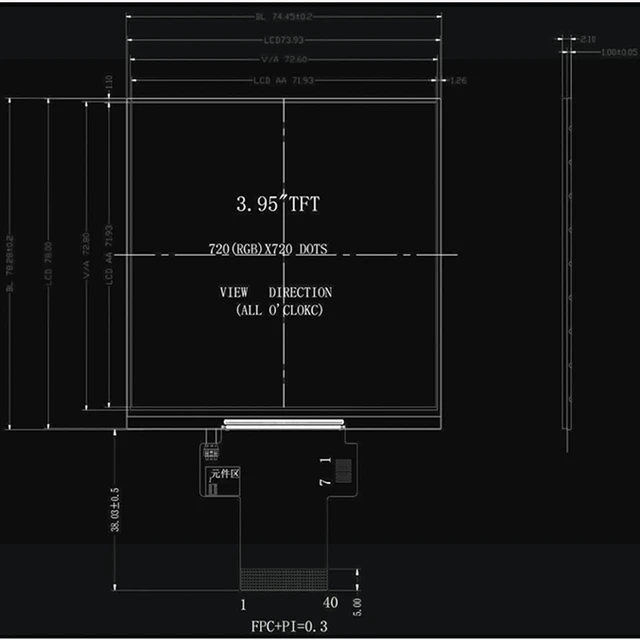

Area: 71.93
x 71.93 mm: LCD
Outline Size: 74.45 x 78.28 mm screen source:
Brightness: 300 cd/m2 typical from historical draft: Contrast
Ratio: 800:1
typical from historical draft: Viewing
Angle: ALL / 85/85/85/85 typical from historical draft: Screen
Interface: 3WSPI +
RGB18BIT: Pin /
Connector: MIPI/FPC reference, confirm
final pin count:
Backlight: 10 white
LEDs in parallel:
Voltage: IOVCC 1.8V typical;
VCI 2.8V typical: Video
Input: Micro
H/D: Power
Input: 5Vdc, more than 0.5A from related draft; confirm: Controller
Board Size: approx. 49.78 x 47.02 mm from board source; historical listing says 55 x 45 x 5 mm: Package
Includes: 1 x 4 inch 720 x 720 square LCD screen; 1 x H/D controller board; cables/accessories to confirm: ## Package Includes 1 x 4 inch 720 x 720 square LCD screen; 1 x H/D controller board
Item:
Specification: Product
Type: 4 inch square LCD display kit with
H/D controller board: Screen
Size: 4
inch: Display
Shape:
square:
Resolution: 720
x 720: Display
Type: a-Si TFT, RGB stripe /
Normally Black from related source:
Touch: Not
included: Active
Area: 71.93
x 71.93 mm: LCD
Outline Size: 74.45 x 78.28 mm screen source:
Brightness: 300 cd/m2 typical from historical draft: Contrast
Ratio: 800:1
typical from historical draft: Viewing
Angle: ALL / 85/85/85/85 typical from historical draft: Screen
Interface: 3WSPI +
RGB18BIT: Pin /
Connector: MIPI/FPC reference, confirm
final pin count:
Backlight: 10 white
LEDs in parallel:
Voltage: IOVCC 1.8V typical;
VCI 2.8V typical: Video
Input: Micro
H/D: Power
Input: 5Vdc, more than 0.5A from related draft; confirm: Controller
Board Size: approx. 49.78 x 47.02 mm from board source; historical listing says 55 x 45 x 5 mm: Package
Includes: 1 x 4 inch 720 x 720 square LCD screen; 1 x H/D controller board; cables/accessories to confirm: ## Package Includes 1 x 4 inch 720 x 720 square LCD screen; 1 x H/D controller board
