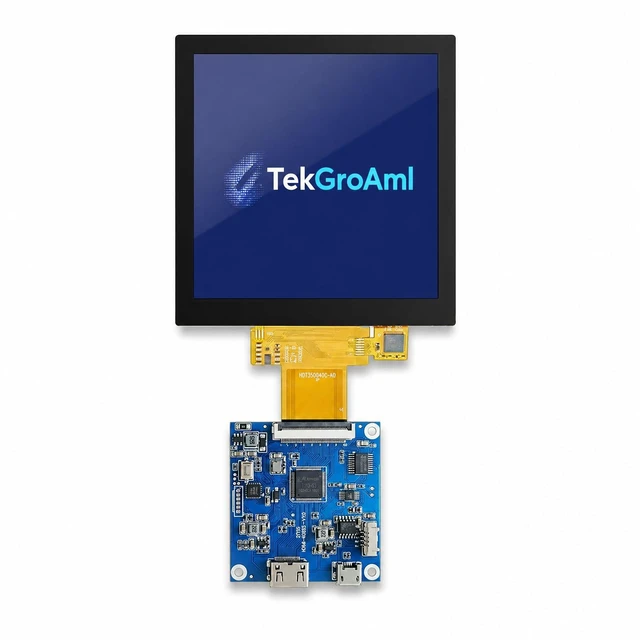

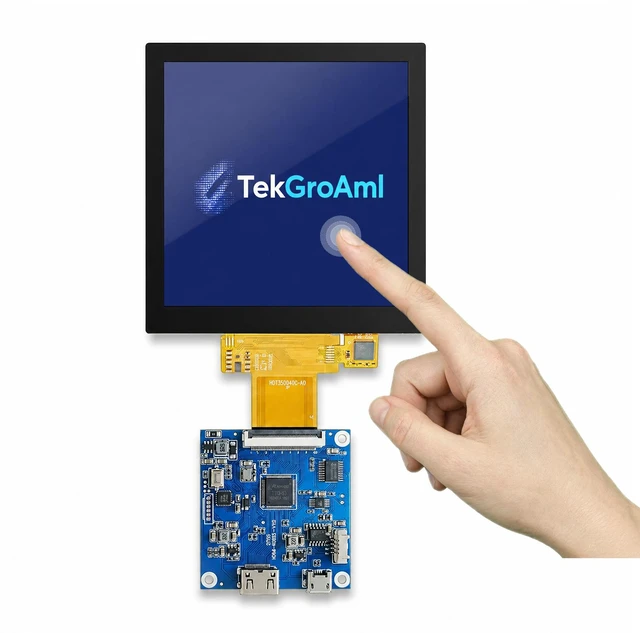

    TekGroAml 4-Inch Square 720x720 LCD Display Kit, Touch, HDMI Controller

    Limited time offer, ends 12/15 By TekGroAml

    • Display: 4-inch square 720x720 IPS LCD.
    • Touch input: Supports interactive gauges and control pages. Configure the host touch connection and coordinate mapping after video setup.
    • Connection: HDMI video input through the included controller board.
    • Installation: Plan a custom mount with clearance for the LCD and connectors. Handle flex cables with power disconnected.
    • Included: 1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    1

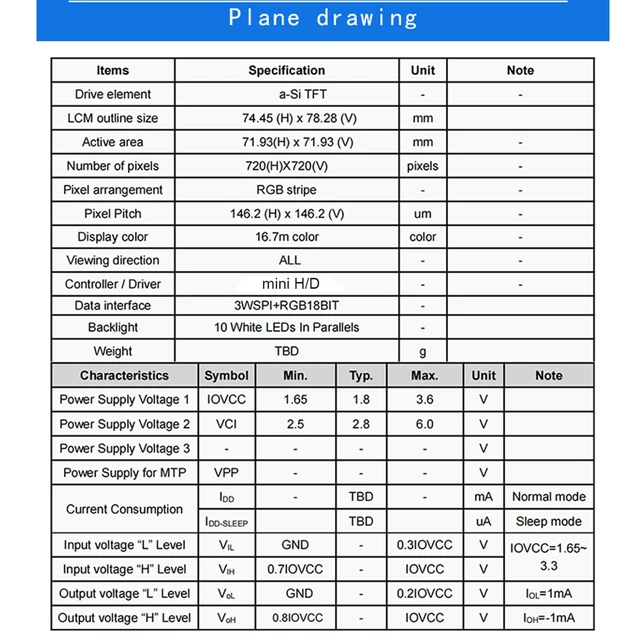

    Screen size 4 inch
    Resolution 720x720
    Display Type a-Si TFT
    Pixel Arrangement R.G.B. Vertical Stripe
    Display Mode Normally Black
    Viewing Angle ALL

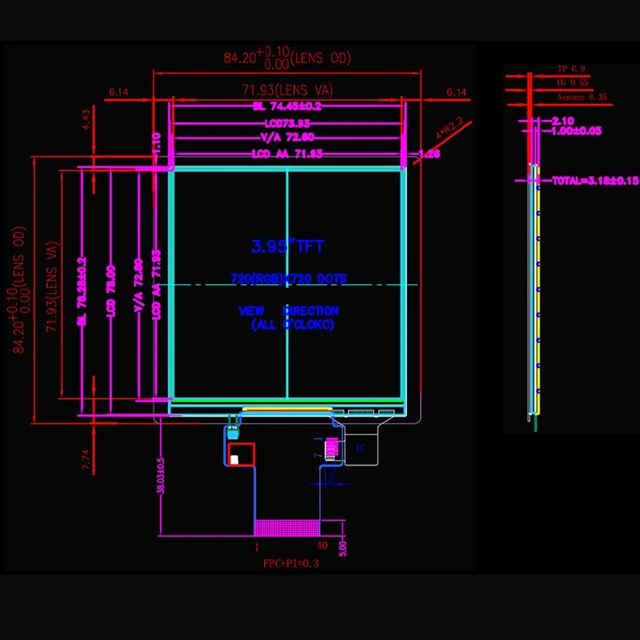

    Active Area 71.93(H) x 71.93(V) mm
    Backlights LED

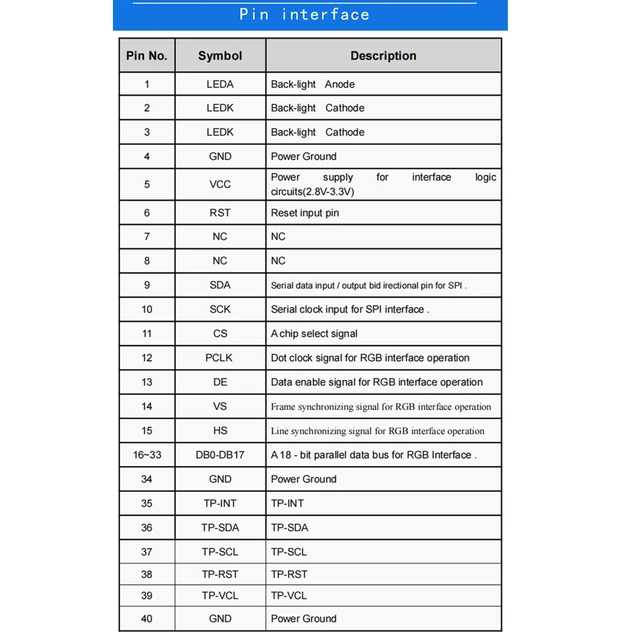

    Display Interface 3WSPI+RGB18BIT
    Number of Colors 16.7M colors
    Power Supply (IOVCC) 1.65V (Min) ~ 1.8V (Typ) ~ 3.6V (Max)
    Low-Power Mode Sleep mode for minimal power draw

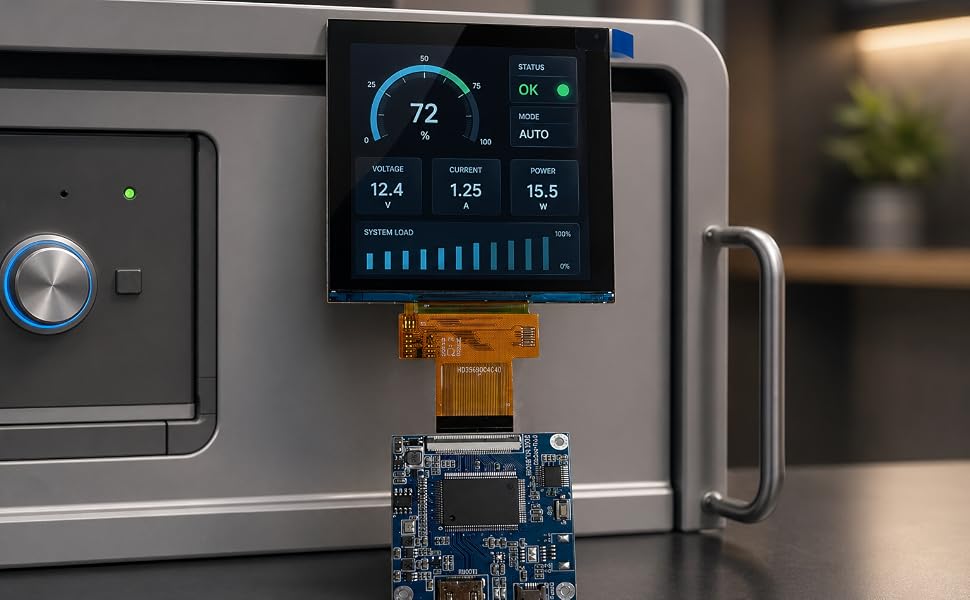

    4.0SS-1

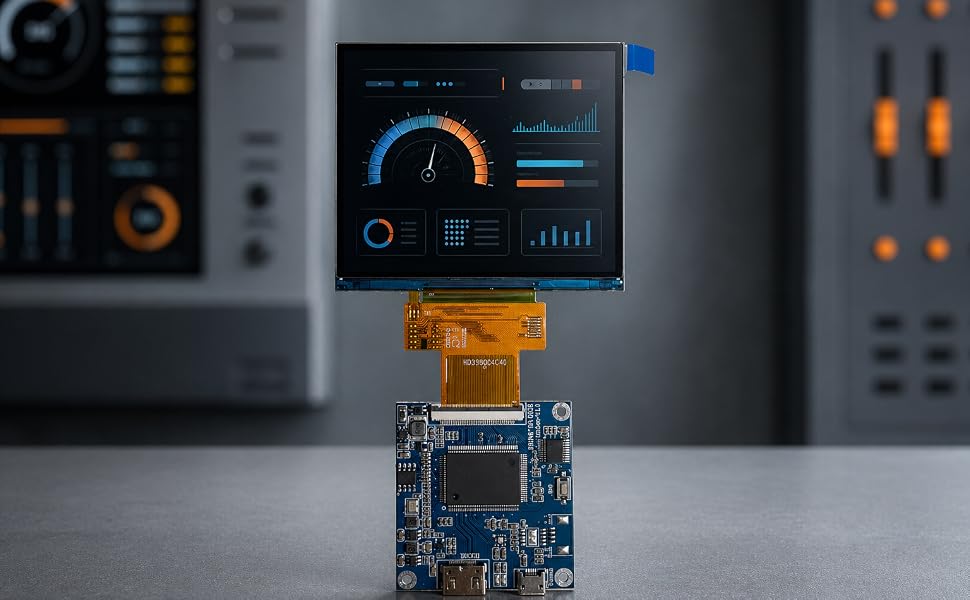

    4.0SS

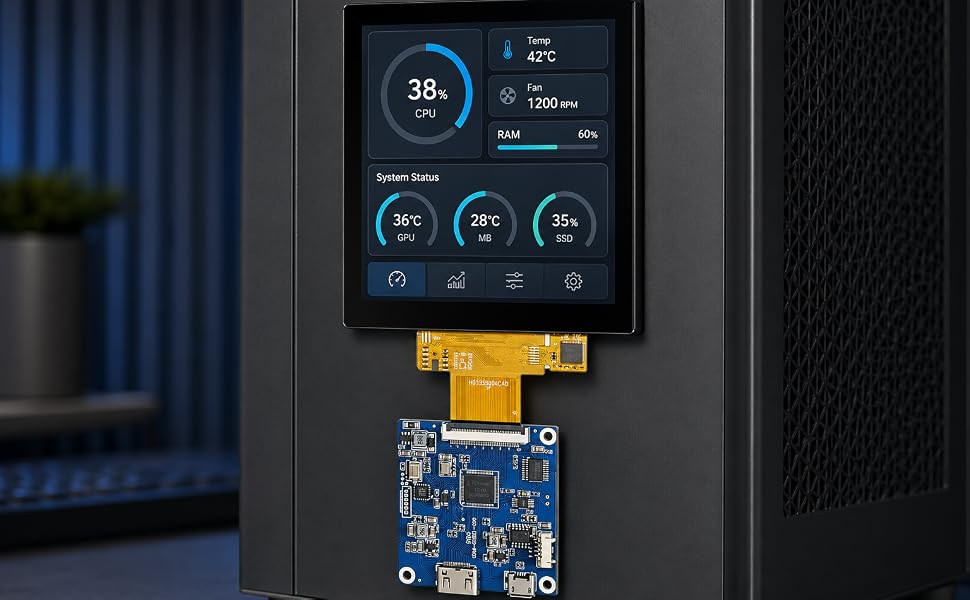

    4.0SST-2

    Windows Quick Setup

    • Display detection:Connect the module as a secondary monitor and open Windows display settings.
    • Resolution reference:Use 720 x 720 for 4-inch models.
    • Refresh rate:Set the refresh rate to 60Hz.
    • Screen arrangement:Place the round display beside the main monitor to avoid mouse cursor conflicts.
    • Custom mode: If the native resolution is not detected automatically, create a custom mode at the selected model's native resolution and 60Hz in the graphics control panel.
    • Application use:Move the compatible dashboard, monitoring interface, control UI, or simulator panel to the round secondary display after activation.

    Single-Board-Computer Setup Notes

    • Compatibility note:Suitable for compatible single-board-computer projects that support custom video output.
    • Recommended target:Use the selected model's native resolution at 60Hz when supported by the platform.
    • Resolution reference:Use 720 x 720 for 4-inch models.
    • Setup method :Use platform display settings or a supported custom output method to set the required output mode.
    • Reboot note:Reboot the system after saving the display configuration if required by the platform.
    • Check items:Display output should be validated first. For touch variants, confirm the host-side touch connection method independently from the video setup before release.

    1
    Screen size 4 inch
    Resolution 720x720
    Display Type a-Si TFT
    Pixel Arrangement R.G.B. Vertical Stripe
    Display Mode Normally Black
    Viewing Angle ALL
    Active Area 71.93(H) x 71.93(V) mm
    Backlights LED
    Display Interface 3WSPI+RGB18BIT
    Number of Colors 16.7M colors
    Power Supply (IOVCC) 1.65V (Min) ~ 1.8V (Typ) ~ 3.6V (Max)
    Low-Power Mode Sleep mode for minimal power draw
    4.0SS-1
    4.0SS
    4.0SST-2

    Windows Quick Setup

    • Display detection:Connect the module as a secondary monitor and open Windows display settings.
    • Resolution reference:Use 720 x 720 for 4-inch models.
    • Refresh rate:Set the refresh rate to 60Hz.
    • Screen arrangement:Place the round display beside the main monitor to avoid mouse cursor conflicts.
    • Custom mode: If the native resolution is not detected automatically, create a custom mode at the selected model's native resolution and 60Hz in the graphics control panel.
    • Application use:Move the compatible dashboard, monitoring interface, control UI, or simulator panel to the round secondary display after activation.

    Single-Board-Computer Setup Notes

    • Compatibility note:Suitable for compatible single-board-computer projects that support custom video output.
    • Recommended target:Use the selected model's native resolution at 60Hz when supported by the platform.
    • Resolution reference:Use 720 x 720 for 4-inch models.
    • Setup method :Use platform display settings or a supported custom output method to set the required output mode.
    • Reboot note:Reboot the system after saving the display configuration if required by the platform.
    • Check items:Display output should be validated first. For touch variants, confirm the host-side touch connection method independently from the video setup before release.

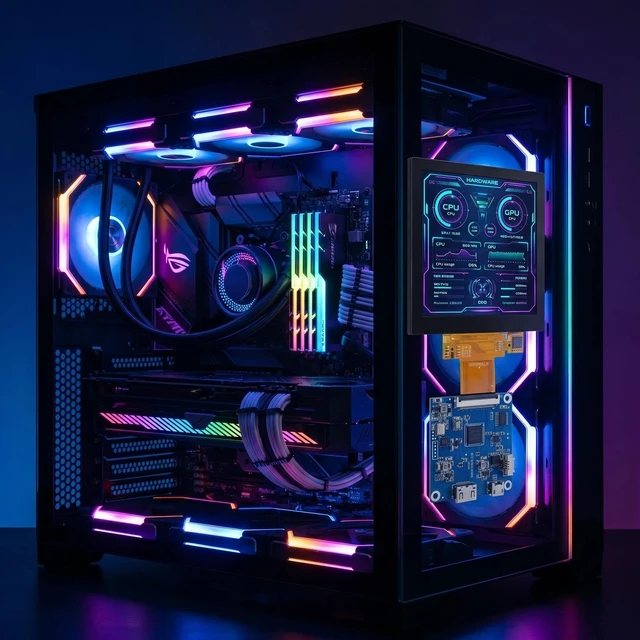

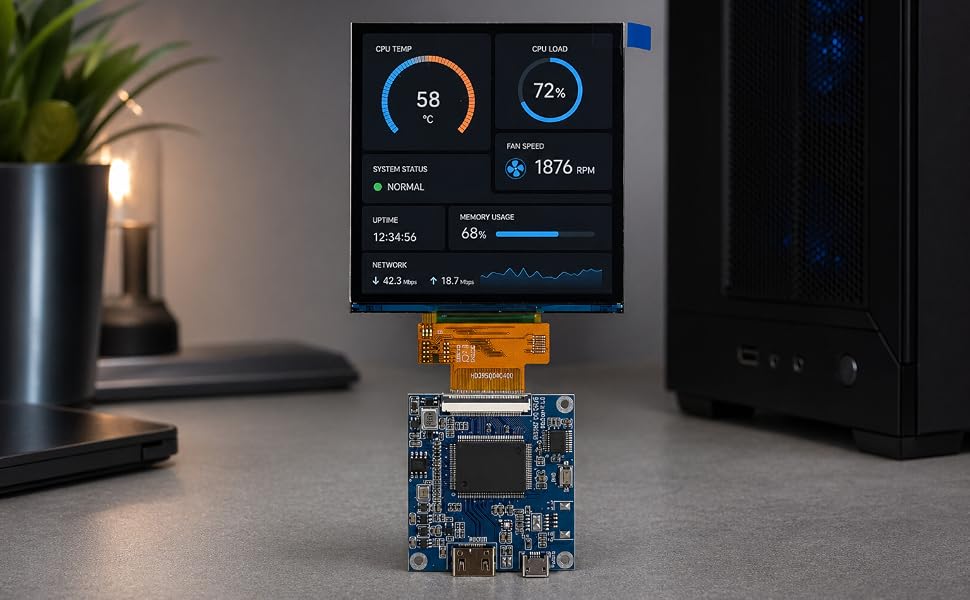

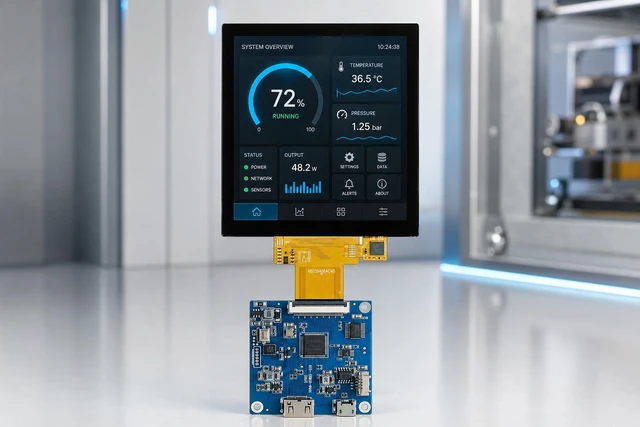

    The TekGroAml 4-inch square LCD display kit provides 720x720 pixels for PC sensor panels, custom gauges, equipment readouts and compact DIY interfaces.

    Project use

    Use the square viewing area for touch controls, interactive status pages or a custom HMI. The display shows the image supplied by the host; it does not measure CPU or GPU data on its own.

    Specifications

    • Screen size: 4 inches
    • Screen format: Square
    • Native resolution: 720x720 pixels
    • Native pixel matrix aspect: 1:1
    • Panel: IPS LCD
    • Touch: Touch
    • Display colors: 16.7 million
    • Video connection: HDMI video input through the included controller board

    Included hardware

    1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.

    Connection and setup

    Connect the LCD to the controller with power disconnected. Then connect video and the correct power source. Set the host to 720x720. A working video image does not establish a working touch path; configure the host touch data connection and map it to this screen. Set orientation and scaling in the host as required. Secure the electronics in an insulated mount and leave the flex cable free of strain.
