TekGroAml 2.1-Inch Dual Round 480x480 LCD Display Kit, Mirror Mode, 60 Hz, HDMI Controller

Be the first to review this product...

size: 2.1 inch

2.1 inch
2.8 inch

Display: Two 2.1-inch round 480x480 TFT LCD, 60 Hz per screen.
Mode: Both screens repeat the same image for matching gauges and duplicated readouts.

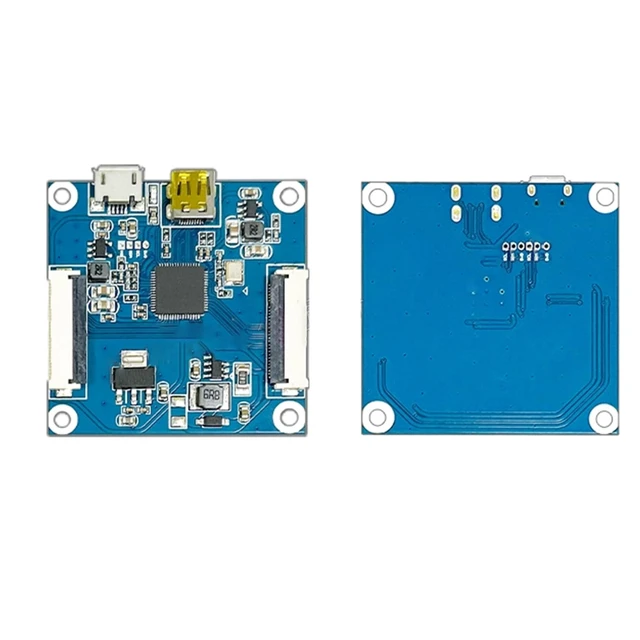

Connection: HDMI video input through the included controller board. 5 V DC, 1 A.
Power: 5 V DC, 1 A. Keep the exposed circuit board insulated from conductive mounting surfaces.

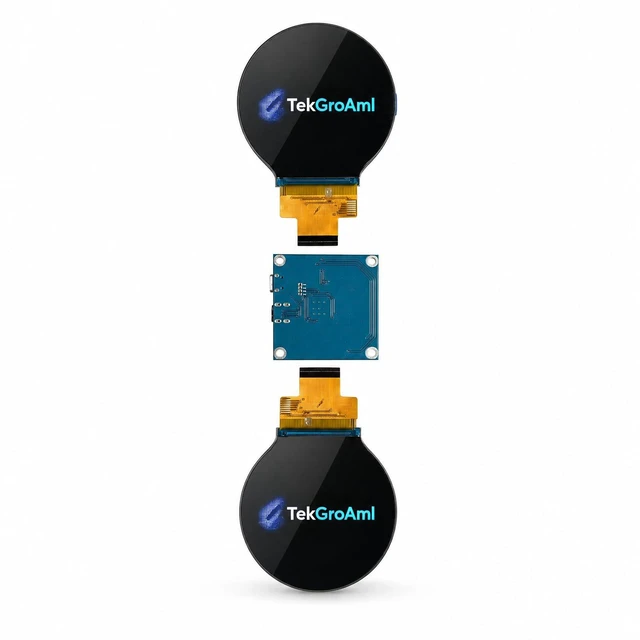

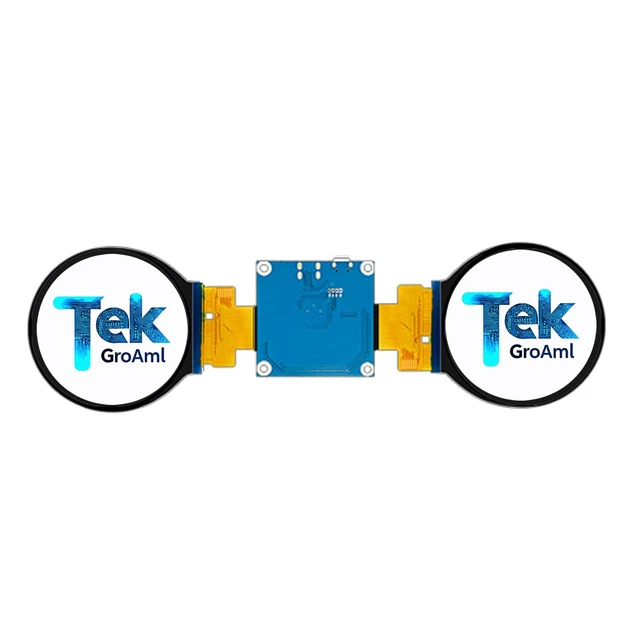

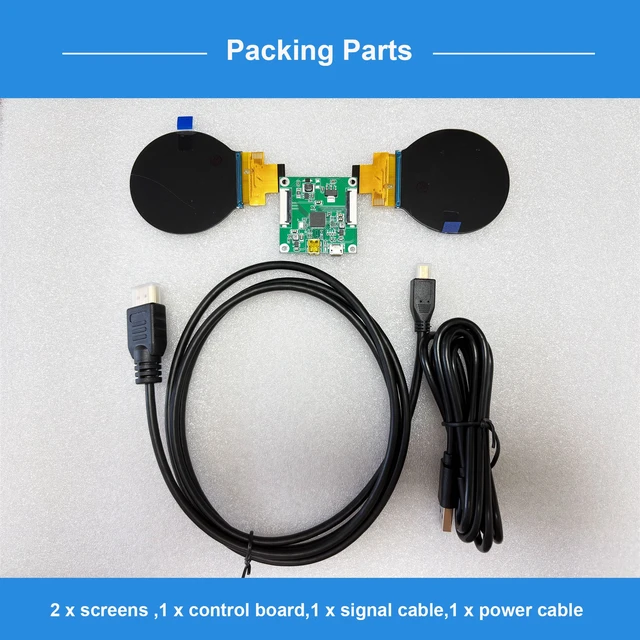

Included: 2 LCD screens, 1 controller board, 1 signal cable and 1 power cable.

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Screen size	2.1 inch /2.8 inch,dual screen
Resolution	480 (RGB) x 480
Display Type	a-Si TFT
Pixel Arrangement	R.G.B. Vertical Stripe
Display Mode	Normally Black
Viewing Angle	ALL
Outline Dimensions	56.18 x 59.71 x 2.3 mm//73.03 (H) x 76.58 (V) mm
Active Area	53.28 x 53.28 mm//70.13 (H) x 70.13 (V) mm

Connector Type	0.5mm pitch, 40-Pin
Backlights	LED
Display Interface	3SPI + 18RGB
Number of Colors	262K
Operating Voltage (VDD)	2.5V (Min) / 2.8V (Typ) / 4.8V (Max)
Supply Current (IDD)	50mA (Typ) (VDD=2.8V, Ta=25°C)
Feature	No OSD ,can't adjust the brightness or setting menu

	TekGroAml 2.1 Inch Round LCD Screen, 480x480 400 nits IPS Circle Display with...	TekGroAml Portable mini IPS LCD Round Screen,2.8 inch 480x480 Circle Display ...	TekGroAml 2.1 Inch Round Touch LCD Display with 480x480 HDMI Board \| 300 nits...	TekGroAml 2.8 Inch Round Touch LCD Display, HDMI Board, 480x480 \| IPS Capacit...	3.4 Inch Round 330nit LCD Display & HDMI Board, 800x800 IPS Circular Screen \|...	TekGroAml 4 Inch Round LCD Display with Micro H/D Controller Board 720x720 \| ...

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Screen size	2.1 inch	2.8 inch	2.1 inch	2.8 inch	3.4 inch	4 inch
Video input	mini H/D 1.4	mini H/D 1.4	Micro H/D 1.4	mini H/D 1.4	mini H/D 1.4	Micro H/D 1.4
Resolution	480x480	480x480	480x480	480x480	800x800	720x720
Touch	NO	NO	?	?	NO	NO

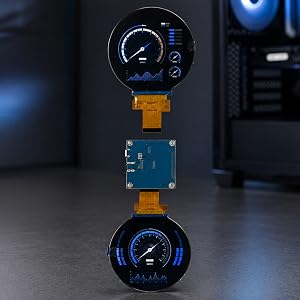

simulator Dashboards

2.8 round

Applications

2.8 round

PC case panel

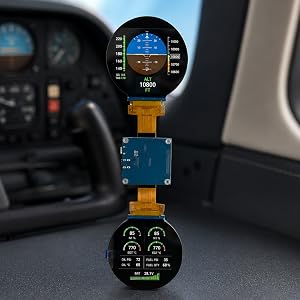

2.8-2

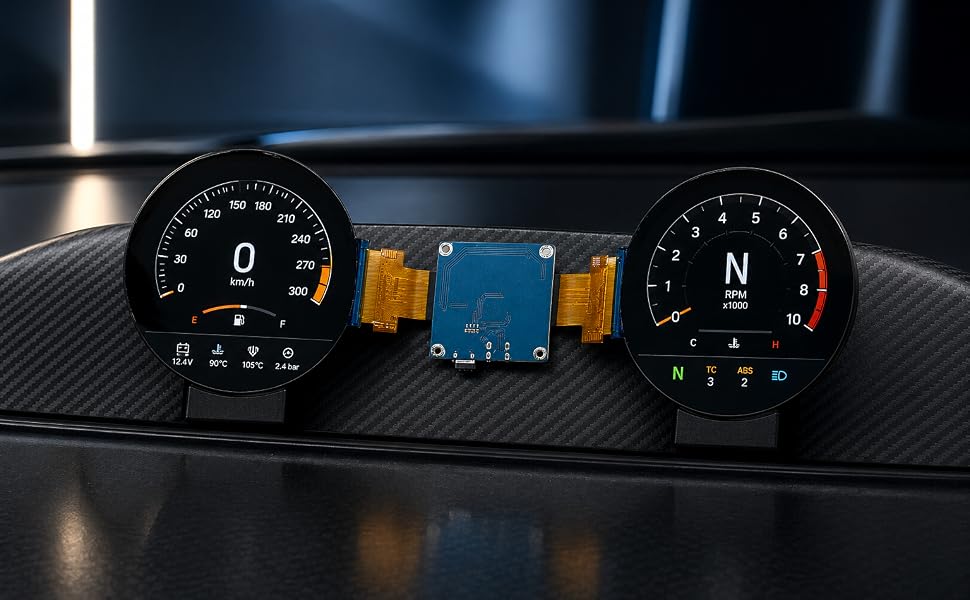

Simulator display

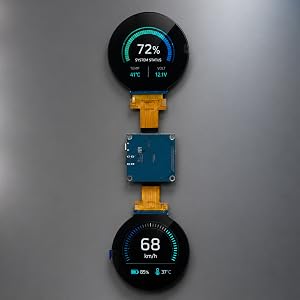

2.1-3

PC case sensor panel

This display is a fantastic fit for all sorts of projects, including:

Smart Wearables (Think smartwatches, fitness trackers, etc.)
Instrumentation
Handheld Devices
IoT Gadgets

Windows Quick Setup

Display detection: Connect the module as a secondary monitor and open Windows display settings.
Resolution: Set the screen output to 480 x 480.
Refresh rate: Set the refresh rate to 60Hz.
Screen arrangement: Place the round display beside the main monitor to avoid mouse cursor conflicts.
Custom mode: If 480 x 480 is not detected automatically, create a custom 480 x 480 at 60Hz mode in the graphics control panel.
Application use: Move the compatible dashboard, monitoring interface, control UI, or simulator panel to the round secondary display after activation.

Single-Board-Computer Setup Notes

Compatibility note: Suitable for compatible single-board-computer projects that support custom video output.
Recommended target: Use a custom 480 x 480 at 60Hz output when supported by the platform.
Setup method: Use platform display settings or a supported custom output method to set 480 x 480 at 60Hz.
Reboot note: Reboot the system after saving the display configuration if required by the platform.
Check items: Display output should be validated first. For touch variants, confirm the host-side touch connection method independently from the video setup before release.

Screen size	2.1 inch /2.8 inch,dual screen
Resolution	480 (RGB) x 480
Display Type	a-Si TFT
Pixel Arrangement	R.G.B. Vertical Stripe
Display Mode	Normally Black
Viewing Angle	ALL
Outline Dimensions	56.18 x 59.71 x 2.3 mm//73.03 (H) x 76.58 (V) mm
Active Area	53.28 x 53.28 mm//70.13 (H) x 70.13 (V) mm
Connector Type	0.5mm pitch, 40-Pin
Backlights	LED
Display Interface	3SPI + 18RGB
Number of Colors	262K
Operating Voltage (VDD)	2.5V (Min) / 2.8V (Typ) / 4.8V (Max)
Supply Current (IDD)	50mA (Typ) (VDD=2.8V, Ta=25°C)
Feature	No OSD ,can't adjust the brightness or setting menu

	TekGroAml 2.1 Inch Round LCD Screen, 480x480 400 nits IPS Circle Display with...	TekGroAml Portable mini IPS LCD Round Screen,2.8 inch 480x480 Circle Display ...	TekGroAml 2.1 Inch Round Touch LCD Display with 480x480 HDMI Board \| 300 nits...	TekGroAml 2.8 Inch Round Touch LCD Display, HDMI Board, 480x480 \| IPS Capacit...	3.4 Inch Round 330nit LCD Display & HDMI Board, 800x800 IPS Circular Screen \|...	TekGroAml 4 Inch Round LCD Display with Micro H/D Controller Board 720x720 \| ...

Customer Reviews	—	—	—	—	—	—
Price	—	—	—	—	—	—
Screen size	2.1 inch	2.8 inch	2.1 inch	2.8 inch	3.4 inch	4 inch
Video input	mini H/D 1.4	mini H/D 1.4	Micro H/D 1.4	mini H/D 1.4	mini H/D 1.4	Micro H/D 1.4
Resolution	480x480	480x480	480x480	480x480	800x800	720x720
Touch	NO	NO	?	?	NO	NO

simulator Dashboards

2.8 round

Applications

2.8 round

PC case panel

2.8-2

Simulator display

2.1-3

PC case sensor panel

This display is a fantastic fit for all sorts of projects, including:

Smart Wearables (Think smartwatches, fitness trackers, etc.)
Instrumentation
Handheld Devices
IoT Gadgets

Windows Quick Setup

Display detection: Connect the module as a secondary monitor and open Windows display settings.
Resolution: Set the screen output to 480 x 480.
Refresh rate: Set the refresh rate to 60Hz.
Screen arrangement: Place the round display beside the main monitor to avoid mouse cursor conflicts.
Custom mode: If 480 x 480 is not detected automatically, create a custom 480 x 480 at 60Hz mode in the graphics control panel.
Application use: Move the compatible dashboard, monitoring interface, control UI, or simulator panel to the round secondary display after activation.

Single-Board-Computer Setup Notes

Compatibility note: Suitable for compatible single-board-computer projects that support custom video output.
Recommended target: Use a custom 480 x 480 at 60Hz output when supported by the platform.
Setup method: Use platform display settings or a supported custom output method to set 480 x 480 at 60Hz.
Reboot note: Reboot the system after saving the display configuration if required by the platform.
Check items: Display output should be validated first. For touch variants, confirm the host-side touch connection method independently from the video setup before release.

The TekGroAml 2.1-inch dual-screen round LCD display kit provides 480x480 pixels on each of two screens for PC sensor panels, custom gauges, equipment readouts and compact DIY interfaces.

Project use

Build matching gauges or place the same status view in two positions. This SKU is the mirror version; its two screens are intended to show the same image.

Specifications

Screen size: 2.1 inches per screen
Screen format: Round
Native resolution: 480x480 pixels per screen
Screen quantity: 2
Native pixel matrix aspect: 1:1
Panel: TFT LCD
Touch: Non-Touch
Dual-screen mode: Mirror
Refresh rate: 60 Hz
Video connection: HDMI video input through the included controller board
Power input: 5 V DC, 1 A

Included hardware

2 LCD screens, 1 controller board, 1 signal cable and 1 power cable.

Connection and setup

Connect the LCD to the controller with power disconnected. Then connect video and the correct power source. Choose an input mode supported by the dual-screen controller and arrange content to match its screen mapping. Each panel has 480x480 pixels. Set orientation and scaling in the host as required. Secure the electronics in an insulated mount and leave the flex cable free of strain.
