    TekGroAml 3.4-Inch Round 800x800 LCD Display Kit, Capacitive Touch, 60 Hz, HDMI Controller

    Limited time offer, ends 12/15 By TekGroAml

    • Display: 3.4-inch round 800x800 IPS LCD, 60 Hz.
    • Touch: Capacitive Touch hardware for interactive gauges and control pages. Configure the host touch connection and coordinate mapping after video setup.
    • Connection: HDMI video input through the included controller board. USB 5 V input; supply rated at least 1 A.
    • Power: USB 5 V input; supply rated at least 1 A. Keep the exposed circuit board insulated from conductive mounting surfaces.
    • Included: 1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    s
    Screen size 3.4 inch
    Resolution 800 x 800
    Display Type a-Si TFT
    Display Mode Normally Black
    Viewing Angle ALL
    Outline Dimensions 94.9x96.95x2.3 /104.4x104.4x4(W×H×D)mm,the touch screen with larger outline size
    Active Area 87.6x 87.6 (H) x (V) mm
    Brightness 330 nits
    Operating Voltage (VDD) 2.8V
    Feature No OSD ,can't adjust the brightness or setting menu

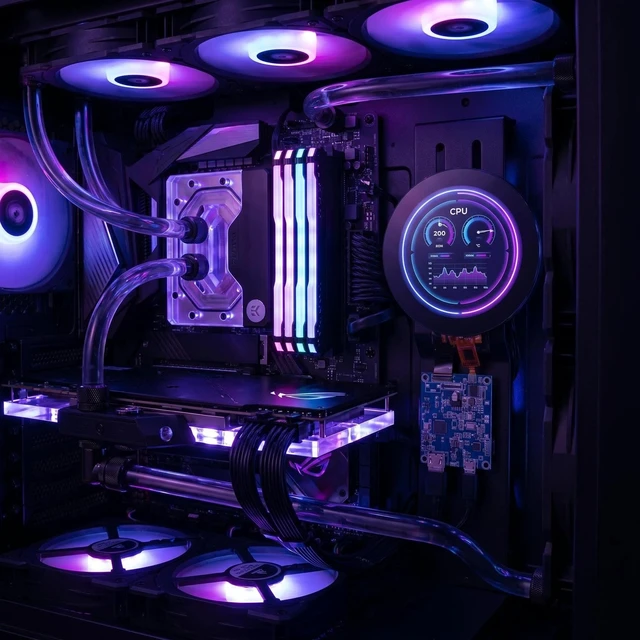

    PC CASE MONITOR

    2.8 round

    Smart Home Control

    s
    round

    This display is a fantastic fit for all sorts of projects, including:

    • Smart Wearables (Think smartwatches, fitness trackers, etc.)
    • Instrumentation
    • Handheld Devices
    • IoT Gadgets

    Windows Quick Setup

    • Display detection:Connect the module as a secondary monitor and open Windows display settings.
    • Resolution reference:Use 800x800 for 3.4-inch models.
    • Refresh rate:Set the refresh rate to 60Hz.
    • Screen arrangement:Place the round display beside the main monitor to avoid mouse cursor conflicts.
    • Custom mode: If the native resolution is not detected automatically, create a custom mode at the selected model's native resolution and 60Hz in the graphics control panel.
    • Application use:Move the compatible dashboard, monitoring interface, control UI, or simulator panel to the round secondary display after activation.

    Single-Board-Computer Setup Notes

    • Compatibility note:Suitable for compatible single-board-computer projects that support custom video output.
    • Recommended target:Use the selected model's native resolution at 60Hz when supported by the platform.
    • Resolution reference:Use 800x800 for 3.4-inch models.
    • Setup method :Use platform display settings or a supported custom output method to set the required output mode.
    • Reboot note:Reboot the system after saving the display configuration if required by the platform.
    • Check items:Display output should be validated first. For touch variants, confirm the host-side touch connection method independently from the video setup before release.

    s
    Screen size 3.4 inch
    Resolution 800 x 800
    Display Type a-Si TFT
    Display Mode Normally Black
    Viewing Angle ALL
    Outline Dimensions 94.9x96.95x2.3 /104.4x104.4x4(W×H×D)mm,the touch screen with larger outline size
    Active Area 87.6x 87.6 (H) x (V) mm
    Brightness 330 nits
    Operating Voltage (VDD) 2.8V
    Feature No OSD ,can't adjust the brightness or setting menu

    PC CASE MONITOR

    2.8 round

    Smart Home Control

    s
    round

    This display is a fantastic fit for all sorts of projects, including:

    • Smart Wearables (Think smartwatches, fitness trackers, etc.)
    • Instrumentation
    • Handheld Devices
    • IoT Gadgets

    Windows Quick Setup

    • Display detection:Connect the module as a secondary monitor and open Windows display settings.
    • Resolution reference:Use 800x800 for 3.4-inch models.
    • Refresh rate:Set the refresh rate to 60Hz.
    • Screen arrangement:Place the round display beside the main monitor to avoid mouse cursor conflicts.
    • Custom mode: If the native resolution is not detected automatically, create a custom mode at the selected model's native resolution and 60Hz in the graphics control panel.
    • Application use:Move the compatible dashboard, monitoring interface, control UI, or simulator panel to the round secondary display after activation.

    Single-Board-Computer Setup Notes

    • Compatibility note:Suitable for compatible single-board-computer projects that support custom video output.
    • Recommended target:Use the selected model's native resolution at 60Hz when supported by the platform.
    • Resolution reference:Use 800x800 for 3.4-inch models.
    • Setup method :Use platform display settings or a supported custom output method to set the required output mode.
    • Reboot note:Reboot the system after saving the display configuration if required by the platform.
    • Check items:Display output should be validated first. For touch variants, confirm the host-side touch connection method independently from the video setup before release.

    The TekGroAml 3.4-inch round LCD display kit provides 800x800 pixels for PC sensor panels, custom gauges, equipment readouts and compact DIY interfaces.

    Project use

    Use the round viewing area for touch controls, interactive status pages or a custom HMI. The display shows the image supplied by the host; it does not measure CPU or GPU data on its own.

    Specifications

    • Screen size: 3.4 inches
    • Screen format: Round
    • Native resolution: 800x800 pixels
    • Native pixel matrix aspect: 1:1
    • Panel: IPS LCD
    • Touch: Capacitive Touch
    • Refresh rate: 60 Hz
    • Typical brightness: 330 cd/m2
    • Typical contrast: 300:1
    • Video connection: HDMI video input through the included controller board
    • Power input: USB 5 V input; supply rated at least 1 A

    Included hardware

    1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.

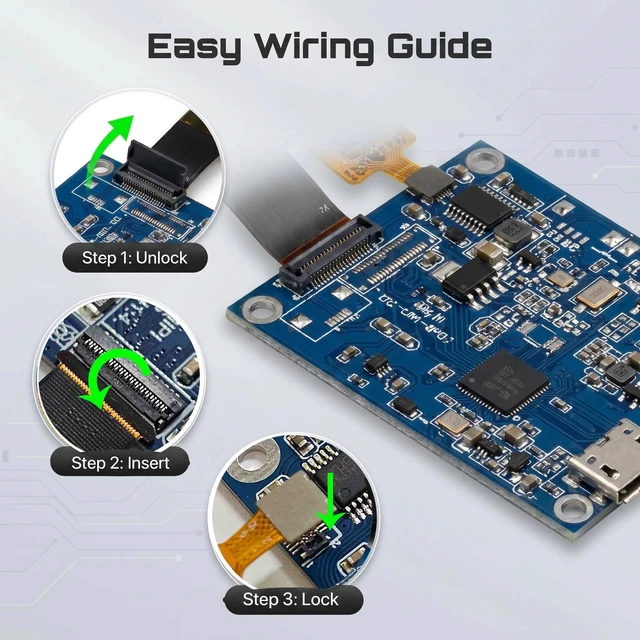

    Connection and setup

    Connect the LCD to the controller with power disconnected. Then connect video and the correct power source. Set the host to 800x800 at 60 Hz. A working video image does not establish a working touch path; configure the host touch data connection and map it to this screen. Set orientation and scaling in the host as required. Secure the electronics in an insulated mount and leave the flex cable free of strain.
