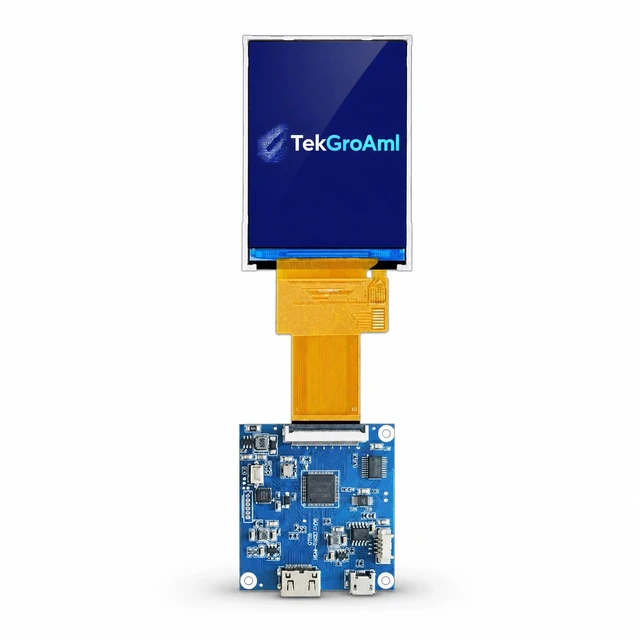

    TekGroAml 2.8-Inch Portrait 480x640 LCD Display Kit, HDMI Controller

    Limited time offer, ends 12/15 By TekGroAml

    • Display: 2.8-inch portrait 480x640 IPS TFT LCD.
    • Panel: 16.7 million display colors; 43.20 x 57.60 mm active area.
    • Connection: HDMI video input through the included controller board.
    • Fit: LCD outline 50.00 x 69.20 mm. Allow space for the flex cable and controller.
    • Included: 1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    2.8 Inch 480x640 Square mini H/D LCD Display

    2.0-F
    2.8-2

    Different mini LCD Screen and H/D Board

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    2 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    2.8 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    4 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    5 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    6.8 inch LCD Display

    Customer Reviews
    —
    —
    —
    —
    —
    Price
    — — — — —
    Screen size
    2 inch 2.8 inch 4 inch 5 inch 6.8 inch
    Resolution
    480x360 480x640 720x720 720x1280 480x1280
    Dimension
    46.00 (H) x 40.87 (V)mm 50.00 (H) x69.20 (V)mm 74.45 (H) x 78.28 (V)mm 64.6 (H) x117.43 (V)mm 65.7 (H) x 171.69(V)mm
    Display Area
    40.8 (H) x 30.6 (V)mm 43.20 (H) x 57.60(V)mm 71.93(H) x 71.93 (V)mm 61.78 (H) x 109.82 (V)mm 60.19 (H) x160.51 (V) mm
    Data interface
    RGB 18bit 3SPI-RGB18BIT 3WSPI+RGB18BIT 3SPI+RGB18BIT MIPI
    Backlight
    6 White LED 6 White LED 10 White LEDs In Parallels 12 White LEDs In Parallels 16 White LED

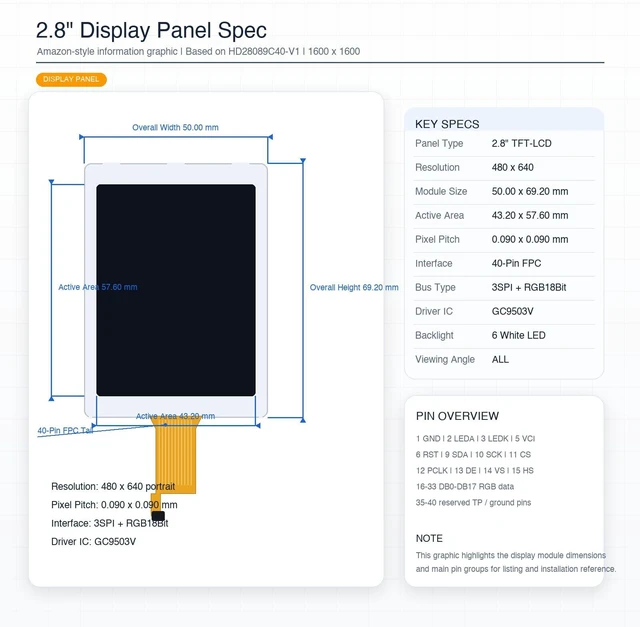

    Specification

    Screen size 2.8 Inch
    LCM outline size 50.00mm (H) x 69.20mm (V)
    Active area 43.20mm (H) x 57.60mm (V)
    Number of pixels 480(H)X640(V) pixels
    Viewing direction ALL o'clock
    Controller / Driver mini H/D
    2.8-F
    2.8-1
    • ? This is usually not a hardware defect but a signal sync or power issue.

      ? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.

      ? 2: Use a dedicated 5V 2A USB power adapter.

    • ? Yes! Orientation is controlled by your Operating System.

      ? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."

      ? RPi: Add display_rotate=2 (for 180°) to your config.txt file.

    • ? Most DIY boards stay powered as long as the USB port provides 5V standby power.

      ? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.

    • It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.

    • Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.

    2.8 Inch 480x640 Square mini H/D LCD Display

    2.0-F
    2.8-3

    Different mini LCD Screen and H/D Board

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    2 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    2.8 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    4 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    5 inch LCD Display

    TekGroAml 2.8 inch 480x640 IPS mini Square LCD Screen with HD Driver Board

    6.8 inch LCD Display

    Customer Reviews
    —
    —
    —
    —
    —
    Price
    — — — — —
    Screen size
    2 inch 2.8 inch 4 inch 5 inch 6.8 inch
    Resolution
    480x360 480x640 720x720 720x1280 480x1280
    Dimension
    46.00 (H) x 40.87 (V)mm 50.00 (H) x69.20 (V)mm 74.45 (H) x 78.28 (V)mm 64.6 (H) x117.43 (V)mm 65.7 (H) x 171.69(V)mm
    Display Area
    40.8 (H) x 30.6 (V)mm 43.20 (H) x 57.60(V)mm 71.93(H) x 71.93 (V)mm 61.78 (H) x 109.82 (V)mm 60.19 (H) x160.51 (V) mm
    Data interface
    RGB 18bit 3SPI-RGB18BIT 3WSPI+RGB18BIT 3SPI+RGB18BIT MIPI
    Backlight
    6 White LED 6 White LED 10 White LEDs In Parallels 12 White LEDs In Parallels 16 White LED

    Specification

    Screen size 2.8 Inch
    LCM outline size 50.00mm (H) x 69.20mm (V)
    Active area 43.20mm (H) x 57.60mm (V)
    Number of pixels 480(H)X640(V) pixels
    Viewing direction ALL o'clock
    Controller / Driver mini H/D
    2.8-F
    2.8-1
    • ? This is usually not a hardware defect but a signal sync or power issue.

      ? 1: Ensure the FPC cable (the thin ribbon) is inserted perfectly straight and the latch is fully locked.

      ? 2: Use a dedicated 5V 2A USB power adapter.

    • ? Yes! Orientation is controlled by your Operating System.

      ? Windows: Go to Display Settings -> Orientation and select "Landscape" or "Landscape (flipped)."

      ? RPi: Add display_rotate=2 (for 180°) to your config.txt file.

    • ? Most DIY boards stay powered as long as the USB port provides 5V standby power.

      ? Tip: You can change your PC's BIOS settings to "Disable USB power in S5 state," or use a USB cable with an inline switch for manual control.

    • It is H/D-compatible, but since 480x360 is a non-standard resolution, you must manually edit the config.txt file to force the resolution. We provide the specific code block in our digital manual to ensure a 1-minute setup.

    • Yes, it supports video output. but, macOS may not automatically recognize the special resolution, Recommend using the "Bette--rDisplay."to custom 1:1 resolution and enables HiDPI scaling for crisp text and perfectly centered images.

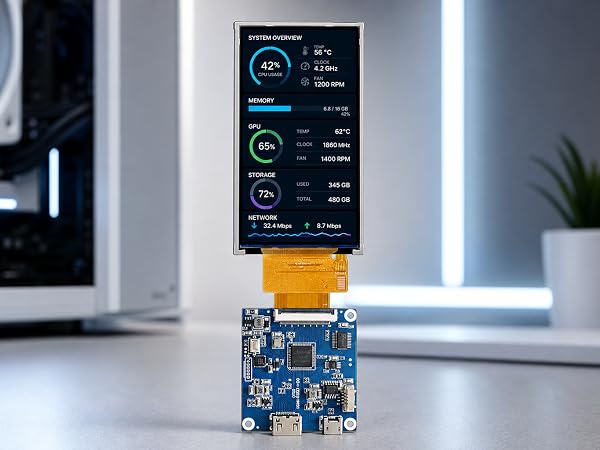

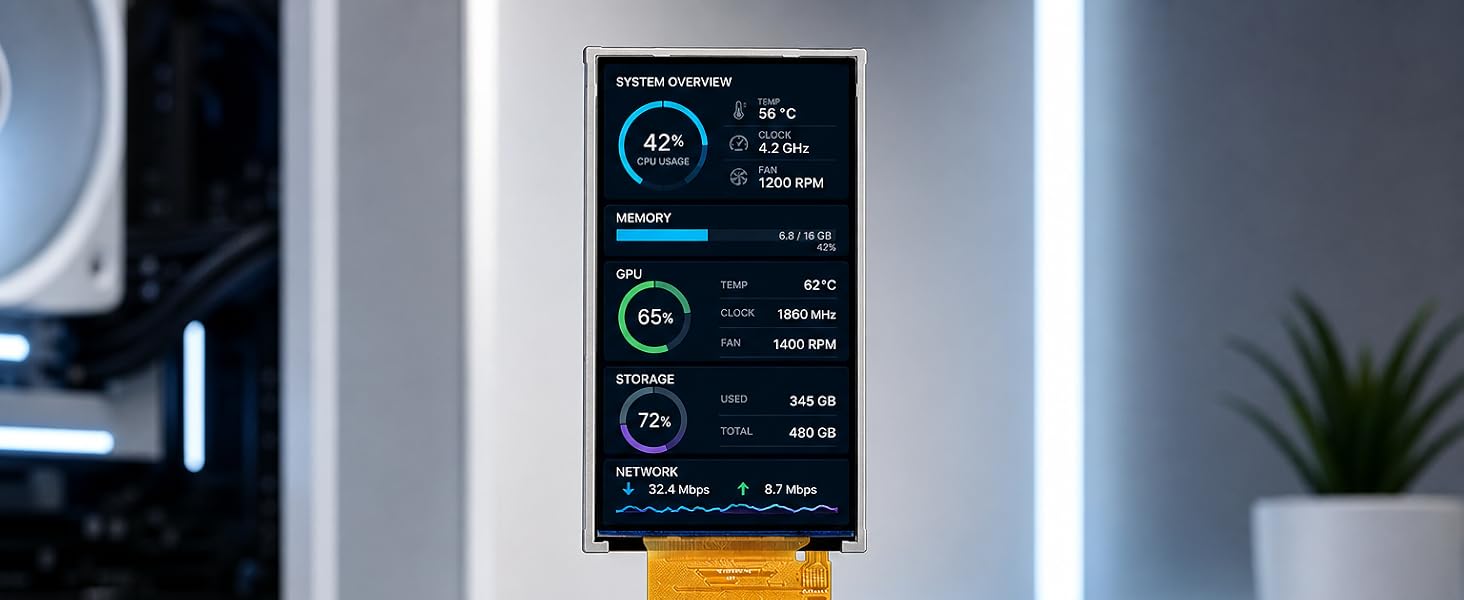

    The TekGroAml 2.8-inch portrait LCD display kit provides 480x640 pixels for PC sensor panels, custom gauges, equipment readouts and compact DIY interfaces.

    Project use

    Use the portrait viewing area for status widgets, instrument graphics or a host-rendered monitoring layout. The display shows the image supplied by the host; it does not measure CPU or GPU data on its own.

    Specifications

    • Screen size: 2.8 inches
    • Screen format: Portrait
    • Native resolution: 480x640 pixels
    • Native pixel matrix aspect: 3:4
    • Panel: IPS TFT LCD
    • Display colors: 16.7 million

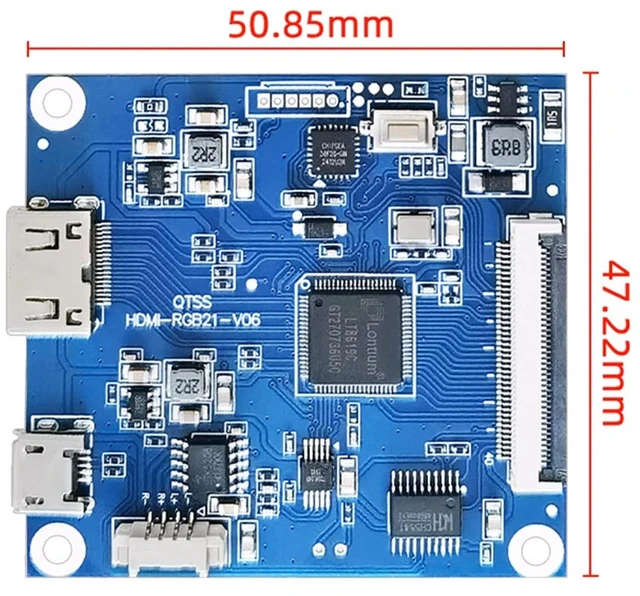

    • Video connection: HDMI video input through the included controller board
    • LCD active area: 43.20 x 57.60 mm
    • LCD outline: 50.00 x 69.20 mm

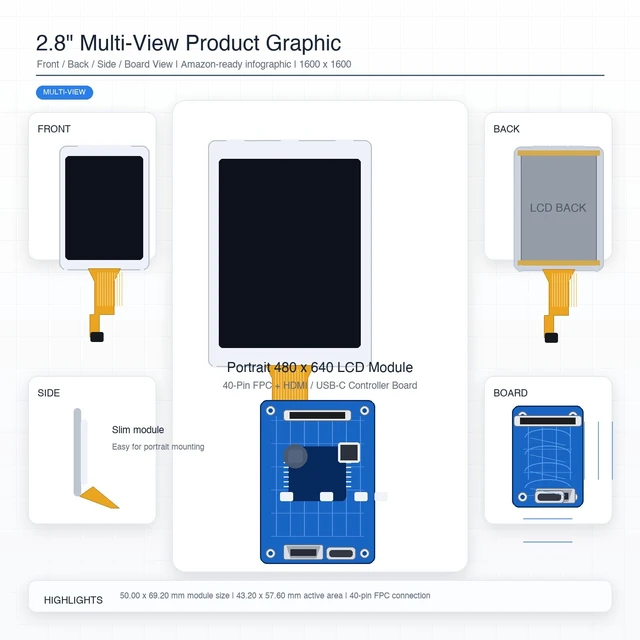

    Included hardware

    1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.

    Connection and setup

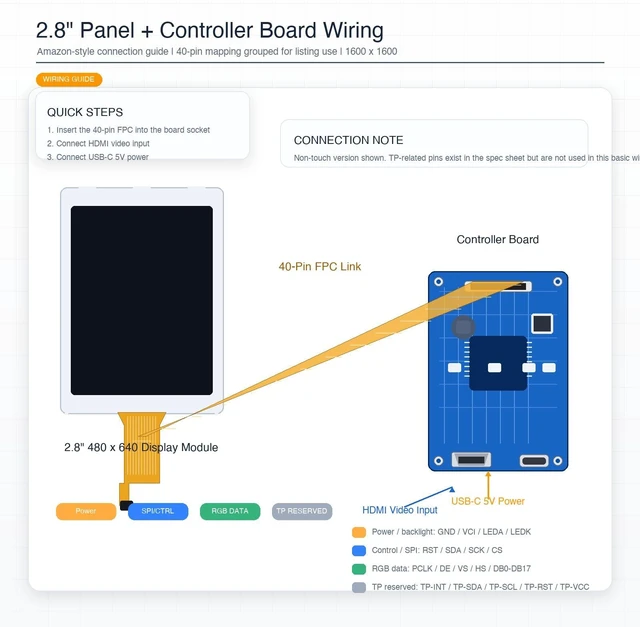

    Connect the LCD to the controller with power disconnected. Then connect video and the correct power source. Set the host to 480x640. Set orientation and scaling in the host as required. Secure the electronics in an insulated mount and leave the flex cable free of strain.
