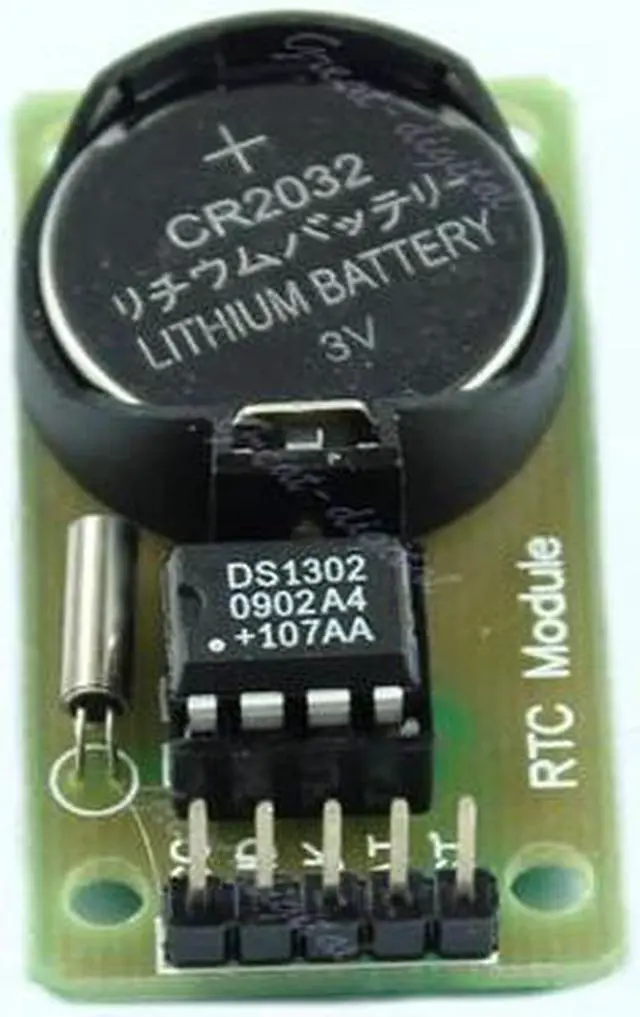

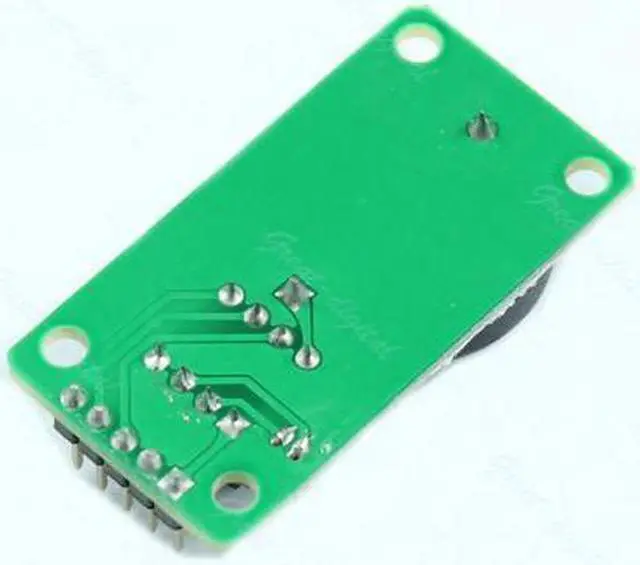

DS1302 Real Time Clock Module for Arduino Uno
- Real Time Clock Module DS1302
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DS1302 Real Time Clock Module for
Arduino Uno Description: 31 x 8 RAM for scratchpad data storage Serial I/O interface for minimum pin count
Wide Working Voltage: 2.0 ~ 5.5V Single-byte and multi-byte transmission for clock or RAM data read / write TTL-compatible (Vcc=5V)
Working Temperature: 0 to +70 Deg C 32.768KH z crystal oscillator Equipped with a 260mAh CR2032 button battery, not rechargeable
Overall Size: Approx. 44 x 23 x 11mm

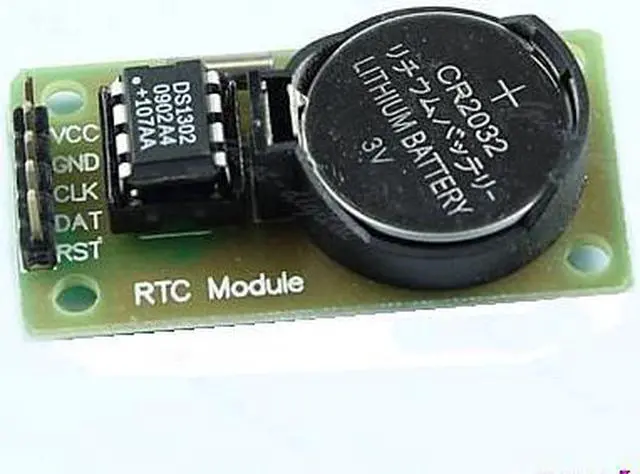

Wiring: Vcc - +5V / 3.3V GND - GND CLK - P01 DAT - P02 RST -
P00 Note: Do not reverse VCC and GND, or it will cause damage It requires a pull-up resistor for P0 port of 51 MCU, if without, you can connect the data cable to other terminal
Package included: 1 x DS1302 Real Time Clock Module
Arduino Uno Description: 31 x 8 RAM for scratchpad data storage Serial I/O interface for minimum pin count
Wide Working Voltage: 2.0 ~ 5.5V Single-byte and multi-byte transmission for clock or RAM data read / write TTL-compatible (Vcc=5V)
Working Temperature: 0 to +70 Deg C 32.768KH z crystal oscillator Equipped with a 260mAh CR2032 button battery, not rechargeable
Overall Size: Approx. 44 x 23 x 11mm
Wiring: Vcc - +5V / 3.3V GND - GND CLK - P01 DAT - P02 RST -
P00 Note: Do not reverse VCC and GND, or it will cause damage It requires a pull-up resistor for P0 port of 51 MCU, if without, you can connect the data cable to other terminal
Package included: 1 x DS1302 Real Time Clock Module
