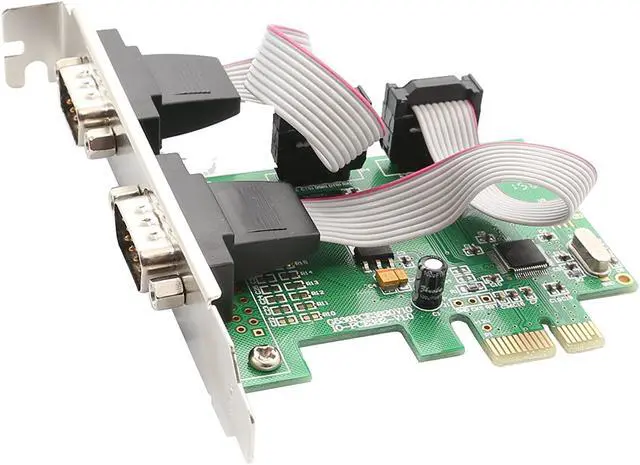

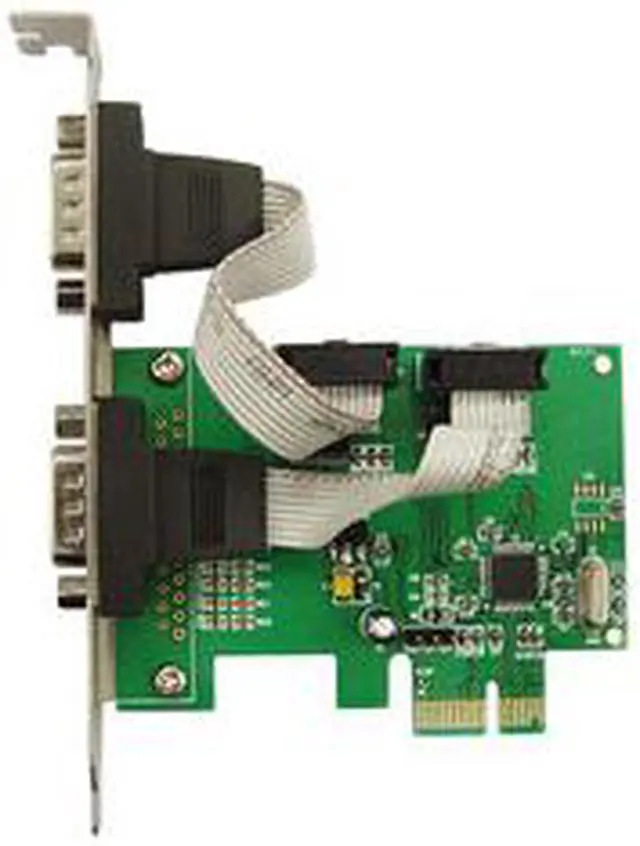

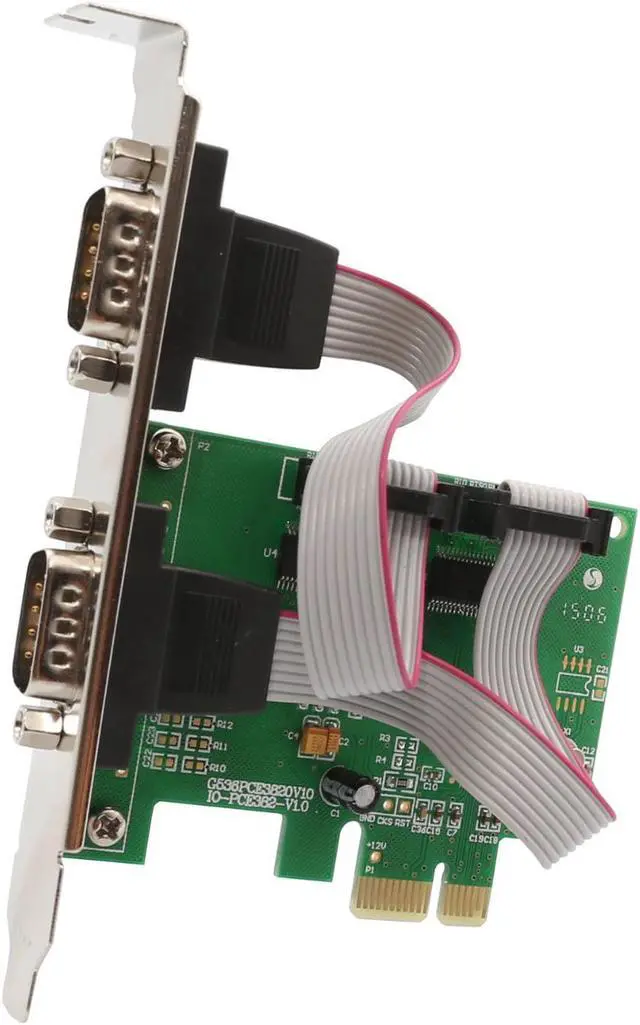

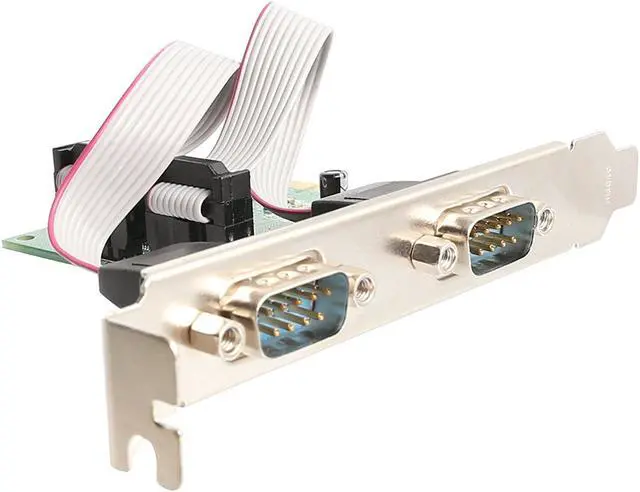

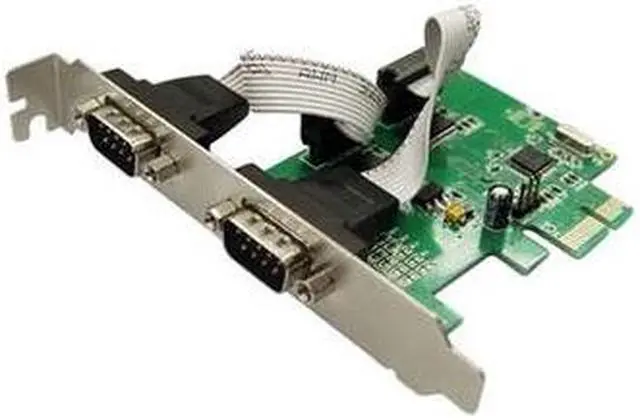

IO Crest 2 Port Serial PCI-e 1.0 x 1 , PCI-E card 2 to serial COM port serial card DB9 RS232 serial communications expansion card

Tekit PCI-E card 2 to serial COM port serial card DB9 RS232 serial communications expansion card [Product
Name]: Le expansion PCI-E to 2 serial port expansion cards [Model]: IO-PCE382-2S [Chip
Model]: WCH382L
[Specification]: Compliance with PCI - Express 1.0 a standard PCI - Express rate 2.5G b / s full duplex channel support Plug and Play RS232 serial interface 16c550 UART compatible with the standard 256-byte transmit and receive FIFO high-speed data transfer rates of up to 250k / s Supports RS-232 hardware flow control data bit length: 5, 6, 7, 8 Support MODEM modem signals CTS, DSR, RI, DCD, DTR, RTS, RS232 level conversion Supports remote wakeup and power management features [System
Support]: Driver Support Windows 98se/me/2000/xp/server 2003/2008/Vista, Linux, WIN7, WIN8/win2012
32/64bit [Equipment requirements]: An available
PCI-Expresscard Slot Warranty: 1 year
Application areas: IPC, telecommunications, medical equipment, LED control, POS machine off significantly, engraving machine, cutting
plotter (eg: pickups, Figure and Wang), punch card machine, program-controlled telephone, telephone billing, serial mouse, brush machine, POS serial printer, Access Control, SCM, serial connection, serial networking / monitoring equipment, data acquisition systems, POS terminals and industrial PC, parallel / printer port applications, additional I / O cards -Serial/Parallel/USB, Embedded Systems - I / O expansion, PLC design and simulation, and so other 9-pin serial port support General Equipment 99%
System Requirements: PCI - Express x1 slot
