Standard Technical Specification
| Image Sensor |
1/2.8 inch CMOS |
| Effective pixel |
2.1 mega pixel (16:9) |
| Zoom |
10x optical zoom |
| Horizontal Angle |
Near-end 67.6°~Far-end 7.15° |
| Control Protocol |

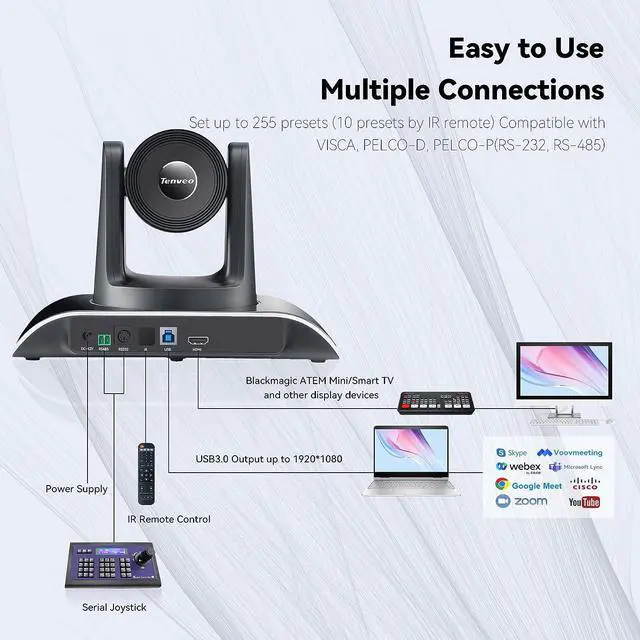

VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
| Video Compression Format |
YUV, MJPEG, H.264 |
| Installation |

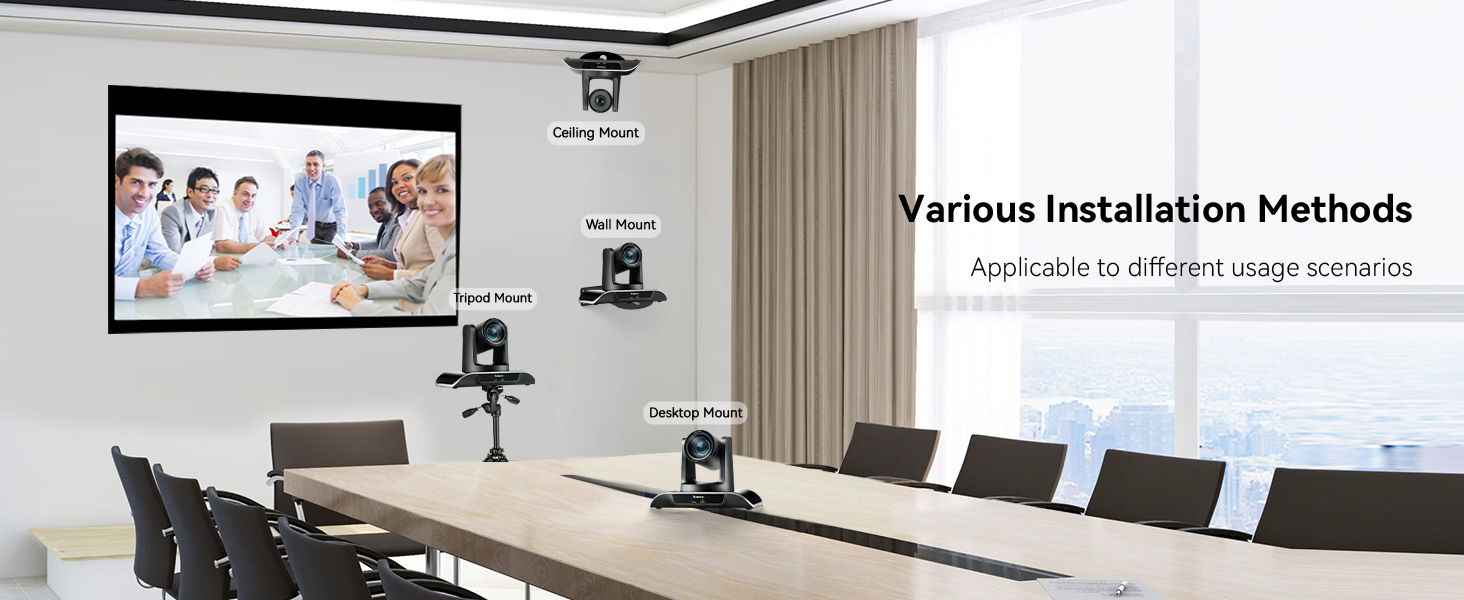

Support desktop, Tripod, Wall mount and Ceiling mount |
| Accessories |
DC 12V Power adaptor, IR remote control, Manual, USB cable, Ceiling brackets & screws. |
| Horizontal Resolution |
1080p 30/25 720p 30/25 |
| Signal standard |
NTSC/PAL |
| Focal length |
F=4.9-47.04mm |
| Control terminal |
RS-232, RS485 |
| Video output |
USB |
| Baud rate |
9600/38400bps |
| Preset position |
IR remote control supports 10presets, PELCO Protocol supports 255presets, Visca Protocol supports 64 |
| Power supply |
DC12 V/ 2A |

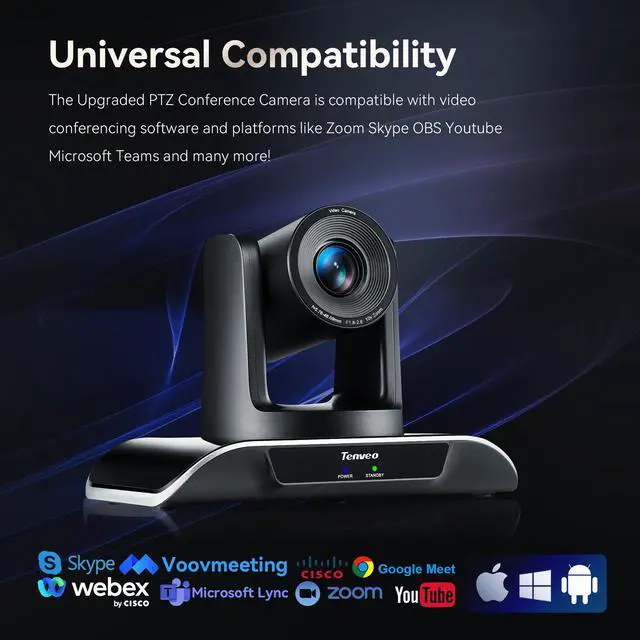

Conference room camera, Tenveo 10x PTZ camera for zoom Skype ( 10X Optical Zoom USB TEVO-VHD102U ) Tenveo video conference camera and speakerphone are compatible with most common IM and conferencing Apps software, such as Zoom, Microsoft Lync, CISCO WebEx and skype for business, etc. Convenient for you to make a video conference with your team anywhere and it can also help you to achieve customers with a face to face full HD video conference.
