Equipped with two Thunderbolt 3 interfaces, the D5 Thunderbolt 3 RAID storage enables users to connect with any USB device at 8 times the speed of USB3.0, while supporting full 4K video performance.
Boost Performance Using Hardware RAID
Software RAID consumes extensive resources on your computer system, which affects the efficiency of your other tasks. Moreover, unexpected power outages come with the substantial risk of data corruption for the backed up software RAID. The D5 Thunderbolt 3 features professional-grade hardware RAID and on-board flash memory to provide faster, more efficient backup and restore capabilities, enhancingyour performance and providing additional fail-safes.

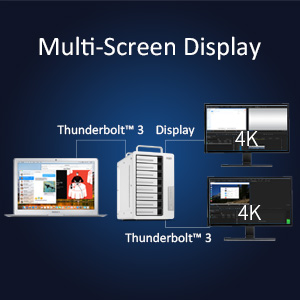

Capitalizing on the Thunderbolt 3 and DP interfaces, the D5 thunderbolt 3 supports multi-screen displays with up to 3 monitors or daisy-chain up to 6 devices. This is an ideal solution for multitaskers, especially when efficiency is the end goal. The Thunderbolt 2 devices with the daisy-chain function can also be daisy-chained to the D5 Thunderbolt 3.
Note: Daisy-chainning is compatible well on Mac, Windows has the compatibility issue and may crash.
Both Apple and Intel have certified the D5 Thunderbolt 3's design and performance, ensuring the device's consistent performance and reliability.
To use the device, your system should satisfy the requirements below:
- Operating System: 64-bit Windows 8/10 or later; MAC OS X 10.12 or Version later;
- Hardware Requirement: CPU Intel i5 Quad-Core or higher;
- Memory: Minimum 4GB;
- Interface: Thunderbolt 3 or 2; If your device has only the USB ports, it will not be compatible.
- Applicable Hard Drive: 3.5" SATA enterprise hard drive, SSHD hybrid hard drive, NAS hard drive (SATA III or above), or 2.5" SSD (SATA II or above).
- RAID 0, 1, 5, 10 and JBOD disk array modes supported.
- Underpins the all-important concern for data security.
- Ensures your storage capacity is utlised in the most efficient way possible.
- Equipped with the 40-Gbps Thundrbolt 3 lightning speed interface,
- Read & write speed up to 1,035 MB/s (test condition: 5 SSDs, RAID 0 modes).
- More Pixels: with up to 3 4K screens supported.
- More power: giving power up to 15W to compatible laptops.
- More protocol: Thunderbolt 3, DisplayPort all supported.
- Brand new replacement for 2 years.
- Quick service in 24 hours.
| Products | ||||
|---|---|---|---|---|
| Drive Bays | 2 | 5 | 8 | 16 |
| Thunderbolt Interface | Thunderbolt 3 (40Gbps) x2 | Thunderbolt 3 (40Gbps) x2 | Thunderbolt 3 (40Gbps) x2 | Thunderbolt 3 (40Gbps) x2 |
| DisplayPort | DP1.4 x1 | DP1.4 x1 | DP1.4 x1 | DP1.4 x1 |
| USB Interface | No | 1 x USB HOST 3.1 Gen 2 x1 | 1 x USB HOST 3.1 Gen 2 x1 | 1 x USB HOST 3.1 Gen 2 x1 |
| Max. number of HDDs/SSDs | 2 x 2.5" or 3.5" SATA 6Gb/s, | 5 x 2.5" or 3.5" SATA 6Gb/s, | 8 x 2.5" or 3.5" SATA 6Gb/s | 16 x 2.5" or 3.5" SATA 6Gb/s, |
| Max. Storage | 40TB (20TB x 2) | 100TB (20TB x 5) | 160TB (20TB x 8) | 320TB (20TB x 16) |
| RAID controller | Hardware RAID | Hardware RAID | Hardware RAID | Hardware RAID |
| RAID Mode | RAID 0, 1, JBOD, Single | RAID 0, 1, 5, 10, JBOD, Single | Hardware RAID | RAID 0, 1, 5,6,10, 50, JBOD, Single. |
| Reading Speed (max.) | 810MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 1035MB/sec (tested by 5 SSD, in raid 0, Windows OS) | 1600MB/sec (tested by 8 SSD, in raid 0, Windows OS) | 2817MB/sec (tested by 16 SSD, in raid 0, Windows OS) |
| Writing Speed (max.) | 520MB/sec (tested by 2 SSD, in raid 0, Windows OS) | 850MB/sec (tested by 5 SSD, in raid 0, Windows OS) | 1400MB/sec (tested by 8 SSD, in raid 0, Windows OS) | 2022MB/sec (tested by 16 SSD, in raid 0, Windows OS) |
