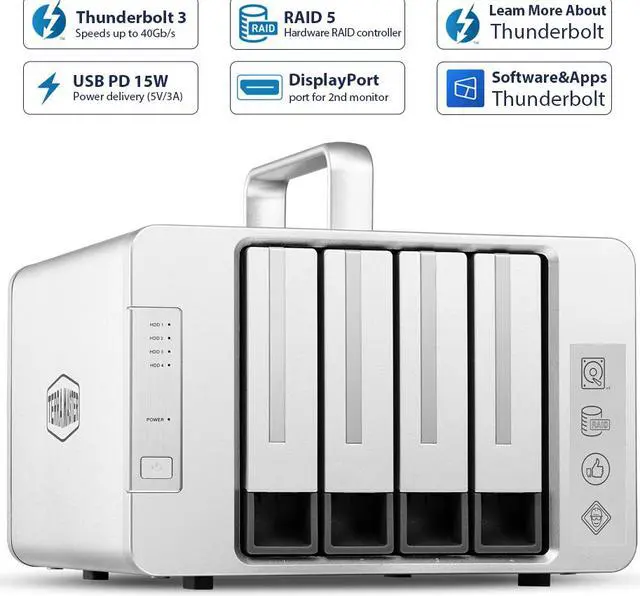

    TerraMaster D4 Thunderbolt 3 Professional-Grade 4-Bay External Hard Drive Enclosure RAID 0/RAID1/RAID5/RAID10/JBOD Hard Disk RAID Storage (Diskless)

    • Aluminum
    • Metal / Plastic
    • 16 Bay|16 bay
    • 4 Bay
    • 8 Bay|8 bay
    • Ideal Thunderbolt 3 storage solution for professionals especially those with strict speed and safety requirements, including 4K video editing. Starting from March 26th, 2021, Mac with M1 security chip was fully supported.
    • Two 40Gbps Thunderbolt 3 interfaces, transfer speeds up to 780MB/s.It works with the computers with Thunderbolt 3 or 4 port, NOT compatible with USB port.
    • Compatibility with the Thunderbolt 3 and DP interfaces, the D4 Thunderbolt 3 supports multi-screen display with up to 3 screens.
    • Daisy-chain up to 6 devices; Support up to 72TB storage capacity (18TB x 4, in RAID 0); Multiple hardware RAID: RAID0, RAID1, RAID5, RAID10, JBOD, Single.

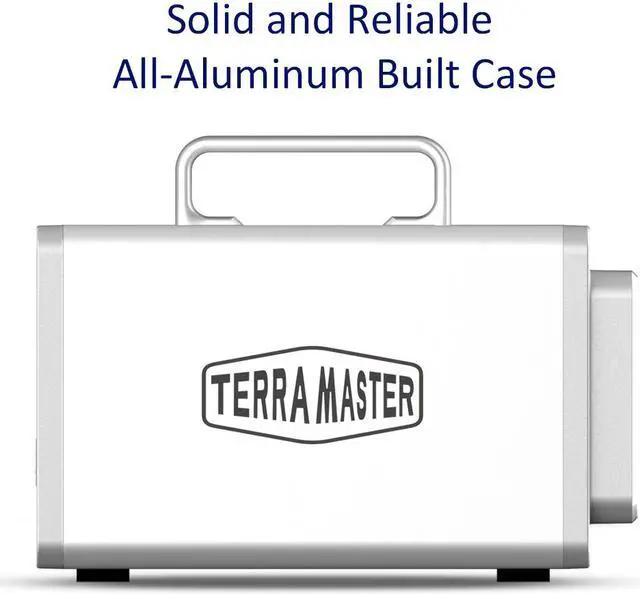

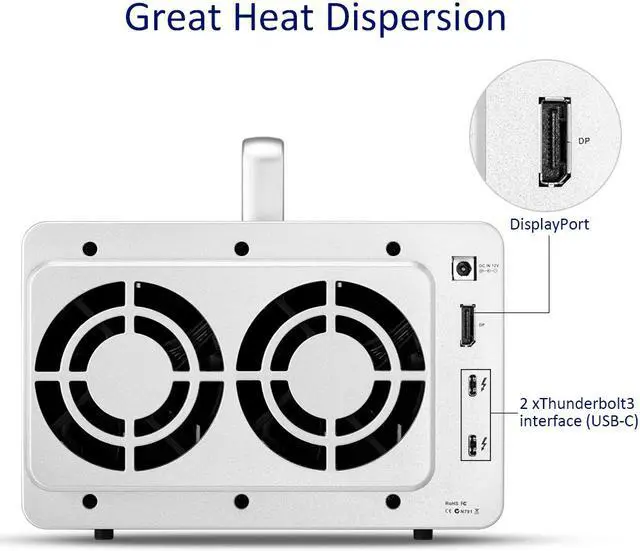

    • Power delivery provides up to 15W of power to recharge compatible laptops. Aluminum-alloy shell, 2x80mm fans ensure great heat dispersion.
    +
    +
    Overview
    Specs
    Reviews
    TerraMaster D4 Thunderbolt3 TerraMaster - a professional brand focusing on developing and producing storage products, it includes network attached storage (NAS), direct attached storage (DAS) and accessories. This newly launched TerraMaster D4 Thunderbolt 3 RAID storage provides you more speed, more pixels, and more possibilities! Lightning Speed! The D4 Thunderbolt 3 is equipped with a 40Gbps lightning speed interface, and the read and write support attains speeds of up to 780
    MB/s (test conditions: 5 SSDs, RAID 0 mode). The device is compatible with daisy chaining across multiple Thunderbolt 3 devices, and each one can be realized using the Thunderbolt interface. The Ideal Companion for All Professionals Given its compactness, its large storage capacity, and its lightning speed, the D4 Thunderbolt 3 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device. 4K video editing D4 Thunderbolt 3 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Daisy-chain up to 6 devices Capitalizing on the Thunderbolt 3 and DP interfaces, the D4 thunderbolt 3 supports multi-screen displays with up to 3 monitors or daisy-chain to up to 6 thunderbolt 3 devices. This is an ideal solution for multitaskers, especially when efficiency is the end goal. 60TB Large Storage Capacity The device gives you the tools you need to overcome any storage challenge. TerraMaster’s 4-bay D4 Thunderbolt 3 is compatible with 3.5" SATA disks and 2.5" SSDs.

    Hardware RAID controller With the built-in hardware RAID controller, the choice is all yours! You can mirror the drives with RAID 5 as a reliable backup for your important data, you can stripe the drives with RAID 0 for optimal performance and maximum speed.
    terramaster
    About TerraMaster
    • TerraMaster - a 16-year-old professional brand focusing on developing and producing storage products
    • Products include network attached storage (NAS), direct attached storage (DAS) and thunderbolt 3 storage.
    • With the core competitiveness in excellent hardware design and strong software developing ability, TerraMaster products are well known among customers with the great reliability and value.
    image for this item
    TerraMaster D4 Thunderbolt3 RAID storage - More Power, More Speed.
    • Equipped with two Thunderbolt 3 interfaces, the TerraMaster D4 Thunderbolt 3 RAID storage enables users to connect with any USB device at 8 times the speed of USB3.0, while supporting full 4K video performance.
    • Equipped with two Thunderbolt 3 interfaces, the TerraMaster D4 Thunderbolt 3 RAID storage enables users to connect with any USB device at 8 times the speed of USB3.0, while supporting full 4K video performance.
    image for this item
    Large Storage Capacity
    • TerraMaster's 4-bay D4-Thunderbolt 3 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalize on a total storage capacity of up to 72TB.
    • As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.
    image for this item
    Dedicated DP Interface

    Given its HD DP digital interface, video editors can connect the D4 Thunderbolt 3 to a 4K HD display to satisfy their needs.

    image for this item
    High Scalability

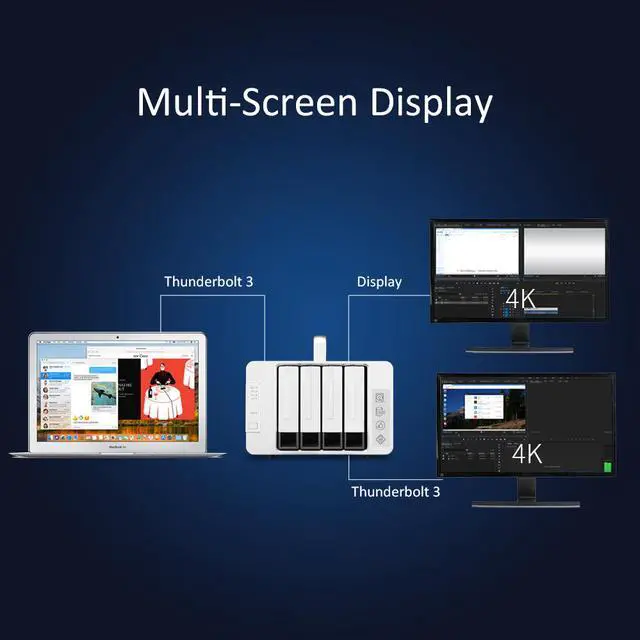

    Capitalizing on the Thunderbolt 3 and DP interfaces, the D4 thunderbolt 3 supports multi-screen displays with up to 3 monitors or daisy-chain up to 6 devices. This is an ideal solution for multitaskers, especially when efficiency is the end goal. The Thunderbolt 2 devices with the daisy-chain function can also be daisy-chained to the D4 Thunderbolt 3.

    To use the device, your system should satisfy the requirements below:

    • Operating System: 64-bit Windows 8/10 or later; MAC OS X 10.12 or Version later; Mac Mini is not supported.
    • Hardware Requirement: CPU Intel i5 Quad-Core or higher.
    • Memory: Minimum 4GB.
    • Interface: Thunderbolt 3 or 2; If your device has only the USB ports, it will not be compatible.
    • Applicable Hard Drive: 3.5" SATA enterprise hard drive, SSHD hybrid hard drive, NAS hard drive (SATA III or above), or 2.5" SSD (SATA II or above).
    image for this item

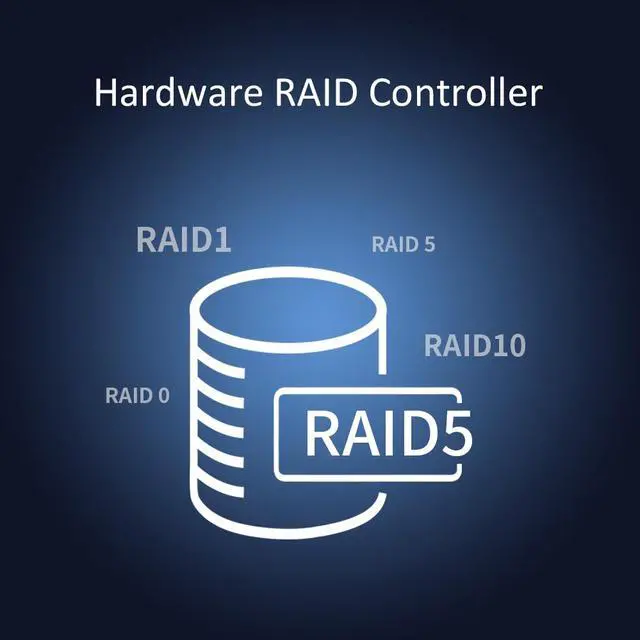

    Boost Up Performance by Hardware RAID

    The D4 Thunderbolt 3 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilized in the most efficient way possible.

    image for this item
    Professional and Safe

    Replacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D4-Thunderbolt3, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.

    image for this item
    Enjoy Rapid Video Workflows

    The time needed for virtually every aspect of the post-production workflow falls when using the D4 Thunderbolt 3. At lightning speed, users can transfer several hours of footage from a Blackmagic device to Adobe Premiere Pro. In turn, with uncompressed HD 10-bit and 12-bit video, users can edit the ProRes 422 (HQ), ProRes 4444 XQ, and other data streams. Thumbnails and preview rendering are significantly more responsive when using large items with numerous high-definition clips.

    image for this item
    Authoritative Quality Certification

    Both Apple and Intel have certified the D4 Thunderbolt 3's design and performance, ensuring the device's consistent performance and reliability.

    image for this item
