Thermopad Thermal Grizzly Minus Pad 8 - Silicone, Self-Adhesive, Thermally Conductive Thermal Pad - Conducts Heat and Cools The Heating Elements of The Computer or Console (100 × 100 × 1,5 mm)

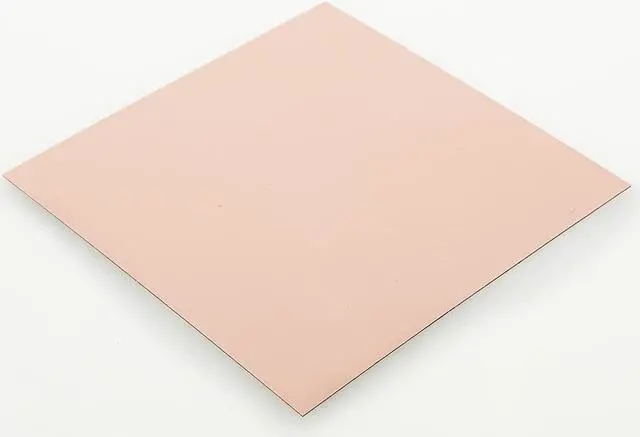

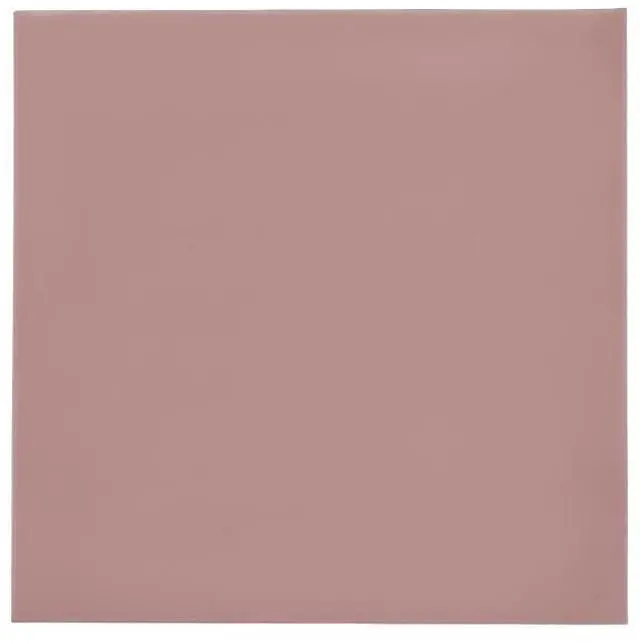

Thermal Grizzly Minus Pad 8 thermal pad, 100 x 100 mm and 1.5 mm thick, sold as a single pad.

Properties

• Size: 100 x 100 mm
• Thickness: 1.5 mm
• Degree of hardness: Shore 00-60
• Electrically insulating: Yes (8KV/mm ASTM D149)
• Operating temperature: -100°C to +250°C
• Weight: 50 g for 1 pad, 57 g boxed

What the pad does

The high performance thermal pads of the Minus Pad series consist of a very elastic and flexible surface area, combined with medium thermal conductivity. That surface does the compensating for even the smallest of gaps between components. Thermal Grizzly names three properties for the series: medium thermal conductivity, high compressibility and electrical insulation. The pad is pink in color and its flammability rating is V-0.

According to the data sheet, the pads are mainly used when refurbishing graphics cards or converting them to water coolers, such as a GPU water block. They can also be used when installing M.2 SSDs. Thermal Grizzly's pad range also includes the Minus Pad Extreme V2.

Material and fitting

The minus pads are easy to process. They are made up of different constituents and based on a ceramic silicon formula complex with nano aluminum oxide. Thus the pads ensure a heat transfer that stays constant and optimal. To attach them optimally, the lightest of touches is enough. All pads are ecofriendly and RoHS-compliant.

Sizes and thicknesses

Thermal Grizzly makes the minus pads 8 available in a variety of sizes: 30 x 30 mm, 120 x 20 mm and 100 x 100 mm. The thicknesses are 0.5mm, 1mm, 1.5mm, 2mm and 3mm as well. This one is a single 100 x 100 mm sheet, 1.5 mm thick. We also stock the 100 x 100 mm pad in 0.5 mm, 1.0 mm, 2.0 mm and 3.0 mm. The 1.5 mm thickness also comes as a 120 x 20 mm strip and as a 30 x 30 mm piece.

In the box

• 1x Minus Pad 8 thermal pad, 100 x 100 x 1.5 mm
