    Thermopad Thermal Grizzly Minus Pad 8 - Silicone, Self-Adhesive, Thermally Conductive Thermal Pad - Conducts Heat and Cools The Heating Elements of The Computer or Console (120 × 20 × 0,5 mm, 2 Units)

    • 20 x 120 x 3.0 mm
    • 20 x 120 x 1.5 mm
    • 20 x 120 x 0.5 mm - 2 pcs
    • Compatible not only with computers or laptops, but also with PS3, PS4 or PS5 as well as Xbox 360, One and Series X consoles; Great for dissipating heat from Macbooks
    • Created for office or home computers and gaming computers, as well as for those users who require maximum turnover from the equipment
    • The thermal conductive pad is ideally suited between the heat sink and the heating element; Thanks to its unique composition, which consists of ceramic silicone and nano-aluminum oxide, it dissipates significant amounts of heat
    • Thermal padding is characterized by a flexible structure and very high heat conductivity; It compensates for even the smallest gaps between components
    • Used in places where it is not possible to use thermal paste, e.g. large air gap or uneven substrate
    +
    +
    Overview
    Specs
    Reviews (2)

    Any questions? Ask CelesteSM will help you find out quickly.

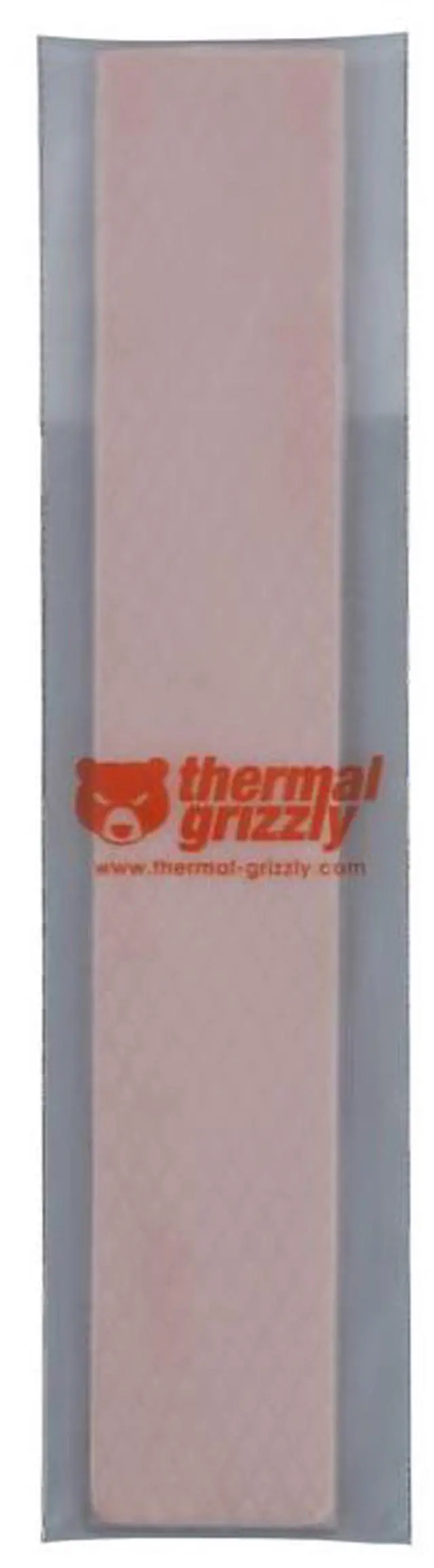

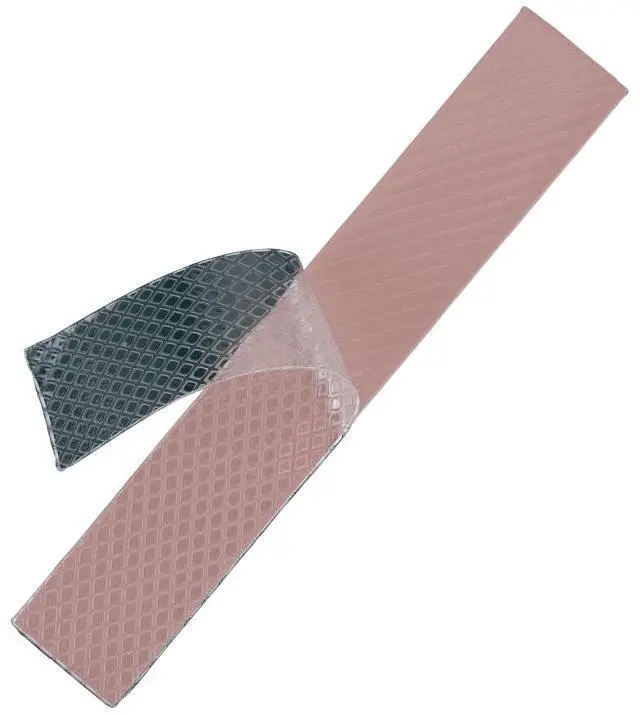

    Thermal Grizzly's Minus Pad 8 is an electrically insulating thermal pad for the gaps between components and their cooler, here as two strips of 120 x 20 mm, each 0.5 mm thick.

    Properties

    • Size: 120 x 20 mm
    • Thickness: 0.5 mm
    • Degree of hardness: Shore 00-60
    • Electrically insulating: Yes (8KV/mm ASTM D149)
    • Flammability: V-0
    • Operating temperature: -100°C to +250°C

    What it is for

    The Minus Pad series consist of high performance thermal pads with a very elastic and flexible surface area, compensating for even the smallest of gaps between components. According to Thermal Grizzly's data sheet they are mainly used when refurbishing graphics cards or converting a graphics card to a water cooler (a GPU water block). They can also be used when installing M.2 SSDs. The manufacturer lists three properties for the series:

    • Medium thermal conductivity
    • High compressibility
    • Electrical insulation

    The lightest of touches is enough to attach them optimally, and the pads are easy to process. Thermal Grizzly's pad range also includes the Minus Pad Extreme V2, which we stock in this size as a 2 pack.

    Material

    The material is made up of different constituents and is based on a ceramic silicon formula complex and nano aluminum oxide. Thus, in Thermal Grizzly's words, the pads ensure a heat transfer that stays constant and optimal. The color is pink, and all pads are ecofriendly and RoHS-compliant.

    Sizes and thicknesses

    Thermal Grizzly makes the minus pads 8 available in a variety of sizes, 30 x 30 mm, 120 x 20 mm and 100 x 100 mm, as well as in thicknesses of 0.5mm, 1mm, 1.5mm, 2mm, 2.5mm and 3mm. In 120 x 20 mm we stock the single strip in 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm and 3.0 mm. The data sheet puts the two strips together at 9 g, or 16 g with their packaging.

    In the box

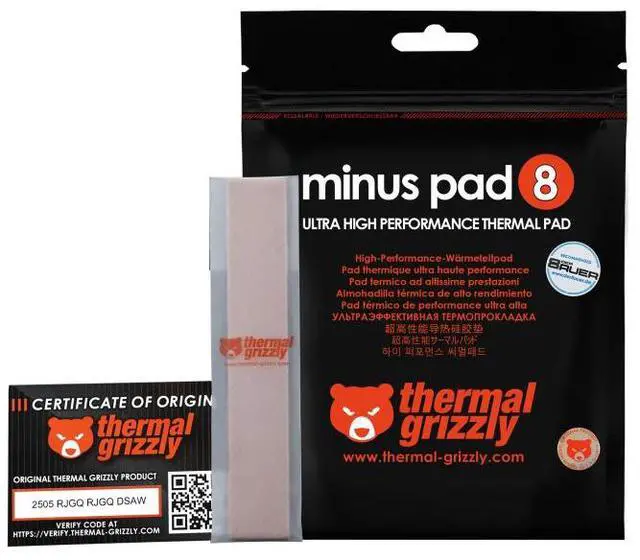

    • 2x Minus Pad 8, 120 x 20 x 0.5 mm each
