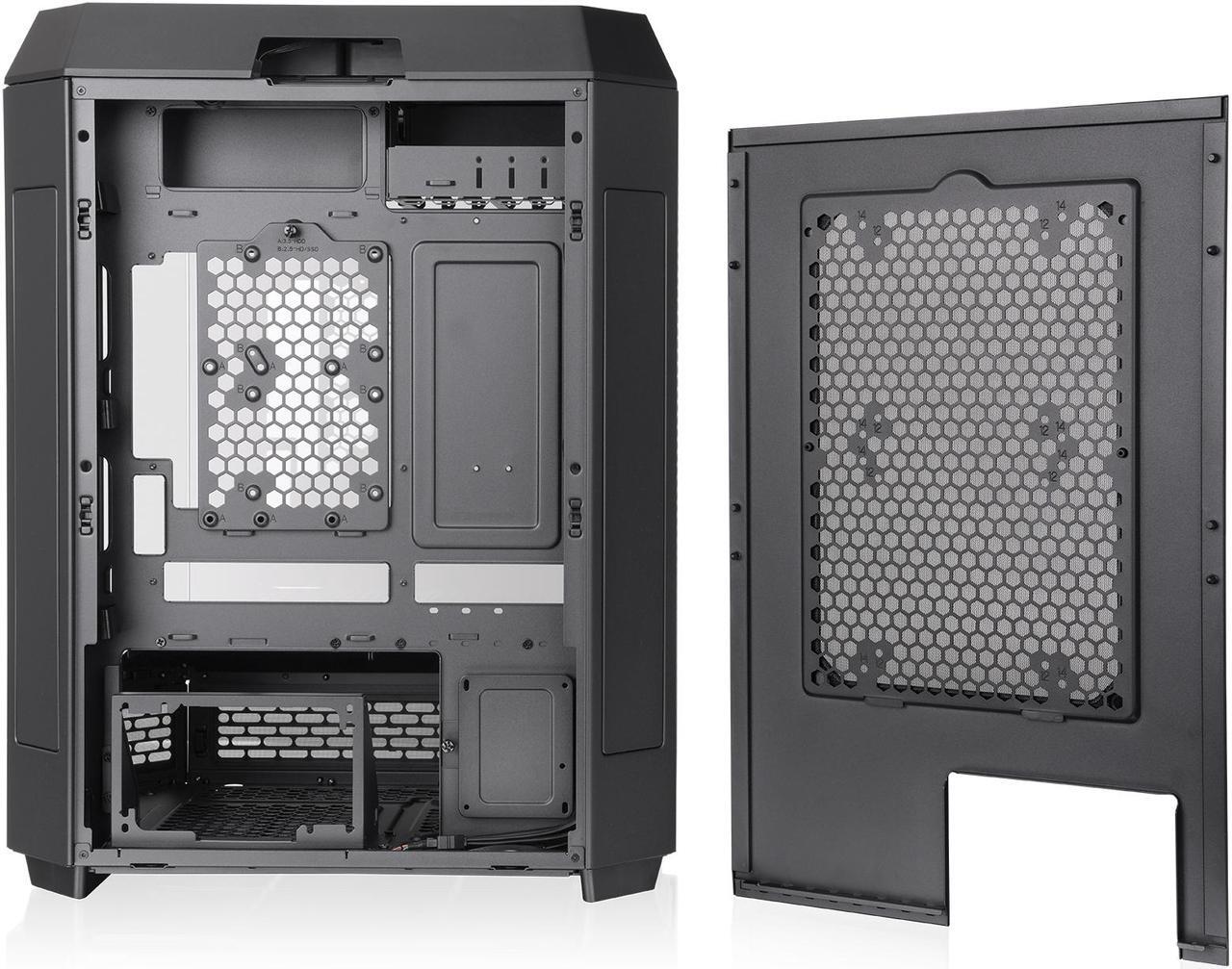

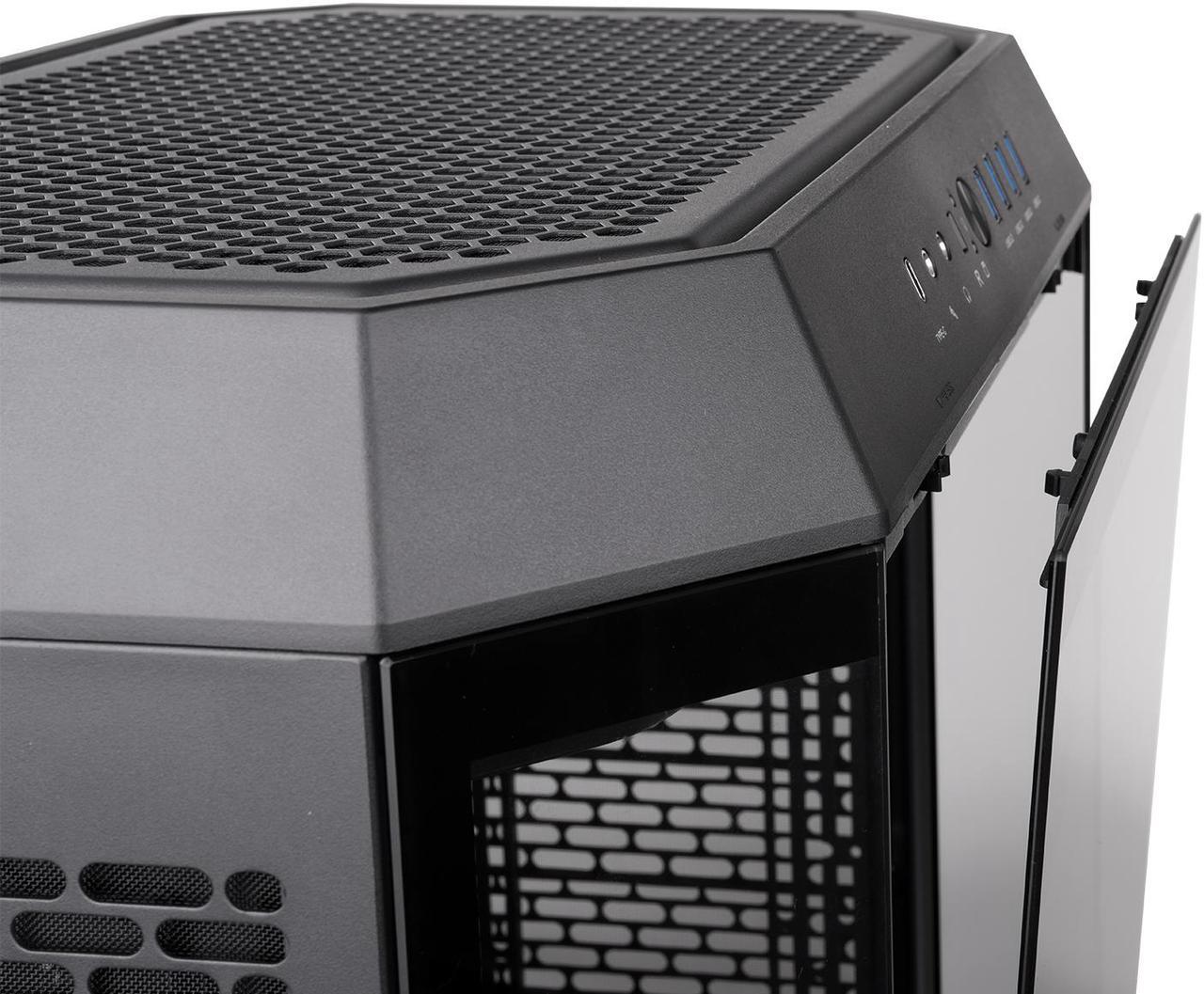

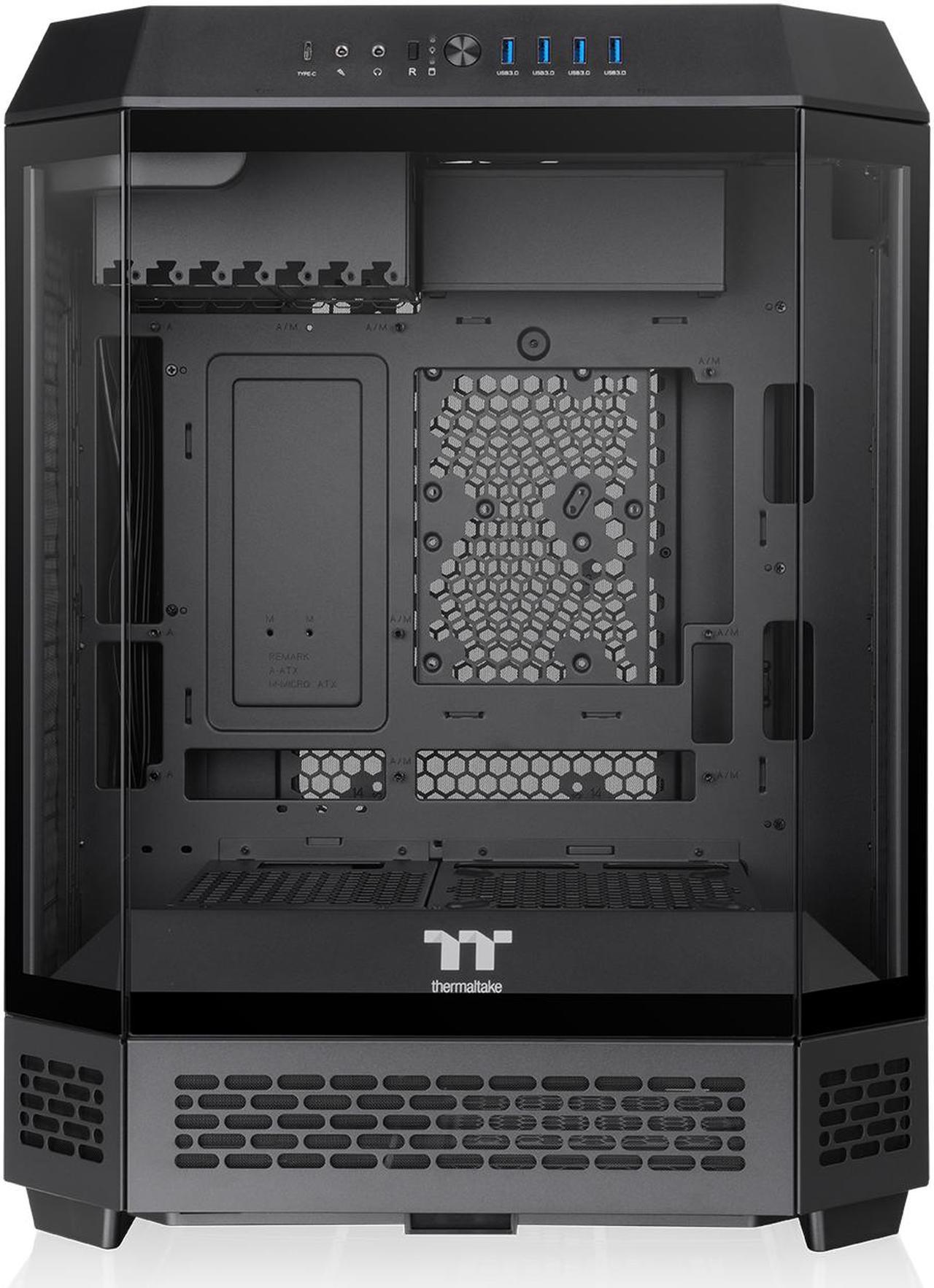

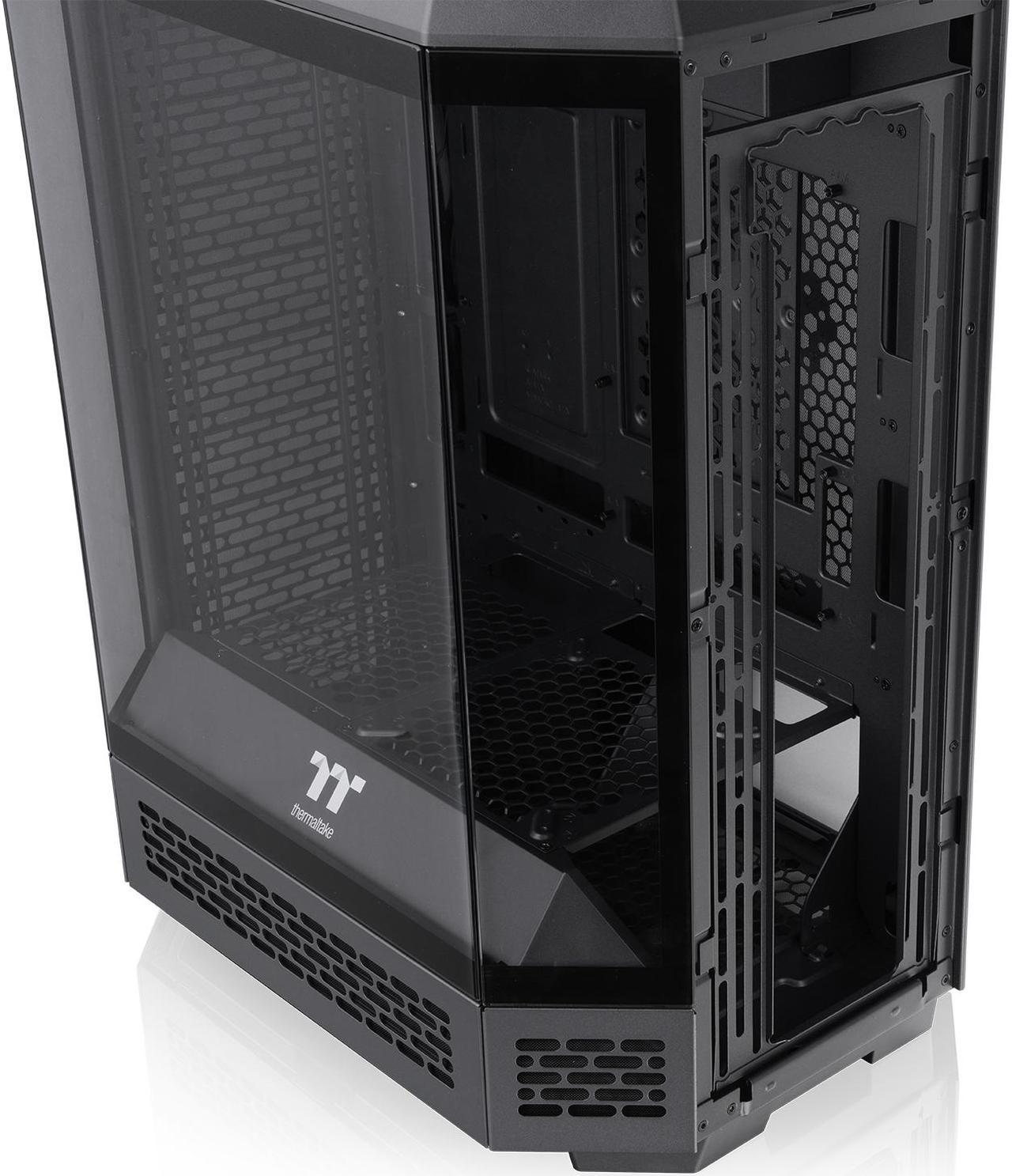

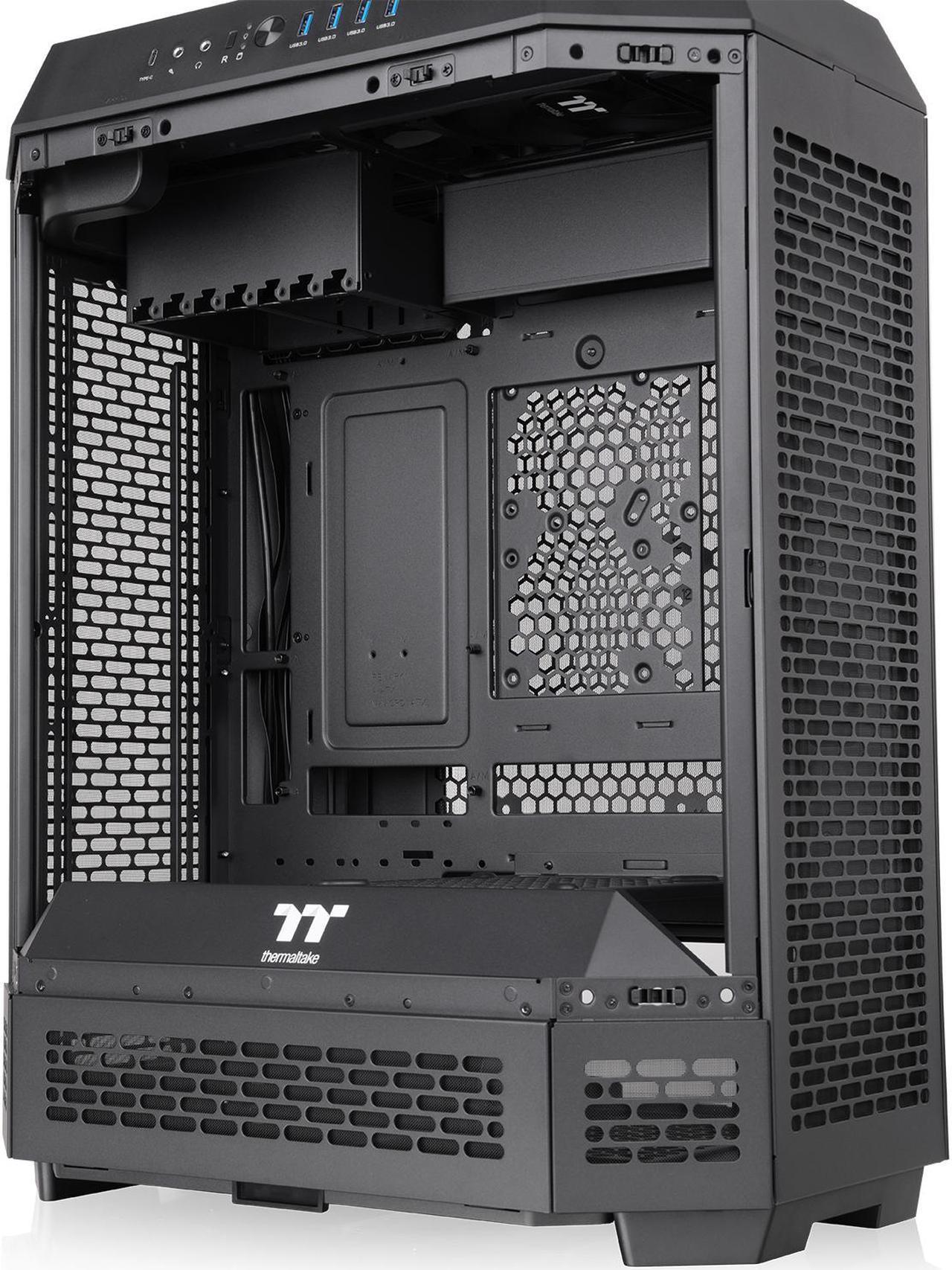

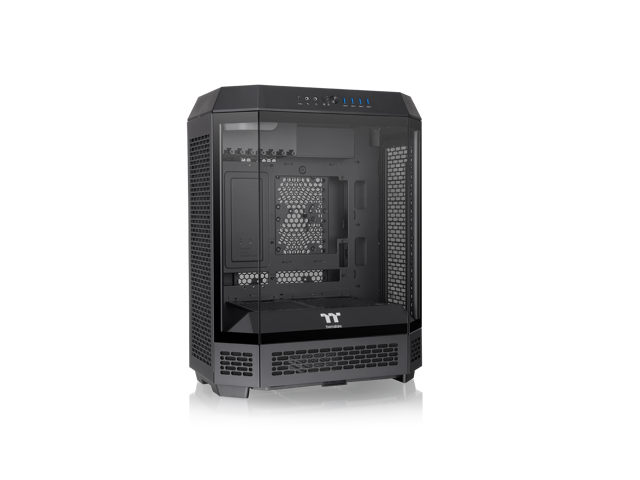

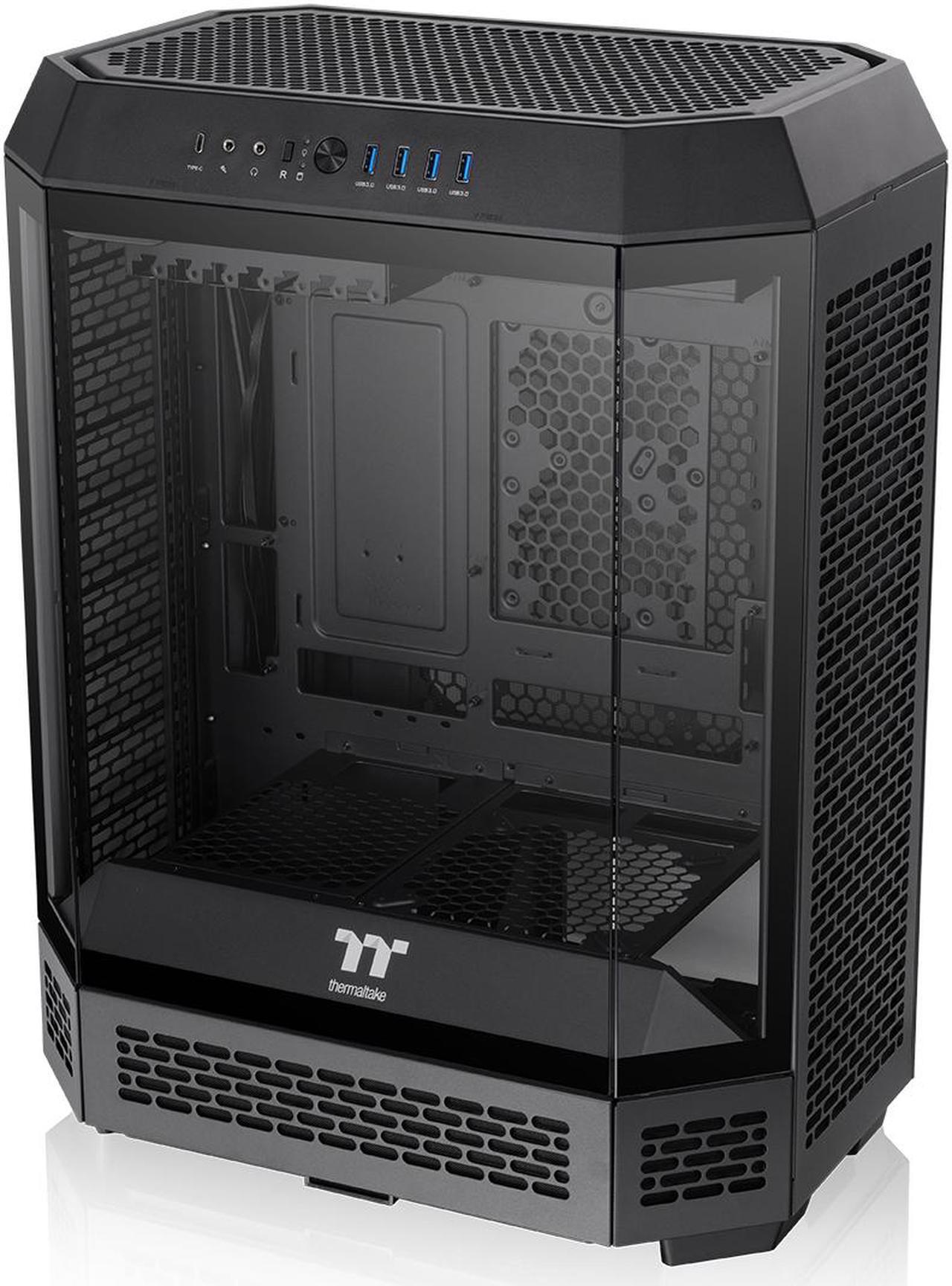

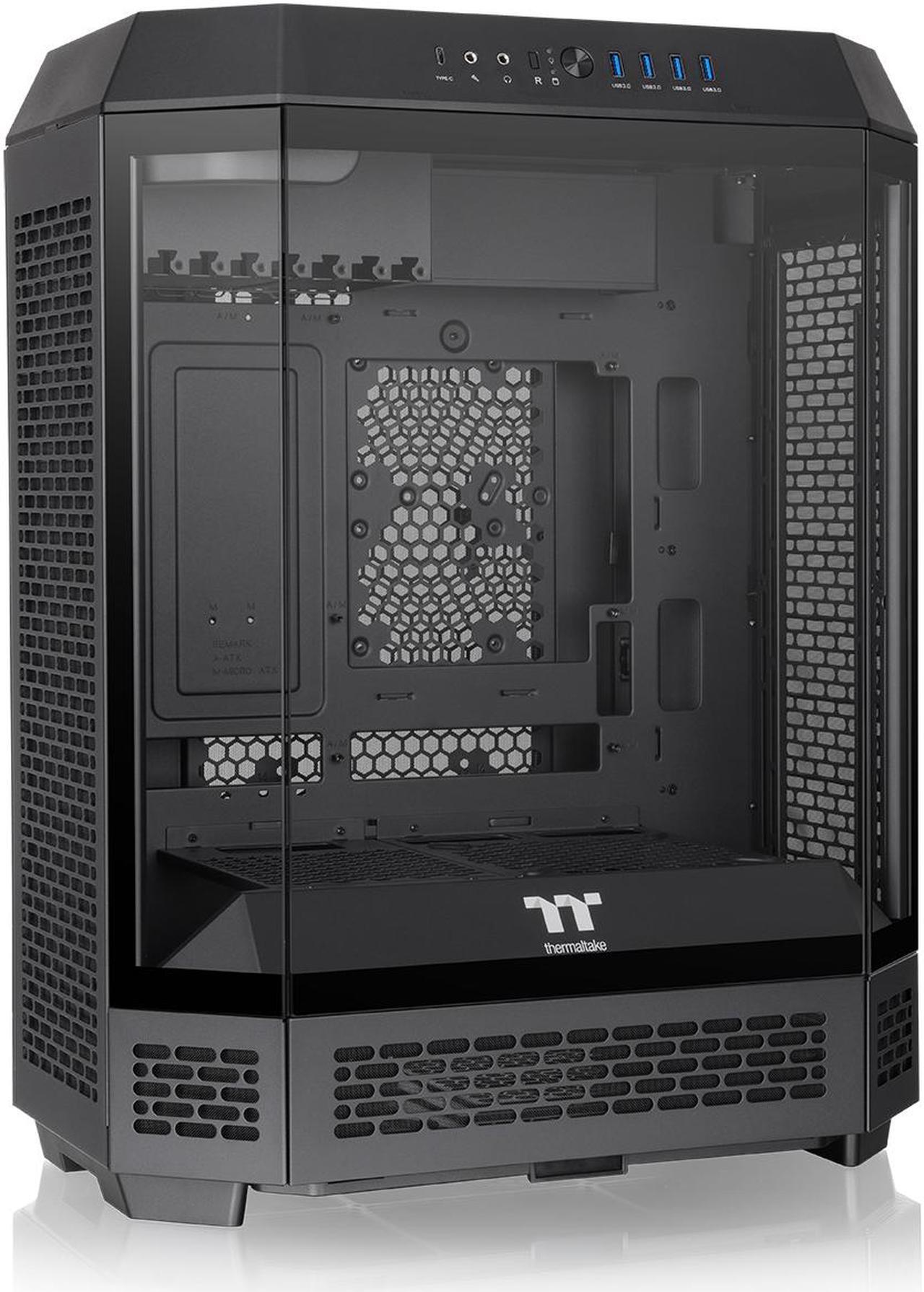

Distinctive Octagonal Design with Tool-Free Panels: Unique octagonal shape with three tempered glass panels that can be removed without tools for easy access.
Hidden-Connector Motherboard Support: Supports ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH motherboards for a clean, cable-free build.
Superior Cooling Support: Supports up to nine fans and radiators up to 420mm for optimal cooling.
Three-Way VGA Installations: Flexible GPU installation with rotational PCIe slots and a floating VGA bracket.
Optional Horizontal Display Stand: An optional kit allows the case to be displayed horizontally, enhancing its unique aesthetic.
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews (7)
Learn more about the Thermaltake CA-1Z1-00M1WN-00
Model
Brand
Thermaltake
Series
Tower 600
Model
CA-1Z1-00M1WN-00
Details
Type
ATX Mid Tower
Color
Black
Case Material
SPCC
With Power Supply
No
Power Supply Mounted
Bottom

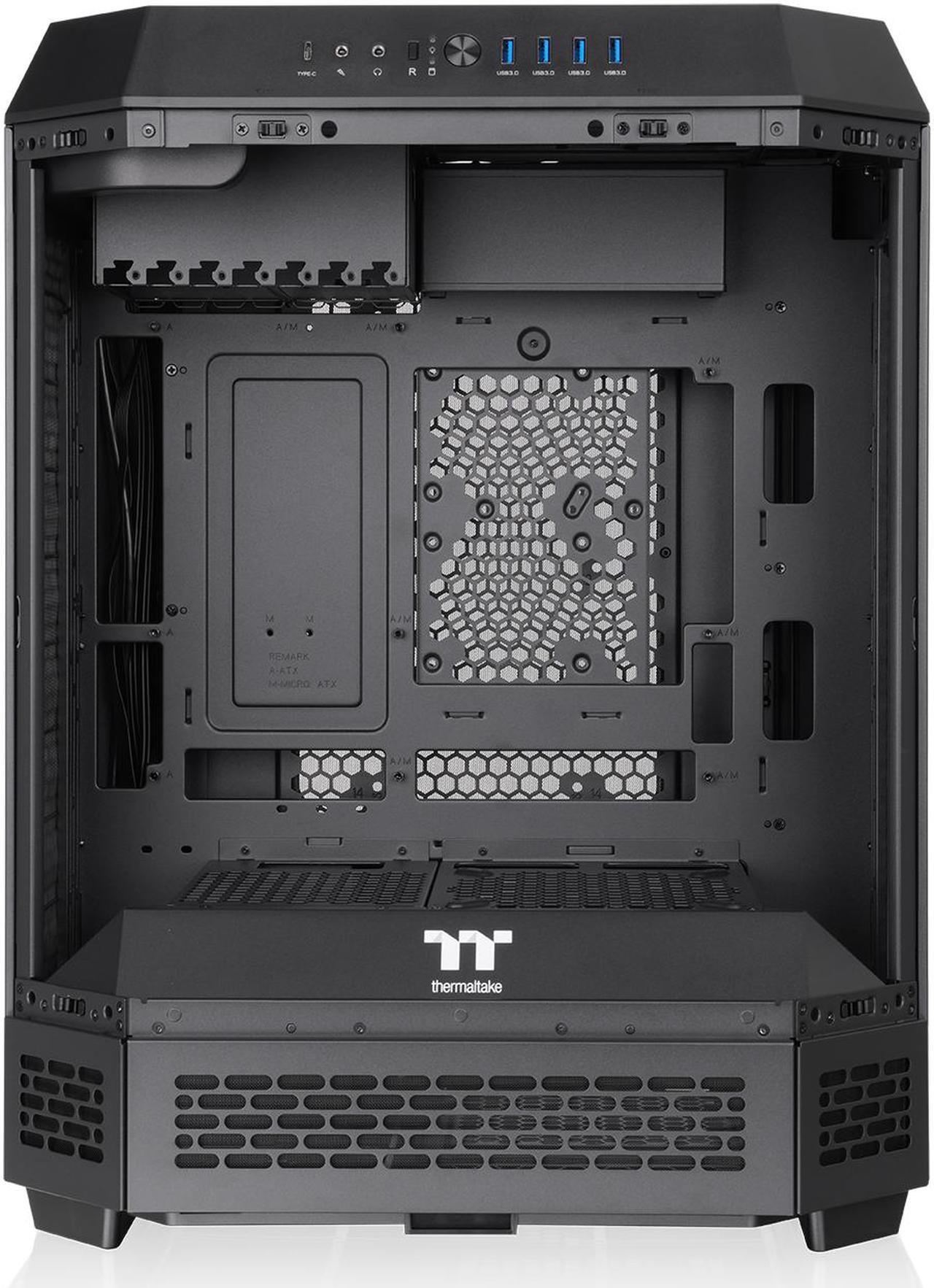

Motherboard Compatibility
Mini ITX (6.7" x 6.7") Micro ATX (9.6" x 9.6") ATX (12" x 9.6")
Side Panel Window
3mm Thick Tempered Glass x 3
Expansion
Internal 3.5" Drive Bays
1 x 3.5", 1 x 2.5" or 3 x 2.5"
Expansion Slots
7
Front Panel Ports
Front Ports

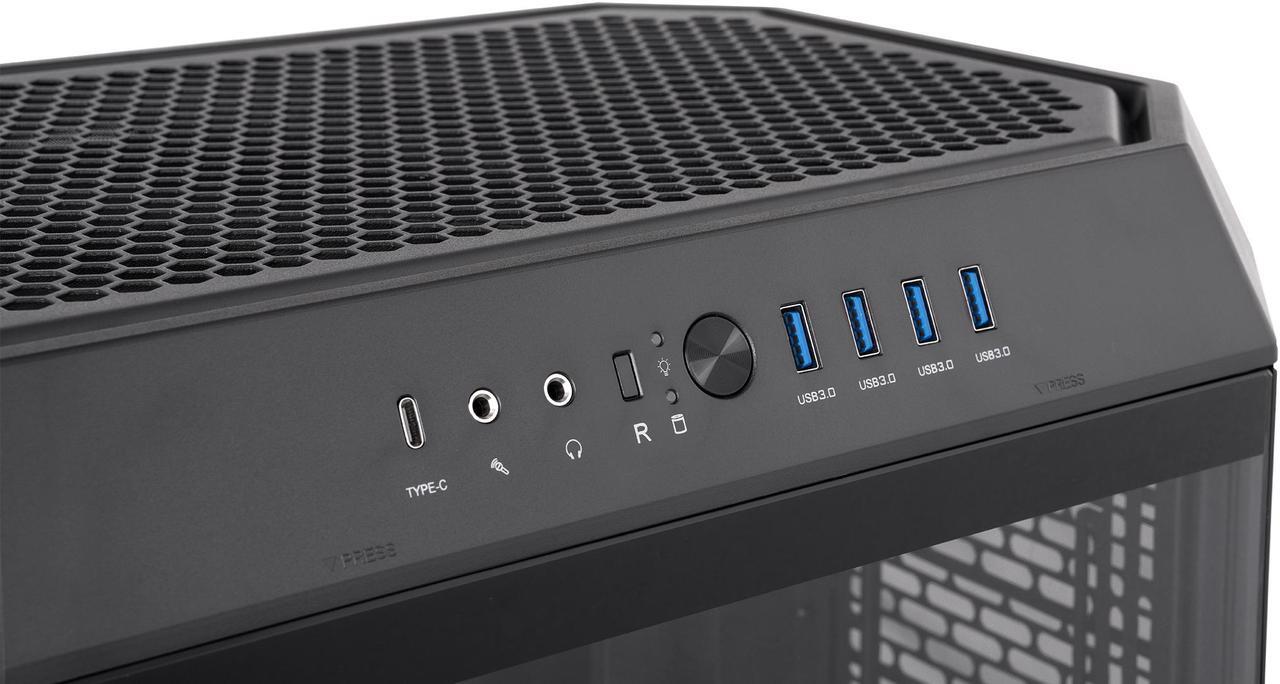

1 x USB 3.2 (Gen 2) Type-C, 4 x USB 3.0, 1 x HD Audio
Cooling System
Fan Options
Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm

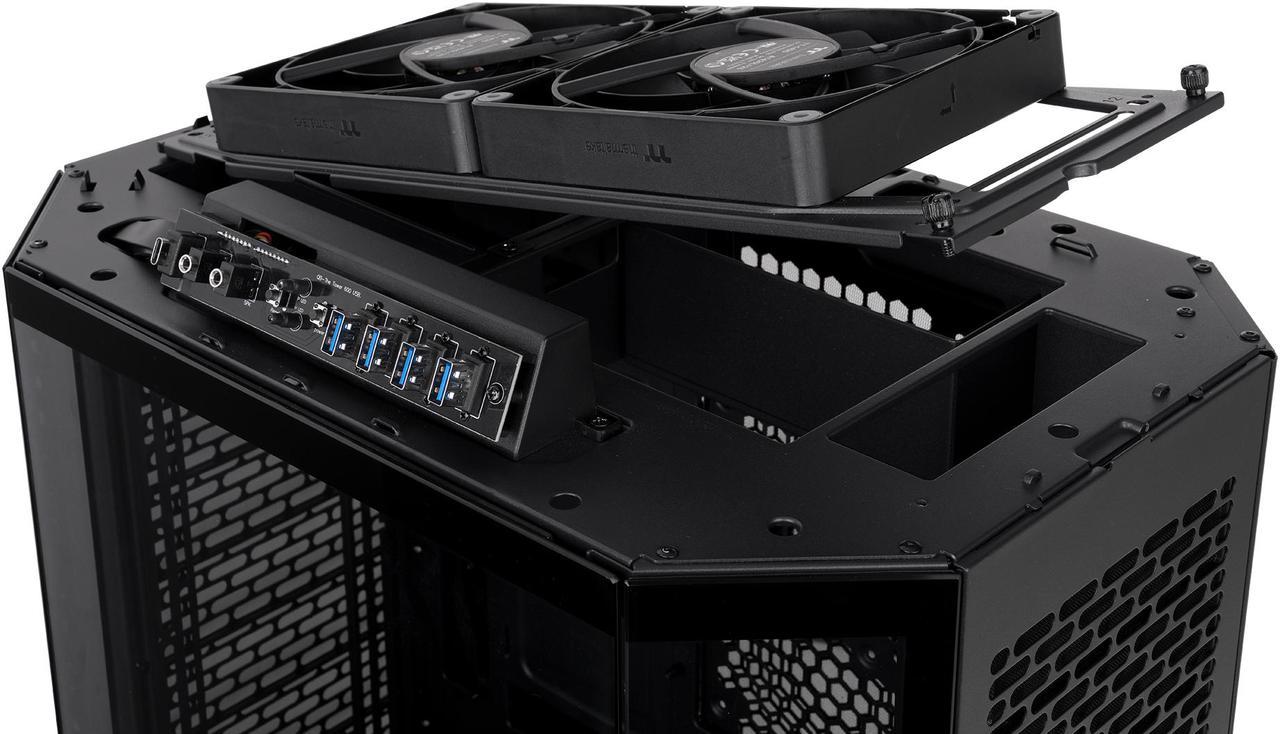

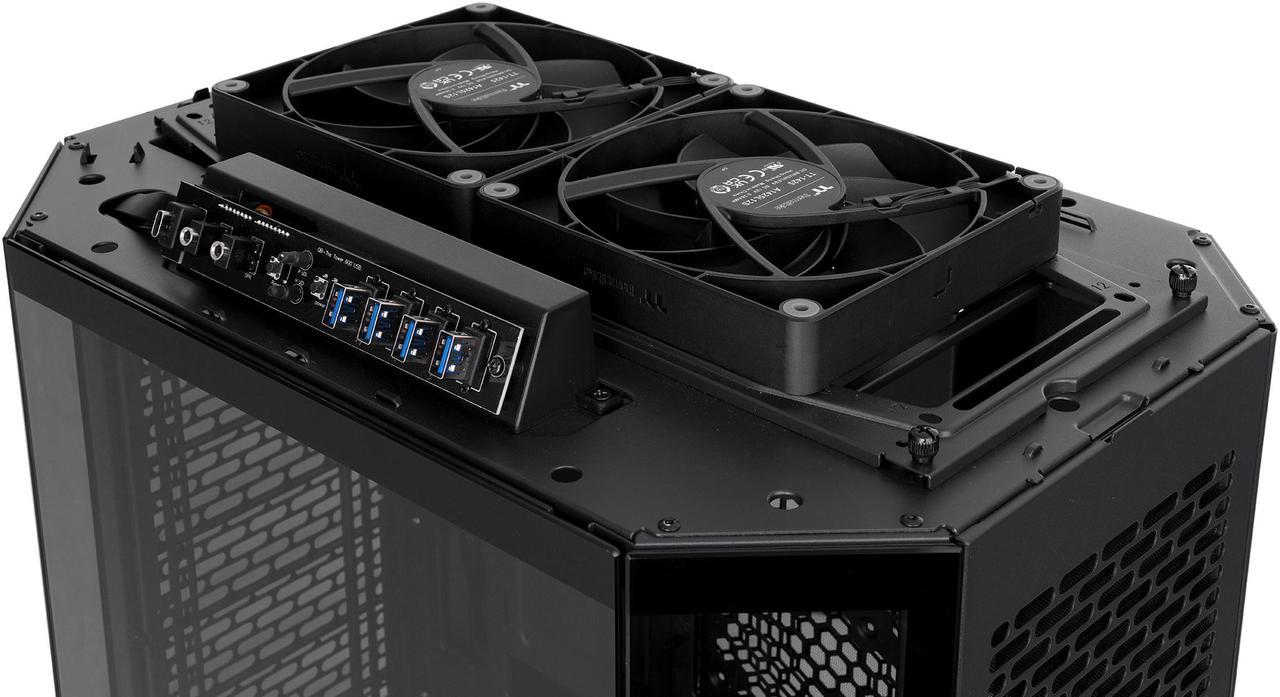

Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm
Rear: 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm
Left: 3 x 120mm, 2 x 120mm, 1 x 120mm

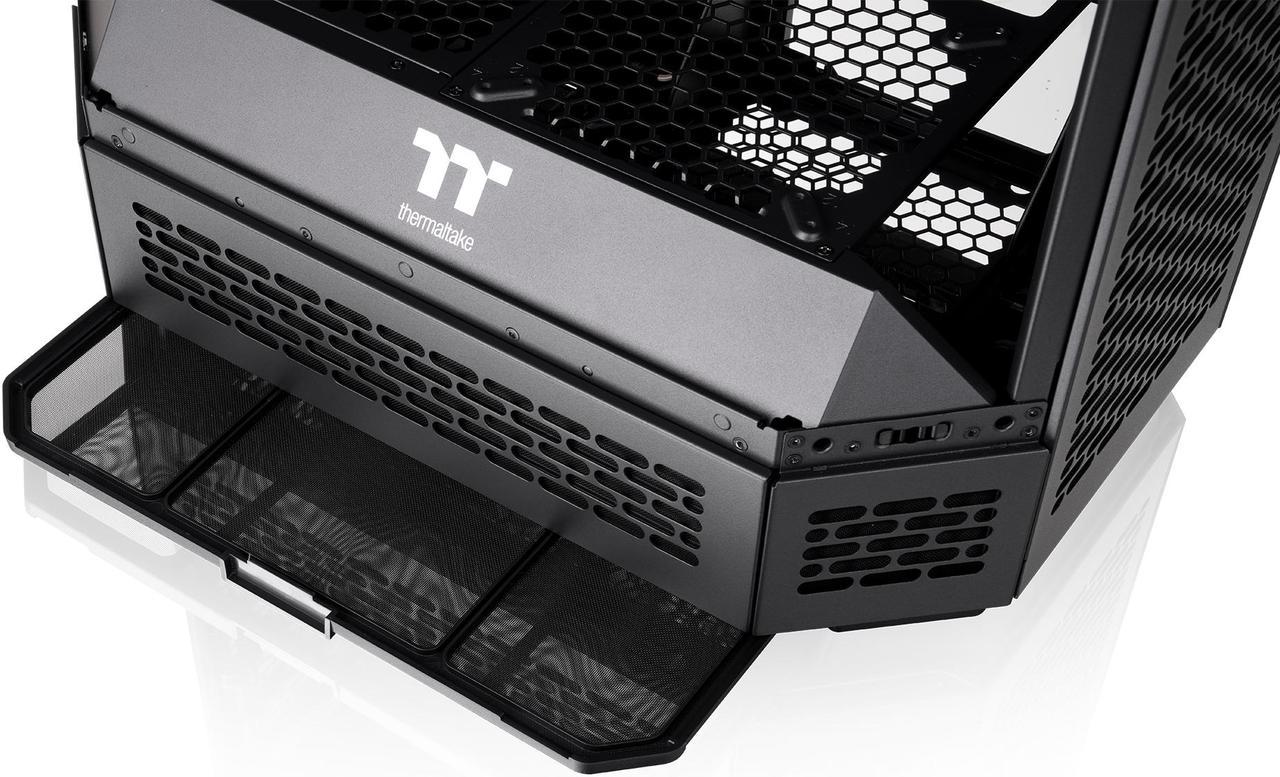

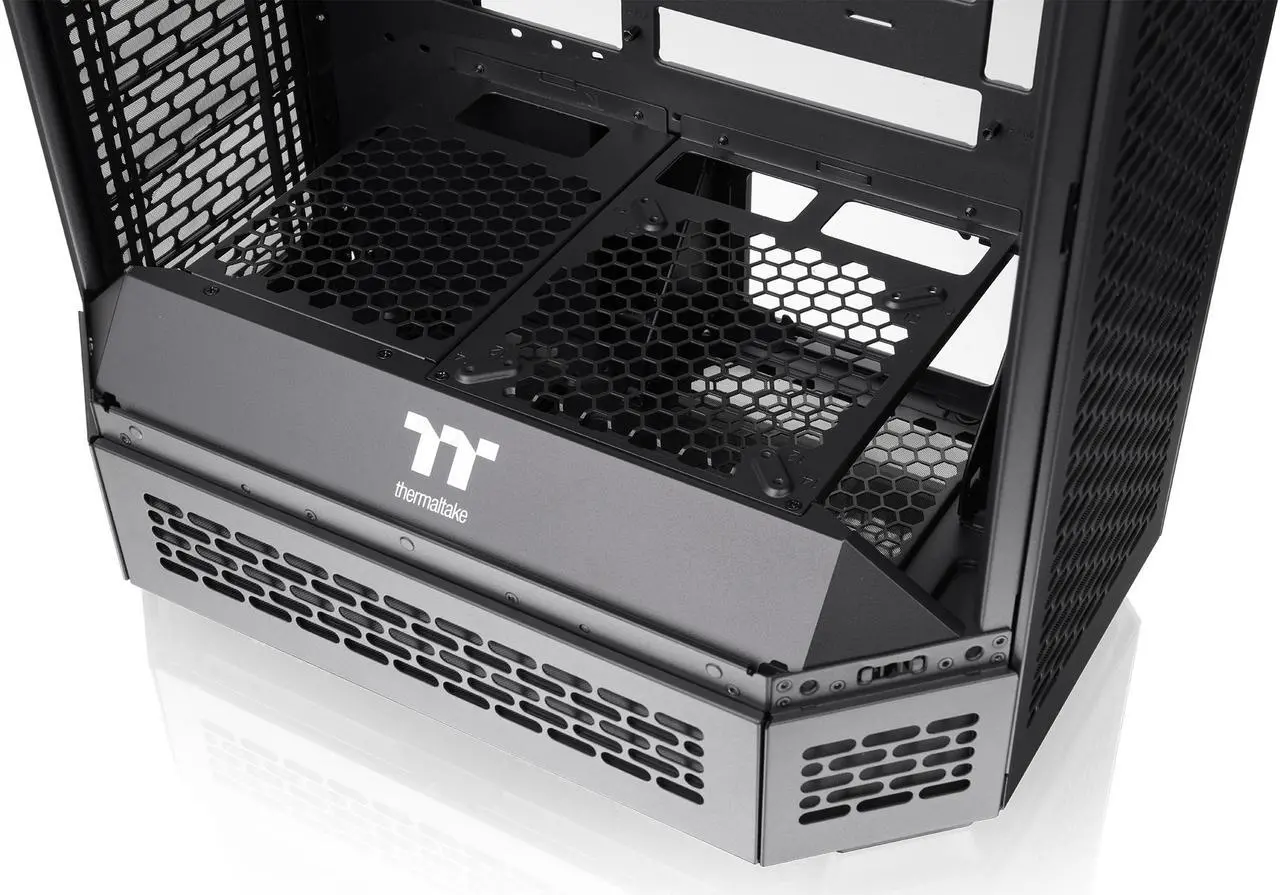

Bottom/(On the power cover): 1x 120mm, 1 x 140mm
Radiator Options
Side - Up to 360mm / Side - Up to 420mm
Dimensions & Weight
Max GPU Length
280 mm (With power cover) / 400 mm (Without power cover)
Max CPU Cooler Height
210 mm
Max PSU Length
220 mm
Dimensions (H x W x D)
21.65" x 11.28" x 16.54"
Weight
21.39 lbs.
Additional Info
Features
Distinctive Octagonal Design with Tool-Free Panels: Unique octagonal shape with three tempered glass panels that can be removed without tools for easy access. Hidden-Connector Motherboard Support: Supports ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH motherboards for a clean, cable-free build. Superior Cooling Support: Supports up to nine fans and radiators up to 420mm for optimal cooling. Three-Way VGA Installations: Flexible GPU installation with rotational PCIe slots and a floating VGA bracket. Optional Horizontal Display Stand: An optional kit allows the case to be displayed horizontally, enhancing its unique aesthetic.
Additional Information
Date First Available
February 04, 2025
