How many 120mm fans can be installed in the Thermaltake View 370 TG chassis?

The Thermaltake View 370 TG chassis can accommodate up to ten 120mm fans.

What is the maximum GPU length supported by the Thermaltake View 370 TG chassis?

The maximum GPU length supported by the Thermaltake View 370 TG chassis is 420 mm.

Thermaltake View 370 TG ARGB; Mid Tower Chassis; 1x360mm SF360 ARGB PWM & 1x120 SF120 ARGB PWM Fans include; 360mm Radiator Support; 420mm GPU Clearance; 279mm Max PSU Length; ATX/mATX/mITX; Snow

Sporting a combination of mesh and tempered glass arranged in the front to provide open viewing angles reminiscent of a large bay window, all in a mid tower chassis with plenty of space for cooling and building.
Supporting AIO liquid coolers up to 360mm in size or air coolers up to 165mm in height, and space for up to ten 120mm fans find the right cooling for your build.
Extra cutouts allow support for ATX and mATX hidden connector motherboards such ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH to hide cables for a cleaner build.
Enjoy plenty of building space and room to upgrade with support for AIO Radiators up to 360mm in length on either the top or side of the chassis, clearance for GPUs up to 420mm in length, PSUs 279mm in length, and Air Coolers up to 165mm in height.
Equipped with a rotatable PCIe slot tray, switch between horizontal to vertical GPU configurations for the best view with the help of a 90 degree riser cable. (Riser Cable sold separately)
Created as a centerpiece while packaged in a Mid Tower design the View 370 TG has the space and aesthetics of a Full Tower chassis without the size. Able to support GPUs up to 420mm in length, AIO radiators up to 360mm in length, hidden connector motherboards, PSUs up to 279mm in length and Air Coolers up to 165mm in height gives the View 370 TG the flexibility for any build. In terms of cooling provided one SF360 ARGB provides side intake while an SF120 aids with exhaust.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Thermaltake View 370 TG ARGB Mid Tower Chassis

Motherboard

Mini ITX/Micro ATX/ATX

SIDE PANELS

4mm TG × 4

Fan Support

Up to ten 120mm fans

AIO Support

360/280/240/140/120mm

Dimensions (mm)

492.5 x 235 x 478.8

Clearance (mm)

CPU Cooler: 165

GPU: 420

Power Supply: 279

I/O Ports

1 × USB Type-C

2 × USB 3.0

1 × HD-Audio

Storage

1 × 3.5” HDD

2 × 2.5” SSD

* The image is for reference only.

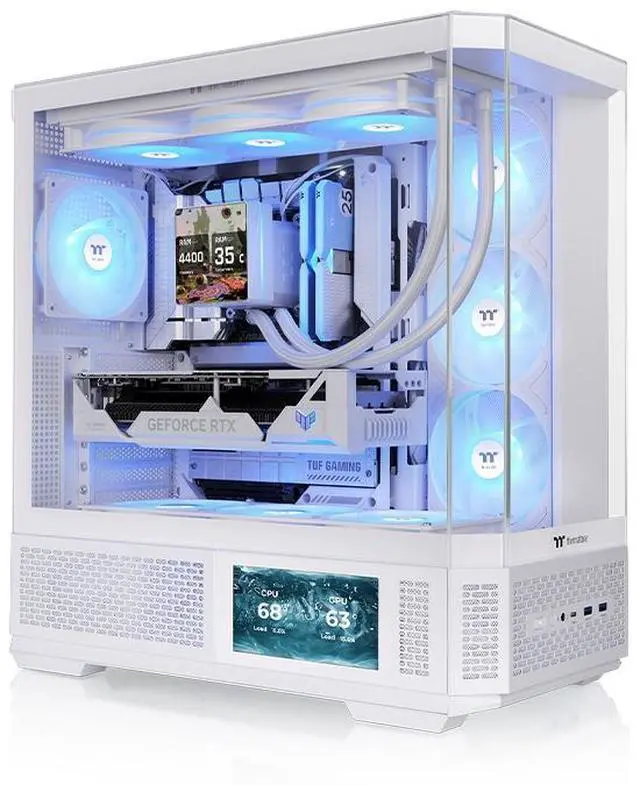

View 370 TG ARGB Mid Tower Chassis

The View 370 TG ARGB Mid Tower Chassis is an ATX case that supports Hidden-Connector Motherboards from ASUS, MSI and GIGABYTE and comes with pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to ten 120mm fans can be installed in the chassis, one 360mm radiator on the top or at the motherboard side, giving end-users greater flexibility to build their ideal configuration.

* The image is for reference only.

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 370 TG ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

Compatible with hidden-connector motherboards:

ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

* The image is for reference only.

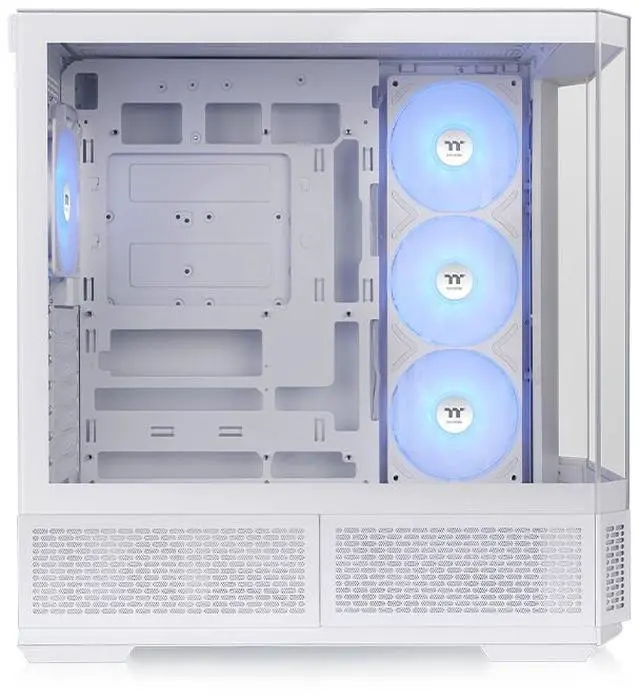

Pre-installed Fan System

The View 370 TG ARGB is pre-installed with a SF360 ARGB PWM Reverse Fan on the MB side and a SF120 ARGB PWM Fan at rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

* The image is for reference only.

Tempered Glass Front and Left Panels

The View 370 TG ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.

* The image is for reference only.

Good Radiator Support

Providing excellent cooling support, users can choose to place a 360mm radiator on the on the top or at the motherboard side of theView 370 TG ARGB Mid Tower Chassis.

* The image is for reference only.

Display It Your Way

The rotatable PCI-E slots, along with an optional riser cable (sold separately), support both horizontal and vertical GPU mounting configurations.

Visually Pleasing, Totally Interactive

Maximize your View 370 TG ARGB Mid Tower Chassis visual effects by upgrading it with our LCD Screen Kit.

The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.

* The image is for reference only.

Personalize Your LCD Display

Through TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.

GIFs

Real-Time Information

Time

Weather

Unleash Limitless Creativity with AI Forge?

Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.?

Note: AI Forge integrates with OpenAI services. An OpenAI account setup and payment are required to activate this function. According to OpenAI’s pricing standard as of August 2025, the average cost per image generation is about USD 0.04.?

* The video is for reference only.

Enhanced Dust Protection

Filters at top, bottom, and PSU chamber vents keep your system clean.

* The image is for reference only.

DMD: Dismantlable Modular Design

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

* The image is for reference only.

Storage Support

For storage compatibility, the View 370 TG ARGB Mid Tower Chassis supports one 3.5” HDD plus one 2.5” or two 2.5” SSDs.

* The image is for reference only.

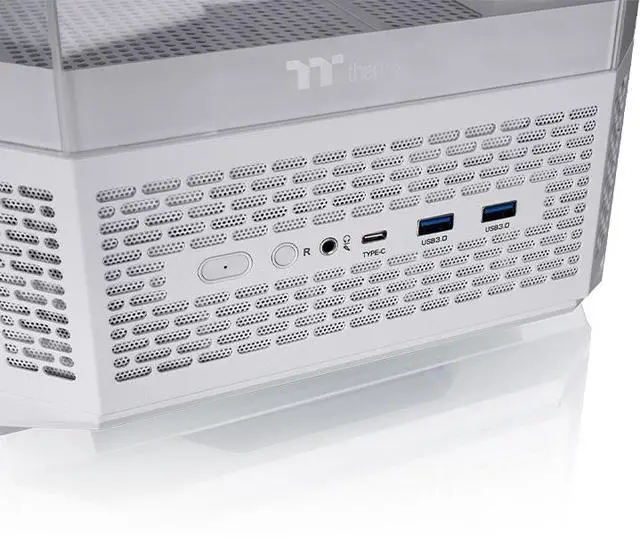

Handy I/O Ports

Power Button with Integrated Power LED
Reset Button
USB 3.2 (Gen 2) Type-C x 1
USB 3.0 Type-A x 2
HD Audio x 1

* The image is for reference only.

All-in-One Compatibility List

Fan Compatibility List

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Aura Addressable Header

ASUS

Digital Pin Header

GIGABYTE

JRAINBOW Header

MSI

Addressable RGB LED Header

ASRock

Category	Caution
Chassis, ARGB Fan, ARGB AIO	The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate	This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts. The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.

Type	ATX Mid Tower
Color	White
Case Material	SPCC
Motherboard Compatibility	6.7 x 6.7(Mini ITX), 9.6 x 9.6(Micro ATX), 12 x 9.6(ATX)
Side Panel	4 x Sides Tempered Glass Panel

Fan Options	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm MB Side: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 3 x 120mm, 2 120mm, 1 x 120mm
Radiator Options	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm MB Side: 1x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm

Max GPU Length	420 mm
Max CPU Cooler Height	165 mm
Max PSU Length	PSU length limitation: 279mm PSU suggested length: 200mm
Dimensions	492.5 x 235 x 478.8 mm
Weight	19lbs
