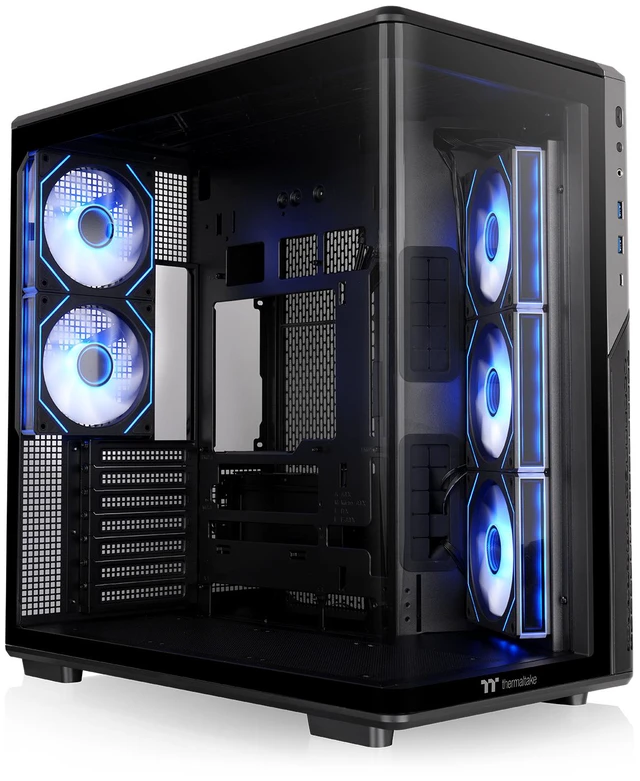

Thermaltake View 590 TG ARGB; Mid Tower; 4mm Curved Tempered Glass; 3x120mm Infinity ARGB Reverse PWM fans, 2x120mm Infinity ARGB PWM Fans; mITX/mATX/ATX Support; Black; CA-12C-00M1WN-01

Featuring a single piece curved tempered glass panel for panoramic viewing angles, the View 590 TG ARGB sports a mid-tower form factor and dual chamber design to provide the optimal build experience and aesthetics.

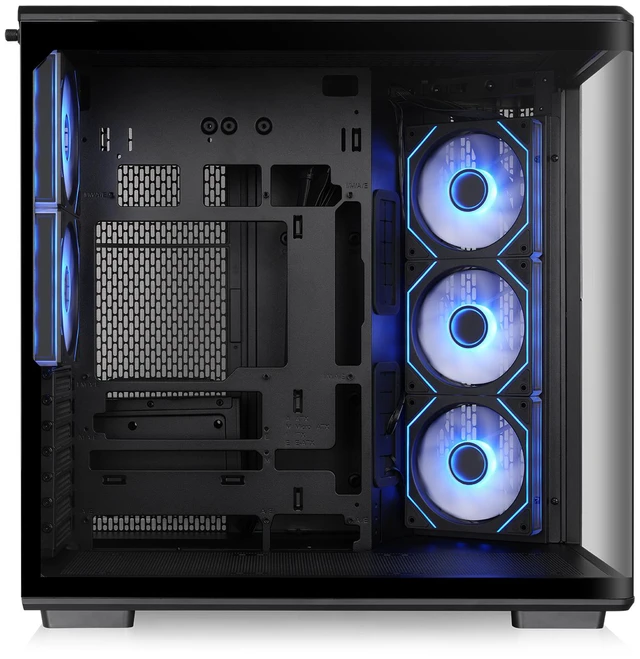

Preinstalled on the side of the chassis is a removable bracket equipped with three 120mm fans that can suport an AIO with GPUs up to 350mm or GPUs up to 435mm with the bracket removed and AIO mounted directly to the chassis.
The View 590 TG ARGB gets you started with three 120mm Infinity ARGB Reverse PWM fans mounted on the side bracket of the chassis to provide intake, while two 120mm Infinity ARGB PWM fans are mounted at the rear of the chassis to provide exhaust.

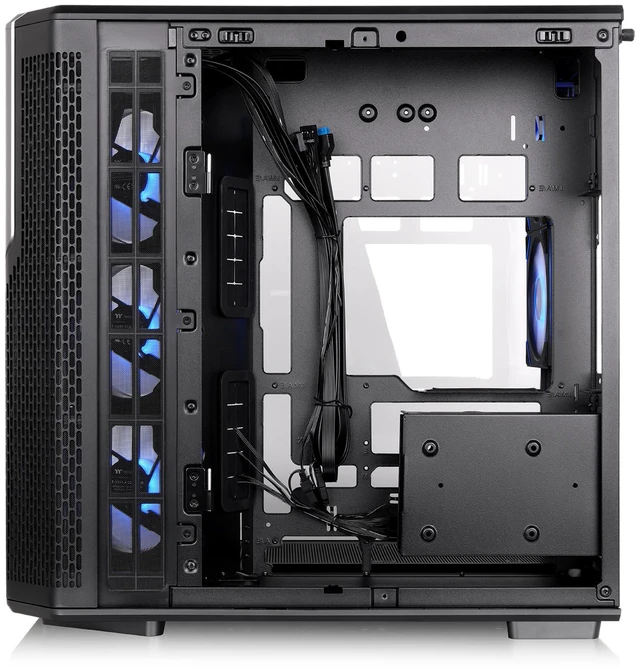

Featuring an open spacious main build chamber supporting 360mm radiators, 435mm GPUs, and air coolers up to 165mm in height with a rear chamber that supports 270mm PSUs with plenty of extra storage options such as 3x3.5" or 3x2.5" drives.
Extra cutouts allow support for mATX and ATX hidden connector motherboards such ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH to hide cables for a cleaner build.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Thermaltake View 590 TG ARGB Mid Tower Case

CA-12C-00M1WN-01

View 590 TG ARGB Mid Tower Chassis

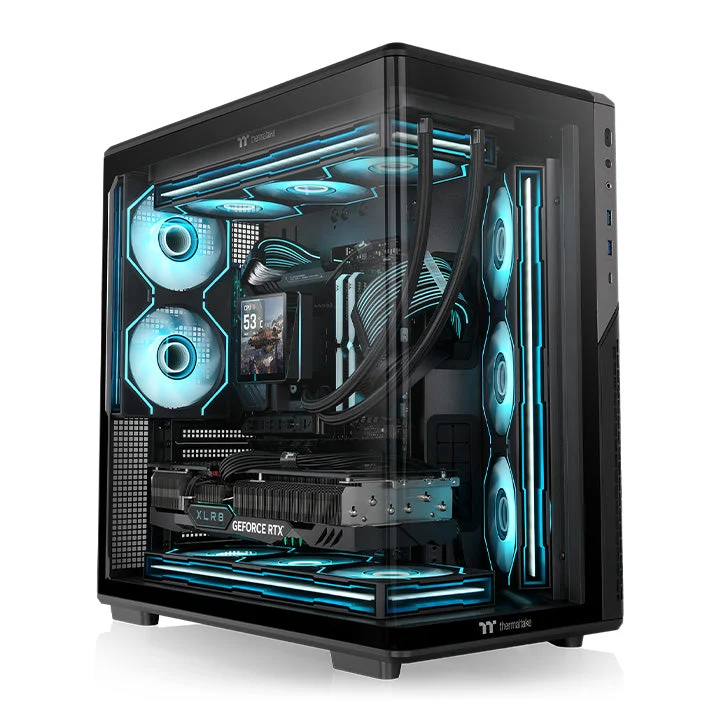

Built for amazing views, the View 590 TG ARGB Mid Tower Chassis is a dual-chamber ATX case with a curved tempered glass front and left panel, and comes with three 120mm Infinity ARGB Reverse PWM Fans on the MB side, along with two 120mm Infinity ARGB PWM Fan at rear.

Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

Motherboard

Mini ITX / Micro ATX / ATX

Side Panels

4mm Curved TG x 1

Fan Support

Up to eleven 120mm fans

AIO Support

360 / 280 / 240 / 140 / 120mm

Dimensions (H × W × D)

473 x 290 x 477

Clearance (mm)

CPU Cooler: 165

GPU: 435 (350 with AIO at MB Side)

Power Supply: 270 (with HDD Cage)

I/O Ports

1 x USB Type-C

2 x USB 3.0

1 x HD-Audio

Storage

3 x 3.5" HDD or

3 x 2.5" SSD

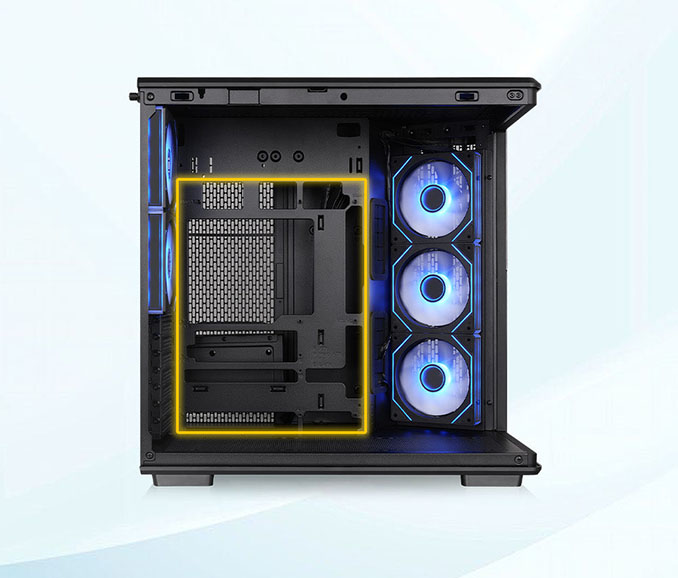

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 590 TG ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

* Compatible with hidden-connector motherboards:

ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

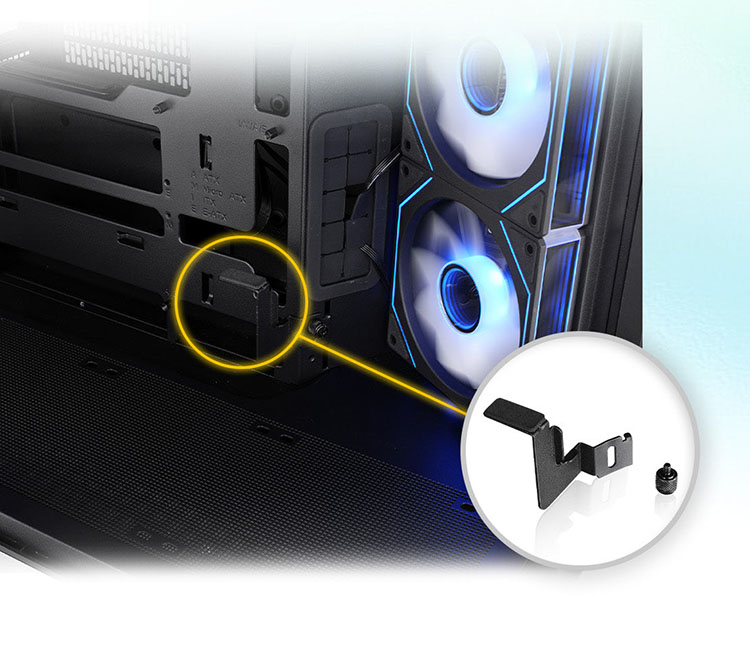

Built-In GPU Support Bracket

The integrated GPU support bracket provides additional support for your graphics card, ensuring a more stable and secure installation.

Good Radiator Support

Providing good cooling support, users can choose to place a 360mm radiator at the top of the View 590 TG ARGB Mid Tower Chassis.

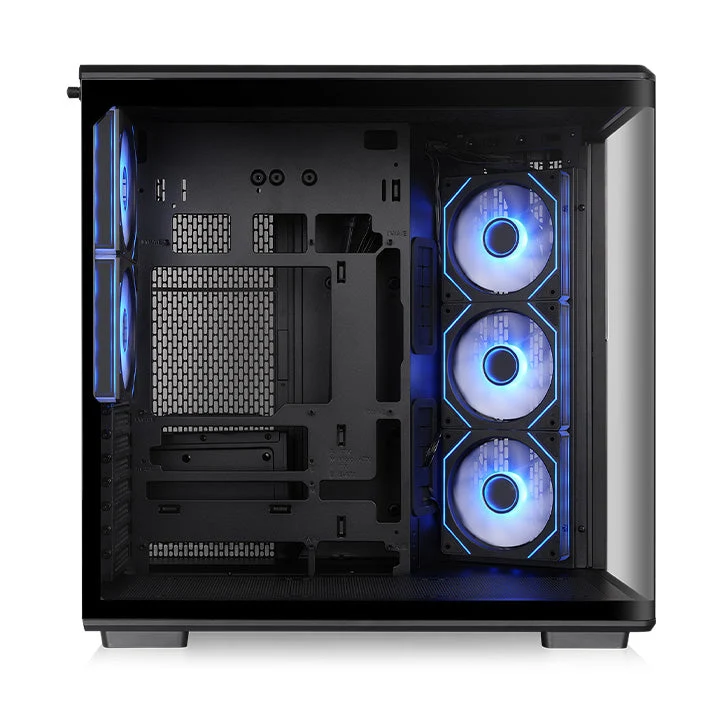

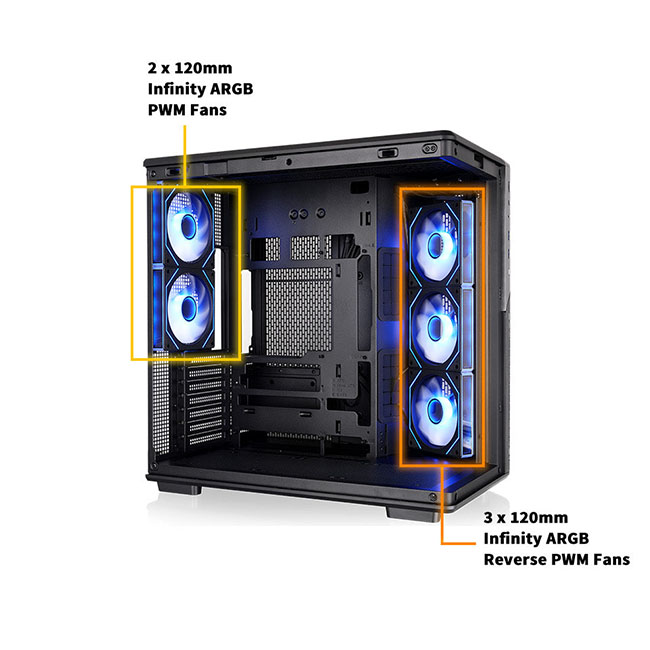

Pre-installed Fan System

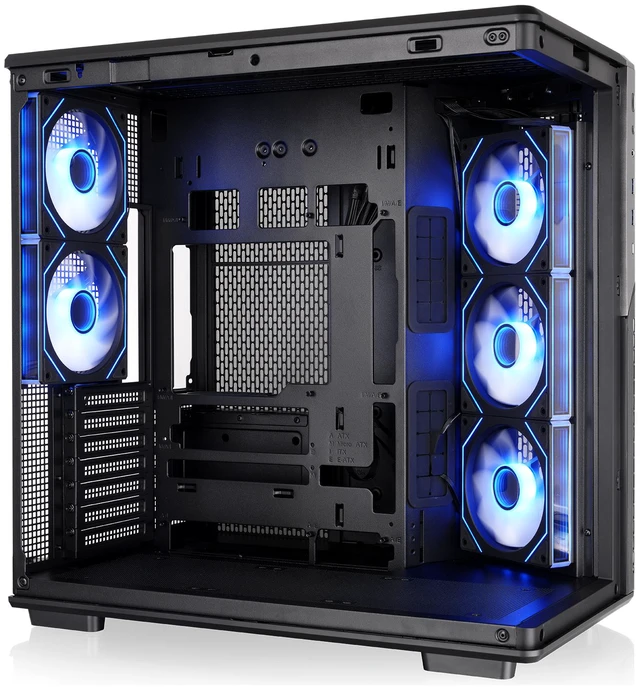

The View 590 TG ARGB is pre-installed with three 120mm Infinity ARGB Reverse PWM Fans on the MB side, along with two 120mm Infinity ARGB PWM Fans at rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

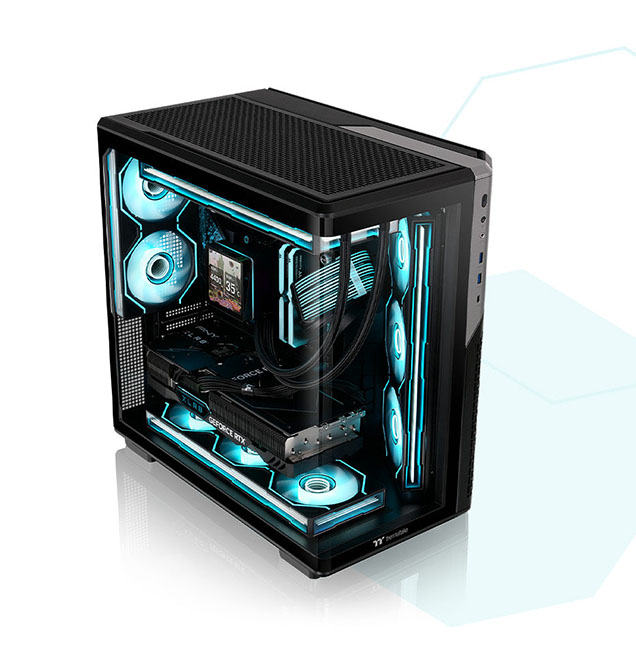

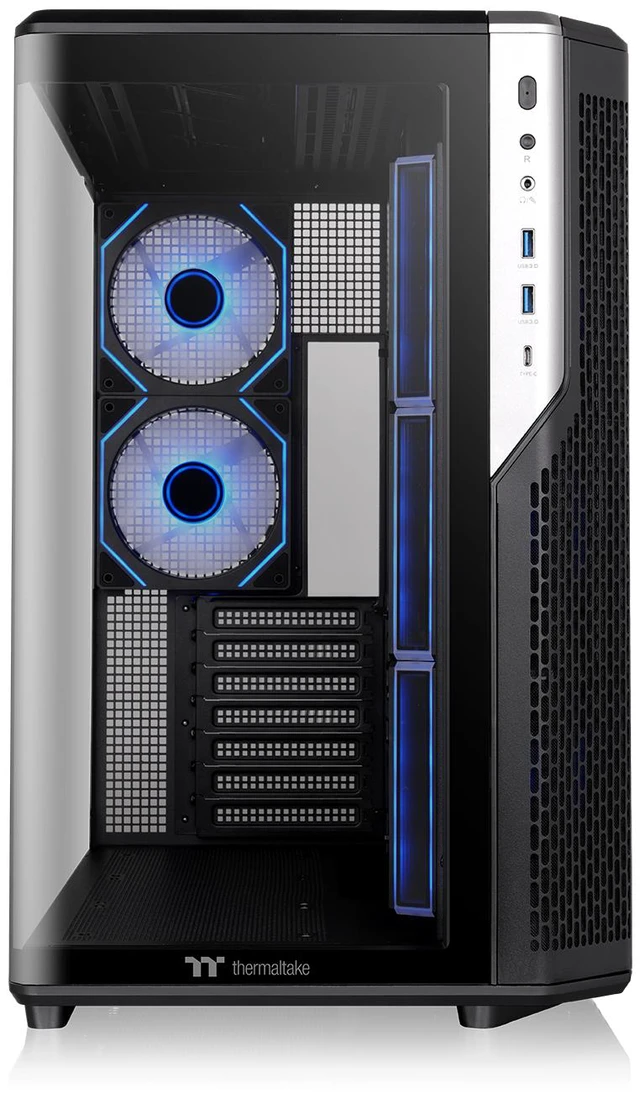

Front and Left Curved Panel

The View 590 TG ARGB Mid Tower Chassis features a curved tempered glass for a distinctive look.

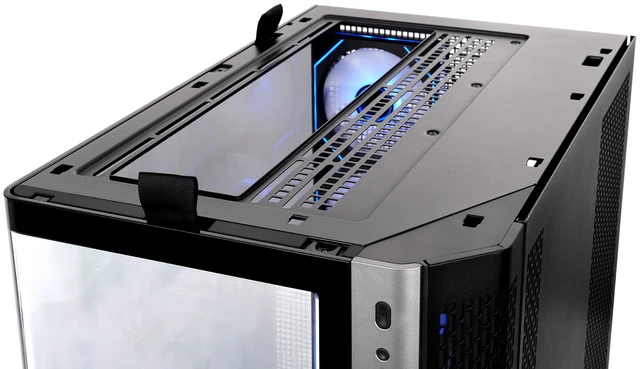

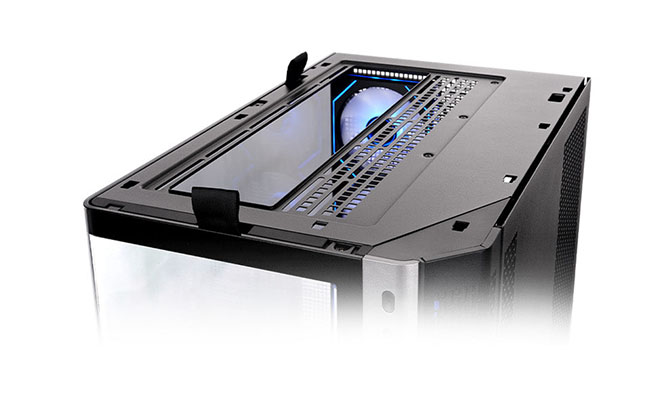

Integrated Pull Tab for Easy Access

Designed with a built-in pull tab, the curved tempered glass panel can be lifted effortlessly for quick access during installation, upgrades, and maintenance.

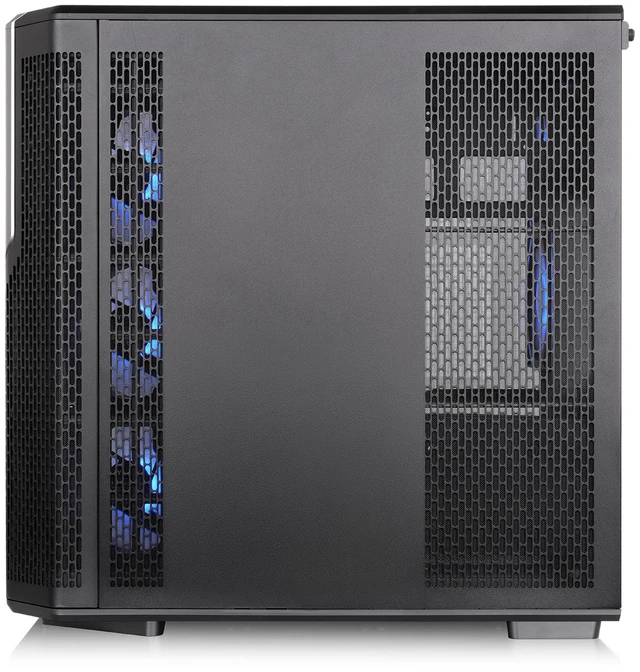

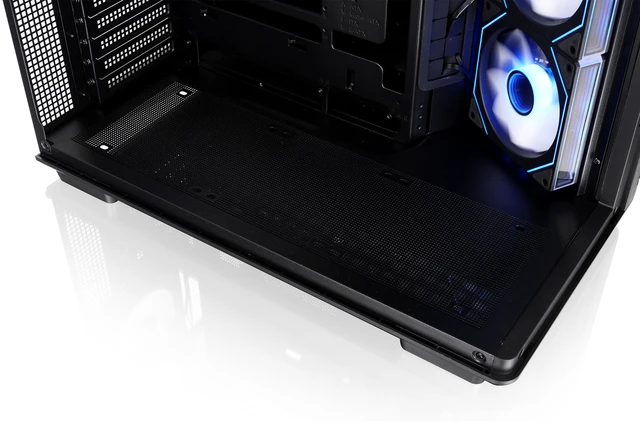

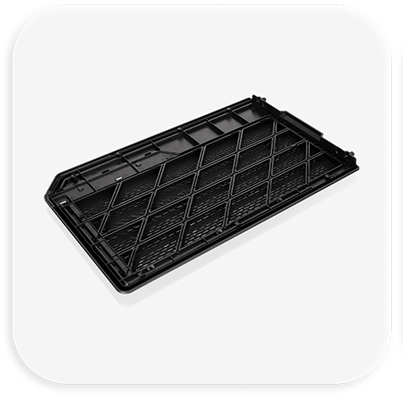

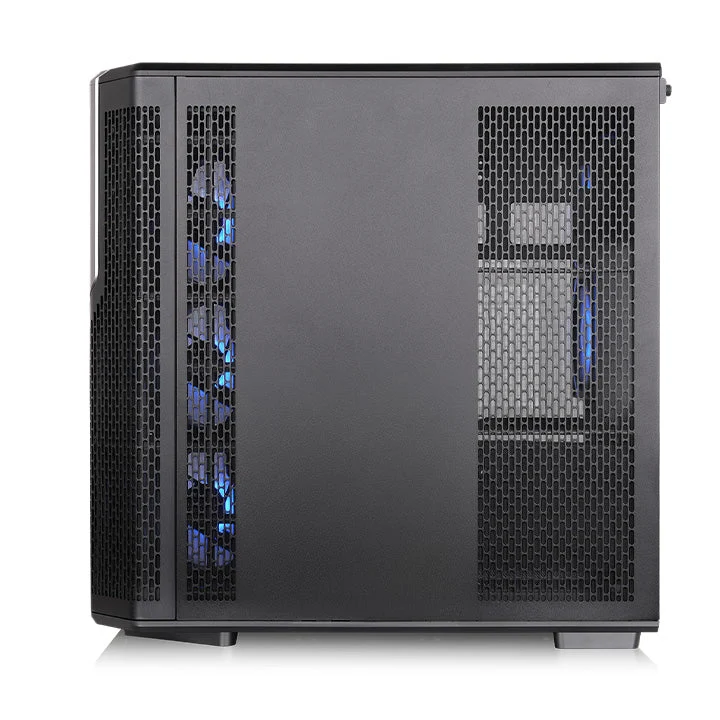

Good Dust Protection

Dust filters help keep your system clean while maintaining optimal airflow.

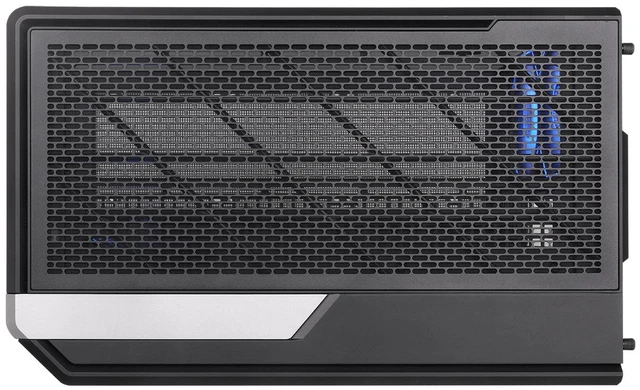

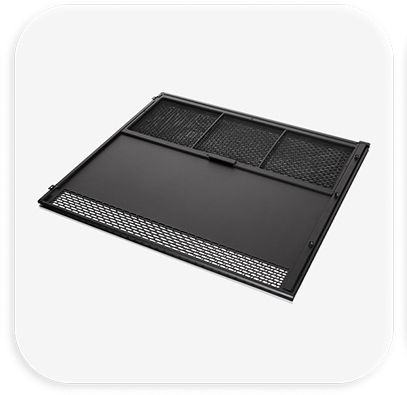

Top filter

Right side filter 1

Right side filter 2

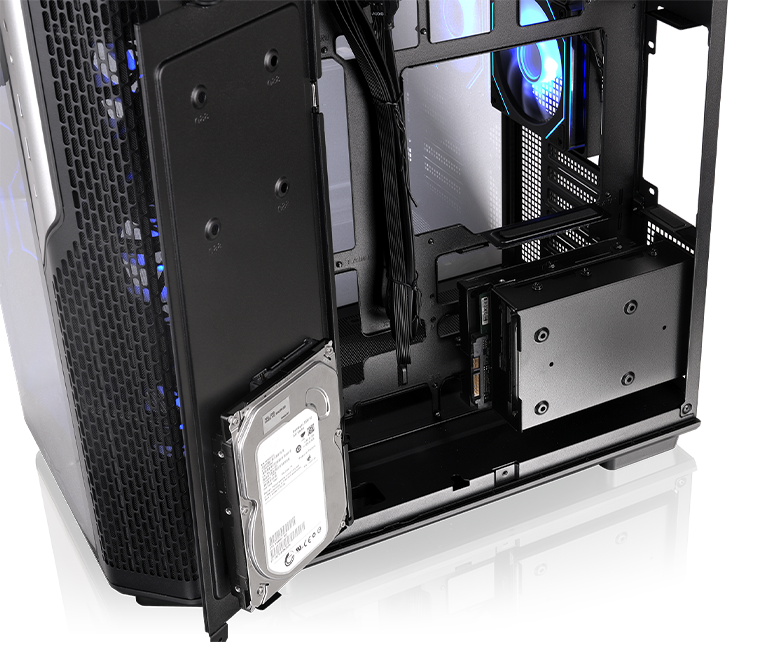

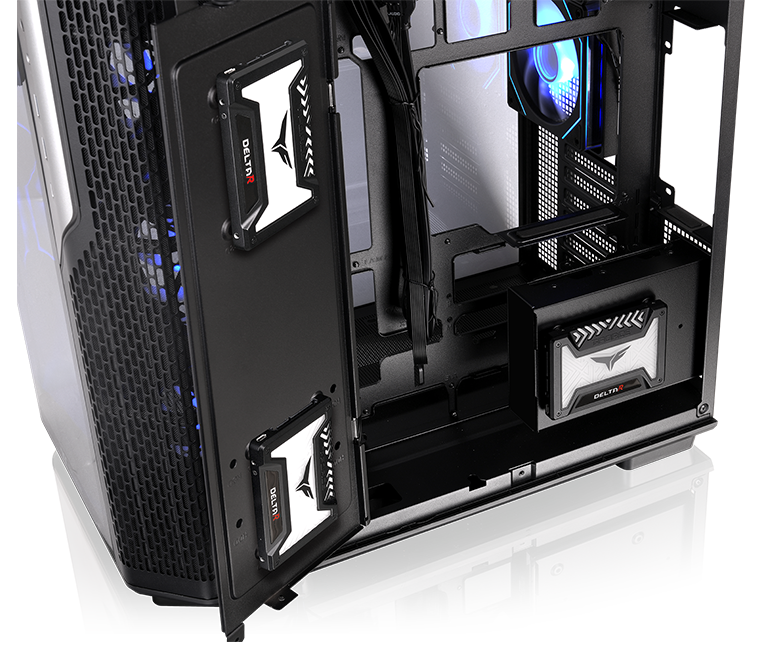

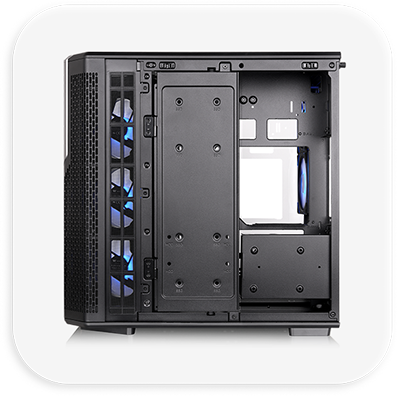

Storage Support

For storage compatibility, the chassis supports up to three 3.5” HDDs or three 2.5” SSDs for flexible installation options.

HDD

SSD

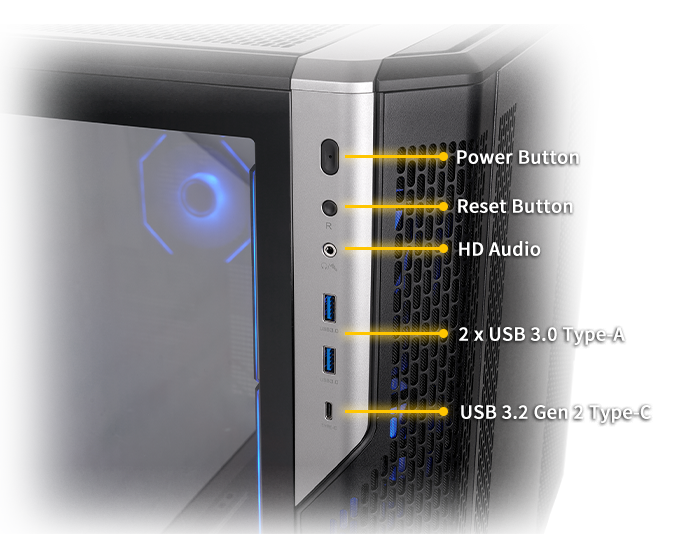

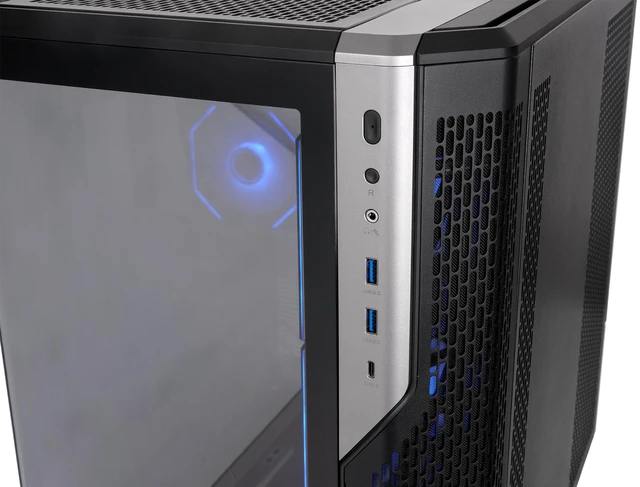

Handy I/O Ports

Power Button (Blue LED)
Reset Button
HD Audio
2 × USB 3.0 Type-A
1 × USB 3.2 Gen 2 Type-C

Note:

* All the images are for reference only.

Internal 3.5" Drive Bays	3 x 3.5'', 2 x 2.5' or 2 x 3.5', 3 x 2.5'
Internal 2.5" Drive Bays	3 x 3.5'', 2 x 2.5' or 2 x 3.5', 3 x 2.5'
Expansion Slots	7

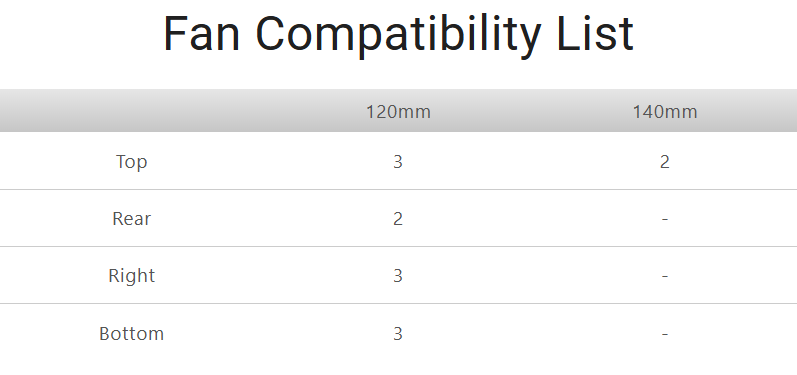

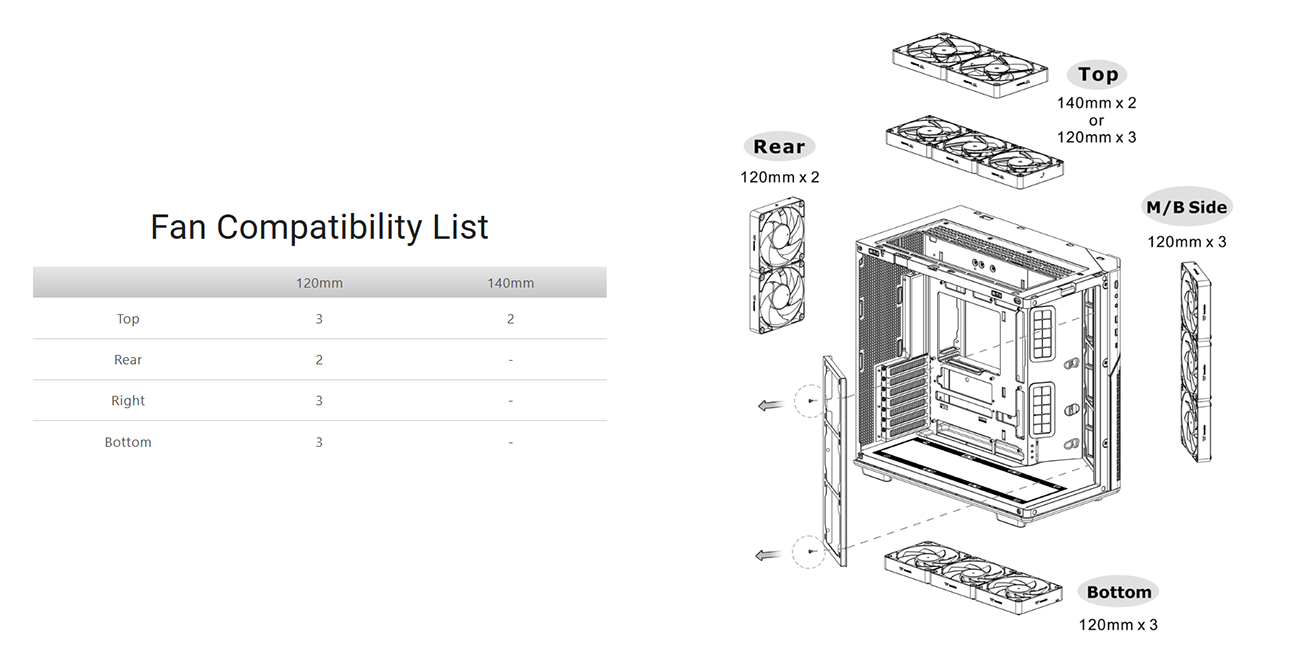

Fan Options	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 2 x 120mm, 1 x 120mm

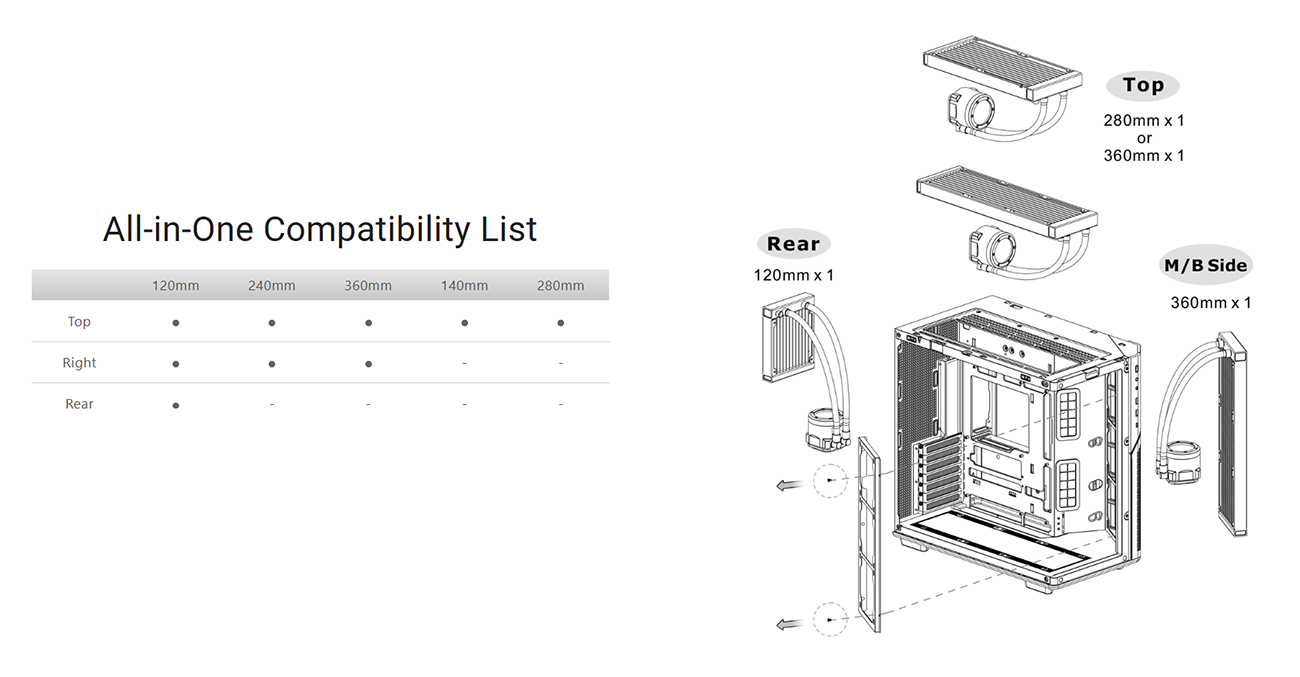

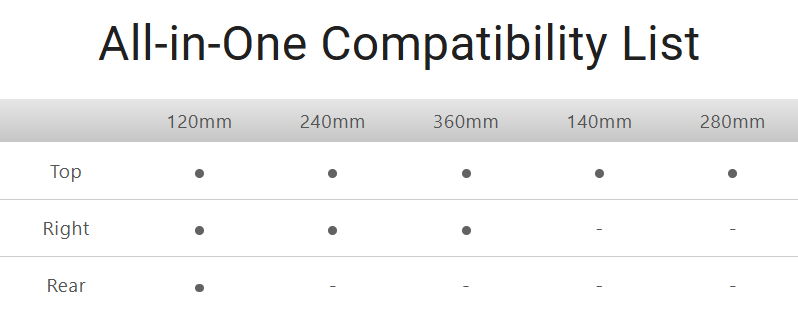

Radiator Options	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm

Max GPU Length	435 mm
Max CPU Cooler Height	165 mm
Max PSU Length	270 mm
Dimensions	473 x 290 x 477 mm (18.7 x 11.42 x 18.78 inch)

Meet Your Seller

Thermaltake View 590 TG ARGB; Mid Tower; 4mm Curved Tempered Glass; 3x120mm Infinity ARGB Reverse PWM fans, 2x120mm Infinity ARGB PWM Fans; mITX/mATX/ATX Support; Black; CA-12C-00M1WN-01

Learn more about the Thermaltake CA-12C-00M1WN-01

Customer Reviews of the Thermaltake CA-12C-00M1WN-01

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Type	Mid Tower
Color	Black
Motherboard Compatibility	6.7' x 6.7' (Mini ITX), 9.6' x 9.6' (Micro ATX), 12' x 9.6' (ATX) , 12' x 10.5' (SSI-CEB)
Side Panel	4mm Curved Tempered Glass x 1
