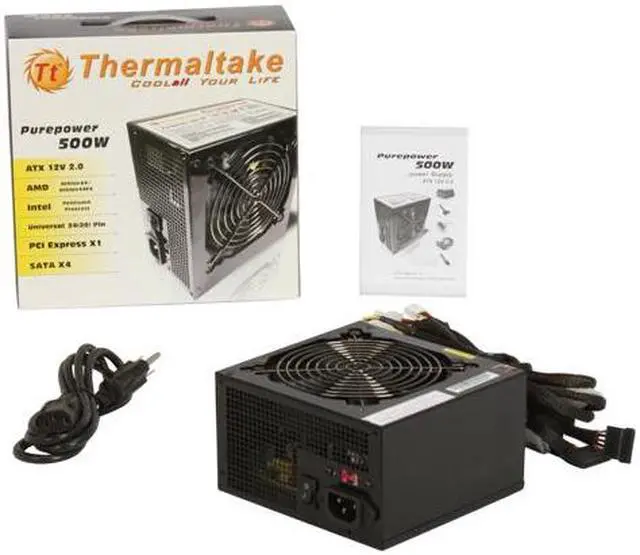

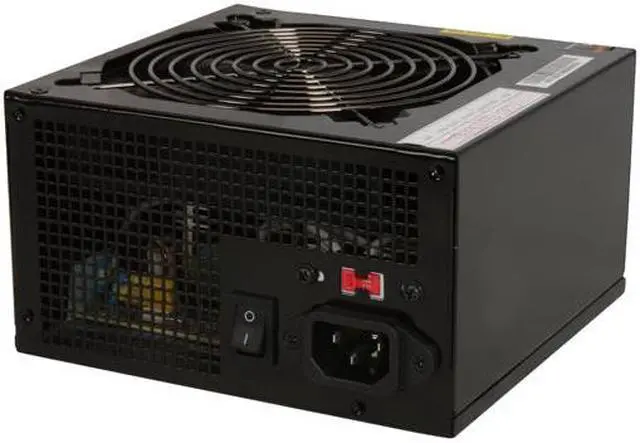

Thermaltake Purepower W0100RU 500 W ATX 12V 2.0 Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (638)

Any questions? Our AI beta will help you find out quickly.

Try me now

ATX12V v2.0 CompatibleCompatible with the ATX12V v2.0 standard, the Thermaltake Purepower W0100RU power supply provides maximum power stability to drive the latest Intel and AMD processors as well as other components for desktop and entry-level sever computer systems.
500W Maximum PowerA maximum power of 500W delivers safe, reliable output for high-end computer systems.

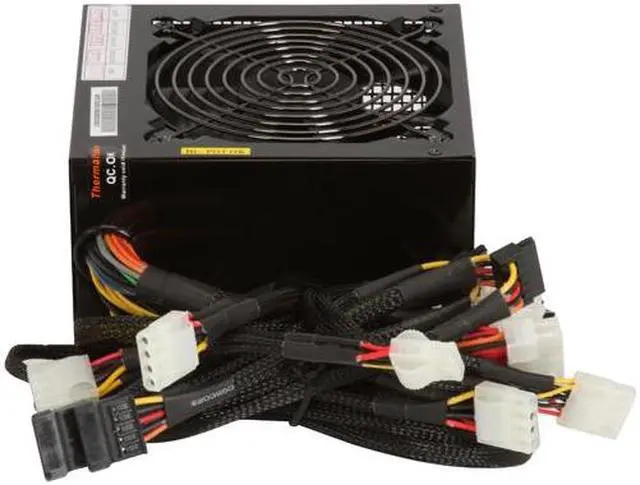

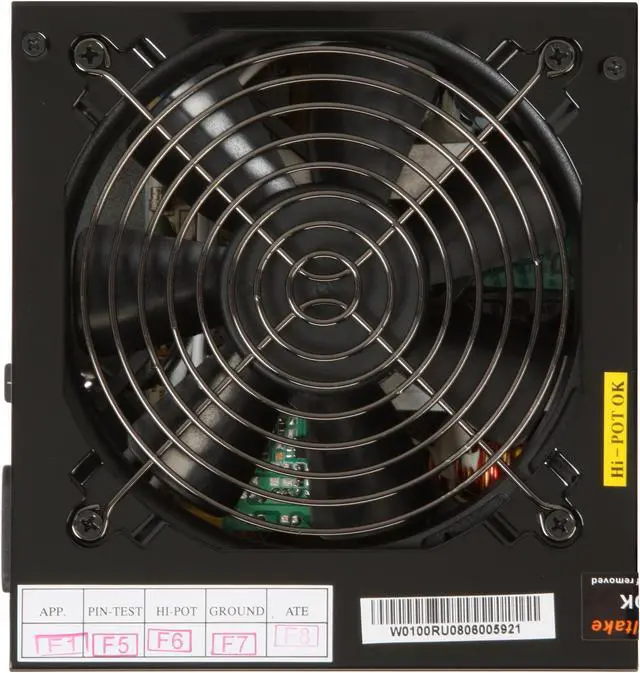

120mm Silent Cooling FanThe Thermaltake Purepower W0100RU features a 120mm silent cooling fan for increased overall airflow and heat dissipation in the power supply enclosure.

Details
Type	ATX 12V 2.0
Maximum Power	500 W
Fans	1 x 120mm fan

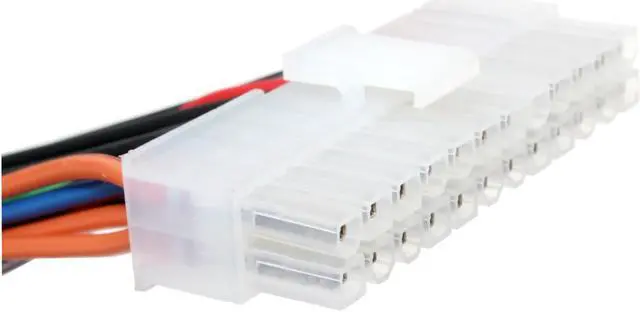

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	1 x 6-Pin
SATA Power Connector	4
SLI	No
CrossFire	No
Modular	No
Power Good Signal	100-500ms
Hold-up Time	8ms(minimum) at 80%
Efficiency	> 70%
Over Voltage Protection	+5V output 6.25 0.75 V +3.3V output 4.0 0.30V +12V output 15.0 0.6V

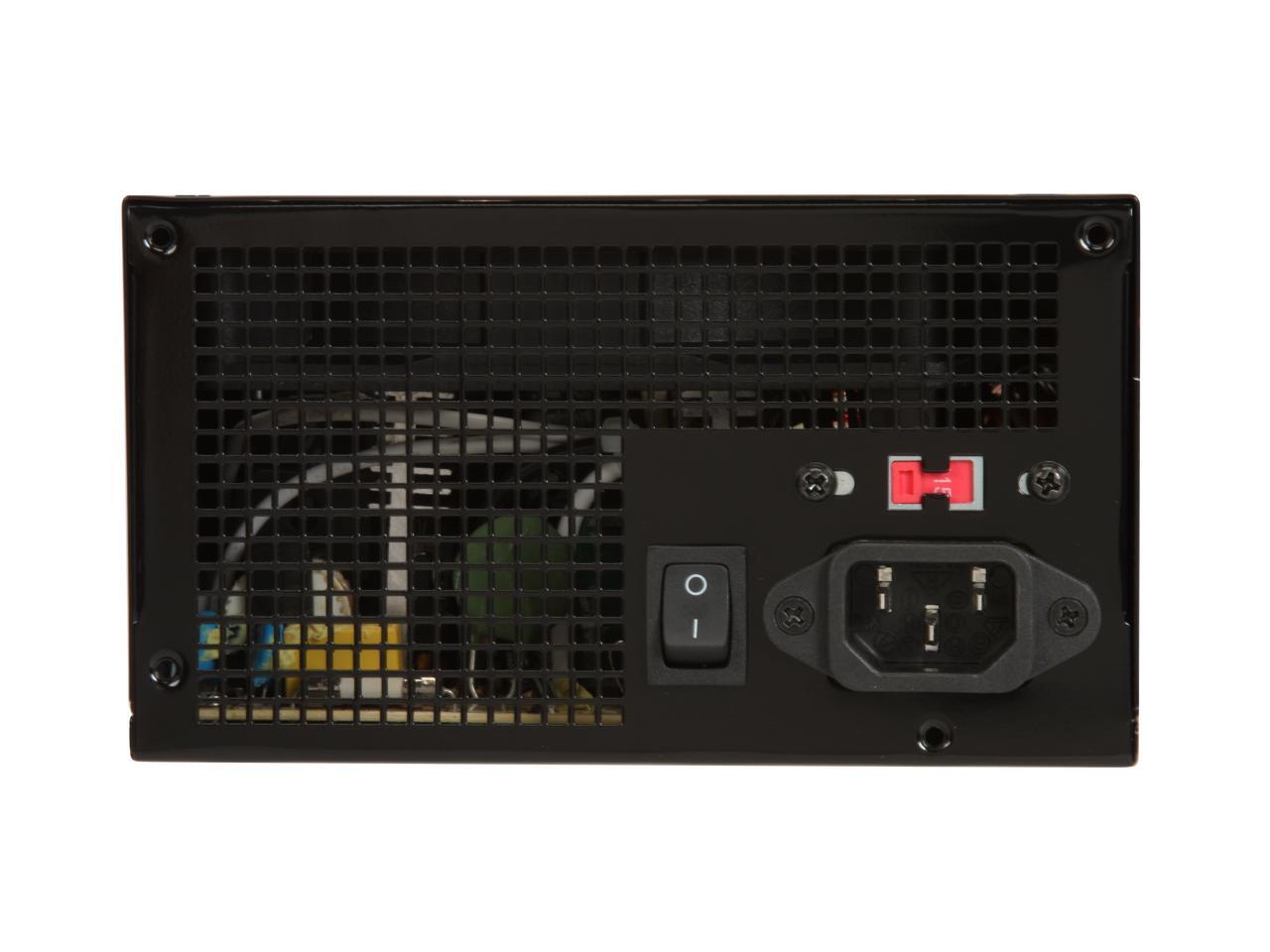

Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	9A @ 115V, 5A @ 230V

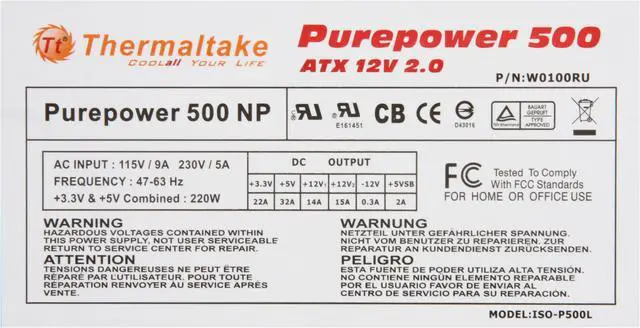

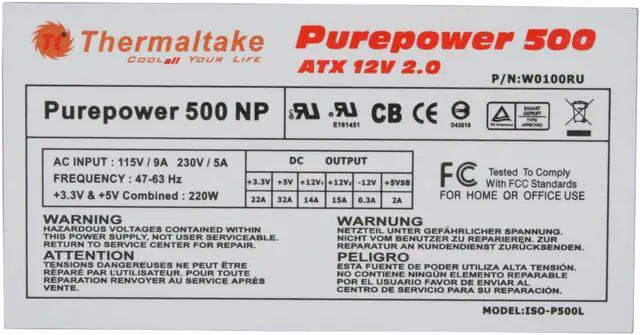

Output	+3.3V@22A, +5V@32A, +12V1@14A, +12V2@15A, [email protected], +5VSB@2A
Approvals	UL, CUL, TUV, FCC, and CB certification

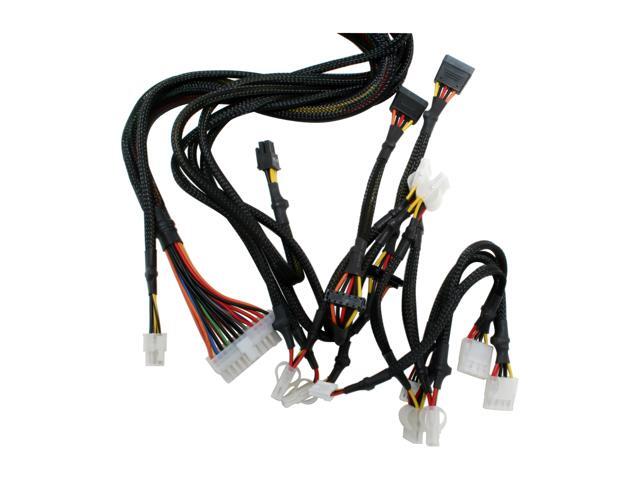

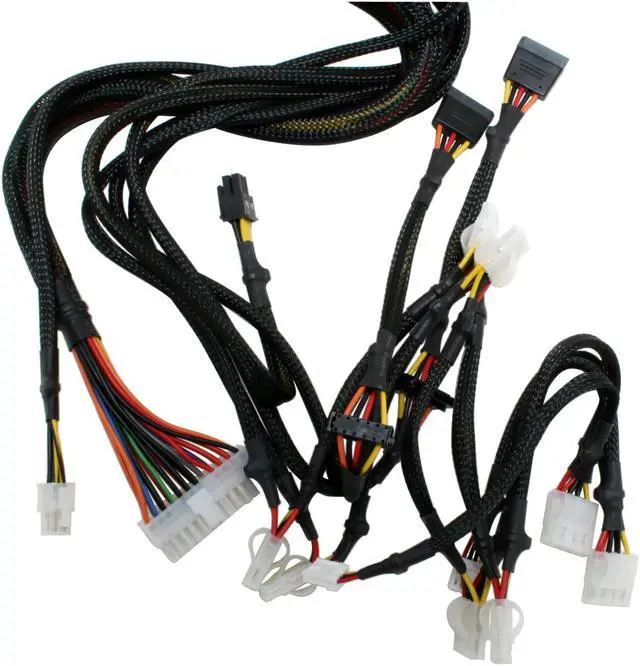

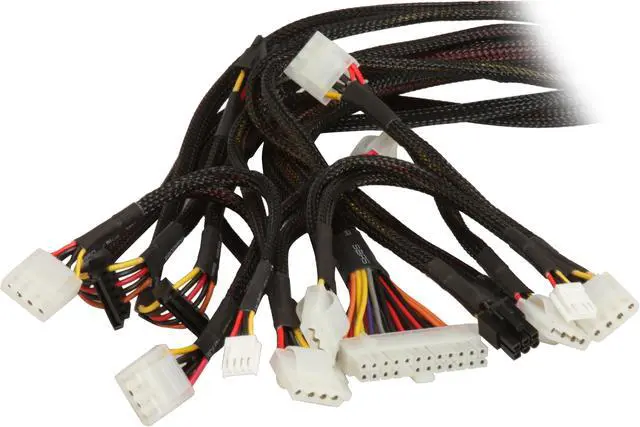

Connectors	1 x Main connector (20+4Pin) 1 x 12V (P4) 8 x peripheral 4 x SATA 2 x Floppy 1 x PCI-E

Features
Features	Complies with ATX 12V 2.0 Version Low noise 12cm fan and mirror effect casing Protections against Input Protection, Over Power, Over Voltage, Short-Circuit, and No Load Operation

Additional Information
First Listed on Newegg	March 14, 2007
