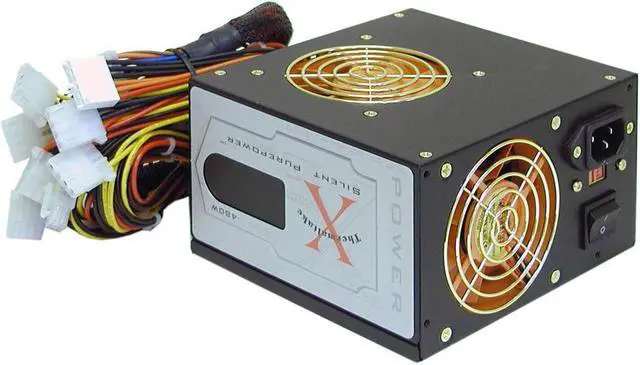

Thermaltake Silent Purepower W0014RU 480 W ATX12V Active PFC Power Supply

OUT OF STOCK.
  • ATX12V
  • 115 / 230 V 50/60 Hz
  • +3.3V@30A; +5V@40A; -5V@0.3A; +12V@18A; -12V@0.8A; +5VSB@2A
Specs
Reviews

Learn more about the Thermaltake W0014RU

General
Brand Thermaltake
Series Silent Purepower
Model W0014RU
Details
Type ATX12V
Maximum Power 480 W
Fans 1 x 80mm, Two Ball Bearing,
Temp. Auto Control
1300 rpm at 25C ~
4800 rpm at 90C
1 x 80mm, Ball Bearing, 2400rpm
PFC Active
Main Connector 20Pin
+12V Rails Single
SLI No
Modular No
Power Good Signal 100-500ms
Hold-up Time 16ms min.
Over Voltage Protection +5V trip point < +6.8V
+3.3V trip point < +4.5V
+12V trip point <+15.6V
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V
Output +3.3V@30A; +5V@40A; -5V@0.3A; +12V@18A; -12V@0.8A; +5VSB@2A
Approvals CUL ,CB , FCC ,CE

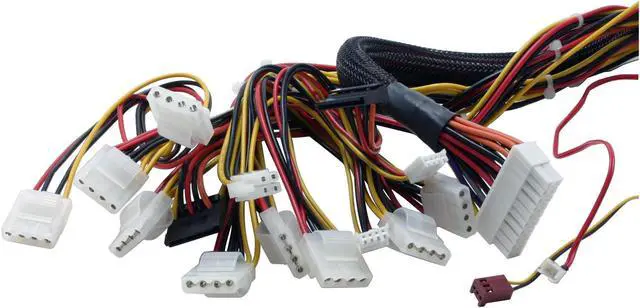

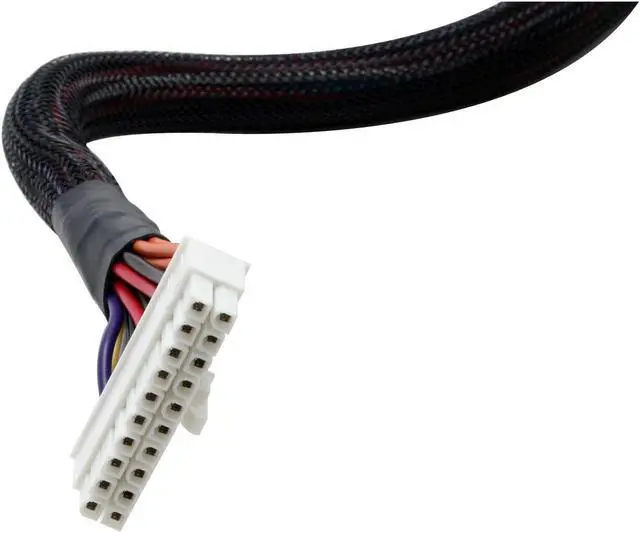

Connectors 1 x Main connector (20 pin)
1 x 12V (P4)
9 x peripheral
2 x SATA
2 x Floppy
Features
Features Designed for AMD K7 and Intel ATX +12V 1.1 and ATX 2.03 version (Fully Support Pentium 4)
Peak Output : 550W

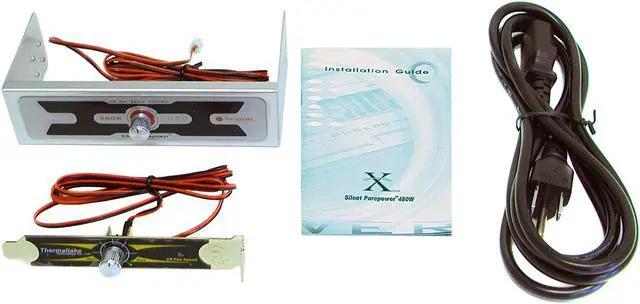

2 adjustable manual fan speed control in the front and rear side of the case. (from 1300 rpm at 25C~ 4800 rpm at 90C).
Temperature Automatic Fan Speed Control
Xaser badge on side panel
Black / Silver color printing
Additional Information
Date First Available April 23, 2003
