Brand | Thermaltake |
---|---|

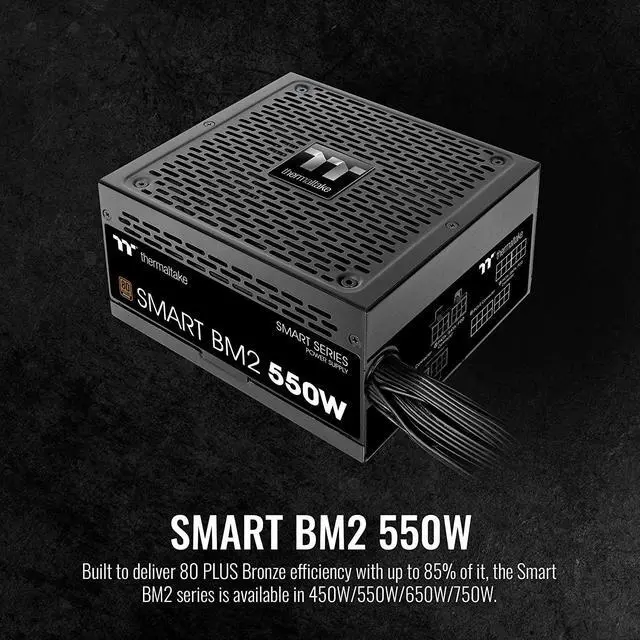

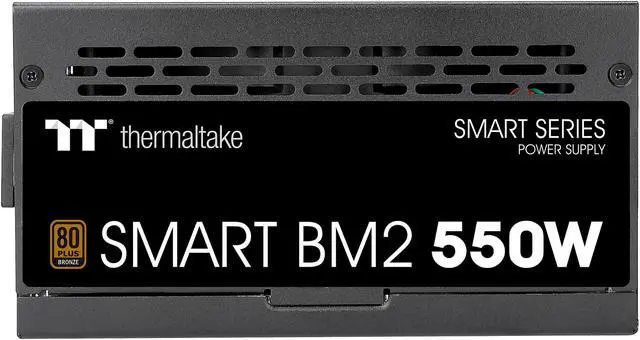

Series | Smart BM2 550W |
Model | PS-SPD-0550MNFABU-1 |
Color | Black |
---|---|
Type | ATX 12V v2.4 and EPS v2.92 |
Maximum Power | 550 W |

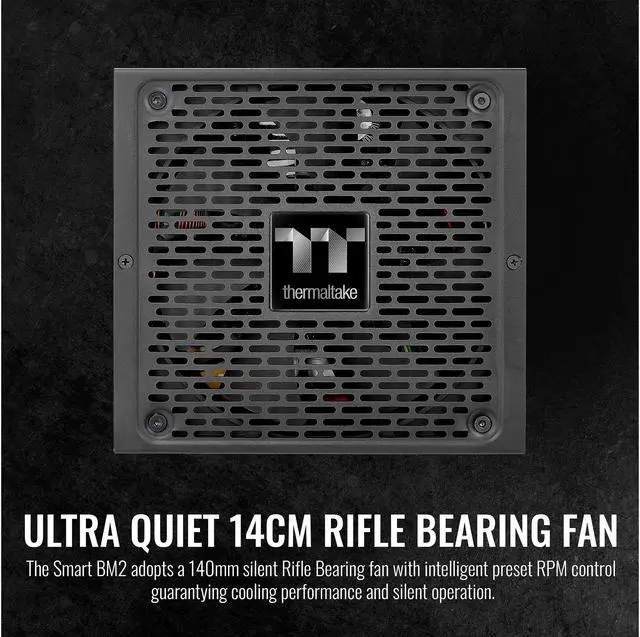

Fans | 1 x 140mm Fan |
PFC | Active |
Main Connector | 24Pin |
+12V Rails | Single |
PCI-Express Connector | 2 x 6+2-Pin |
SATA Power Connector | 6 |
Haswell Support | Yes |
Max PSU Length | 160 mm |

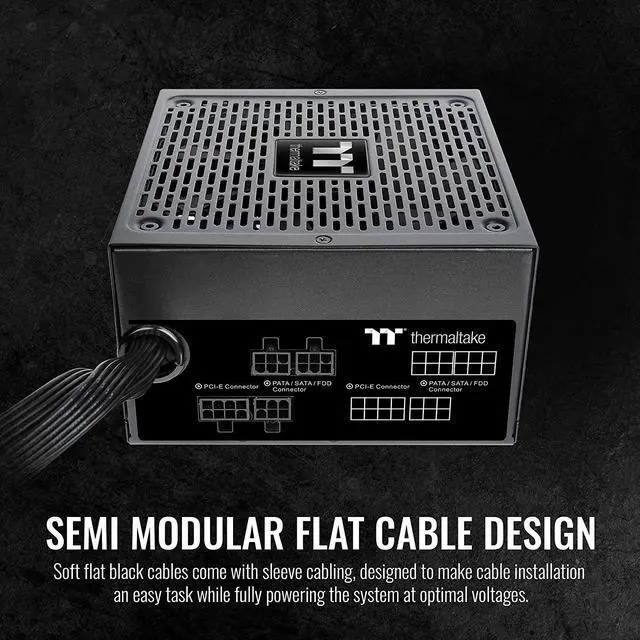

Modular | Semi-Modular |
Power Good Signal | 100-500ms |
Hold-up Time | > 12msec at 80% of full load at 230Vac input |

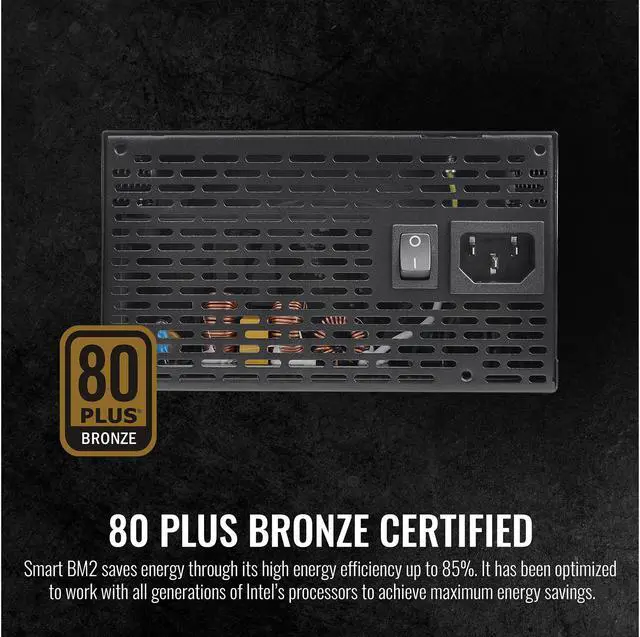

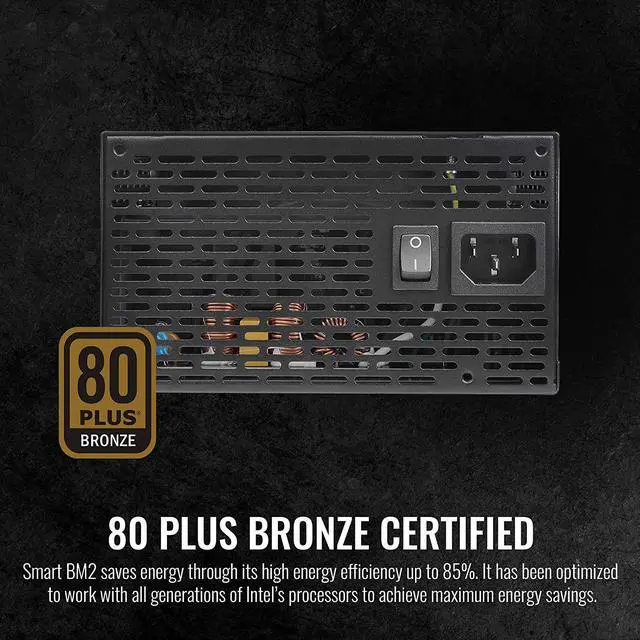

Energy-Efficient | 80 PLUS BRONZE Certified |
PSU Noise Level | Cybenetics Standard + |
Protection | Over Power, Over Voltage, Over Temperature and Short-Circuit protections |
Input Voltage | 100 - 240 V |
Input Frequency Range | 47 - 63 Hz |
Input Current | 8A (Max.) |

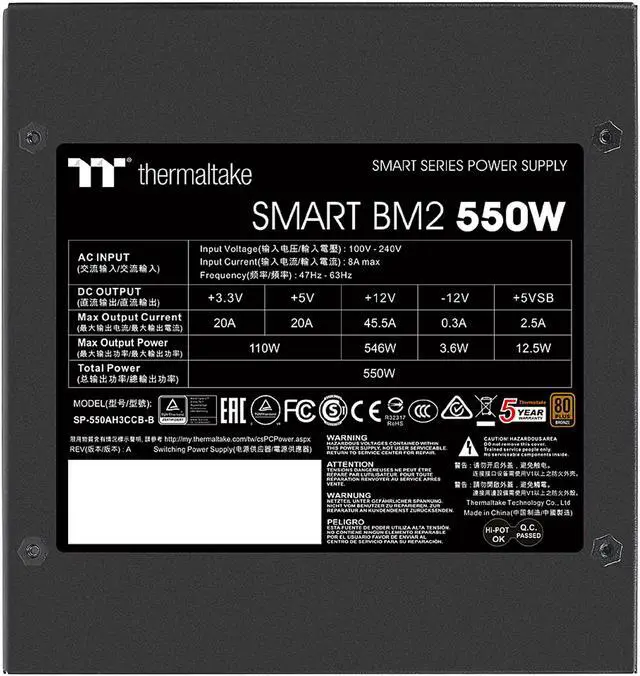

Output | +3.3V@20A, +5V@20A, +12V@45A, [email protected], [email protected] |
MTBF | 100,000 Hours Minimum |
Approvals | cTUVus / TUV / CE / FCC / S-mark / EAC / BSMI / C-TICK / CCC |

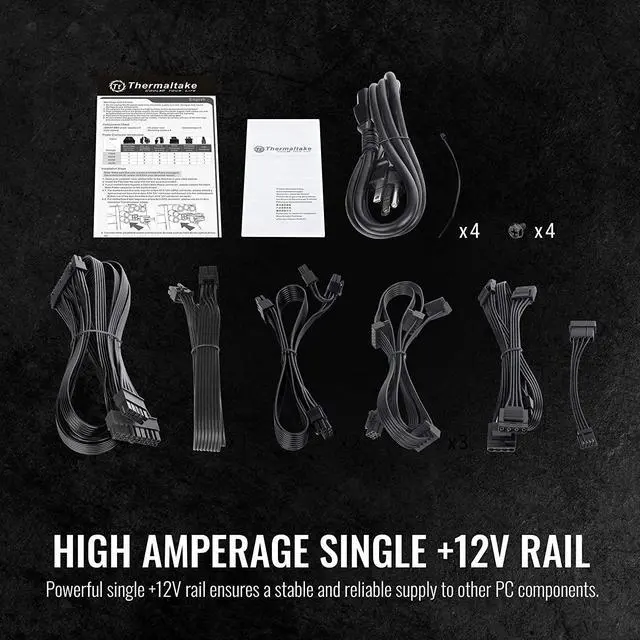

Connectors | 1 x Main Power Connector (24pin) 1 x ATX 12V 6 x SATA (4pin) 2 x PCI-E (6+2pin) 4 x Peripheral (4pin) 1 x Floppy |
Features | 80 PLUS BRONZE Certified Ultra Quiet 140mm Fan Semi Modular desgin (2x) 6+2 PCI-E Power Connectors 5 Year Warranty |
---|

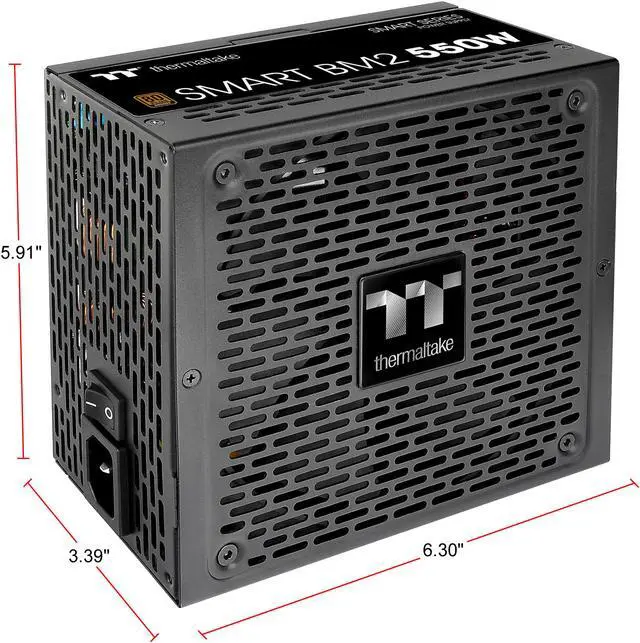

Dimensions | 3.39" x 5.91" x 6.30" |
---|
First Listed on Newegg | November 16, 2022 |
---|
