Thermaltake SMART Series SP-750M 750W ATX 12V V2.3 & EPS 12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Semi-Modular Active PFC Power Supply

OUT OF STOCK.
  • ATX 12V V2.3 & EPS 12V
  • Semi-Modular
  • 80 PLUS BRONZE Certified
  • 100 - 240 V 47 - 63 Hz
  • +3.3V@22A, +5V@22A, +12V@62A, -12V@0.3A, +5VSB@2.5A
Overview
Specs
Reviews

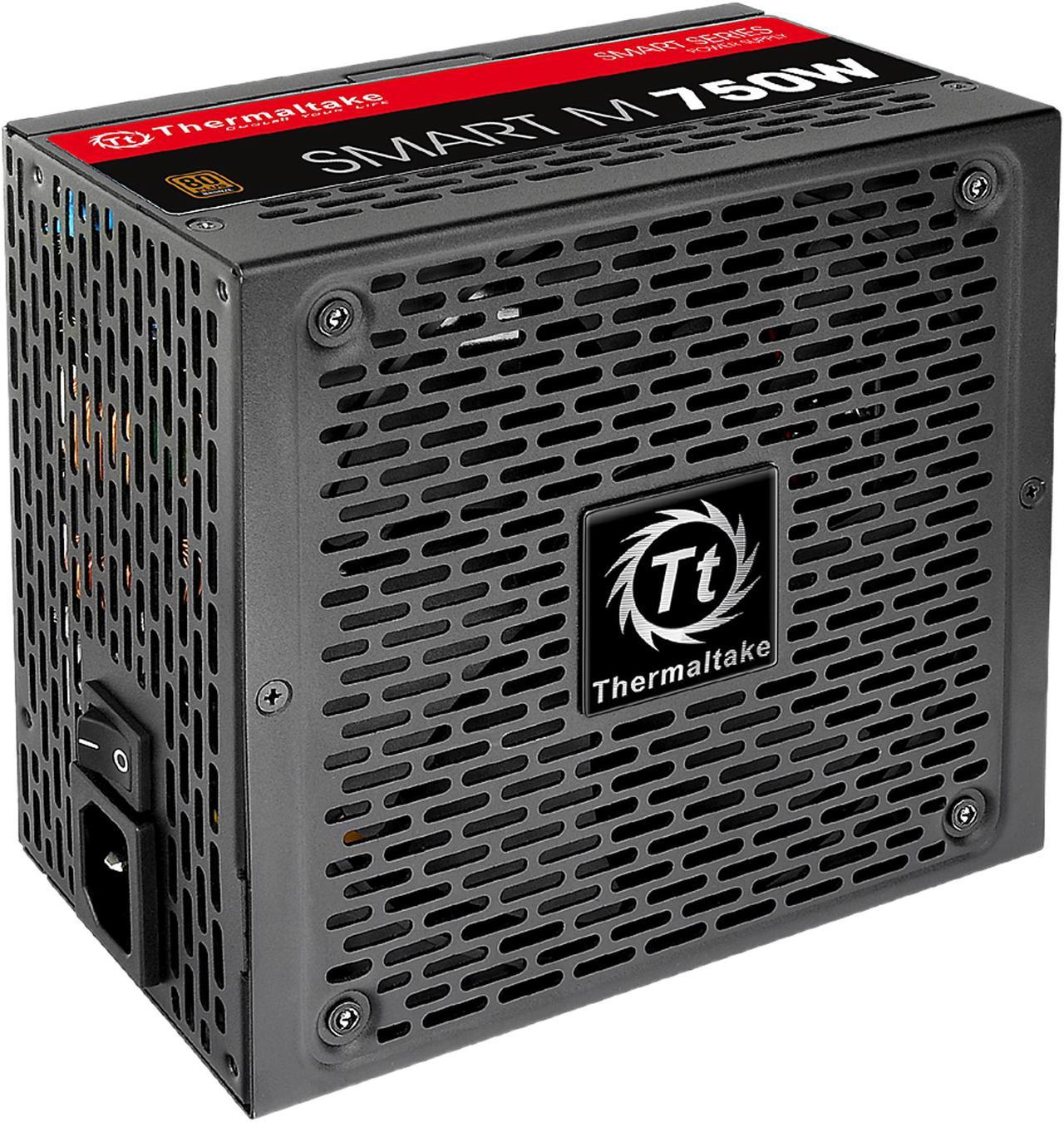

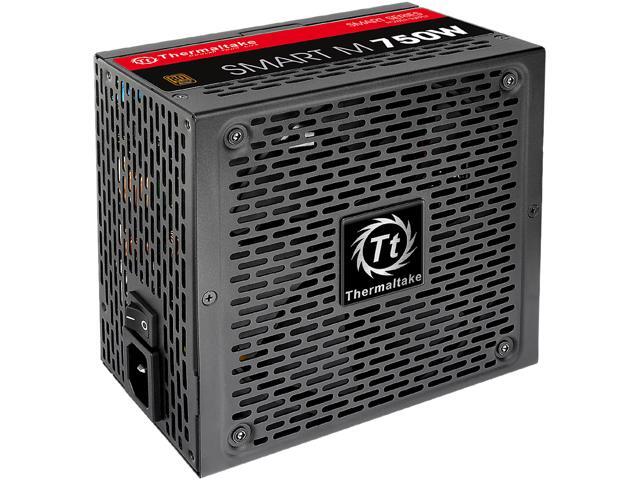

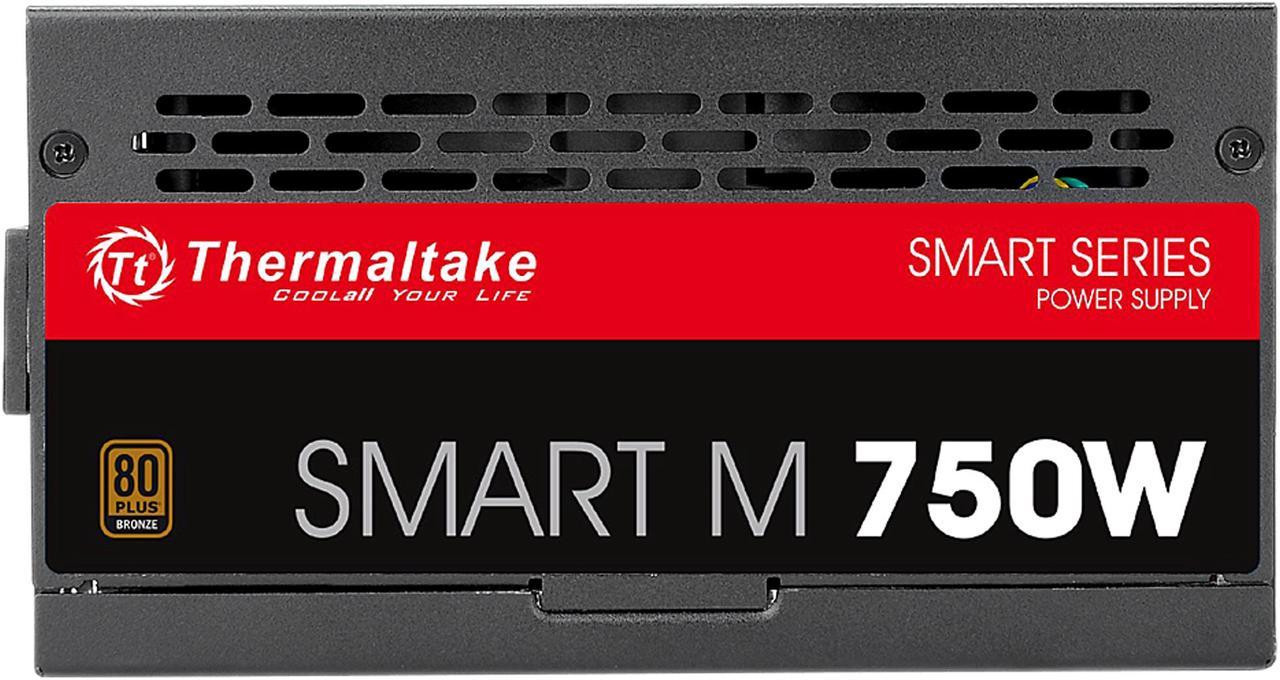

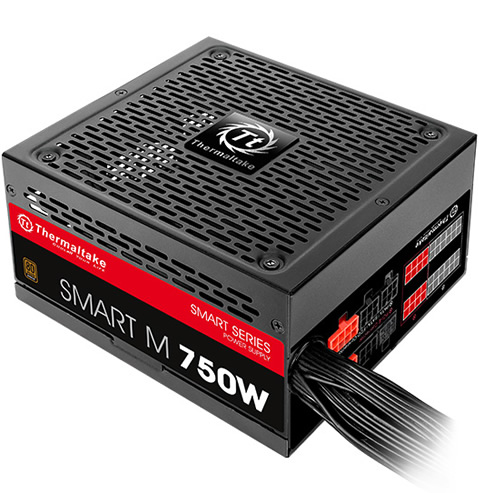

Thermaltake Smart M 750W Bronze

The latest presentation from Thermaltake in the essence of mainstream systems – the Smart M Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 650W to 850W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands

Thermaltake

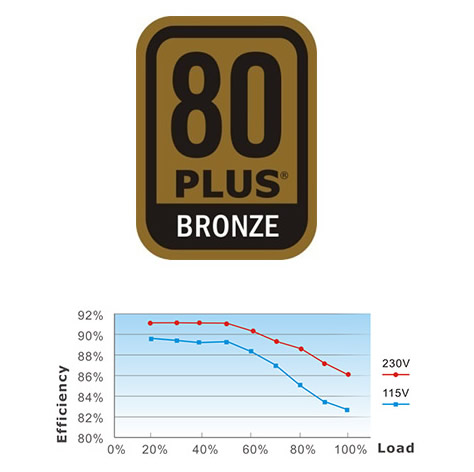

80% Plus Bronze Certified

80 Plus Bronze certified, offers up to 85% efficiency at 20-100% load under real world load conditions and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.

Thermaltake

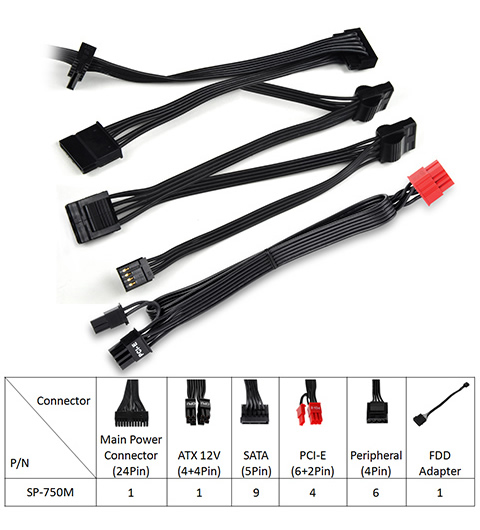

Flat & Low Profile Cable

All new Low-profile flat cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.

Thermaltake

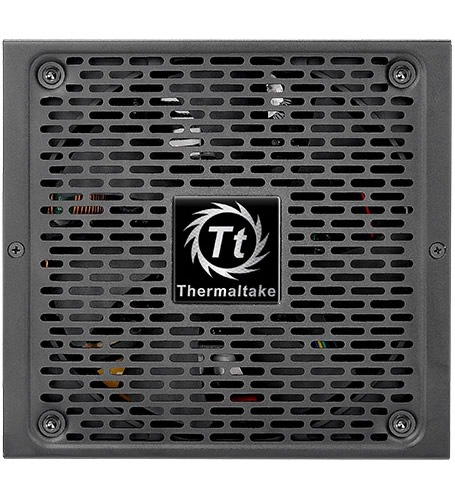

Ultra Quiet 140mm Fan

Smart M Series adopts 140mm cooling fan with intelligent RPM control, presenting cool performance and silent operation.

Thermaltake

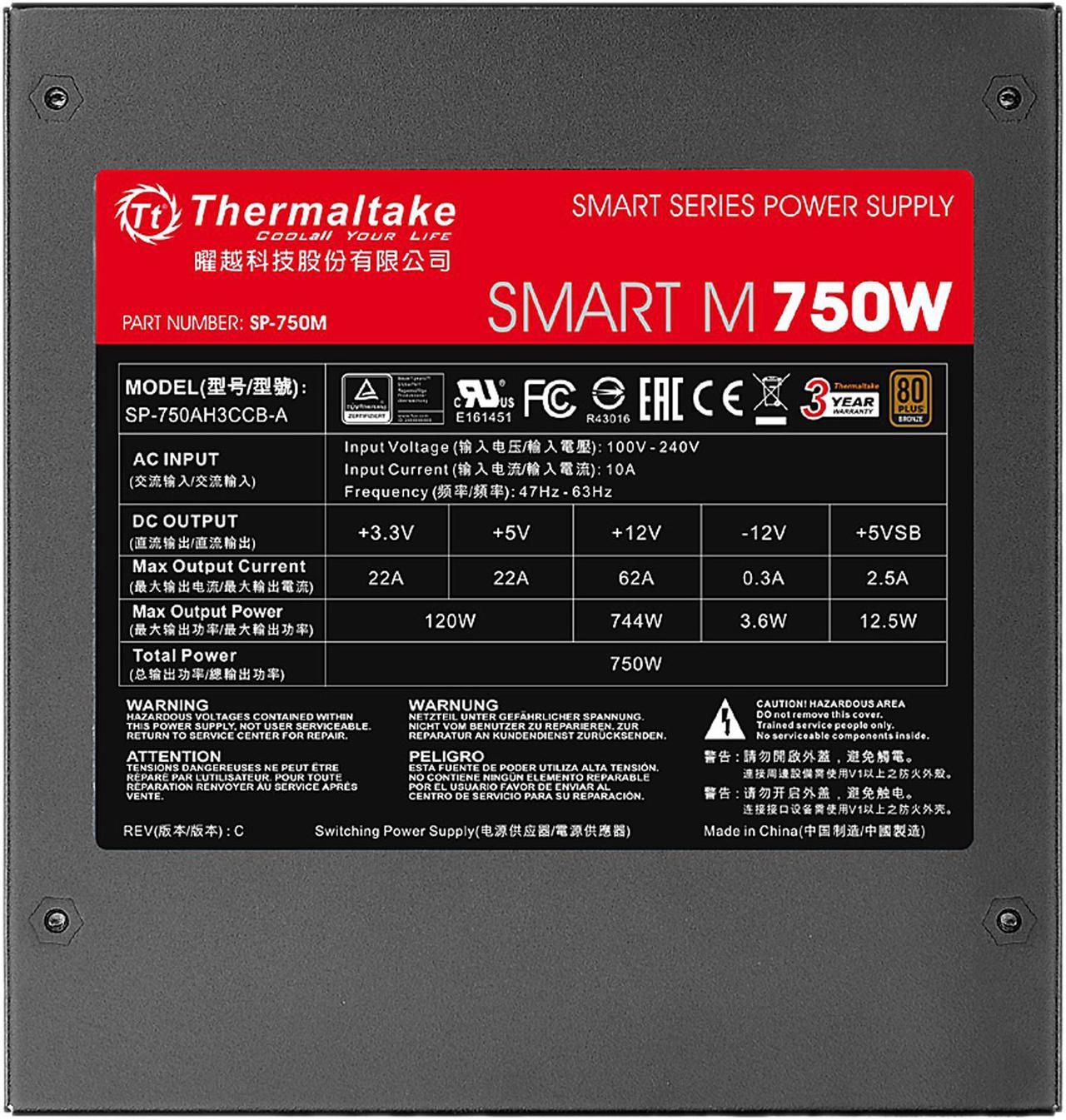

Massive and Dedicated +12V Output

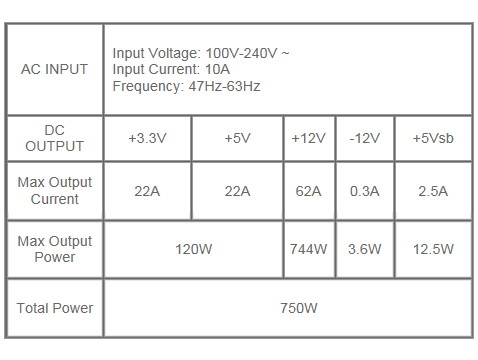

Smart M 750W Bronze is equipped with a powerful single +12V rail, please see the output specification:

Thermaltake

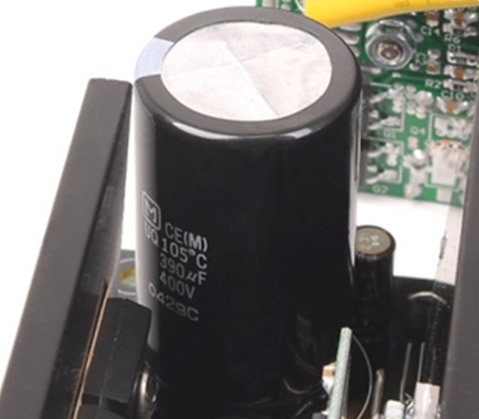

Top Quality Main Japanese Capacitor

High quality of Japanese main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.

Thermaltake

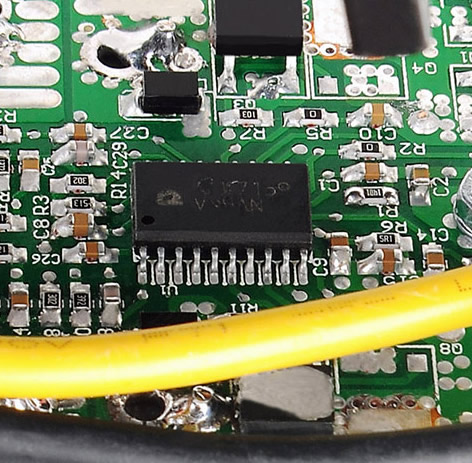

Industrial Grade Protection

Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.

Thermaltake

Specification



P/N SP-750MPCBUS
Type ATX 12V v2.4 and EPS v2.92

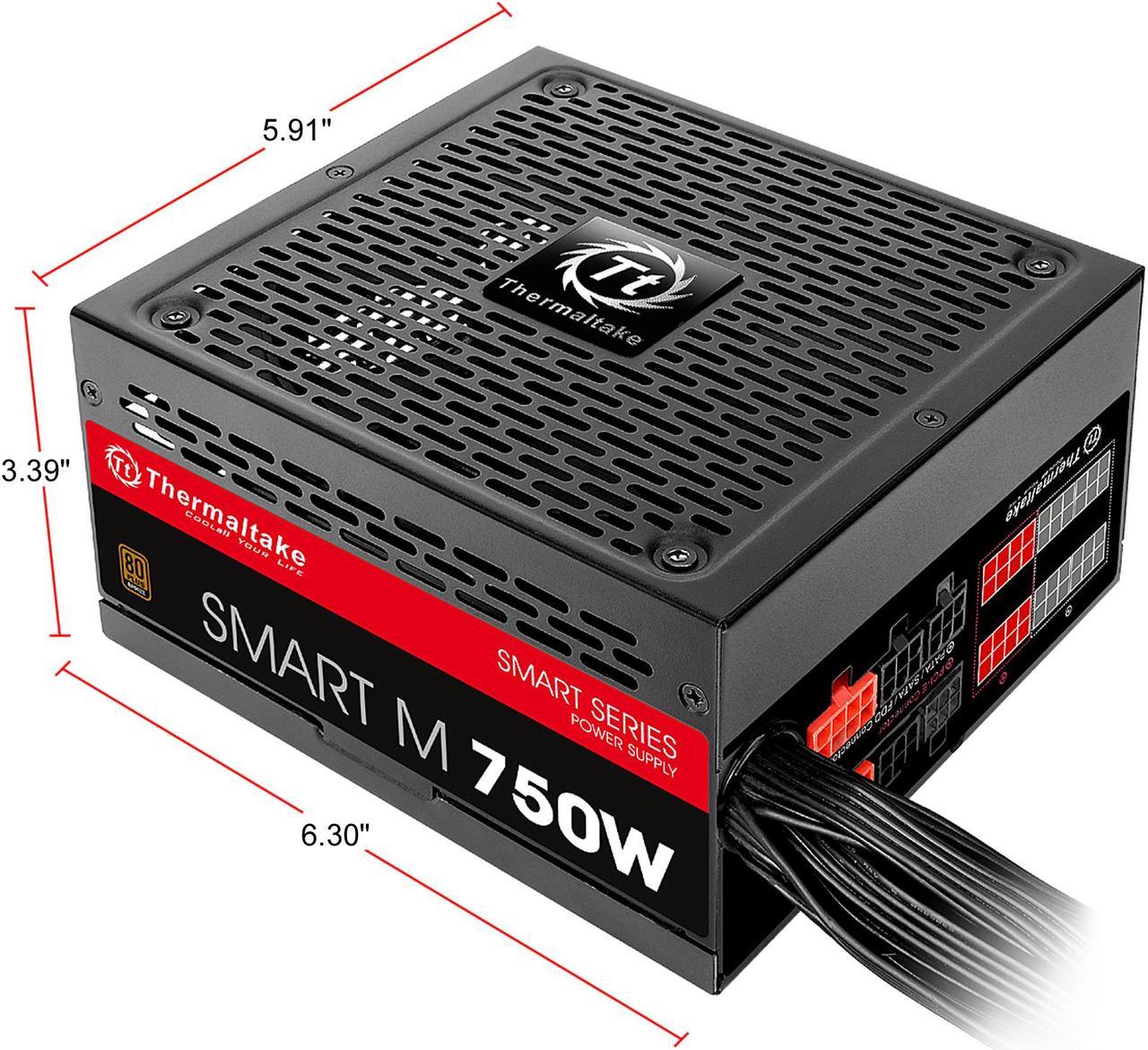

Dimension (H x W x D) 86mm x 150mm x 160mm
Max. Output Capacity 750W
Peak Output Capacity 900W
Color Black
PFC (Power Factor Correction) Active PFC
CPower Good Signal 100-500 msec
Hold Up Time > 16msec at 80% of full load
Input current 10A
Input Frequency Range 47 Hz - 63 Hz
Input Voltage 100 Vac- 240 Vac
Operating Temperature 0°C to +40°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to +70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 140mm Fan: 2300 R.P.M. ± 10%
Efficiency Meet 80 PLUS®Bronze at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval UL/CUL/TUV/CE/FCC and BSMI
PCI-E Connector PCI-E 6+2pin x 4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
