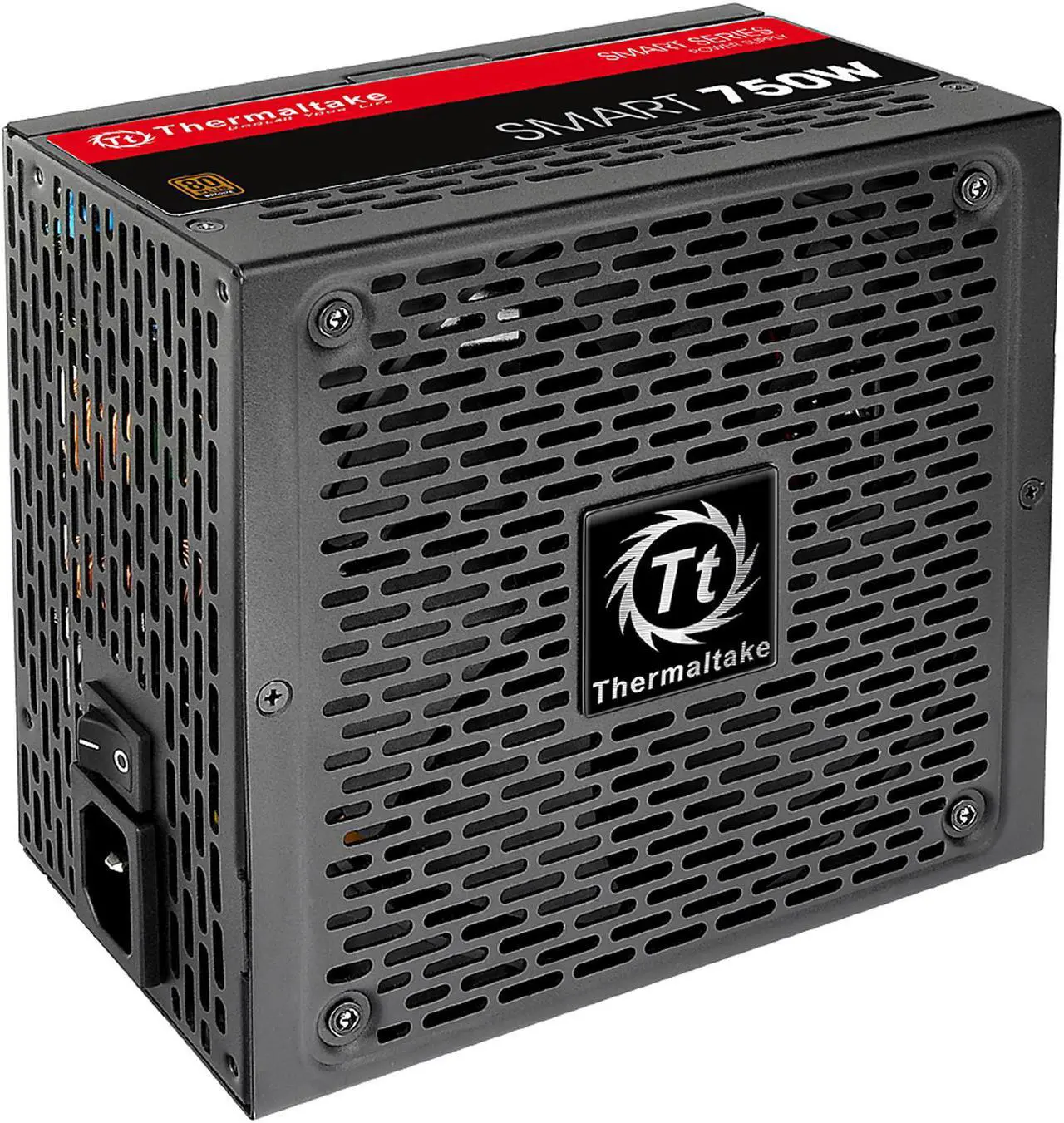

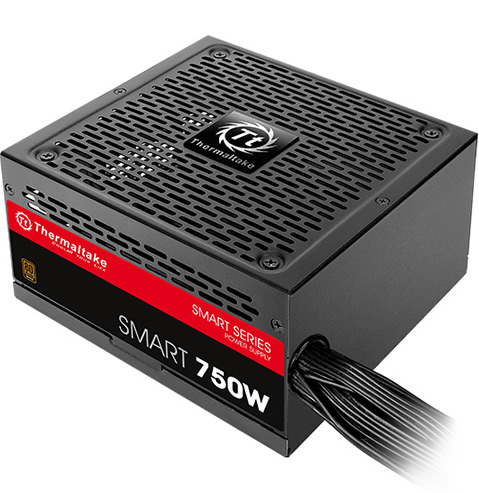

Thermaltake Smart Series SP- 750P 750W ATX 12V v2.4 / EPS v2.92 80 PLUS BRONZE Certified Active PFC Power Supply, SP-750PCBUS
- ATX 12V v2.4 / EPS v2.92
- 80 PLUS BRONZE Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@22A, +5V@22A, +12V@62A, -12V@0.3A, +5VSB@2.5A
Thermaltake Smart 750W Bronze
Thermaltake introduces the newest in the essence of mainstream systems – the Smart Series Standard PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 550 to 750W that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 fundamental and stable demands.
80 Plus Bronze Certified
80 Plus Bronze certified, offers up to 85% efficiency at 20-100% load under real world load conditions and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.
Flat & Low Profile Cable
Low-profile flat cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.

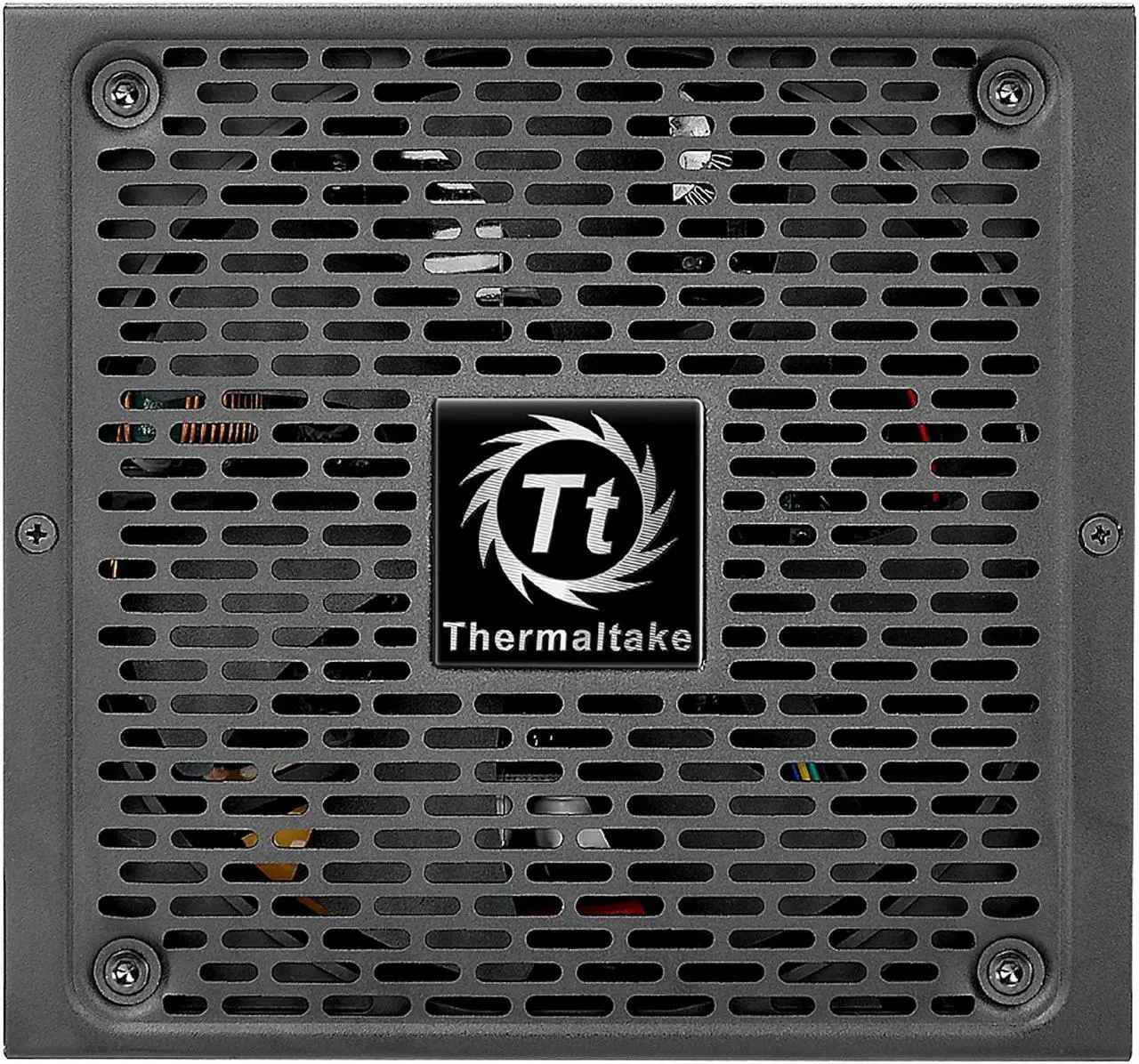

Smart Temperature Control Fan
Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
Massive and Dedicated +12V Output
Smart 750W Bronze is equipped with a powerful single +12V rail, please see the output specification below:
Top Quality Japanese Main Capacitor
High quality of Japanese main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.
|Type||ATX 12V v2.4 and EPS v2.92|

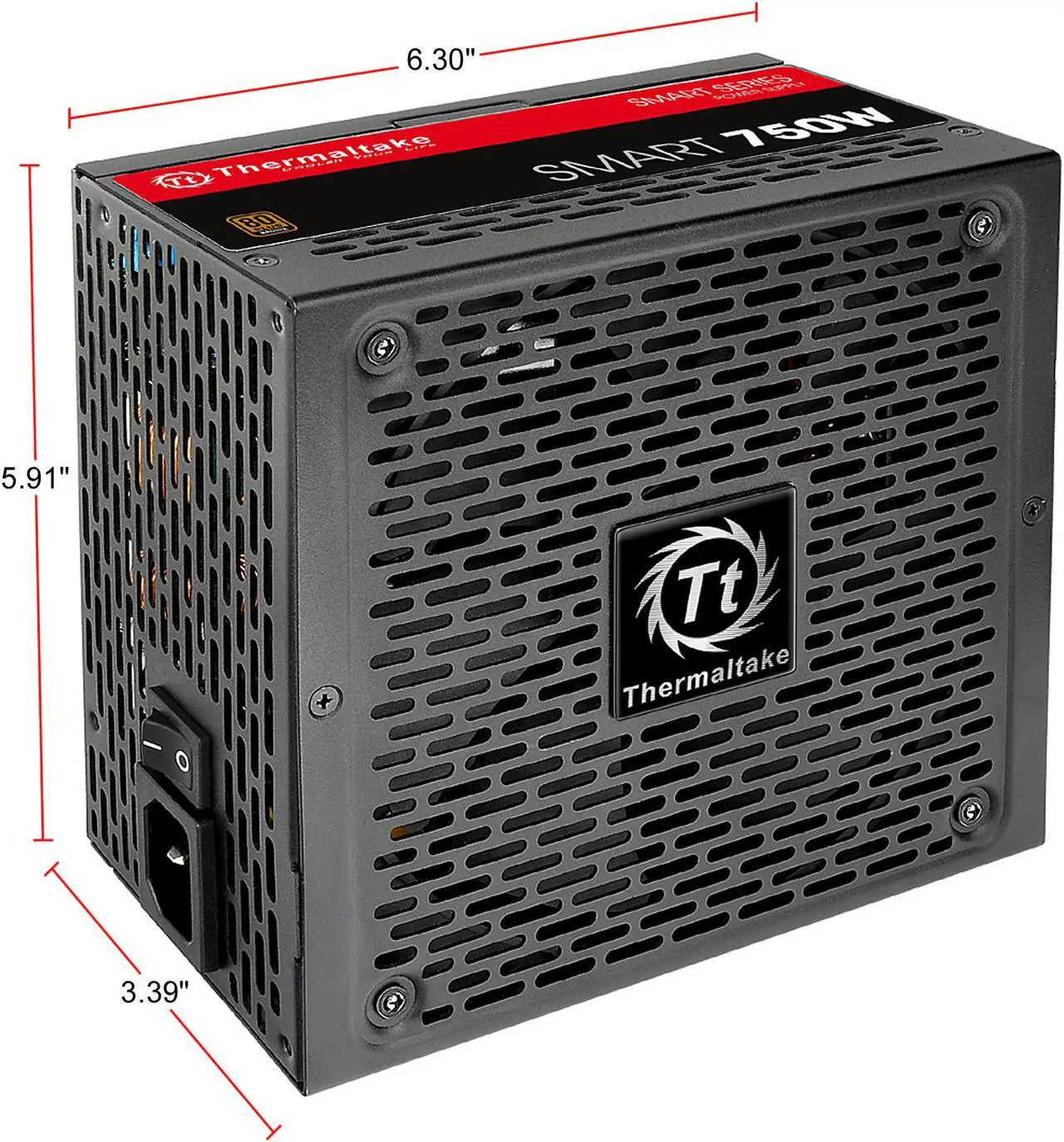

|Dimension (H x W x D)||86mm x 150mm x 160mm|
|Max. Output Capacity||750W|
|Peak Output Capacity||900W|
|PFC (Power Factor Correction)||Active PFC|
|CPower Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 80% of full load|
|Input Frequency Range||47 Hz - 63 Hz|
|Input Voltage||100 Vac- 240 Vac|
|Operating Temperature||0°C to +40°C|
|Operating Humidity||20% to 90%,non-condensing|
|Storage Temperature||-20°C to +70°C|
|Storage Humidity||5% to 95%, non-condensing|
|Cooling System||140mm Fan: 2300 R.P.M. ± 10%|
|Efficiency||Meet 80 PLUS®Bronze at 115Vac input.|
|MTBF||100,000 hrs minimum|
|Safety Approval||UL/CUL/TUV/CE/FCC and BSMI|
|PCI-E Connector||PCI-E 6+2pin x 4|
