does the 750 watt come with the 12VHPWR cable that connects to the 12VHPWR as it shows on the above PSU- not a bridged 2 cable or more from the PCi ?

Yes, it comes with a 12VHPWR PCIe Gen 5.0 16-pin (12+4Pin) cable that's 500mm (~19.69 inches) in length. The cable is not bridged and can be plugged directly from the 12VHPWR port to a compatible 16Pin GPU without the use of a 2x 8Pin bridge adapter.

Backordered

$109^.99

$5.99 Shipping ()

Limit 20 per customer.

About Backordered Items

Price alert

Add to wish list(Found on 33 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of Thermaltake Toughpower GF3 750W, ATX 3.0 Standard, PCIe Gen.5 300W 12VHPWR Connector Included, 80+ Gold Full Modular SLI/Crossfire Ready Power Supply, 10 Year Warranty, PS-TPD-0750FNFAGU-4

Alt view image 2 of 6 - Thermaltake Toughpower GF3 750W, ATX 3.0 Standard, PCIe Gen.5 300W 12VHPWR Connector Included, 80+ Gold Full Modular SLI/Crossfire Ready Power Supply, 10 Year Warranty, PS-TPD-0750FNFAGU-4

Alt view image 3 of 6 - Thermaltake Toughpower GF3 750W, ATX 3.0 Standard, PCIe Gen.5 300W 12VHPWR Connector Included, 80+ Gold Full Modular SLI/Crossfire Ready Power Supply, 10 Year Warranty, PS-TPD-0750FNFAGU-4

Alt view image 4 of 6 - Thermaltake Toughpower GF3 750W, ATX 3.0 Standard, PCIe Gen.5 300W 12VHPWR Connector Included, 80+ Gold Full Modular SLI/Crossfire Ready Power Supply, 10 Year Warranty, PS-TPD-0750FNFAGU-4

Alt view image 5 of 6 - Thermaltake Toughpower GF3 750W, ATX 3.0 Standard, PCIe Gen.5 300W 12VHPWR Connector Included, 80+ Gold Full Modular SLI/Crossfire Ready Power Supply, 10 Year Warranty, PS-TPD-0750FNFAGU-4

Alt view image 6 of 6 - Thermaltake Toughpower GF3 750W, ATX 3.0 Standard, PCIe Gen.5 300W 12VHPWR Connector Included, 80+ Gold Full Modular SLI/Crossfire Ready Power Supply, 10 Year Warranty, PS-TPD-0750FNFAGU-4

Customer images

Shop All Thermaltake Products

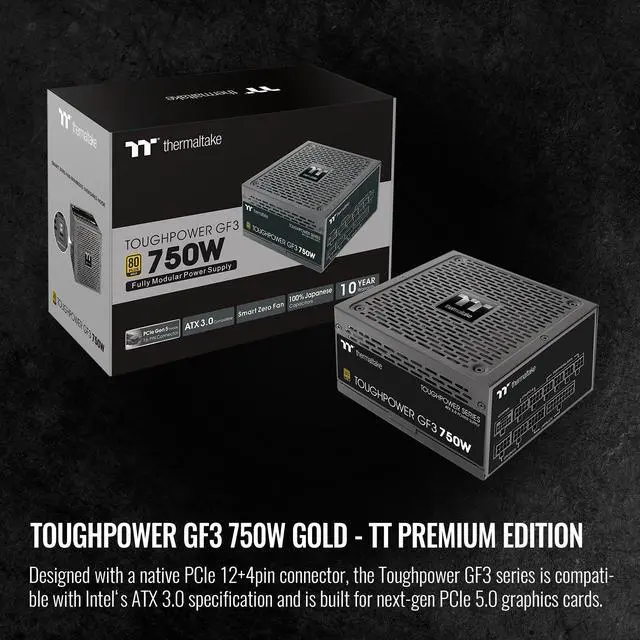

Thermaltake Toughpower GF3 750W, ATX 3.0 Standard, PCIe Gen.5 300W 12VHPWR Connector Included, 80+ Gold Full Modular SLI/Crossfire Ready Power Supply, 10 Year Warranty, PS-TPD-0750FNFAGU-4

(170)(23) Write a Review

Options: 750W

1650W
1350W
1200W
1200W (White)
850W
750W

ATX 12V v3.0 / EPS v2.93;
750W 80 Plus Gold Full Modular;
100 - 240Vac; 50Hz - 60Hz;
10 Year Warranty,
Protections: OCP/OVP/UVP/OPP/SCP/OTP;
+3.3V@22A, +5V@22A, [email protected], [email protected], +5VSB@3A

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (170)

General
Brand	Thermaltake
Series	Toughpower GF3 Series
Model	PS-TPD-0750FNFAGU-4

Details
Type	ATX 12V v3.0 / EPS v2.93
Maximum Power	750 W

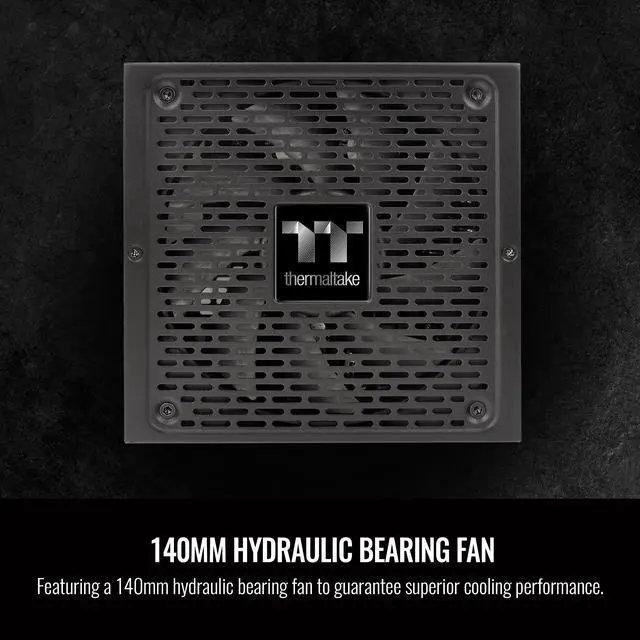

Fans	1 x 135mm Fluid Bearing fan
PFC	Active
Main Connector	24Pin
+12V Rails	Single

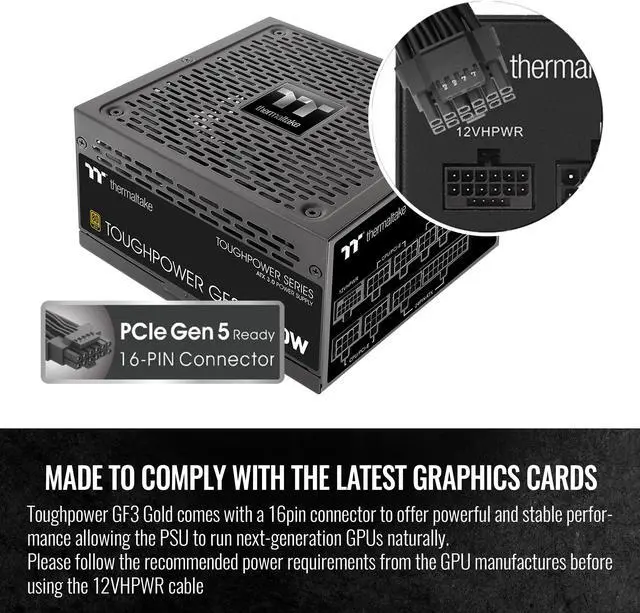

PCI-Express Connector	12VHPWR Support Wattage: 300W
Haswell Support	Yes
Max PSU Length	150 mm
Modular	Full Modular
Energy-Efficient	80 PLUS GOLD Certified
PSU Noise Level	Cybenetics A-
Over Voltage Protection	OCP/OVP/UVP/OPP/SCP/OTP
Overload Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50Hz - 60Hz
Input Current	10 - 5A
Output	+3.3V@22A, +5V@22A, [email protected], [email protected], +5VSB@3A
MTBF	>100,000 Hours
Approvals	CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC

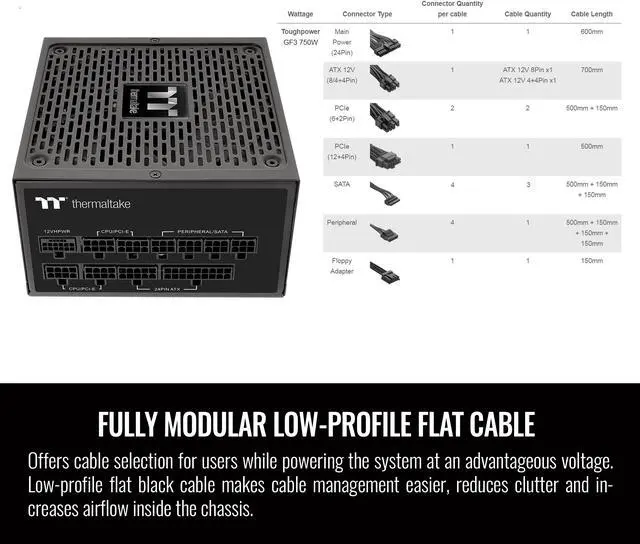

Connectors	1 x 12VHPWR (12+4) PCIe / 1 x 24 pin ATX / 1 x Floppy / 12 x SATA / 2 x 8 pin (4+4) EPS (CPU) / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe

Features

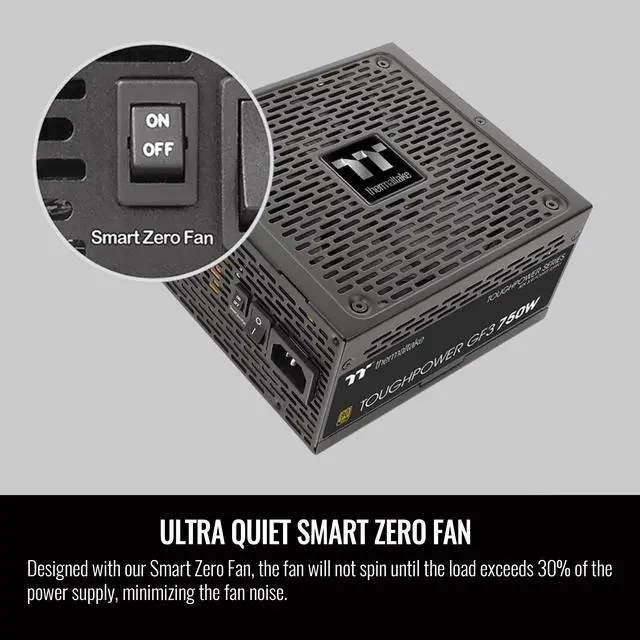

Features	750W continuous output at 80Plus Gold efficiency Compatible with Intel ATX 3.0 spceification, providing sufficient and stable power delivery PCIe Gen.5 12VHPWR Connectors included 100% high quality Japanese 105°C/221°F capacitor <30mV low ripple noise design & strict voltage regulation <±2% Fully modular with low-profile flat White cables Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation Ultra quiet 135mm hydraulic bearing fan High amperage single +12V rail design

Dimension & Weight
Dimensions	5.9" x 3.4" x 6.3"

Additional Information
First Listed on Newegg	October 13, 2022
