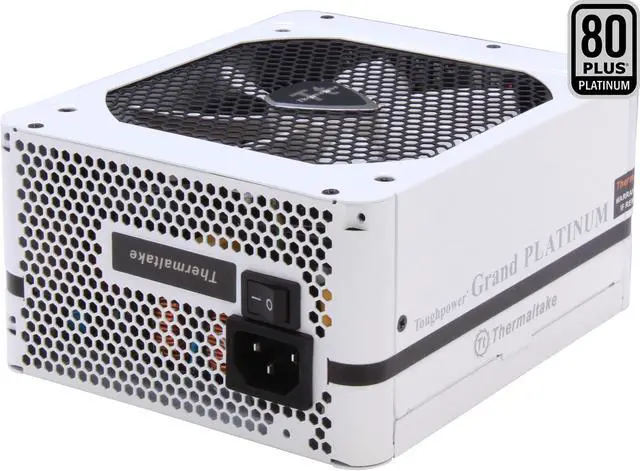

Thermaltake Toughpower Grand Series TPG-700M 700 W ATX 12V 2.3 & EPS 12V 2.92 SLI Certified CrossFire Ready 80 PLUS PLATINUM Certified Modular Active PFC Power Supply
- ATX 12V 2.3 & EPS 12V 2.92
- Modular
- 80 PLUS PLATINUM Certified
- 100 - 240 V 50/60 Hz

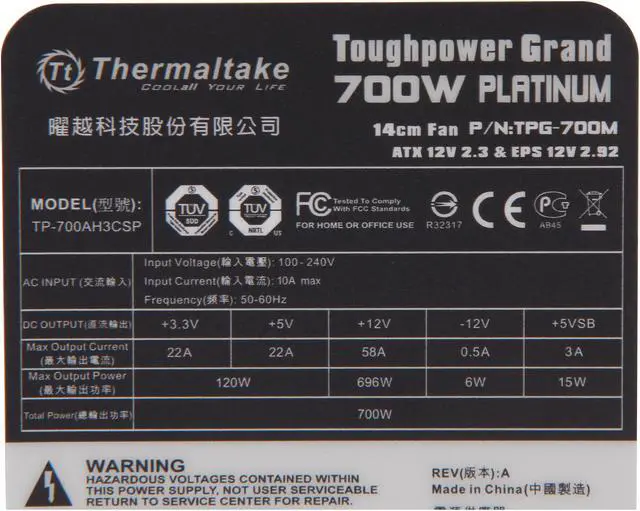

- +3.3V@22A, +5V@22A, +12V@58A, [email protected], +5VSB@3A
Overview
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Bring your system to life with the Thermaltake Toughpower TPG-700M power supply. It delivers 700 watts of power for your system safely and reliably and is 80PLUS Platinum certified for extreme power efficiency of up to 92%. It also comes with 4 x PCI-E 6+2pin for cutting-edge gaming machine and the massive single +12V rail design provides superior performance under all types of system loading. The Thermaltake Toughpower TPG-700M is more than performance. Its unparalleled aesthetic exterior design has set itself above other PSUs currently available on the market. The Toughpower Grand series certainly is one of Thermaltake's innovate hallmarks.
700W Continuous Power with powerful single +12V railThermaltake Toughpower TPG-700M delivers 700W continuous power 24/7 @ 50°C, ensuring utmost stability and long-term reliability. A strong +12V single rail ensures the maximum provision of 12V power to energy-hungry components such as CPU and VGA card, minimizing the likelihood of overload shutdown.
80 Plus Platinum CertifiedDC to DC converters for 3.3V and 5V outputs provide extremely high PSU efficiency. 3oz PCB design reduces heat generation and allows greater efficiency. The Thermaltake Toughpower TPG-700M is 80 PLUS Platinum certified providing ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load for saved money on your electrical bill, reduced heat in your computer's system and prolonged life.

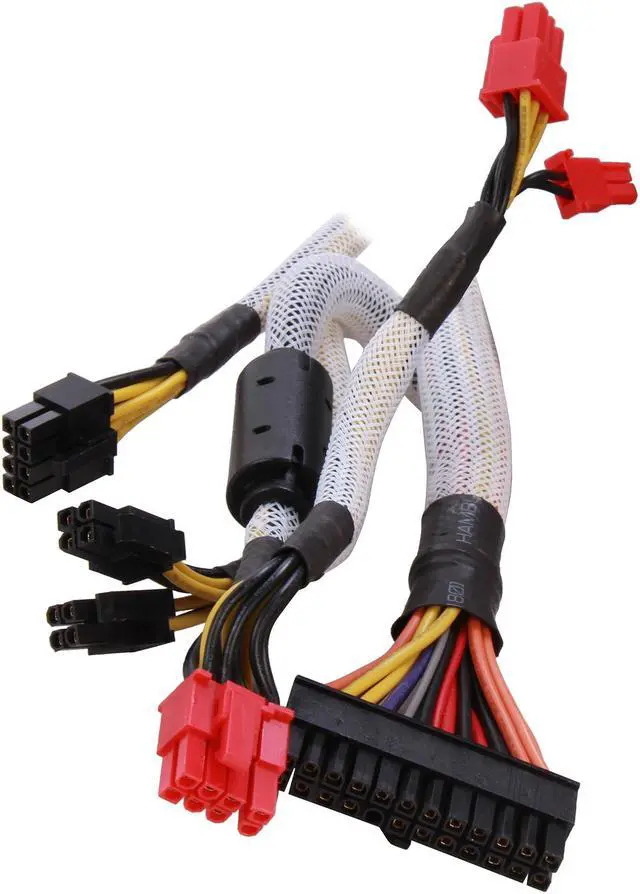

Four PCI-E ConnectorsWith four 6+2pin PCI-E connectors, the Thermaltake Toughpower TPG-700M is ideal for building up a multi-GPU gaming system.
Constructed to endureToughpower Grand features 100% 105°C Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability. LLC resonance circuit with DC-DC module ensures extremely stable performance & reliability.

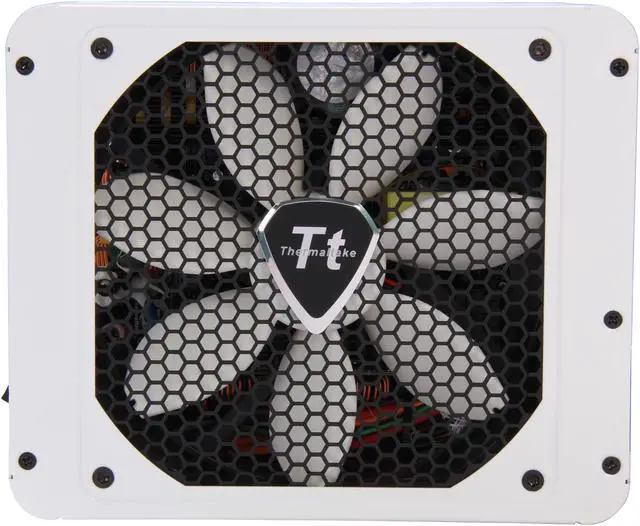

140MM cooling fan with rich technologiesThe Thermaltake Toughpower TPG-700M features an exclusive flower shape 14cm fan that enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions. Smart Fan control circuitry design not only optimizes heat dissipation, but also keeps the most silent operation for your system by reducing unnecessary fan rotation. FanDelayCool Technology allows the 14cm fan to continue to operate 15-30 sec after system shuts-down to ensure all components are properly cooled.
Hybrid SLI / CrossFire X & Intel C6 State mode supportThe Thermaltake’s Toughpower Series is able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design. Both modes will cause load range from Max. to only 1W.
700W Continuous Power with powerful single +12V railThermaltake Toughpower TPG-700M delivers 700W continuous power 24/7 @ 50°C, ensuring utmost stability and long-term reliability. A strong +12V single rail ensures the maximum provision of 12V power to energy-hungry components such as CPU and VGA card, minimizing the likelihood of overload shutdown.
80 Plus Platinum CertifiedDC to DC converters for 3.3V and 5V outputs provide extremely high PSU efficiency. 3oz PCB design reduces heat generation and allows greater efficiency. The Thermaltake Toughpower TPG-700M is 80 PLUS Platinum certified providing ultra-high power efficiency of 92% at 50% load, 90% Efficiency at 20% load, 89% Efficiency at 100% load for saved money on your electrical bill, reduced heat in your computer's system and prolonged life.
Four PCI-E ConnectorsWith four 6+2pin PCI-E connectors, the Thermaltake Toughpower TPG-700M is ideal for building up a multi-GPU gaming system.
Constructed to endureToughpower Grand features 100% 105°C Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability. LLC resonance circuit with DC-DC module ensures extremely stable performance & reliability.
140MM cooling fan with rich technologiesThe Thermaltake Toughpower TPG-700M features an exclusive flower shape 14cm fan that enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions. Smart Fan control circuitry design not only optimizes heat dissipation, but also keeps the most silent operation for your system by reducing unnecessary fan rotation. FanDelayCool Technology allows the 14cm fan to continue to operate 15-30 sec after system shuts-down to ensure all components are properly cooled.
Hybrid SLI / CrossFire X & Intel C6 State mode supportThe Thermaltake’s Toughpower Series is able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design. Both modes will cause load range from Max. to only 1W.Warranty & Returns
