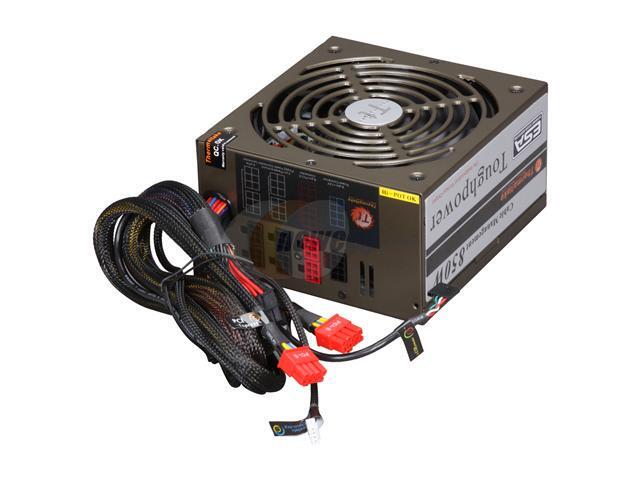

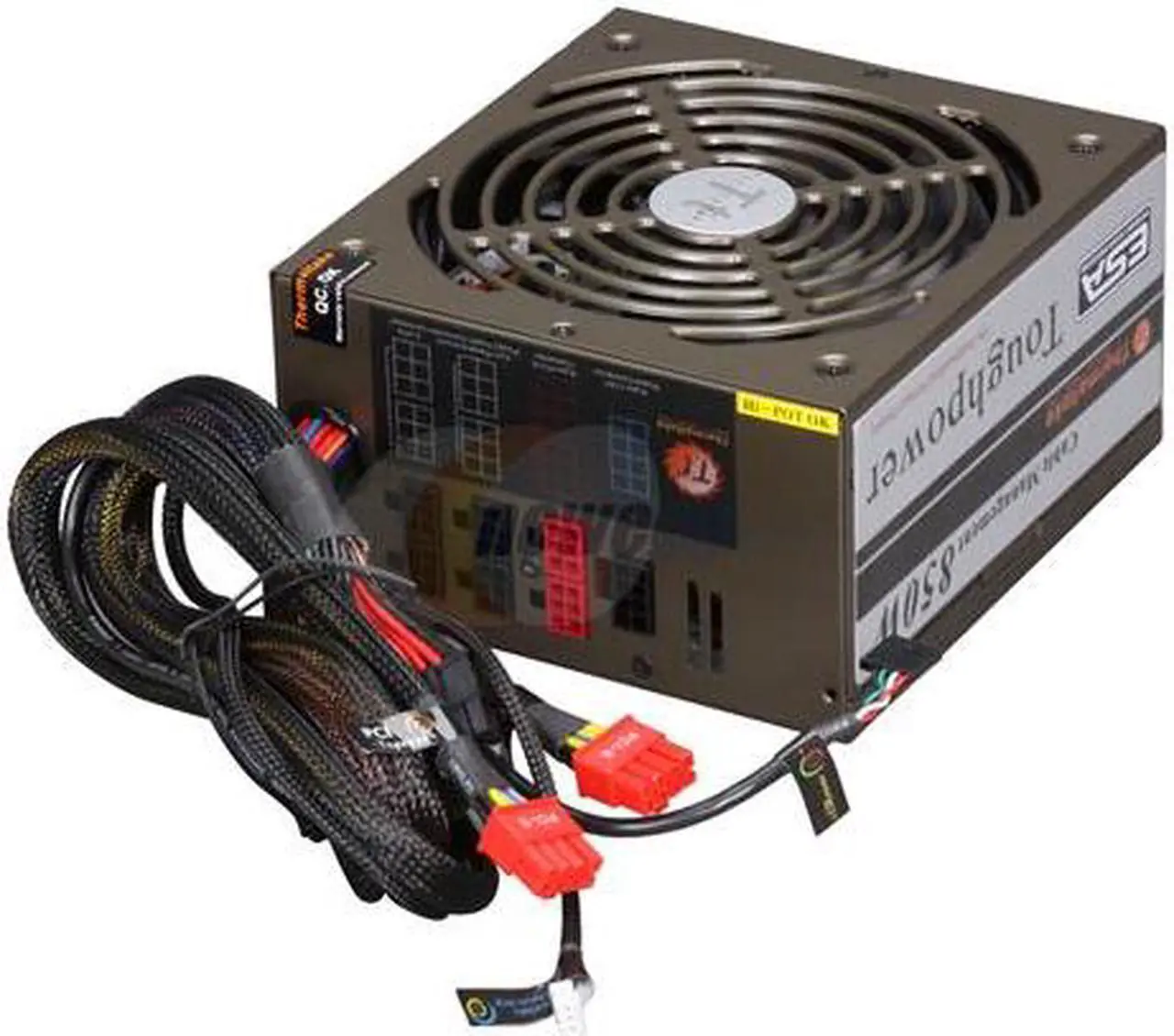

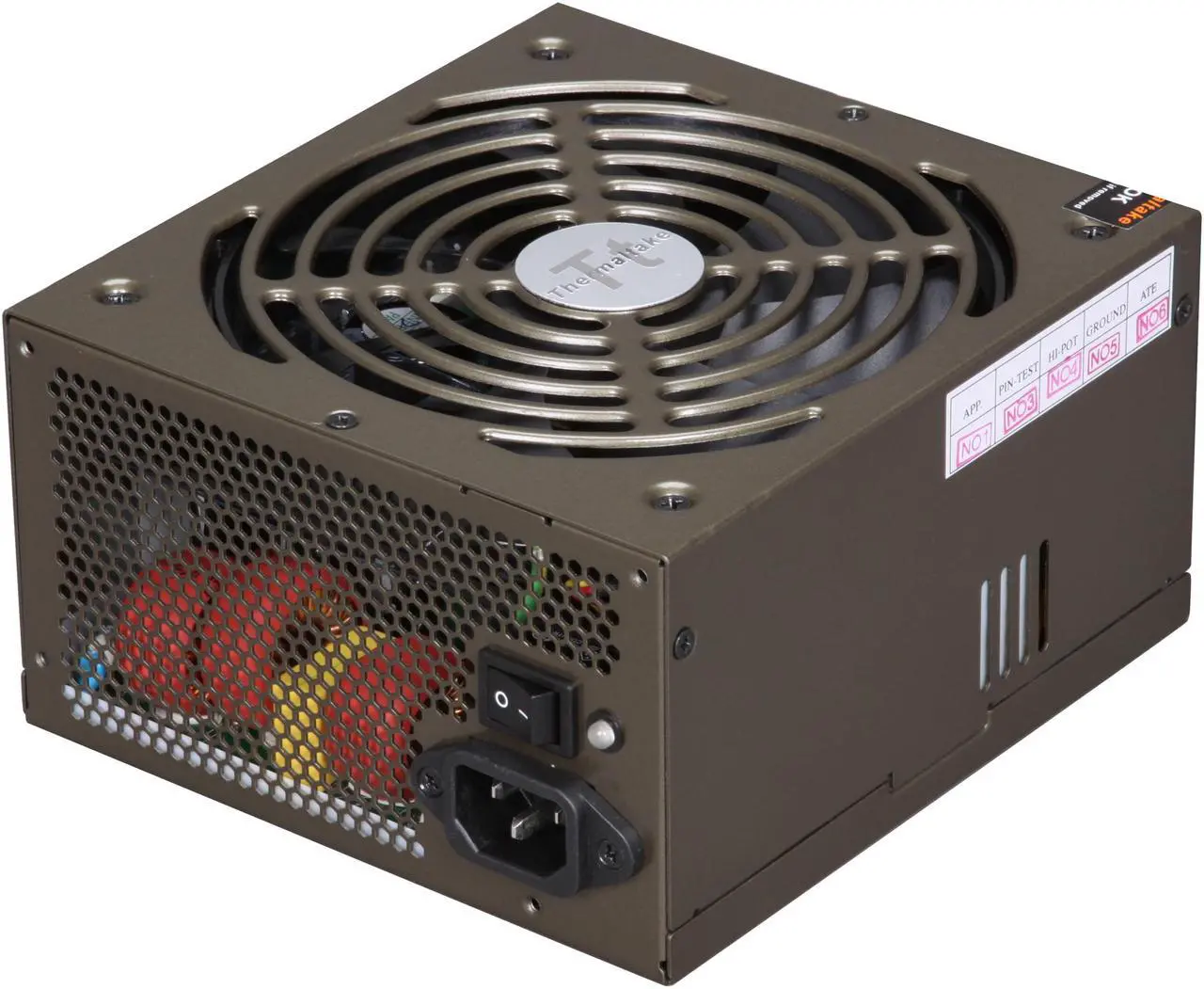

Thermaltake Toughpower W0178RU 850 W ATX12V V2.2 / EPS12V V2.91 SLI Certified 80 PLUS Certified Modular Active PFC Power Supply
- ATX12V V2.2 / EPS12V V2.91
- Modular
- 80 PLUS Certified
- 115 / 230 V 47 - 63 Hz
- +3.3V@30A,+5V@30A,+12V1@18A,+12V2@18A,+12V3@30A,+12V4@30A,-12V@0.8A,+5VSB@3.0A
Specs
Reviews
Learn more about the Thermaltake W0178RU
| Brand | Thermaltake |
|---|---|
| Series | Toughpower |
| Model | W0178RU |
| Type | ATX12V V2.2 / EPS12V V2.91 |
|---|---|
| Maximum Power | 850 W |

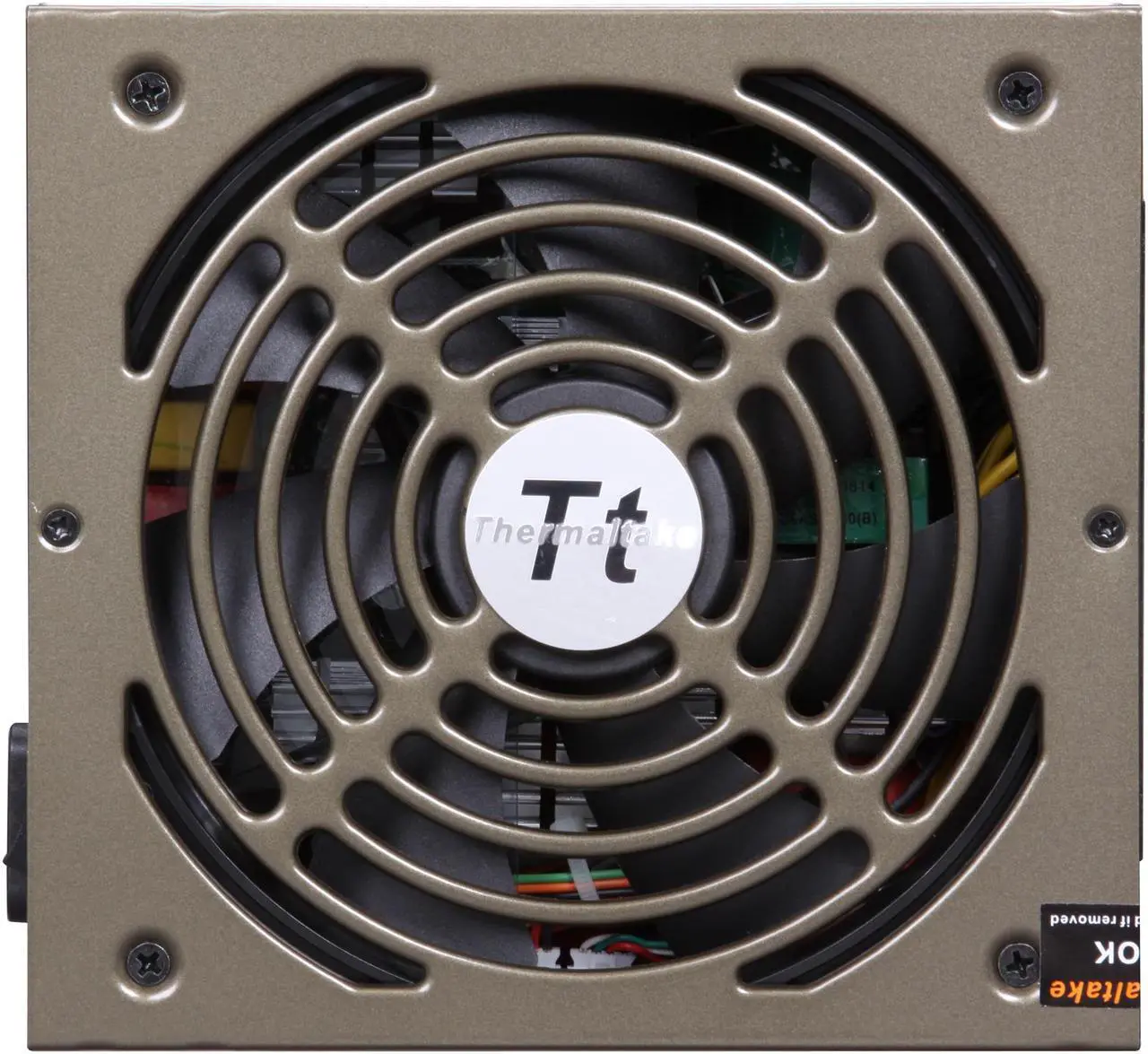

| Fans | 1 x 140mm fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | 4 |
| PCI-Express Connector | 2 x 6-Pin, 2 x 8-Pin |
| SATA Power Connector | 8 |
| SLI | SLI Certified |
| Modular | Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16ms min. |
| Efficiency | 87% + |
| Energy-Efficient | 80 PLUS Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |

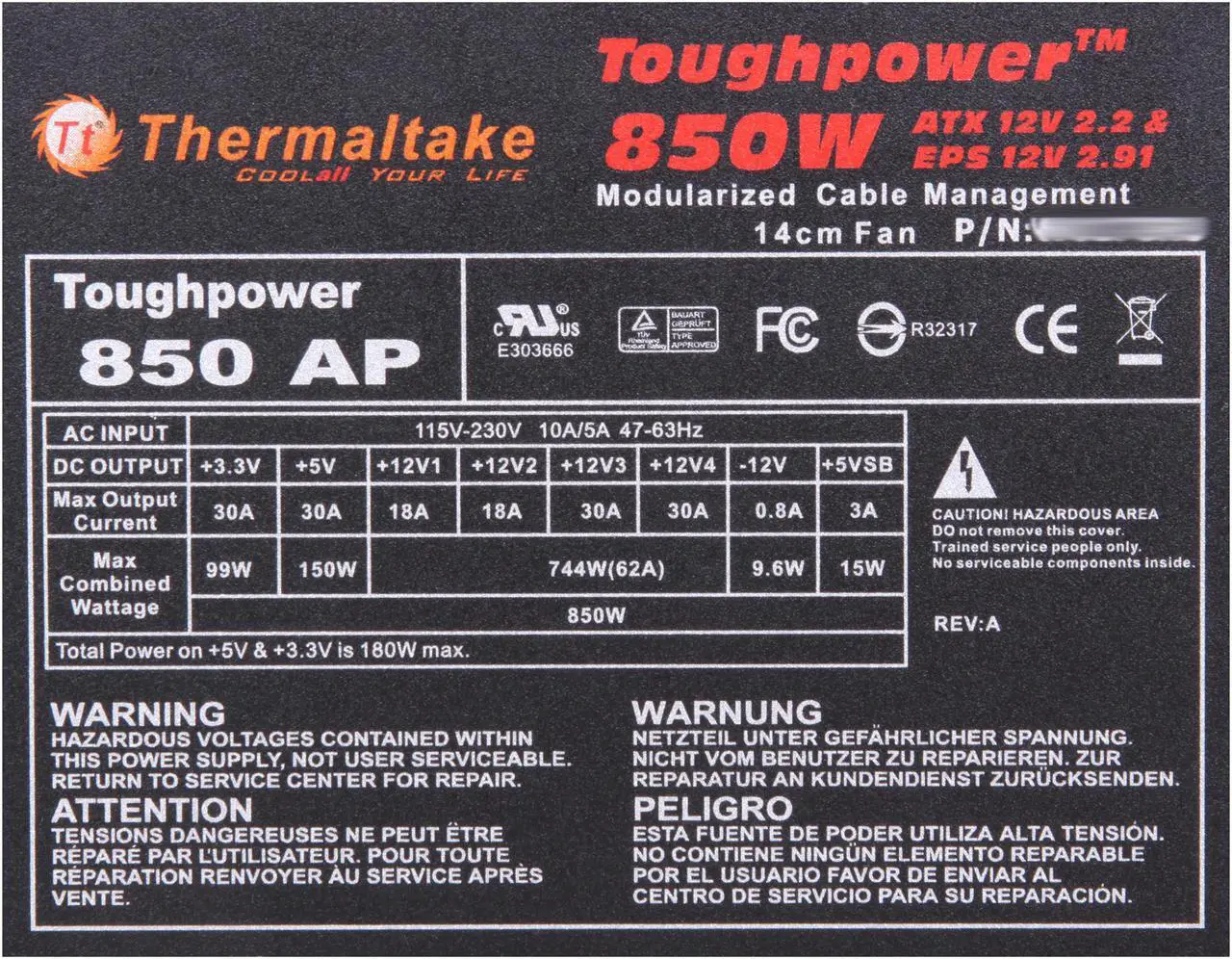

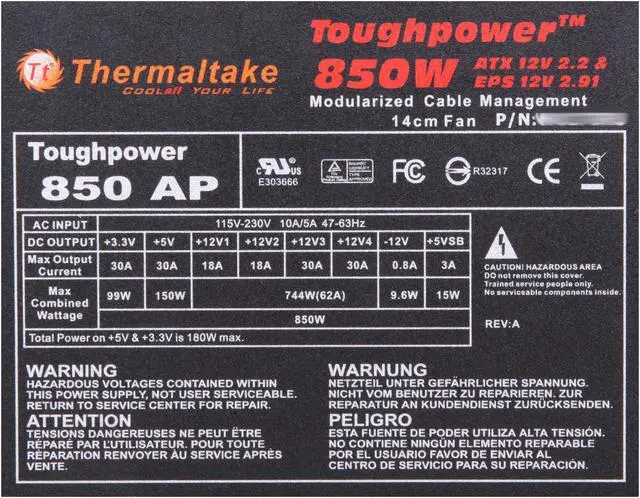

| Output | +3.3V@30A,+5V@30A,+12V1@18A,+12V2@18A,+12V3@30A,+12V4@30A,-12V@0.8A,+5VSB@3.0A |
| MTBF | >120,000 hours. |
| Approvals | CE, CB, TUV, FCC, UL, CUL, and BSMI certified |

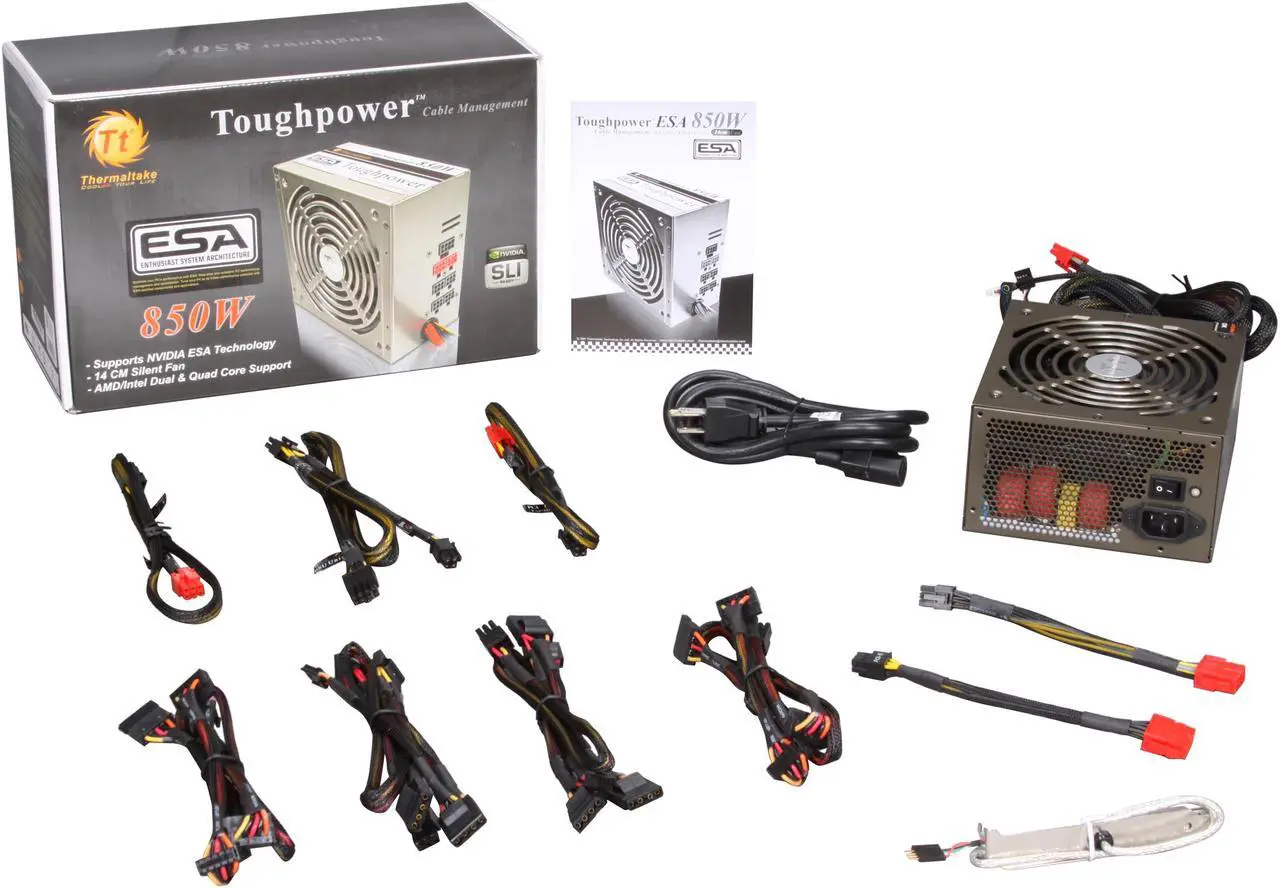

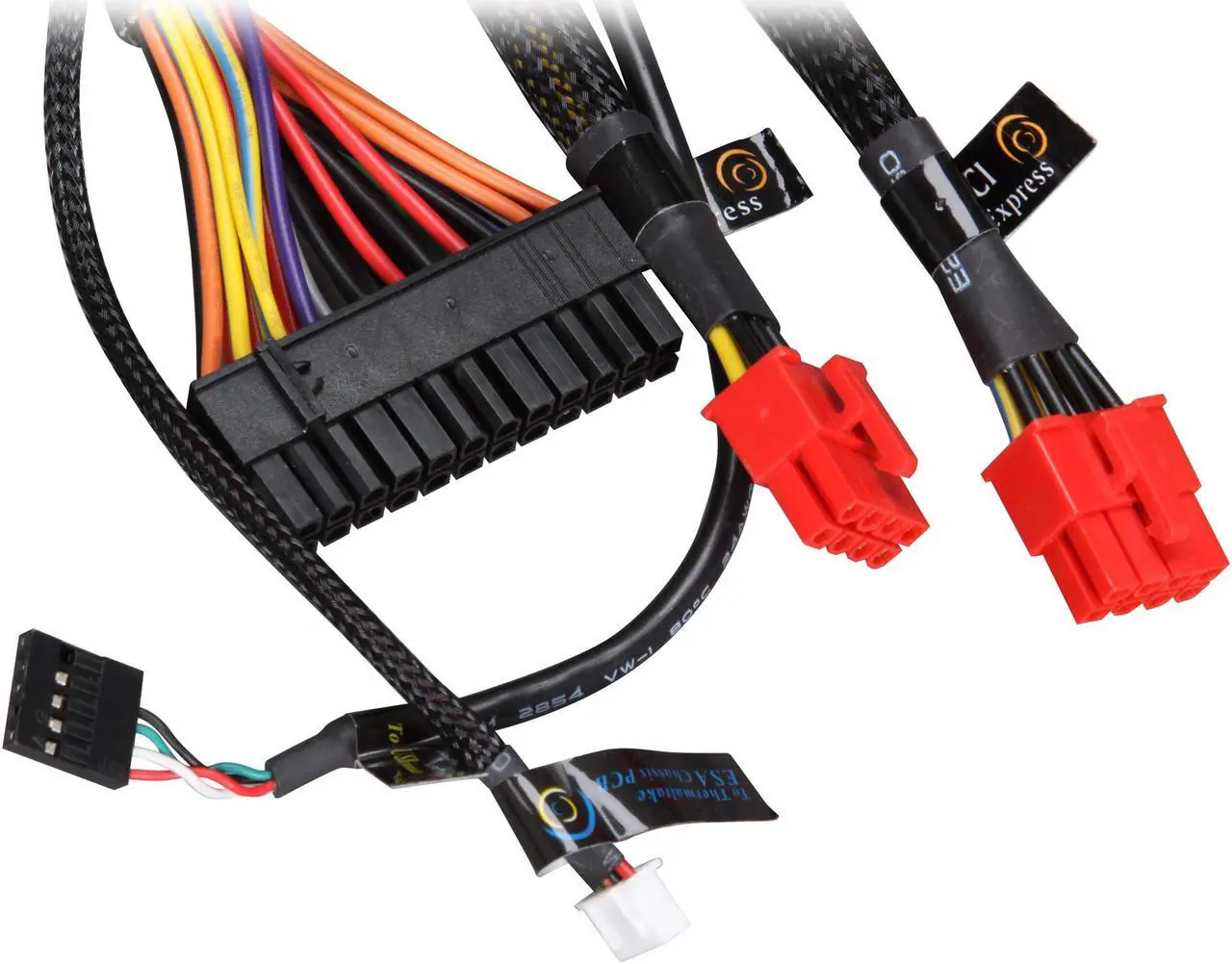

| Connectors | 1 x Main connector (24Pin) 1 x 12V(P4) 1 x 12V(8Pin) 8 x peripheral 8 x SATA 2 x Floppy 4 x PCI-E 1 x USB 2.0 Cable |
| Features | Supports NVIDIA ESA technology: maximize your PC’s performance with ESA, complete real-time PC performance management and optimization Supports NVIDIA ESA software to monitor fan speed, current, voltage and temperature Stable 850W continuous output (at 50°C operating environment) Supports Dual Core CPU / Quad Core CPU / NVDIA SLI & Quad SLI and all Multi-Core GPU technologies Four +12V rails provides superior performance (combined loading of 62A) Built in two 6-pin and next generation two 8pin PCI-E connectors for Multi-GPU Graphic Cards Strict voltage regulation (±3%): provides steady voltage for system Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%) Quiet and reliable 14cm ball-bearing fan Protections: Over Current, Over Voltage, and Short-Circuit protection |
|---|
| Date First Available | August 12, 2008 |
|---|
