Thermaltake Toughpower XT TPX-1275M 1275 W ATX 12V 2.3 & SSI EPS 12V 2.92 SLI Ready CrossFire Ready 80 PLUS PLATINUM Certified Modular Active PFC Power Supply
- ATX 12V 2.3 & SSI EPS 12V 2.92
- Modular
- 80 PLUS PLATINUM Certified
- 100 V / 240 V 47 - 63 Hz
- +3.3V@25A, +5V@25A, +12V1@45A, +12V2@65A, [email protected], +5VSB@4A
+
+
Overview
Specs
Reviews (63)
Any questions? Our AI beta will help you find out quickly.
Try me now
Thermaltake 1275W 80 PLUS GOLD Certified Modular Power Supply
- Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.
- 80 PLUS Platinum certified – Extreme efficiency PSU series with 89-94% efficiency @ 20-100% load to cut down electric cost.
- 24/7 @ 122°F (50°C): Guaranteed to deliver 1275W continuous power even in the worst chassis conditions; up to 122°F (50°C) internal chassis temperature.
- S.P.T. Indicator: PSU status monitor with 3-mode LED (standby / PG signal / temperature) will let you know if there's a problem before it becomes a bigger problem or even ceases function.
- High quality 221°F (105°C) Japanese capacitors ensure superb performance and reliability.
- 221°F (105°C) Solid state capacitors: Great stability at higher operating temperatures, frequencies and currents.
- Full Bridge & LLC resonance circuit with DC-DC module for extremely stable performance & reliability
- Interleaved PFC circuit provides extremely high PF value and high PSU efficiency.
- Smart Fan Control system optimize the thermal performance and minimize audible noise.
- High current massive +12V rails: robust dual +12V rails design providing up to 45A for 12V1 & 65A for 12V2. This ensures there is plenty of power on demand and ready for any need.
- Heavy-gauge 16 AWG High Current cable at PCI-Express connectors reduce conducted resistance, increasing efficiency and improving power delivery ensuring your high performance graphics cards get the power they need when they need it!
- Multi-GPU ready: 8 x PCI-E connectors support up to 4-way ATI CrossFireX™ & Nvidia SLI™.

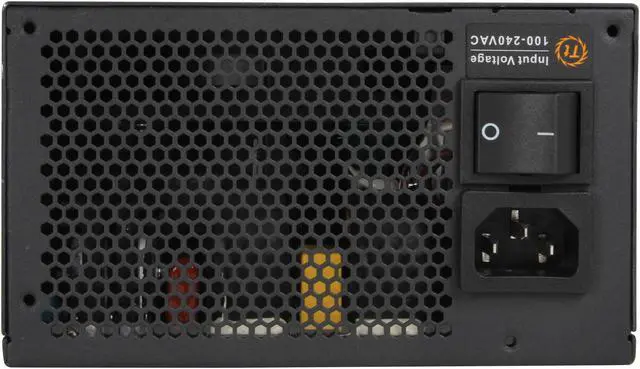

- Auto switching circuitry for universal AC input from 90 ~ 264V.
- Heavy-duty protection circuitry of Over Current, Over Power, Over Voltage, Under Voltage, and Short-Circuit protection. Helps protect your components should a problem arise.
- Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.
Technology Features
High Quality Japanese Made Electrolytic & Solid Capacitors
Toughpower XT PLATINUM features 221°F (105°C) Japanese made electrolytic capacitors & solid state capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability.
Full Bridge & LLC Resonance and Interleaved PFC Circuit Design
Toughpower XT Platinum adopts full bridge & LLC resonance circuit for extremely stable performance & reliability. Besides, built in the interleaved PFC circuit, Toughpower XT Platinum also provides extremely high PF value and high PSU efficiency.
S.P.T. Indicator: Quick Status Monitor
When you open the side panel of your chassis or look through the side window, you can see the PSU status quickly and easily. S.P.T. indicator with three-mode LED (standby / power good signal / temperature) for real-time monitoring over the power supply.
It helps the user to know the PSU working status, detect abnormal situations and protect your system.
| Indicator | Color | Power Supply Status |
|---|---|---|
| Standby | ||
| Green | Normal +5VSB output | |
| Off | Abnormal +5VSB output | |
| PG Signal | ||
| Green | Normal Power-Good signal | |
| Red | Abnormal power-Good signal | |
| Temperature | ||
| Green | PSU not overheating - < 212°F (100°C) | |
| Red | PSU overheating - > 212°F (100°C) |

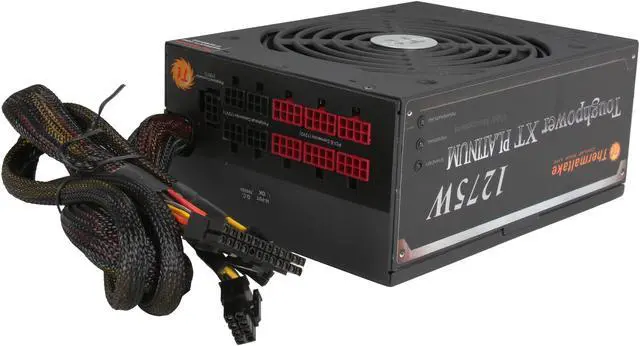

Modular Cable Management
Cable management design improves internal airflow and reduce clutter by allowing removal of unneeded cable sets instead of hiding them.
Hybrid SLI / CrossFire X & Intel C6 State mode support :
C6 State CPU Mode
CPU load range from Max. to only 1W.
Nvidia & ATI/AMD Multiple Graphic Cards Configuration
Hybrid mode will cause graphics cards load range from Max. to only 1W. Toughpower XT GOLD & PLATINUM series are able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its Zero Load (0W) Design.
Fan Speed & Noise Level
Smart Fan control circuitry design, which offers three distinct operation modes, fanless mode, silent mode, and cooling mode. The Toughpower XT 1275W automatically adjusts fan mode and speed according to the ambient temperature level. This new design not only optimizes heat dissipation, but also keeps the most silent operation for your system by reducing unnecessary fan rotation.

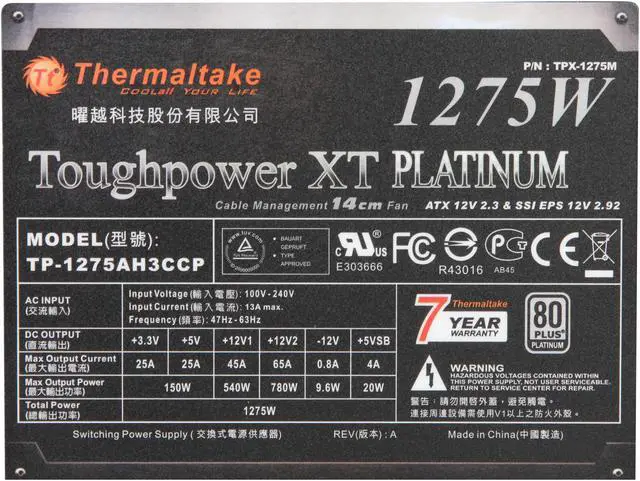

Output Specification
| AC Input | Input Voltage: 100V ~ 240V
Input Current: 115VAC / 13A max. Frequency: 47Hz - 63Hz |
|||||
|---|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
| Max Output Current | 25A | 25A | 45A | 65A | 0.8A | 3.5A |
| Max Output Power | 150W | 540W | 780W | 9.6W | 20W | |
| Continuous Power | 1275W | |||||

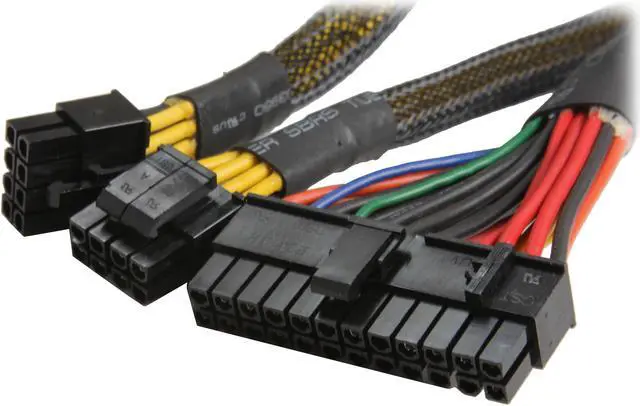

Total Output Connector
| P/N |
Main Power (24-Pin) |
EPS / ATX 12 Connector (4 + 4-Pin) |
EPS 12V Connector (8-Pin) |
Peripheral Cionnector (4-Pin) |
FDD Connector (4-Pin) |
SATA Connector (5-Pin) |
PCI-E Connector (6 + 2-Pin) |
PCI-E Connector (8-Pin) |
|---|---|---|---|---|---|---|---|---|
| TPX-1275M | 1 | 1 | 1 | 6 | 1 | 16 | 6 | 2 |
| Model | Connector Type | Connectors & Cable length |
|---|---|---|
| 1275W | ||
| 24-Pin | 1 x 24-Pin Main connector - 21.6" (550mm) | |
| EPS/ATX 12V 4 + 4-Pin | 1 x EPS/ATX 12V 4 + 4-Pin connector - 21.6" (550mm) | |
| EPS 12V 8-Pin | 1 x EPS 12V 8-Pin connector - 21.6" (550mm) | |
| Molex / SATA | 4 x Peripheral connectors - 21.6 + 5.9 + 5.9 + 5.9"
(550mm + 150mm + 150mm + 150mm) 4 x S-ATA & 1 x Peripheral connectors - 21.6 + 5.9 + 5.9 + 5.9 + 5.9" (550mm + 150mm + 150mm + 150mm + 150mm) 4 x S-ATA & 1 x Peripheral connectors - 21.6 + 5.9 + 5.9 + 5.9 + 5.9" (550mm + 150mm + 150mm + 150mm + 150mm) 4 x S-ATA connectors - 21.6 + 5.9 + 5.9 + 5.9" (550mm + 150mm + 150mm + 150mm) 4 x S-ATA connectors - 21.6 + 5.9 + 5.9 + 5.9" (550mm + 150mm + 150mm + 150mm) |
|
| PCI-E |
|
Japanese Made Electrolytic & Solid Capacitors and superior circuit designToughpower XT 1275W features 105°C / 221°F Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability. Moreover, Toughpower XT 1275W adopts full bridge & LLC resonance circuit for extremely stable performance & reliability. Besides, built in the interleaved PFC circuit, Toughpower XT 1275W also provides extremely high PF value and high PSU efficiency.
S.P.T indicator: Quick Status MonitorThe S.P.T indicator, with 3-mode LED (standby/power good signal/temperature) for real-time monitoring over the power supply, helps the user to know the PSU working status, detect abnormal situations and protect your system. When you open the side panel of your chassis or look through the side window, you can see the PSU status quickly and easily.
Modular Cable ManagementCable management design improves internal airflow and reduces clutter by allowing removal of unneeded cable sets instead of hiding them.
Hybrid SLI/ CrossfireX and Intel C6 state mode supportToughpower XT 1275W is able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design. Featuring 8 x PCI-E connectors, Toughpower XT 1275W supports up to 4-way ATI/AMD CrossFireX & NVIDIA SLI to scale graphics performance.
Eco designToughpower XT 1275W saves energy through its high energy efficiency of up to 94% and is 80 PLUS PLATINUM certified. Supporting Energy Star 5.0 and Intel Deep Power Down C6 Status, Toughpower XT 1275W is suitable for use in Energy Star-compatible computers and helps your PC system operate more efficiently by supporting the newest low power states introduced by Intel. In addition, it also fulfils the EU guideline for ErP (Energy-Related Products) that are scheduled to apply starting in 2010.
Fan speed & noise levelThe smart Fan control circuitry design offers three distinct operation modes, fanless mode, silent mode, and cooling mode. The Toughpower XT 1275W automatically adjusts fan mode and speed according to the ambient temperature level. This new design not only optimizes heat dissipation, but also keeps the most silent operation for your system by reducing unnecessary fan rotation.
Japanese Made Electrolytic & Solid Capacitors and superior circuit designToughpower XT 1275W features 105°C / 221°F Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability. Moreover, Toughpower XT 1275W adopts full bridge & LLC resonance circuit for extremely stable performance & reliability. Besides, built in the interleaved PFC circuit, Toughpower XT 1275W also provides extremely high PF value and high PSU efficiency.
S.P.T indicator: Quick Status MonitorThe S.P.T indicator, with 3-mode LED (standby/power good signal/temperature) for real-time monitoring over the power supply, helps the user to know the PSU working status, detect abnormal situations and protect your system. When you open the side panel of your chassis or look through the side window, you can see the PSU status quickly and easily.
Modular Cable ManagementCable management design improves internal airflow and reduces clutter by allowing removal of unneeded cable sets instead of hiding them.
Hybrid SLI/ CrossfireX and Intel C6 state mode supportToughpower XT 1275W is able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design. Featuring 8 x PCI-E connectors, Toughpower XT 1275W supports up to 4-way ATI/AMD CrossFireX & NVIDIA SLI to scale graphics performance.
Eco designToughpower XT 1275W saves energy through its high energy efficiency of up to 94% and is 80 PLUS PLATINUM certified. Supporting Energy Star 5.0 and Intel Deep Power Down C6 Status, Toughpower XT 1275W is suitable for use in Energy Star-compatible computers and helps your PC system operate more efficiently by supporting the newest low power states introduced by Intel. In addition, it also fulfils the EU guideline for ErP (Energy-Related Products) that are scheduled to apply starting in 2010.
Fan speed & noise levelThe smart Fan control circuitry design offers three distinct operation modes, fanless mode, silent mode, and cooling mode. The Toughpower XT 1275W automatically adjusts fan mode and speed according to the ambient temperature level. This new design not only optimizes heat dissipation, but also keeps the most silent operation for your system by reducing unnecessary fan rotation.Warranty & Returns
