How many 120mm fans can the Thermaltake View 380 XL accommodate?

The Thermaltake View 380 XL can support up to ten 120mm fans.

What is the maximum GPU length supported by the Thermaltake View 380 XL TG ARGB?

The maximum GPU length supported by the Thermaltake View 380 XL TG ARGB is 420 mm.

Thermaltake View 380 XL TG ARGB; 4x120mm ARGB Lite Fans Included; 360mm Radiator Support; 420mm GPU Clearance; Hidden Connector Support; Dual Chamber; Future Dusk; CA-11E-00MNWN-00

Wrapped with a combination of 4mm Tempered glass and mesh panels that View 380 XL provides an excellent look at the system inside while still providing plenty of cooling.
Extra cutouts allow support for ATX hidden connector motherboards such ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH to hide cables for a cleaner build.
Featuring support for up to ten 120mm fans as well as 360mm radiator support on the top and side of the chassis. Even maxxed out on cooling the View 380 XL has plenty of space to work in while building and maintenance.
Preinstalled are three 120mm ARGB Lite fans mounted on the side angeled tray as intake along with a single additonal fan mounted in the rear as exhaust to start you off.
Located next to the bottom mounted I/O in the front side of the chassis we have angled out the side fan tray to better angle incoming air towards components, and to maintain the clean look of the View series we added in an angled mesh panel.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

CA-11E-00MNWN-00

View 380 XL TG ARGB Future Dusk Mid Tower Chassis

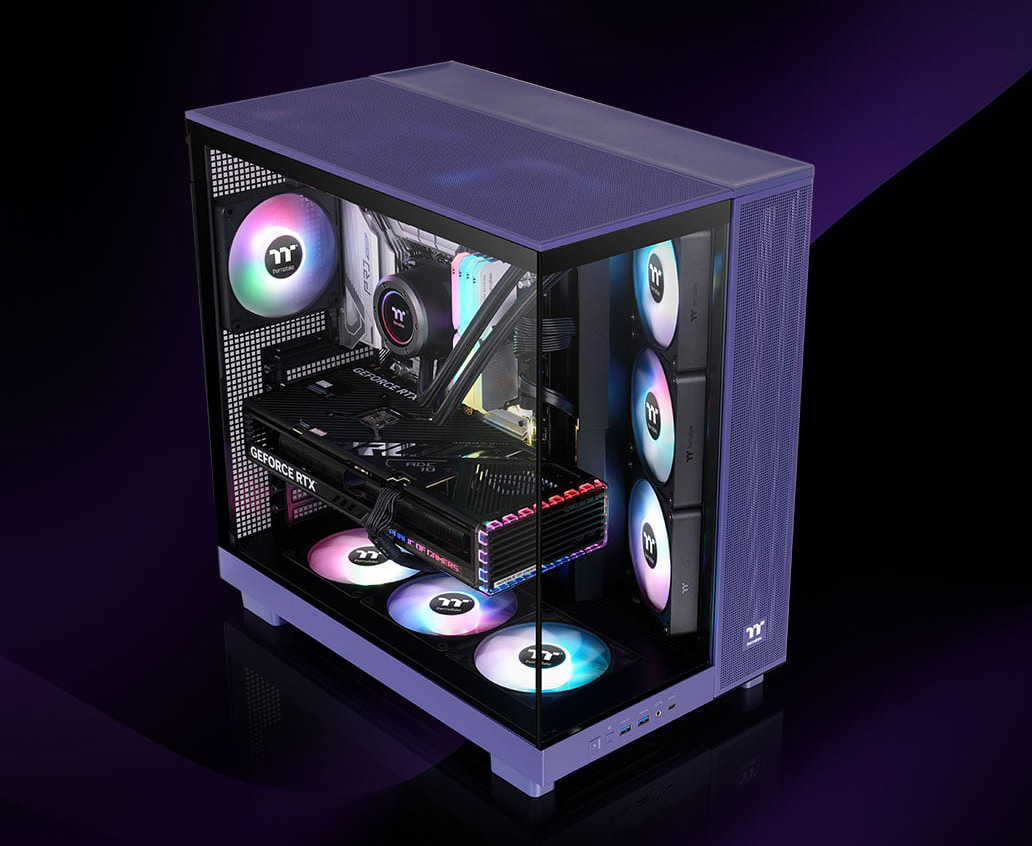

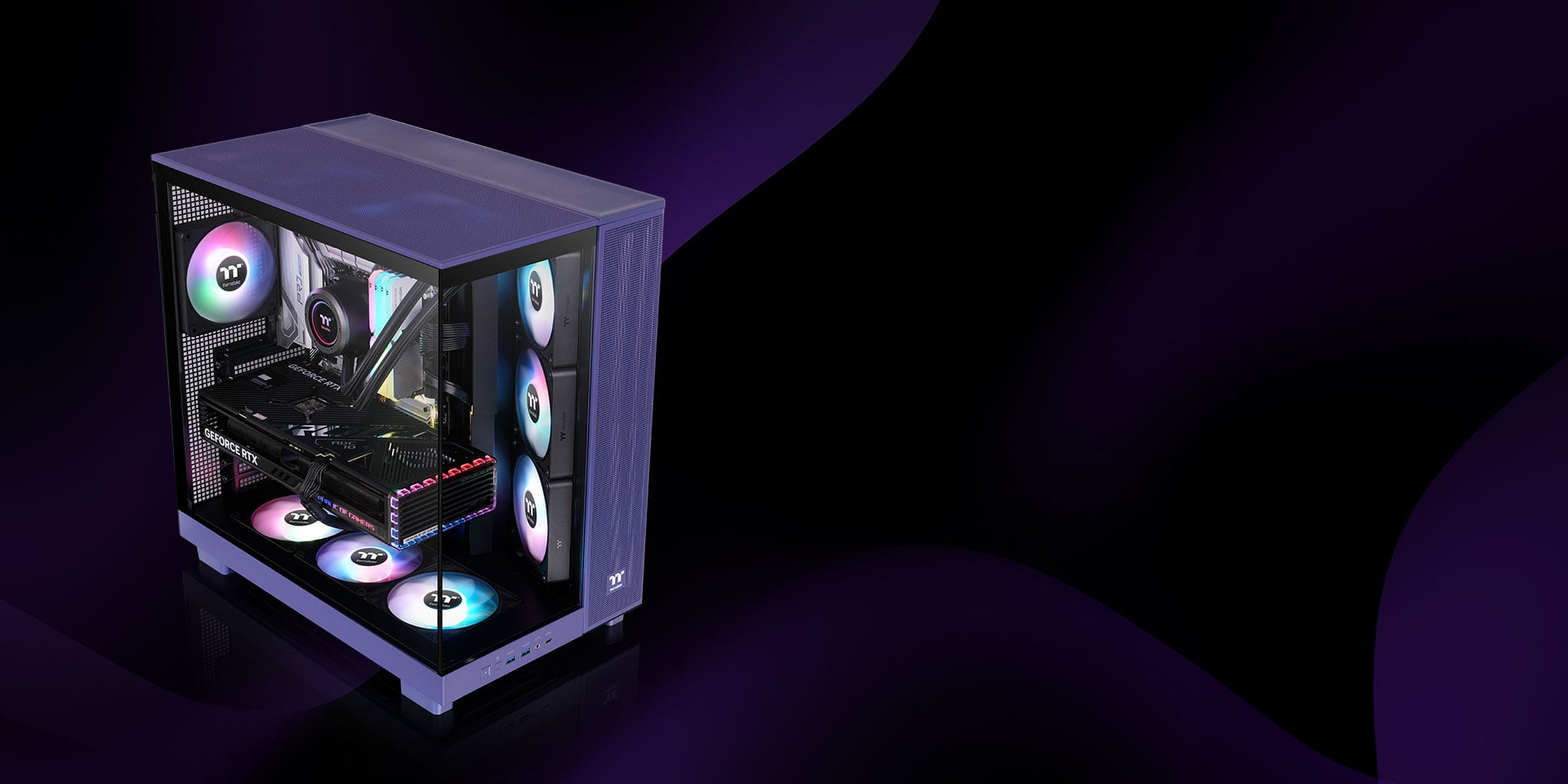

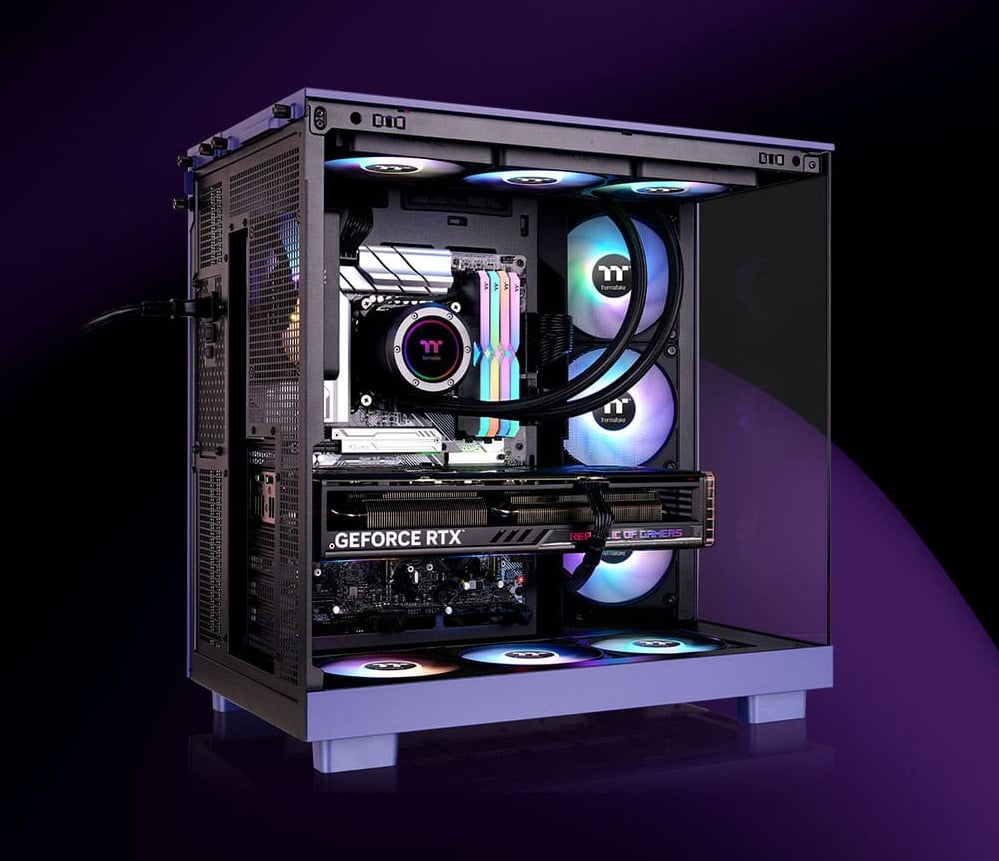

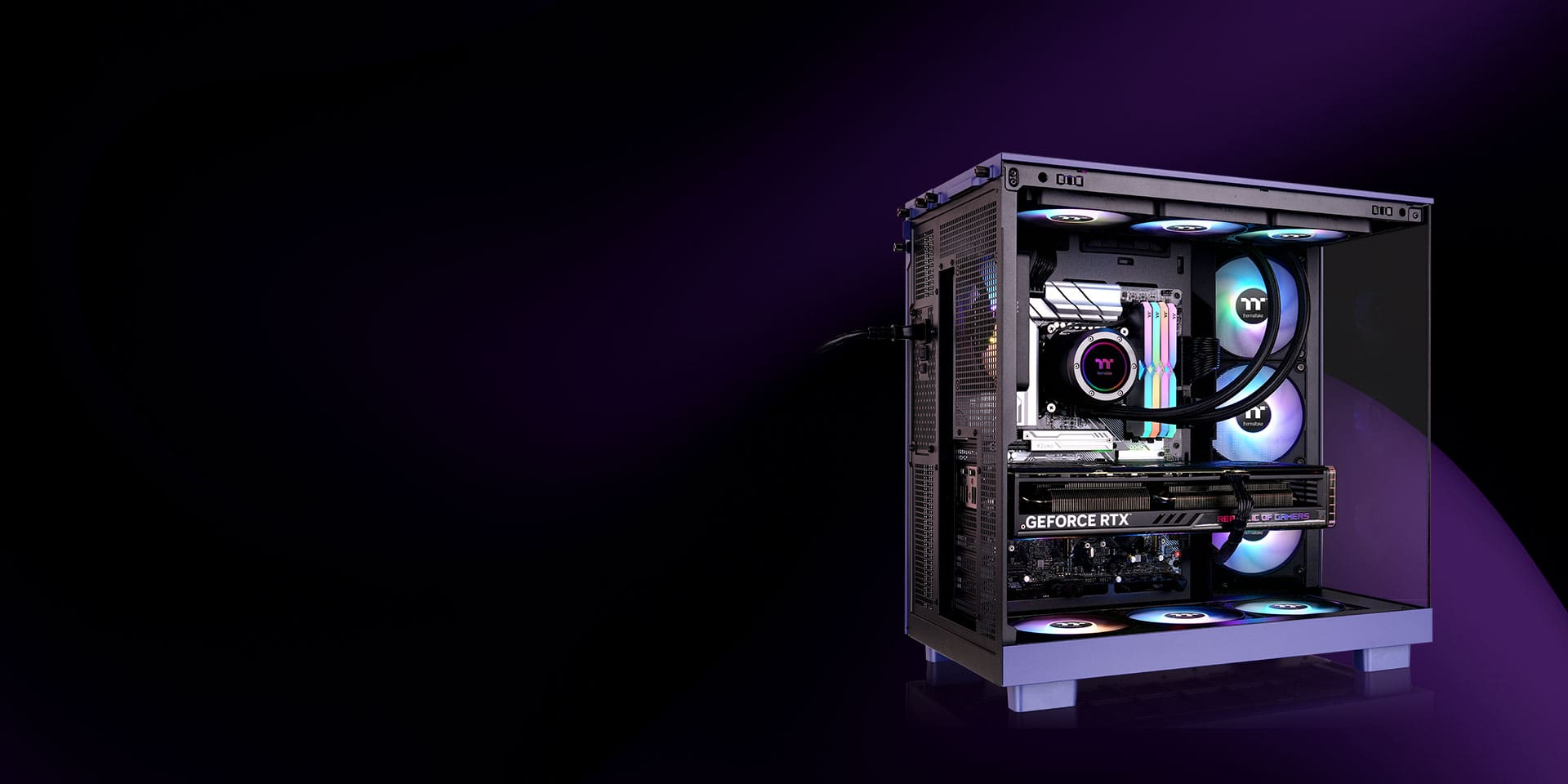

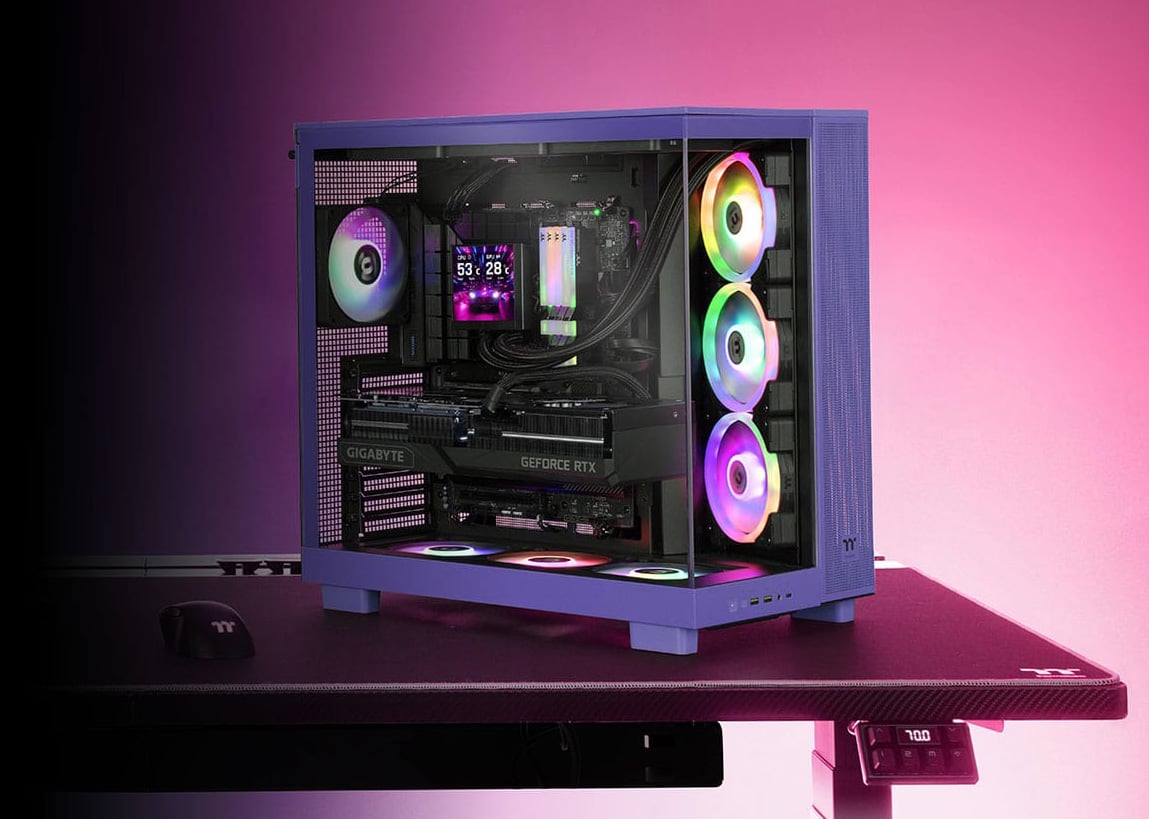

The View 380 XL TG ARGB Future Dusk was designed with both performance and of course stunning views in mind. Sporting a fish tank dual chamber design, angled side intake with a curved mesh, recessed bottom fan mounts, and hinged storage doors in the rear compartment. On top of that there is room for radiators up to 360mm in length, GPUs up to 420mm in length and enough space to accommodate up to ten 120mm fans.

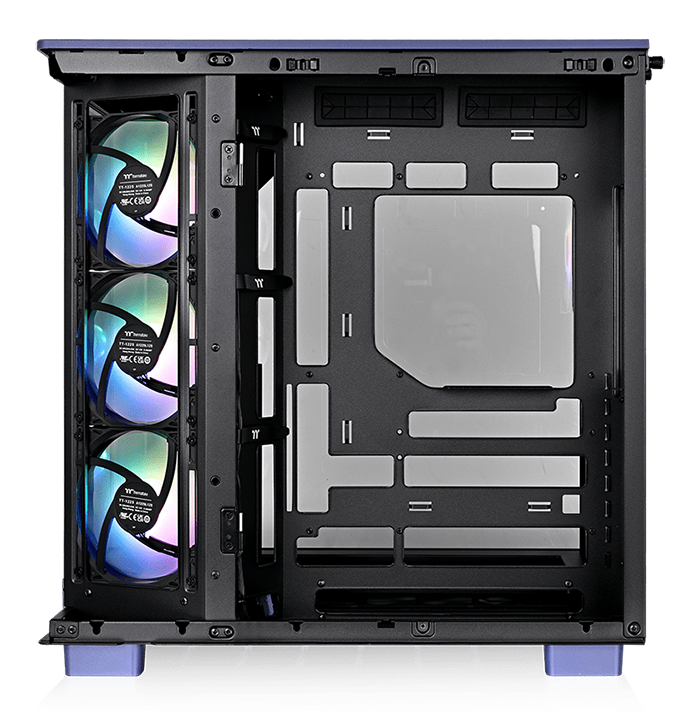

Hidden Connectors, Hidden Cables

Whether building with a standard layout motherboard or a brand-new hidden connector board the View 380 XL TG ARGB Future Dusk has you covered. Featuring cutouts that support the installation and routing for standard motherboards and hidden connector boards from companies like ASUS, MSI, and GIGABYTE. No matter what you choose the View 380 XL TG ARGB Future Dusk is the perfect candidate for a clean looking build.

Dual Chamber

Dual chamber chassis generally have the benefits of an increase in cable management and back section space and the View 380 XL TG ARGB Future Dusk is no exception. Utilizing a floating style PSU mount the rear chamber has ample room and tie downs for routing and managing cables for a easy to work with layout.

A Cool View

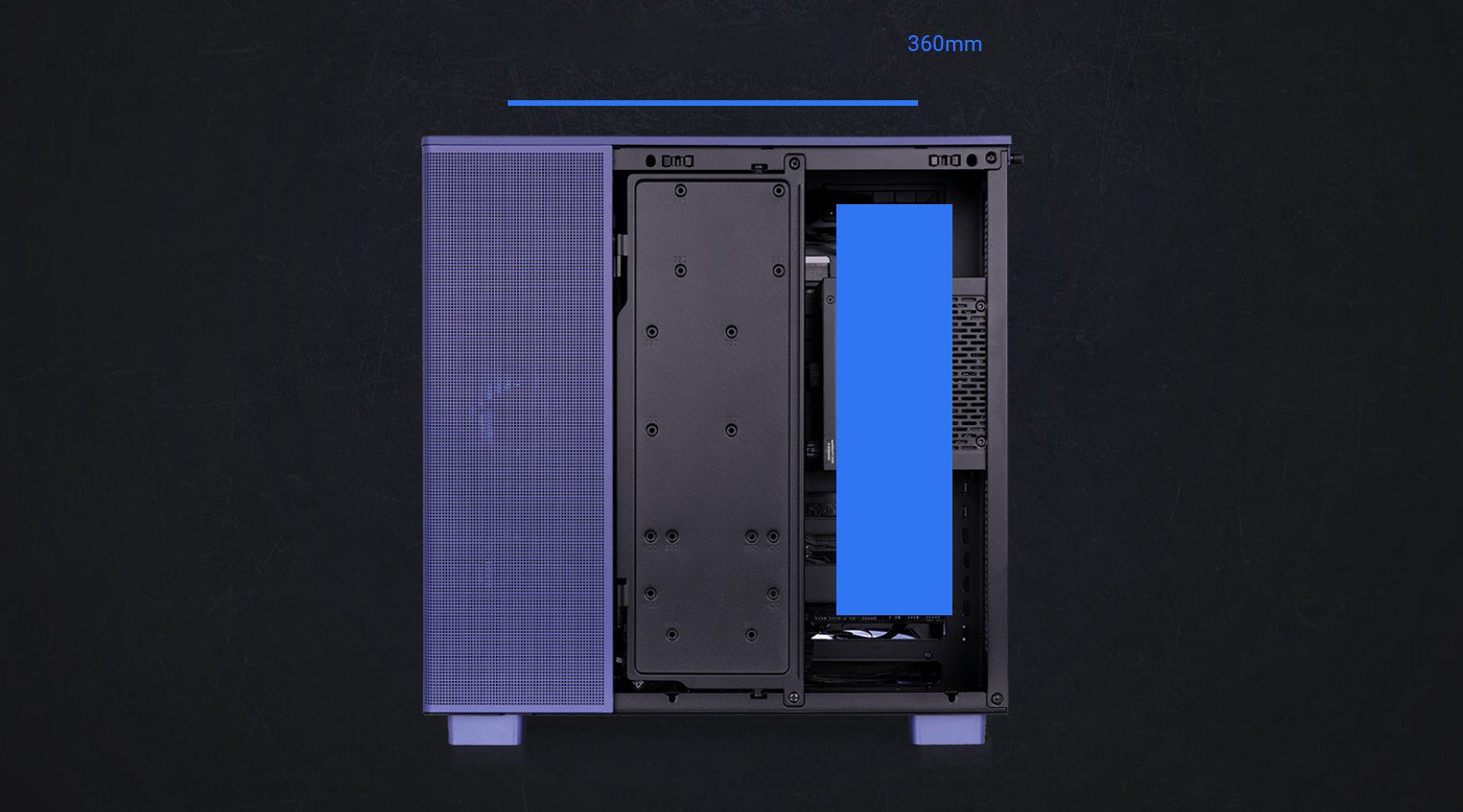

With enough space to comfortably mount up to a 360mm radiator on either the top or the side of the Chassis. In addition to not just looking great thanks to the panoramic tempered glass each mount is provided with plenty of intake or exhaust ventilation thanks to a square mesh top panel and a curved mesh side panel. Don’t just look good, stay cool.

* The image is for reference only.

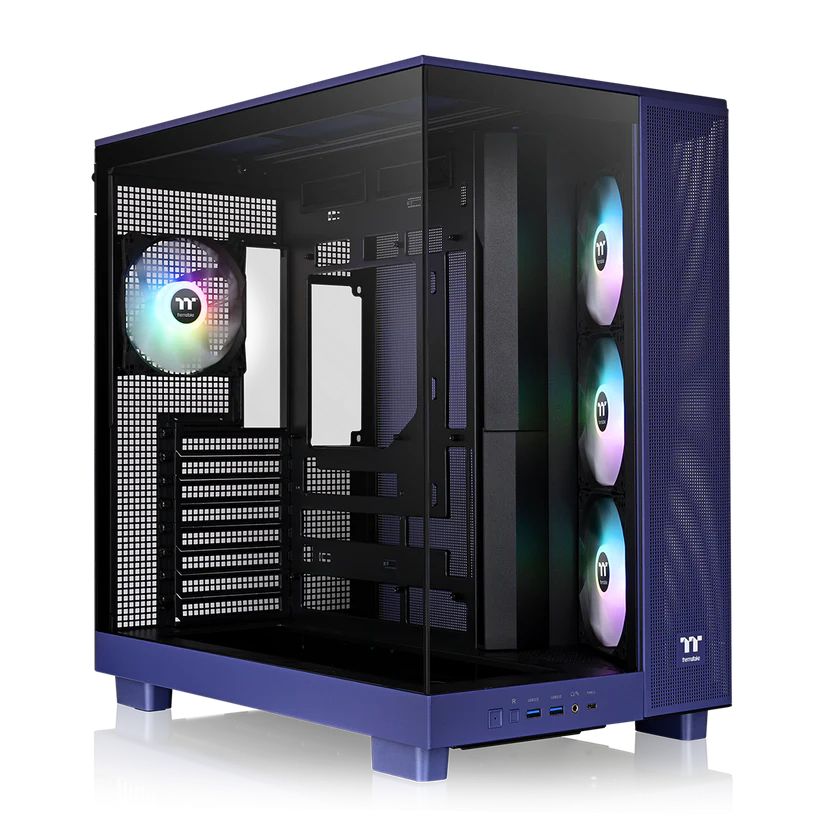

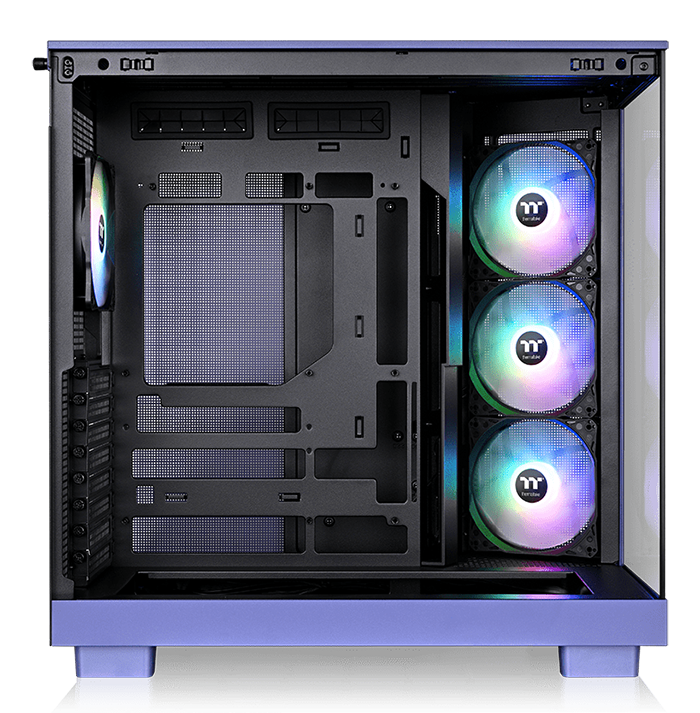

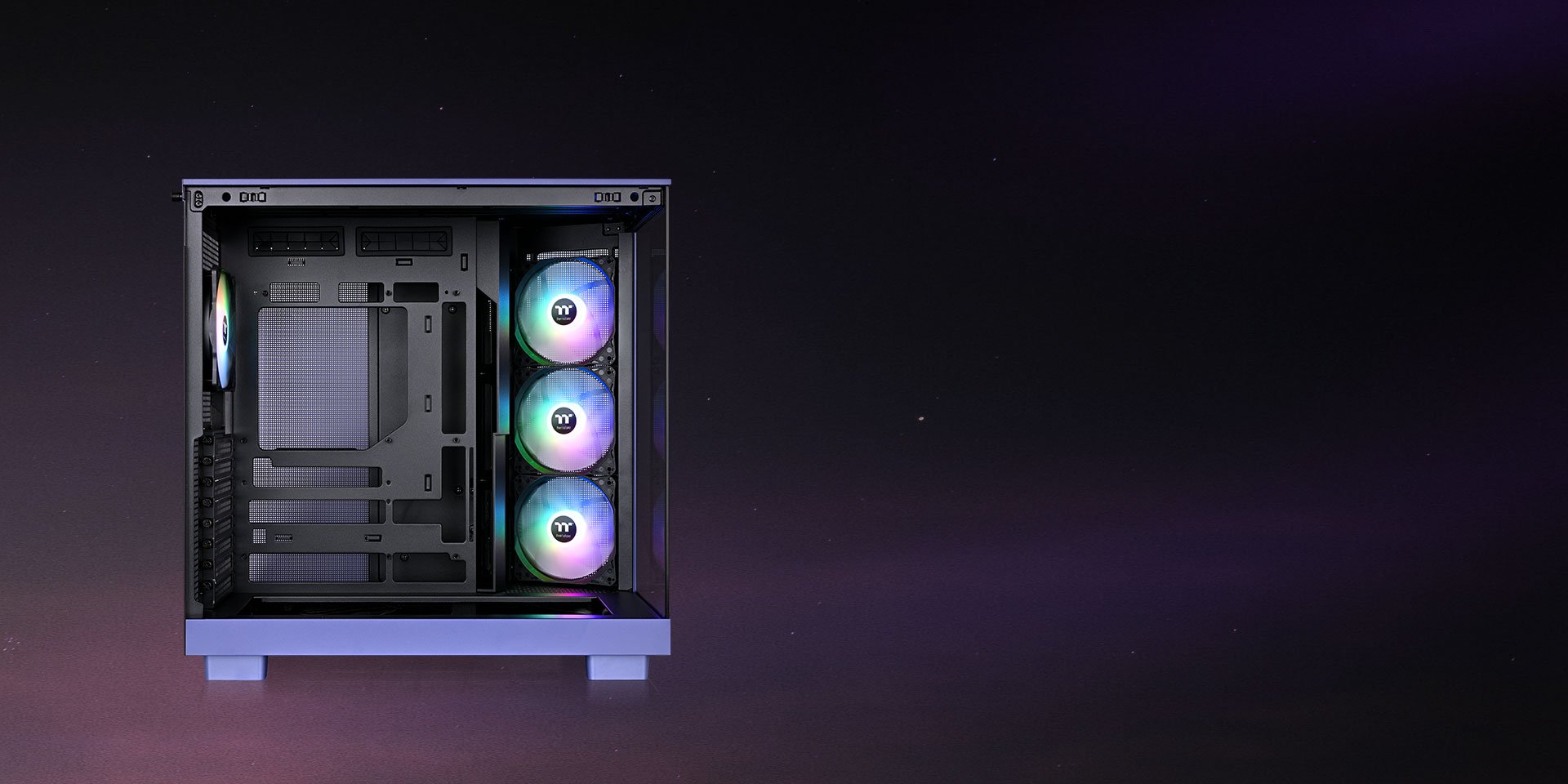

Fans to Get You Started

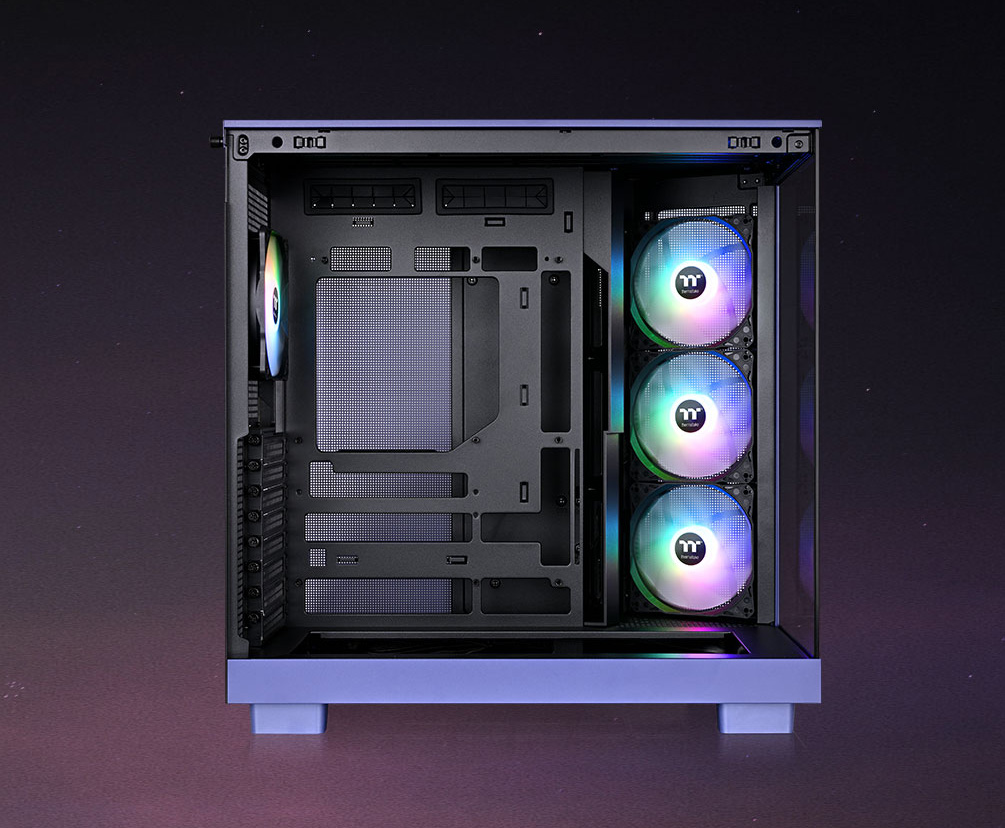

The View 380 XL TG ARGB Future Dusk comes with four 120mm ARGB Lite Fans pre-installed, three reverse version fans are mounted on the side intake to bring fresh air into the chassis and another standard fan is mounted in the rear of the chassis to provide some exhaust. For lighting each fan has 9 LEDs installed in the hub and controlled via a 3 pin ARGB connection for easy control through your motherboards lighting software.

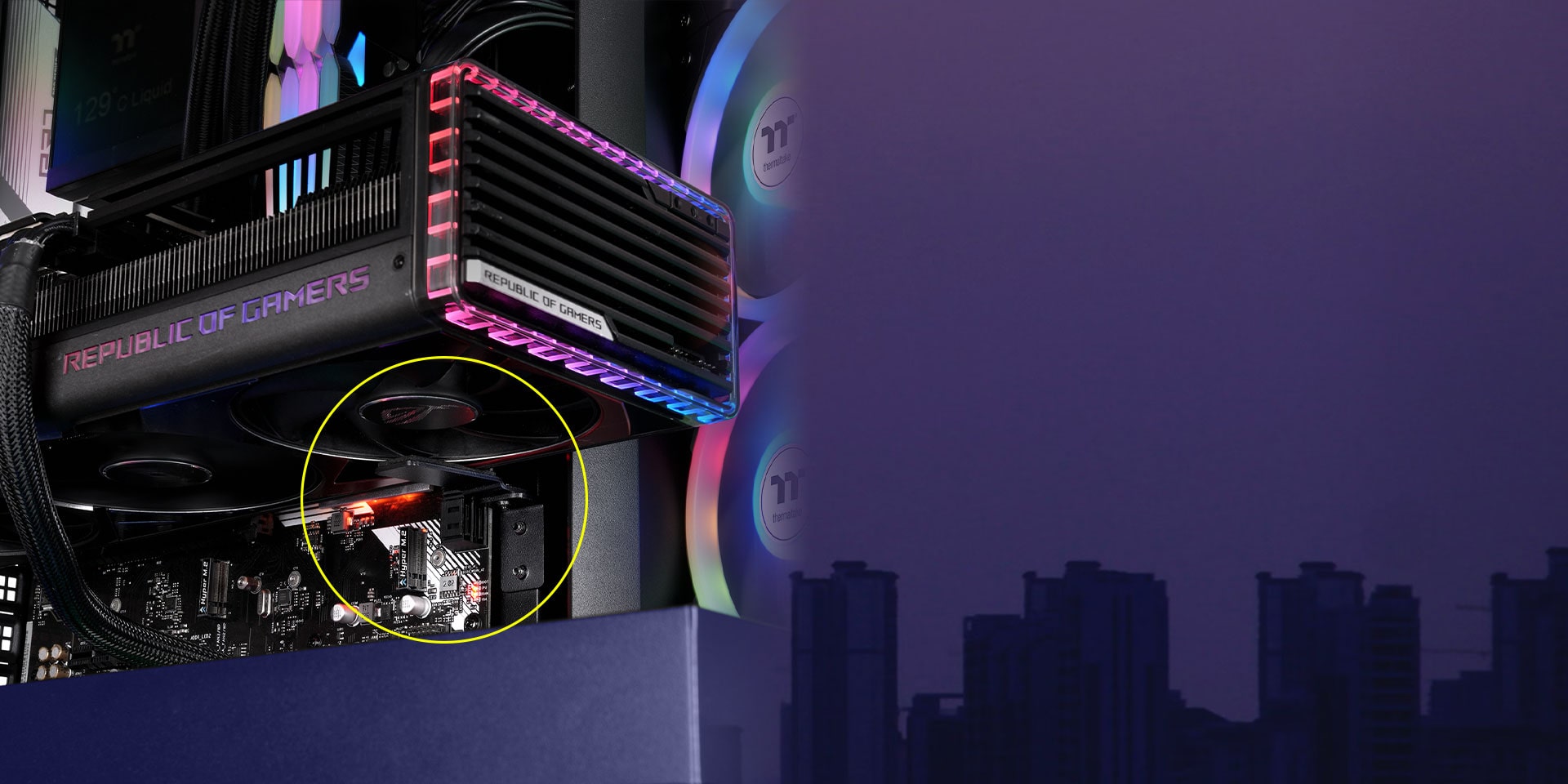

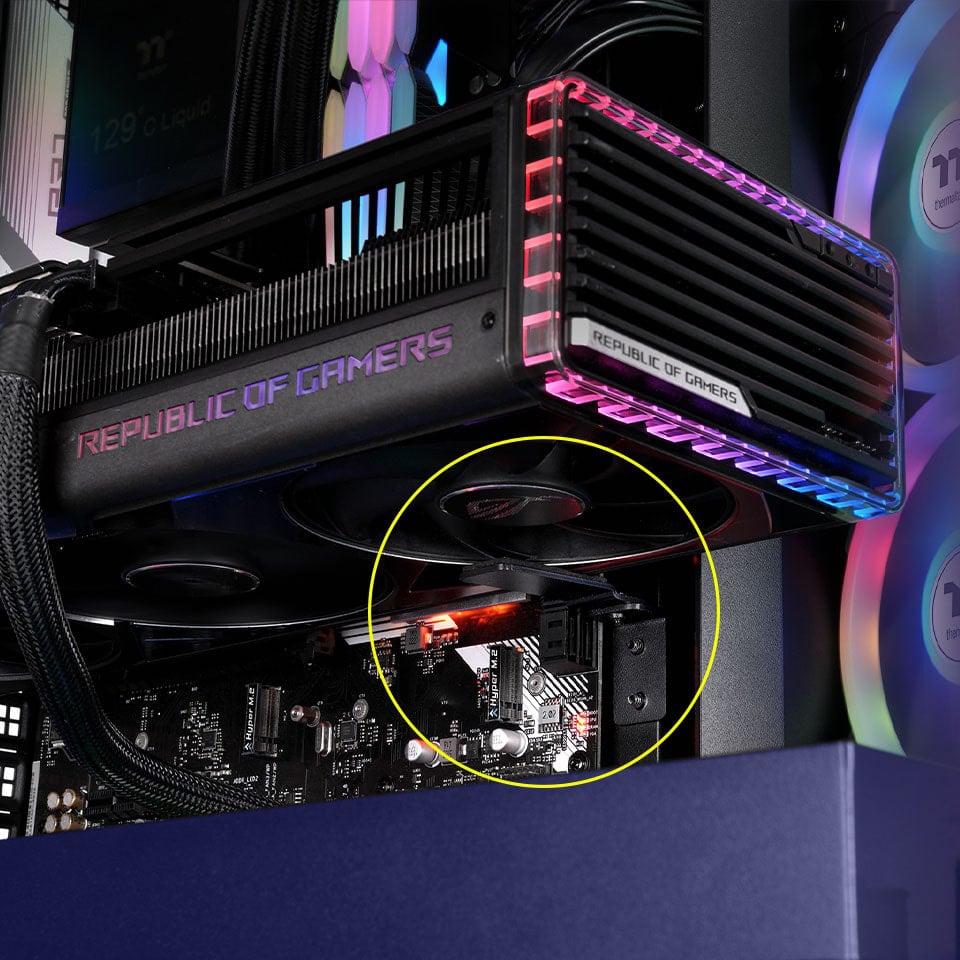

GPU Anti-Sag Brace

Prevent GPU sag with the included support brace. Mounting to the motherboard tray the brace can adjust vertically to suit whichever card you decide to build with. Making contact to the GPU we have fitted the brace with a foam support pad to prevent any unwanted scratches or scuffs.

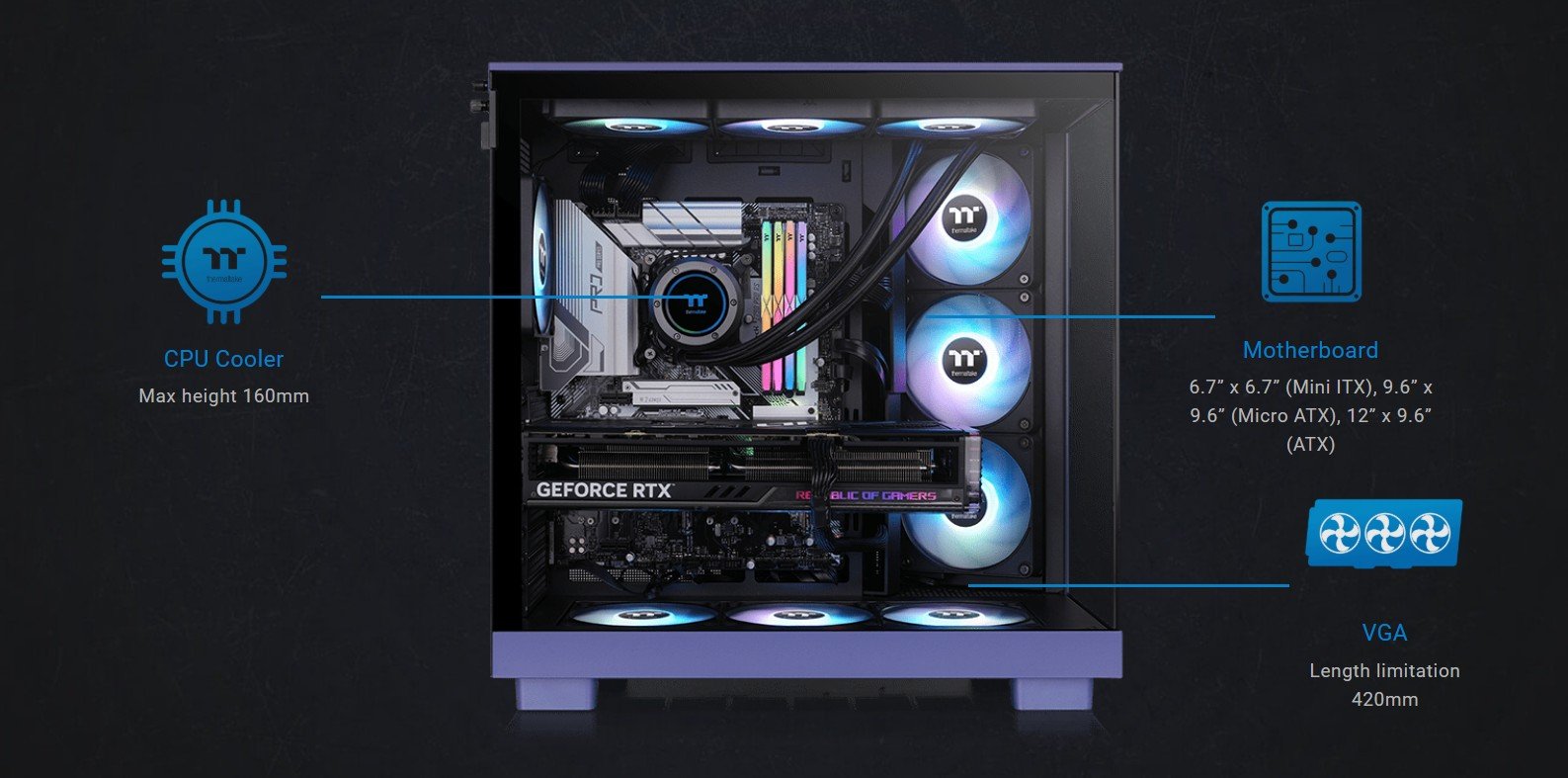

Flexibility to Build Your Ideal PC

Dimensions

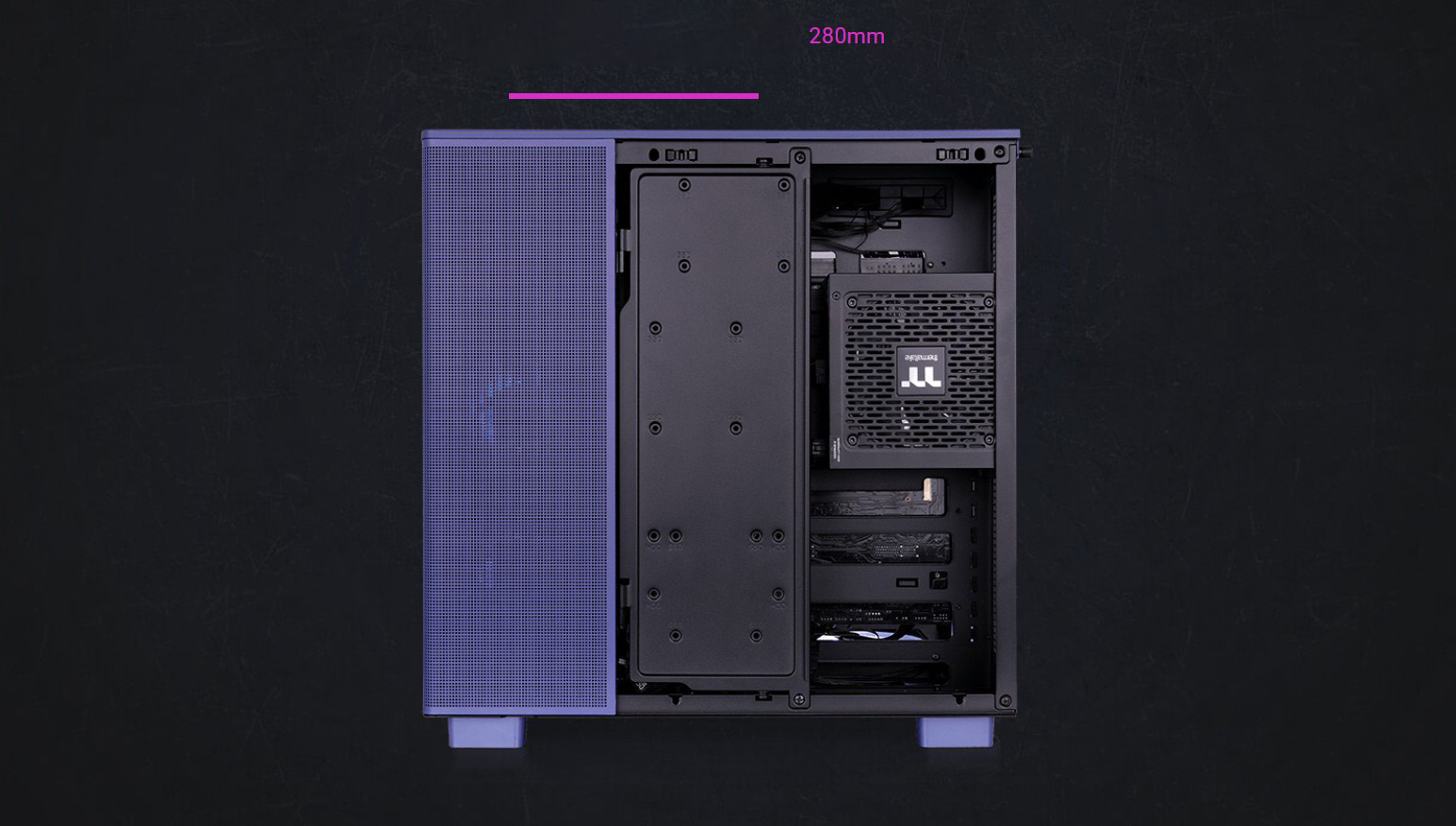

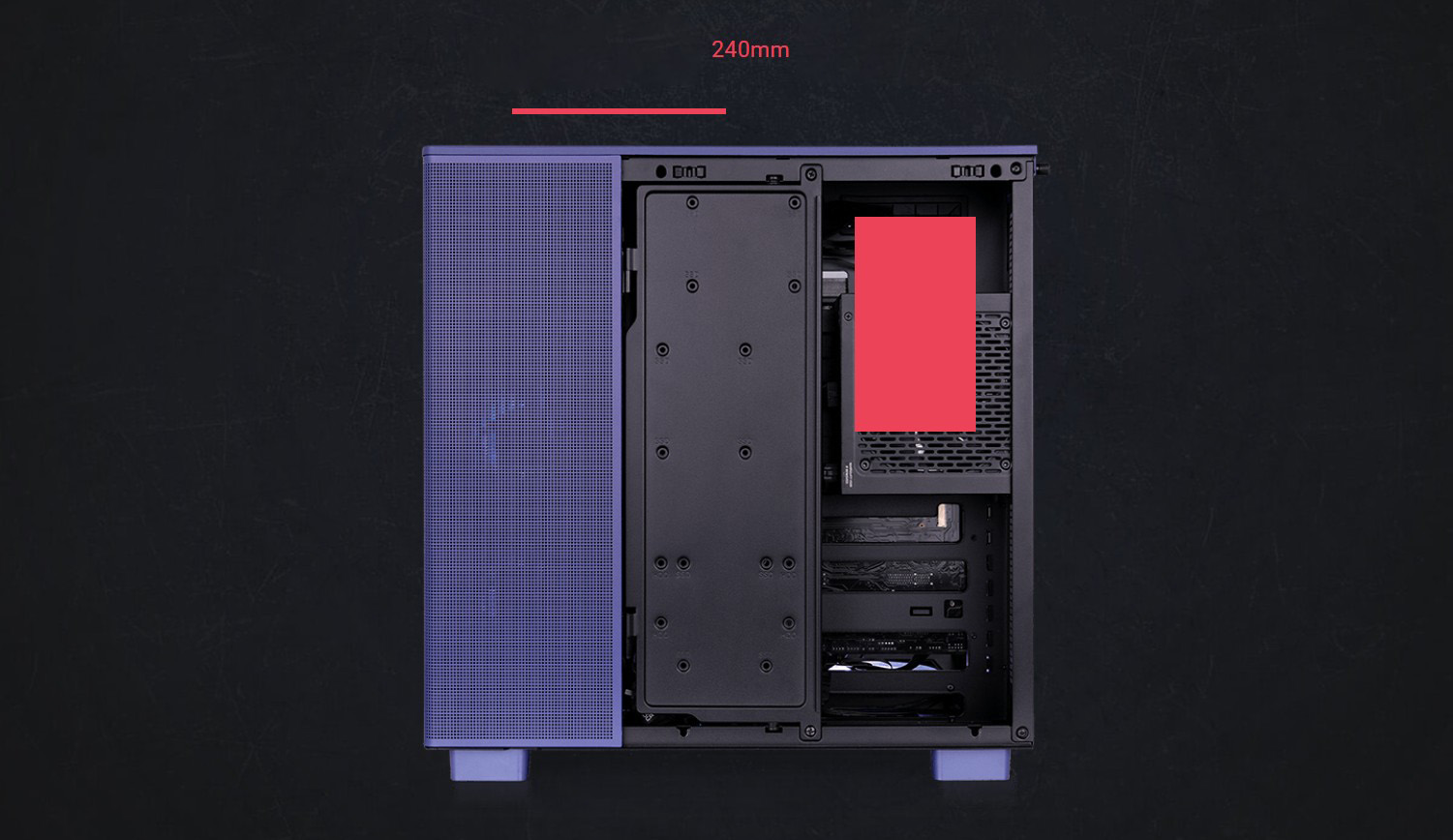

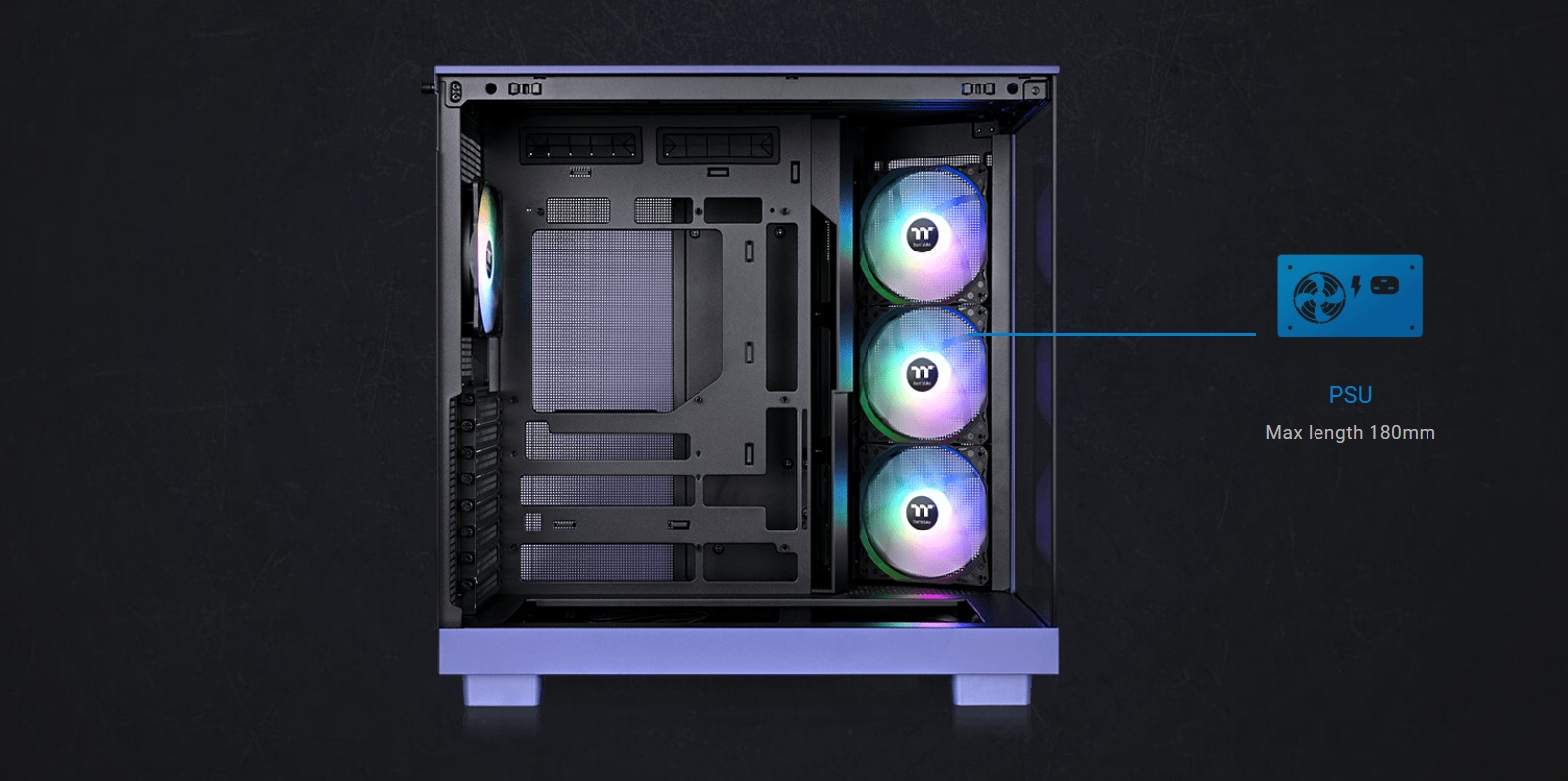

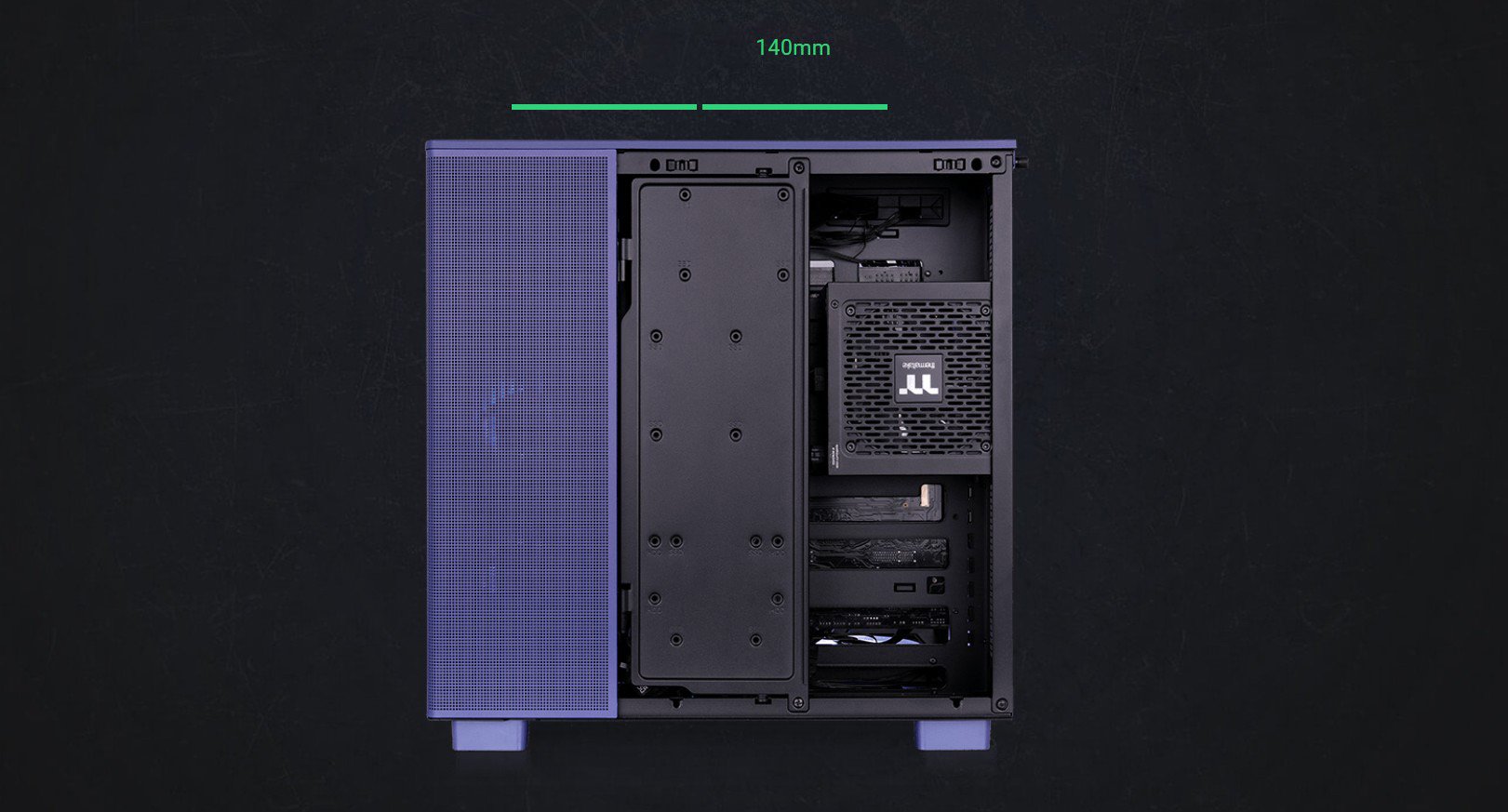

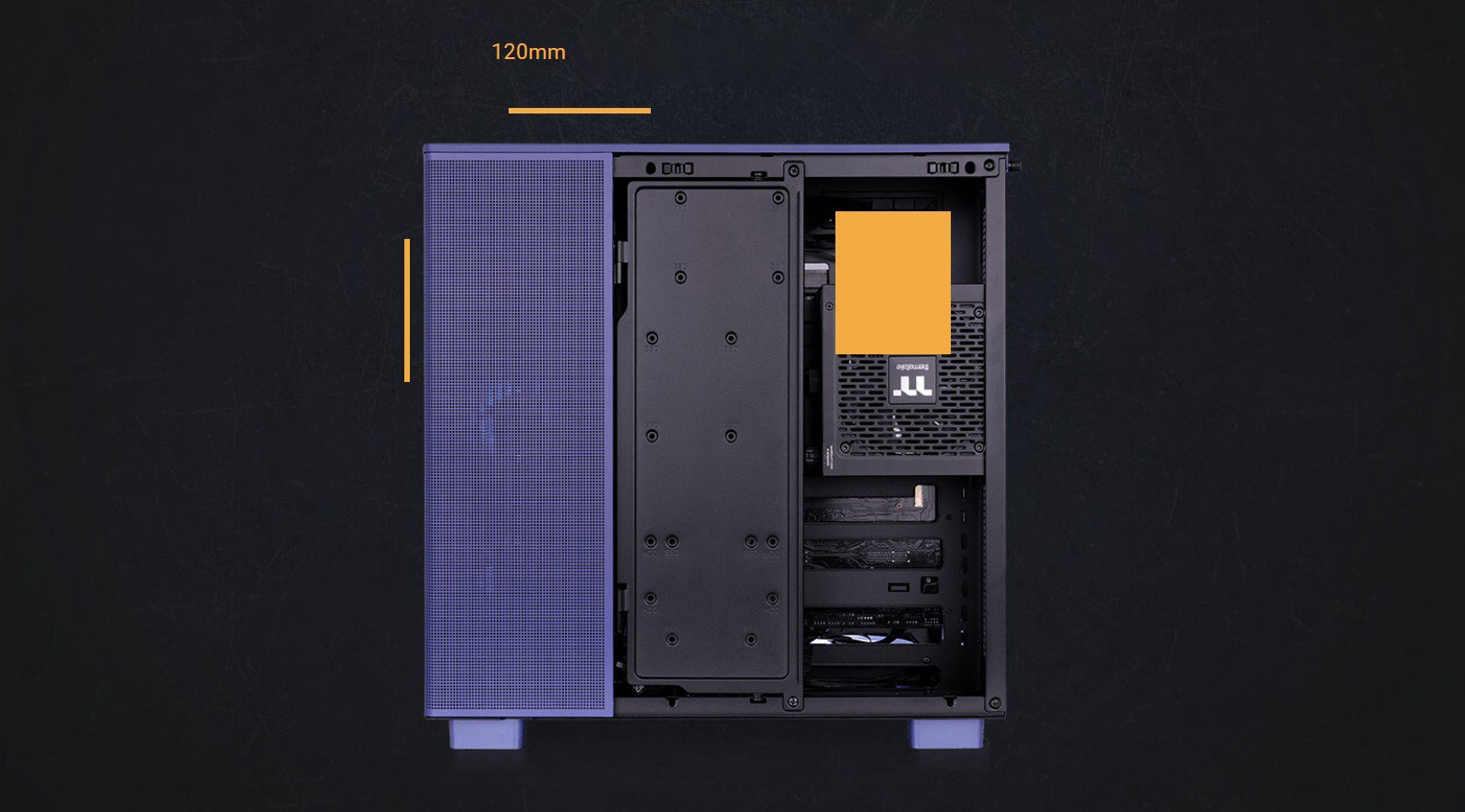

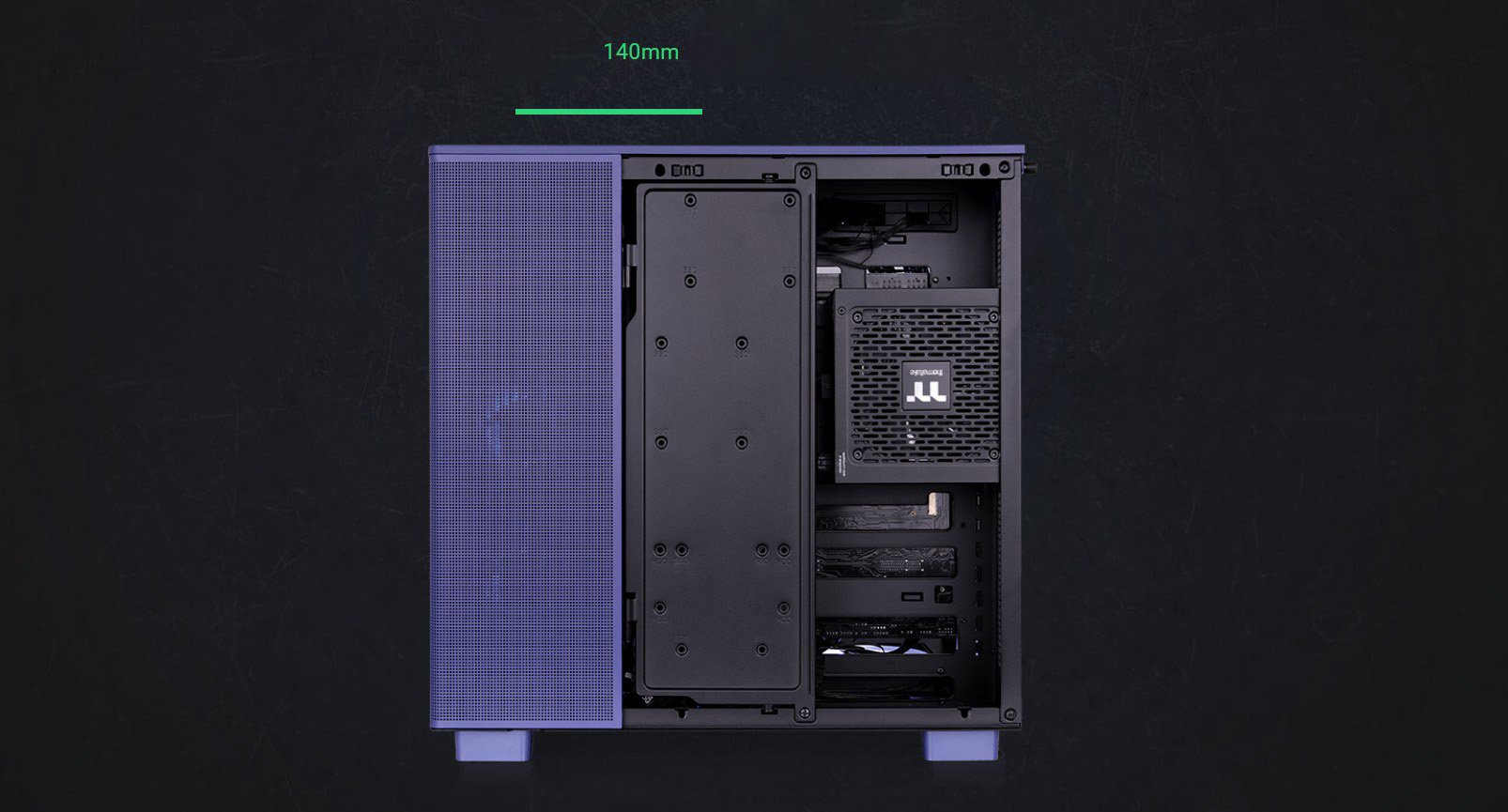

PSU Support

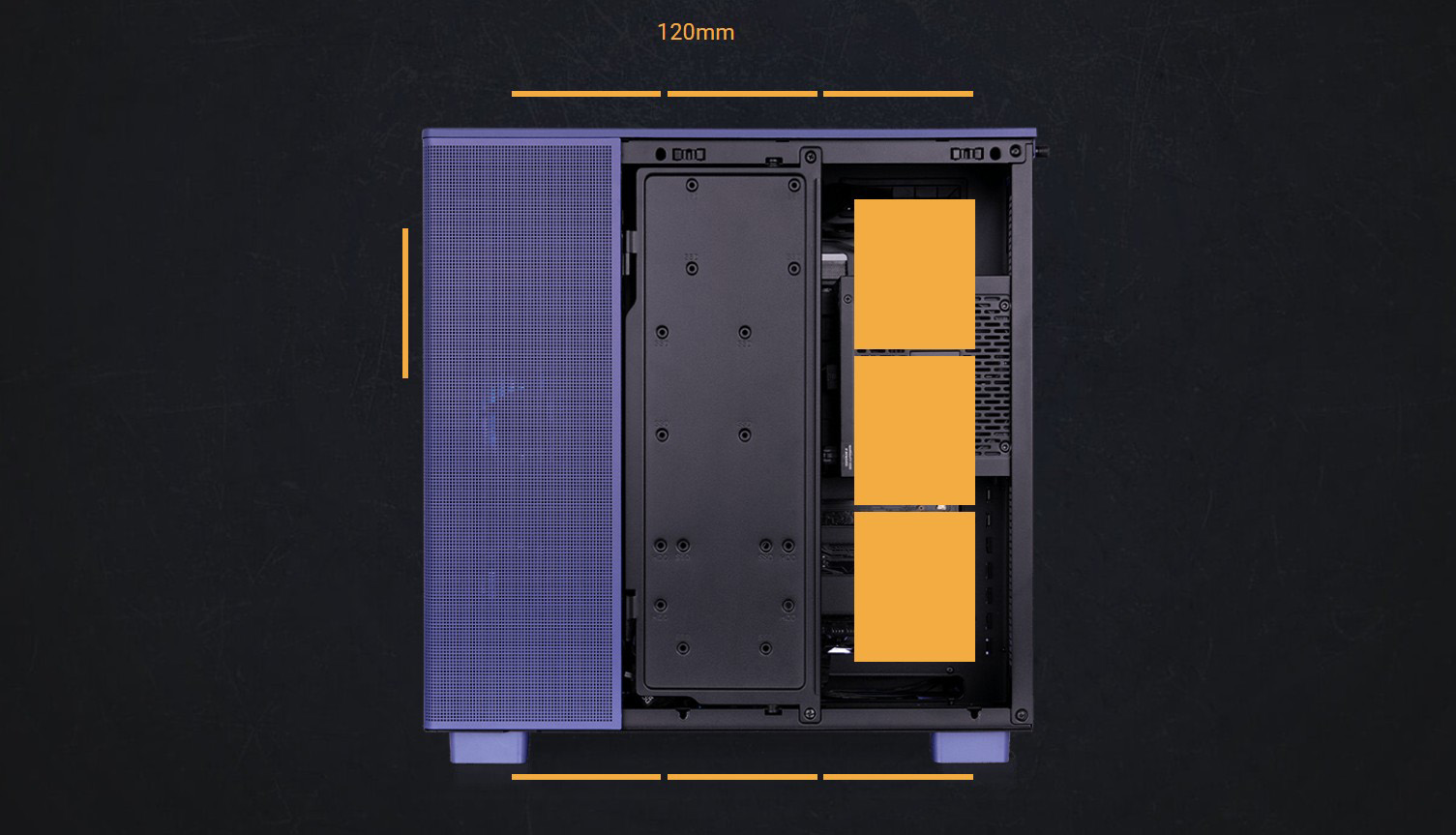

Fan Capacity

Radiator Capacity

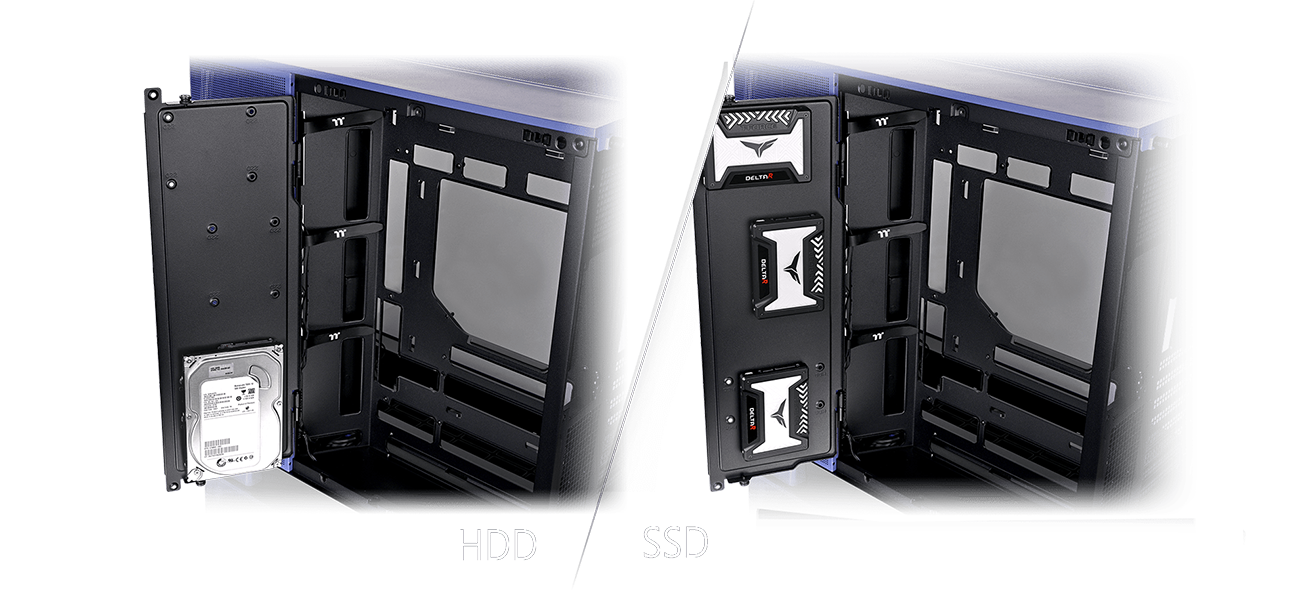

Storage for Your Storage

Equipped with a hinged storage door that secures to the chassis with one screw at the top and bottom and rubber pads for vibration dampening. The tray can support up to three 2.5" SSDs or one 3.5" HDD and is fully removable from the chassis for easy drive mounting and removal.

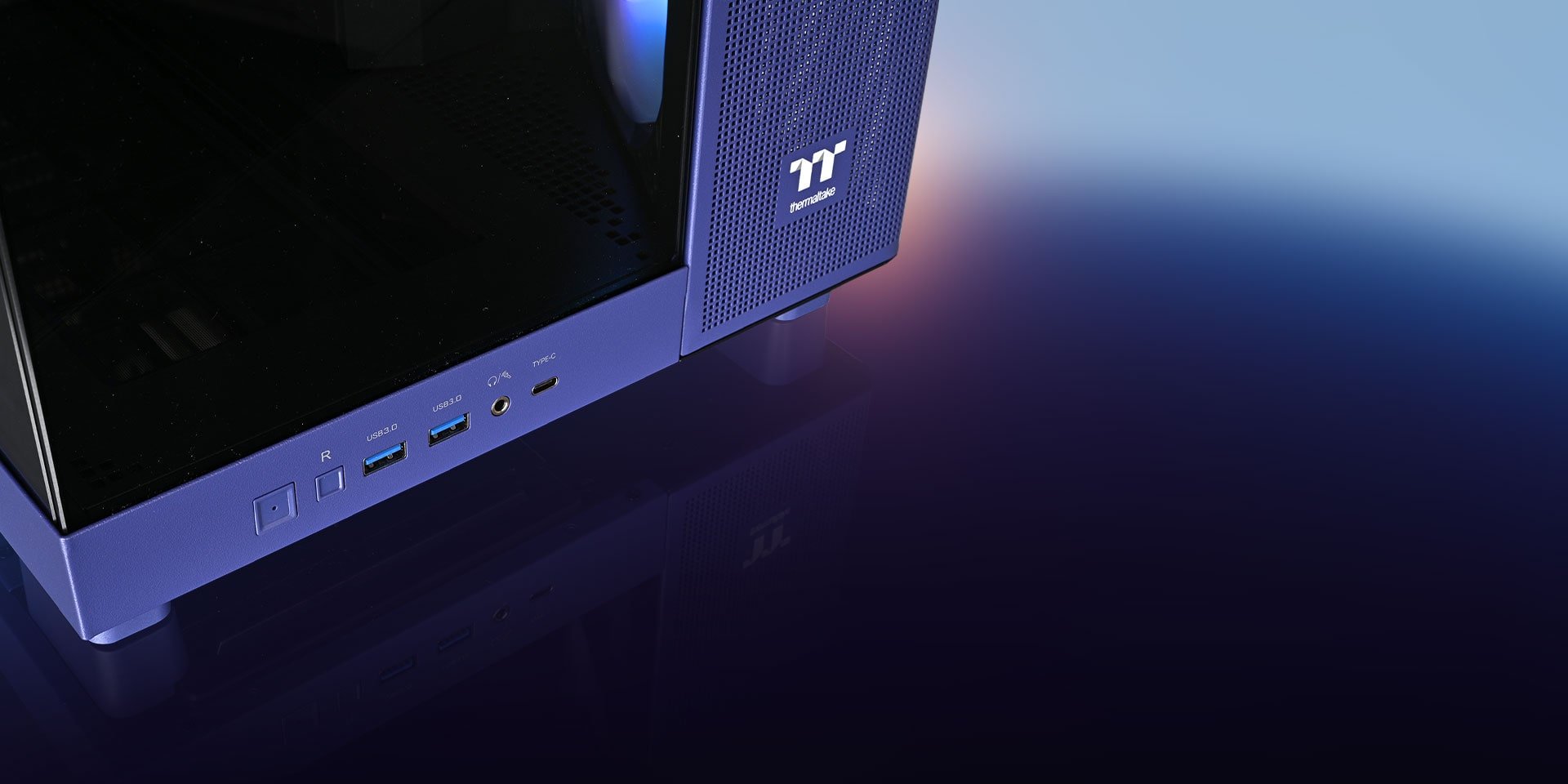

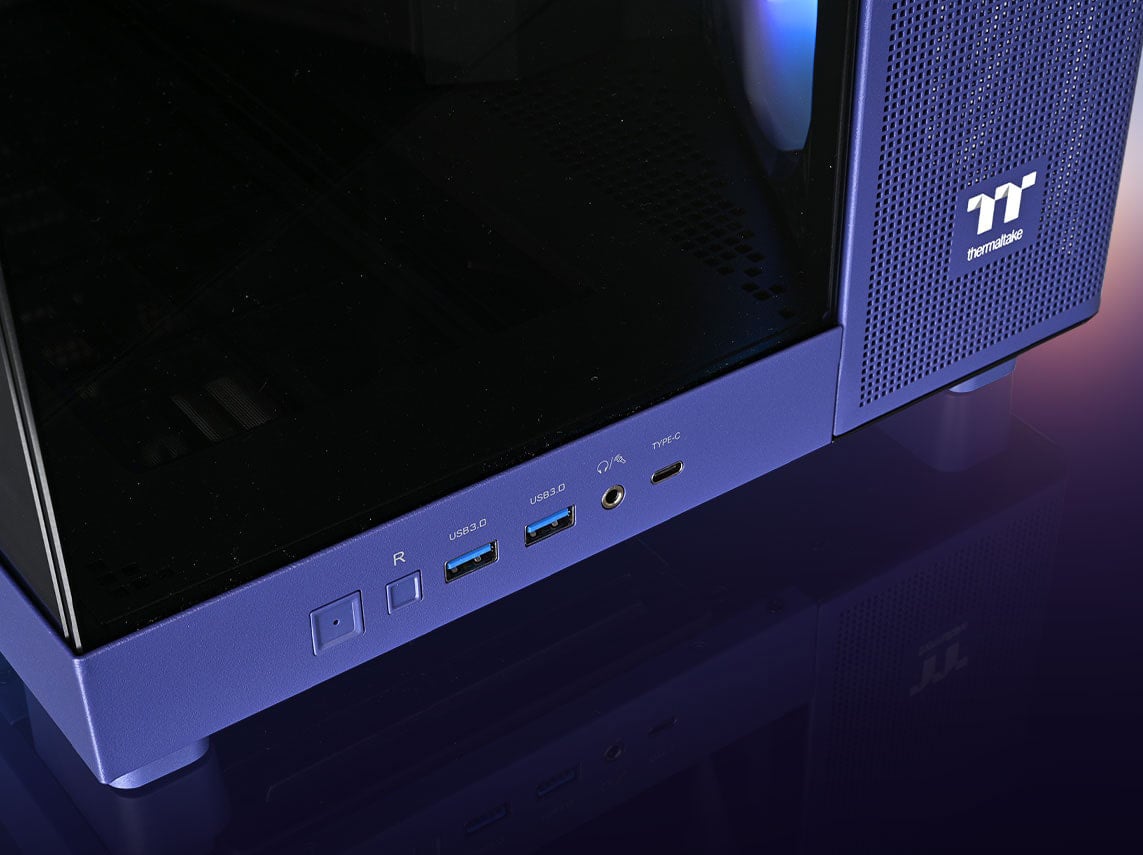

Front Mounted I/O

Utilizing two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port and an HD audio port the View 380 XL TG ARGB Future Dusk provides easy access to connectivity when you need it and a clean look when you don't.

All-in-One Compatibility List

Fan Compatibility List

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Aura Addressable Header

ASUS

Digital Pin Header

GIGABYTE

JRAINBOW Header

MSI

Addressable RGB LED Header

ASRock

Category	Caution
Chassis, ARGB Fan, ARGB AIO	The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate	This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. Running both may cause conflicts. The motherboard signal connector only supports a 5V header. Make sure your motherboard software is the latest version.

Color	Future Dusk
Case Material	SPCC
Type	Tower Computer Cases

Fan Options	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Options	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm

Max GPU Length	420 mm
Max CPU Cooler Height	160 mm
Max PSU Length	180 mm

Meet Your Seller

Thermaltake View 380 XL TG ARGB; 4x120mm ARGB Lite Fans Included; 360mm Radiator Support; 420mm GPU Clearance; Hidden Connector Support; Dual Chamber; Future Dusk; CA-11E-00MNWN-00

Learn more about the Thermaltake CA-11E-00MNWN-00

Customer Reviews of the Thermaltake CA-11E-00MNWN-00

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Internal 3.5" Drive Bays	1
Internal 2.5" Drive Bays	2
Expansion Slots	8

Model
Brand	Thermaltake
Model	CA-11E-00MNWN-00
