Workstation or Gaming Supports both SSI-CEB/SSI-EEB server boards as well as ATX boards such as E-ATX/ATX/mATX/mITX for versatile build options.
Cooling Support Fans: 9x140mm/14x120mm (ATX) 7x140mm/11x120mm (SSI), Radiators: up to 420mm, Air Coolers up to 185mm.
Multi-GPU Expandability 8 PCIe Expansion Slots for multi-GPU up to 460mm in length. GPU Brace included with 2 adjustable supports.
Plentiful Storage Up to 5x3.5" or 6x2.5" drives supported via two drive cages and one drive plate.
Hidden Connector Support Extra cutouts allow support for ATX & mATX hidden connector motherboards such ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH to hide cables for a cleaner build.
Any questions? Our AI beta will help you find out quickly.
Try me now
CA-11D-00F6WN-00

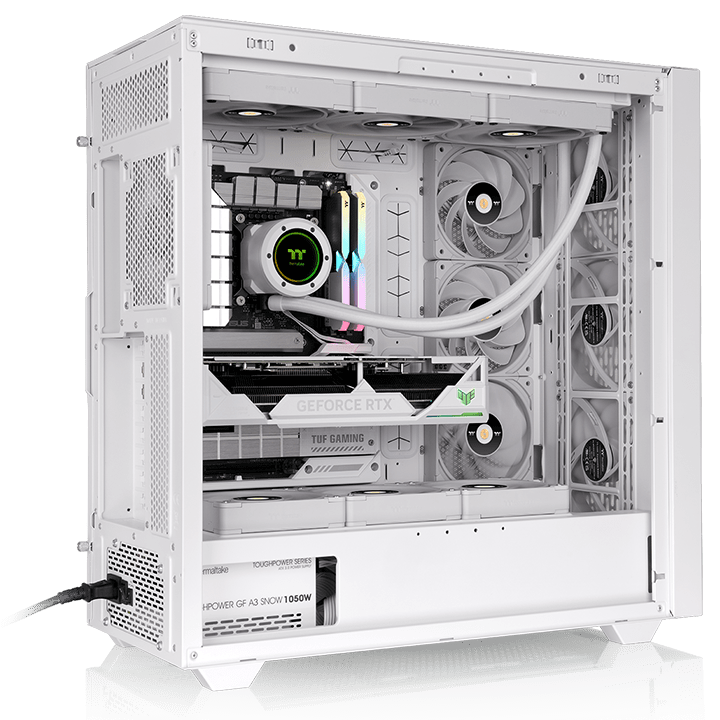

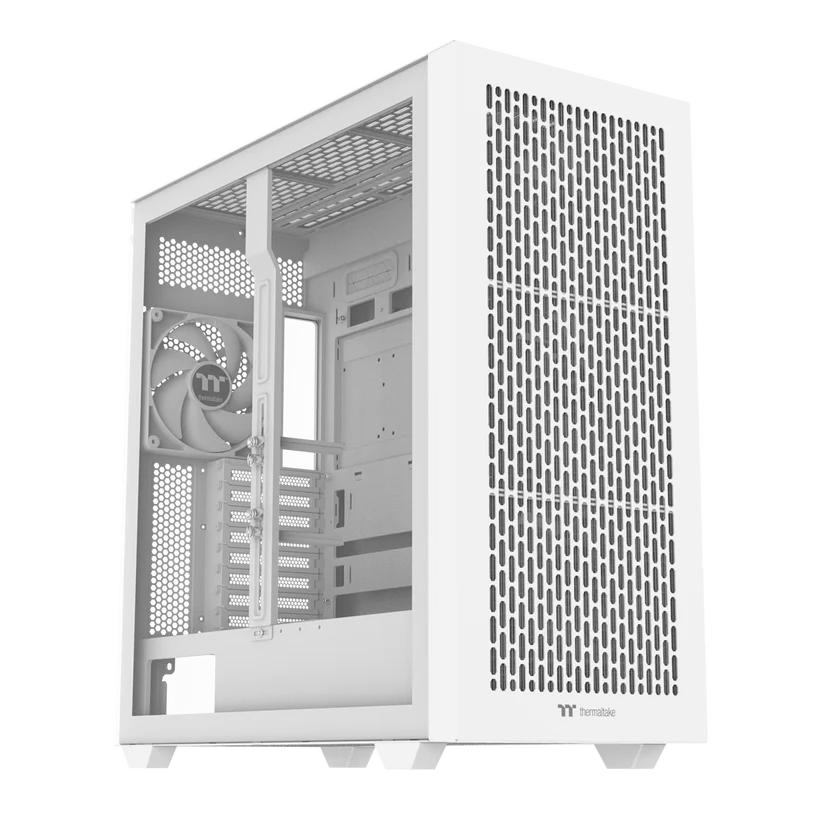

AX500 Snow Full Tower Chassis
The AX500 Snow Full Tower Chassis supports E-ATX/SSI-EEB motherboards, dual 420mm radiators, and up to fourteen 120mm fans for optimal airflow. It features a graphics card holder to prevent sagging and two drive cages beneath the PSU cover, ideal for high-performance workstations, gaming setups, and AI computing.
Motherboard
E-ATX/EEB
Power Supply
ATX PSII
AIO Support
360/420mm
Fan Support
Up to Fourteen 120mm fans
Dimensions (mm)
550*248*548
Clearance (mm)
CPU Cooler: 185
GPU: 460
Power Supply: 200
I/O Ports
1 × USB Type-C
2 × USB 3.0
1 × HD-Audio
Storage
5 x 3.5”HDDs
6 x 2.5”SSDs
* The image is for reference only.

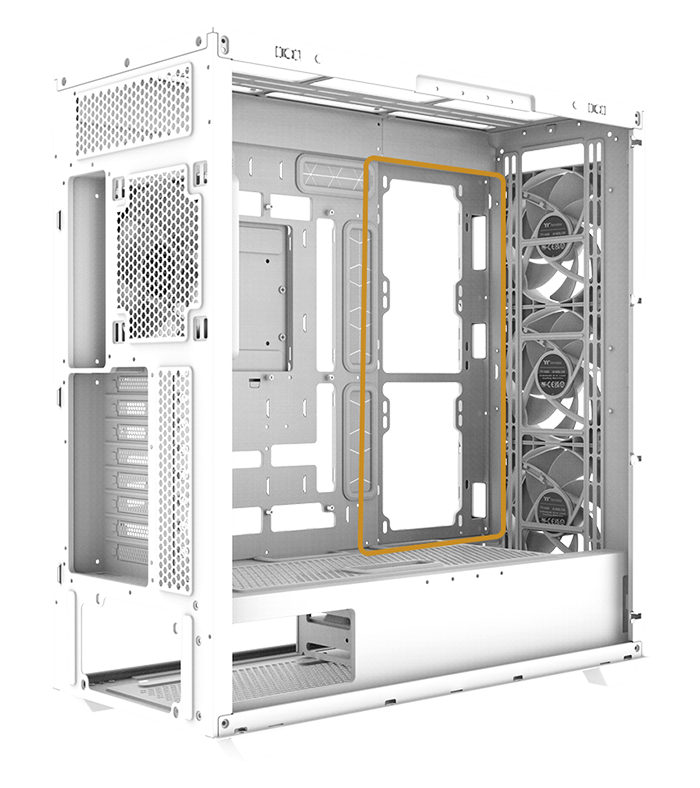

Compatible with Hidden-Connector Motherboards
The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
* The image is for reference only.
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
* Note: The top fan + radiator thickness limit is 82mm
* The image is for reference only.

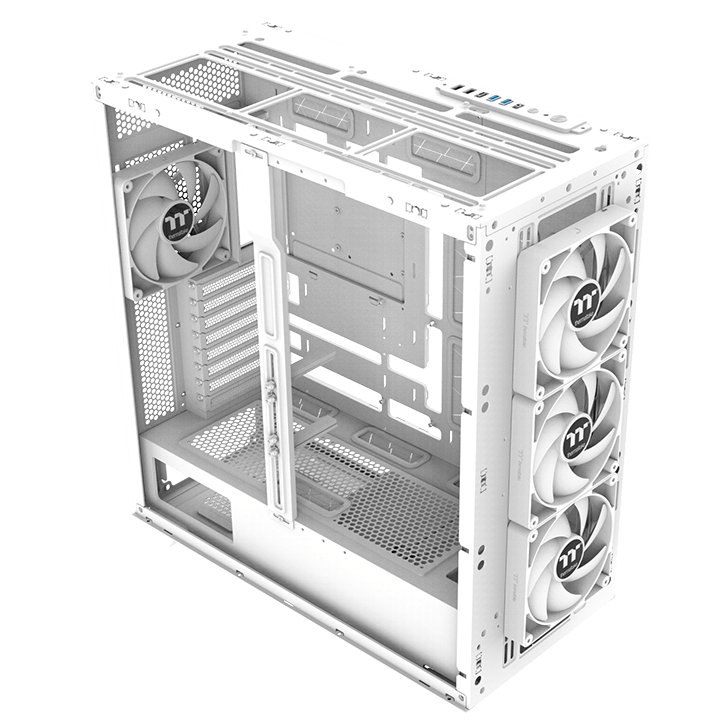

Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
* The image is for reference only.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
* The image is for reference only.

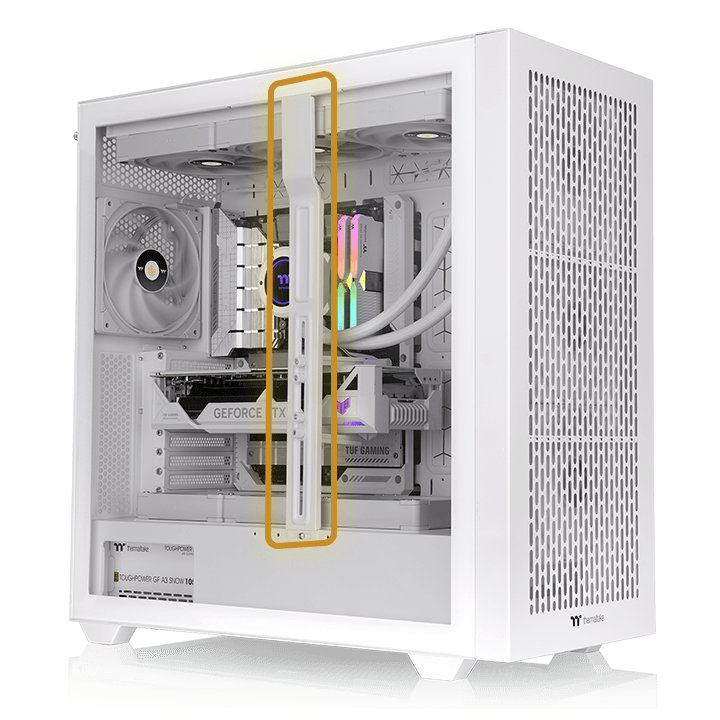

GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
* The image is for reference only.

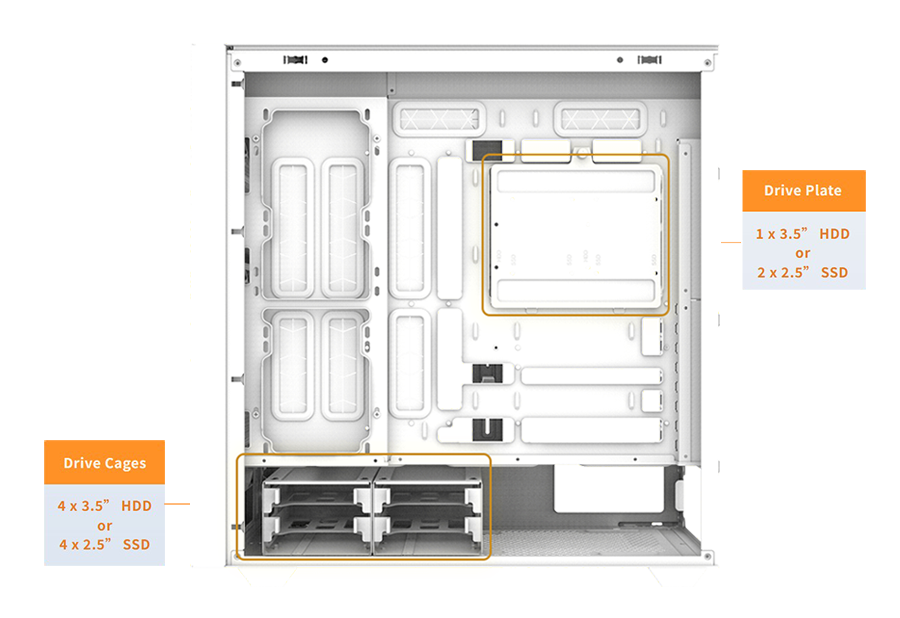

Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5” or two 2.5” hard drives.
* The image is for reference only.

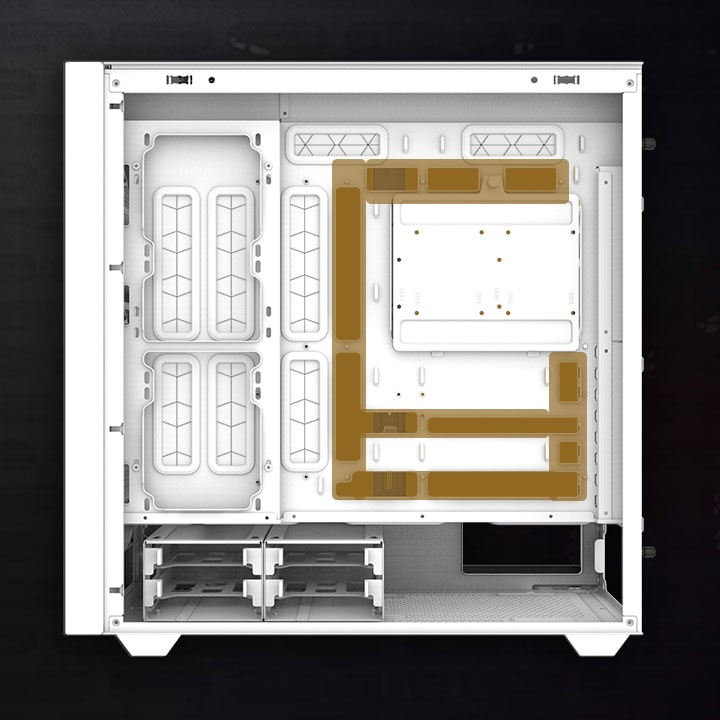

Tidy Cable Management
The AX500 series chassis offers ample cable management clearance with multiple anchor points behind the motherboard, and includes Velcro straps and cable ties for organization.
* The image is for reference only.

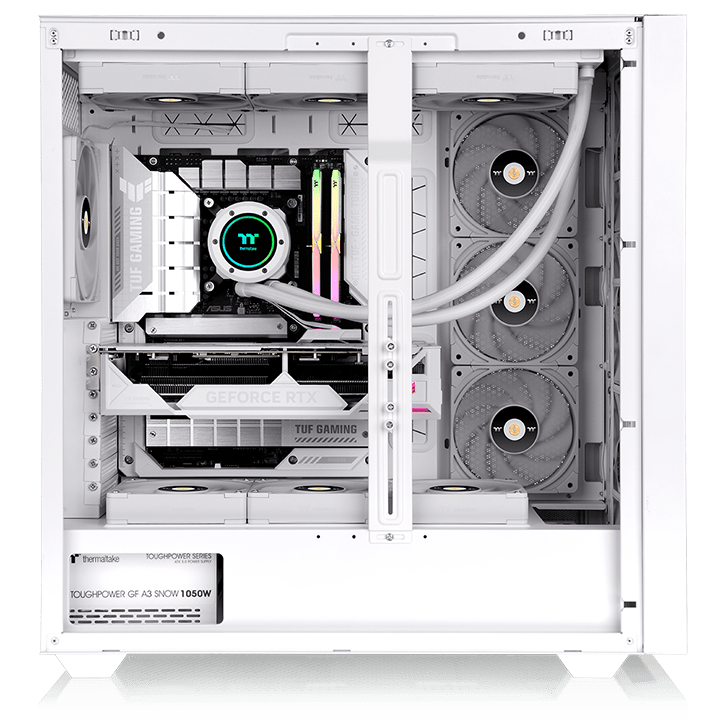

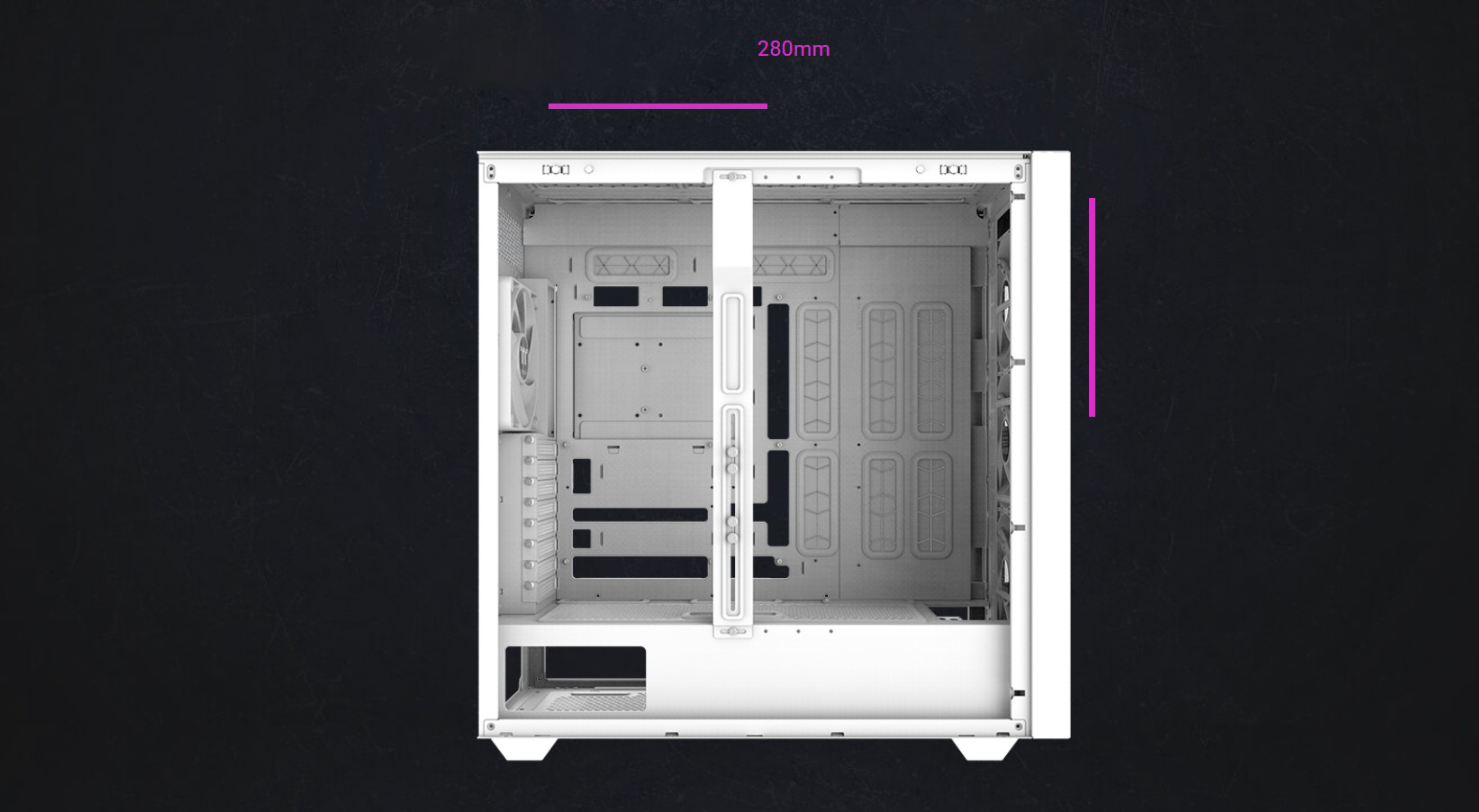

Superior Hardware Support
The AX500 Snow Full Tower Chassis supports a CPU cooler up to 185mm, a GPU up to 460mm, and a power supply up to 200mm. It comes with four CT140 fans and supports up to fourteen 120mm or nine 140mm fans, along with dual 420mm/360mm radiators on the top and front for superior cooling and premium expansion options.

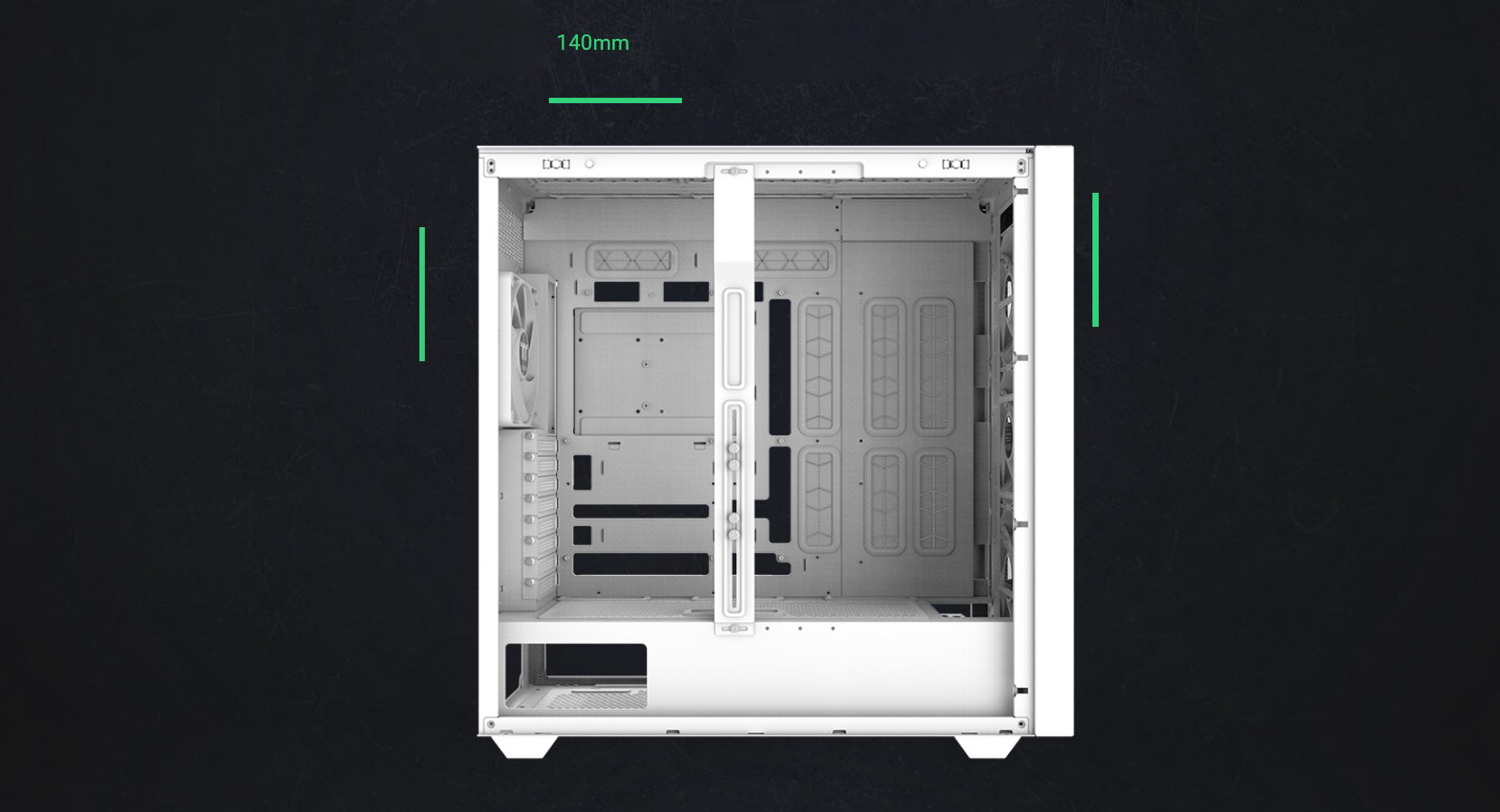

Dimensions

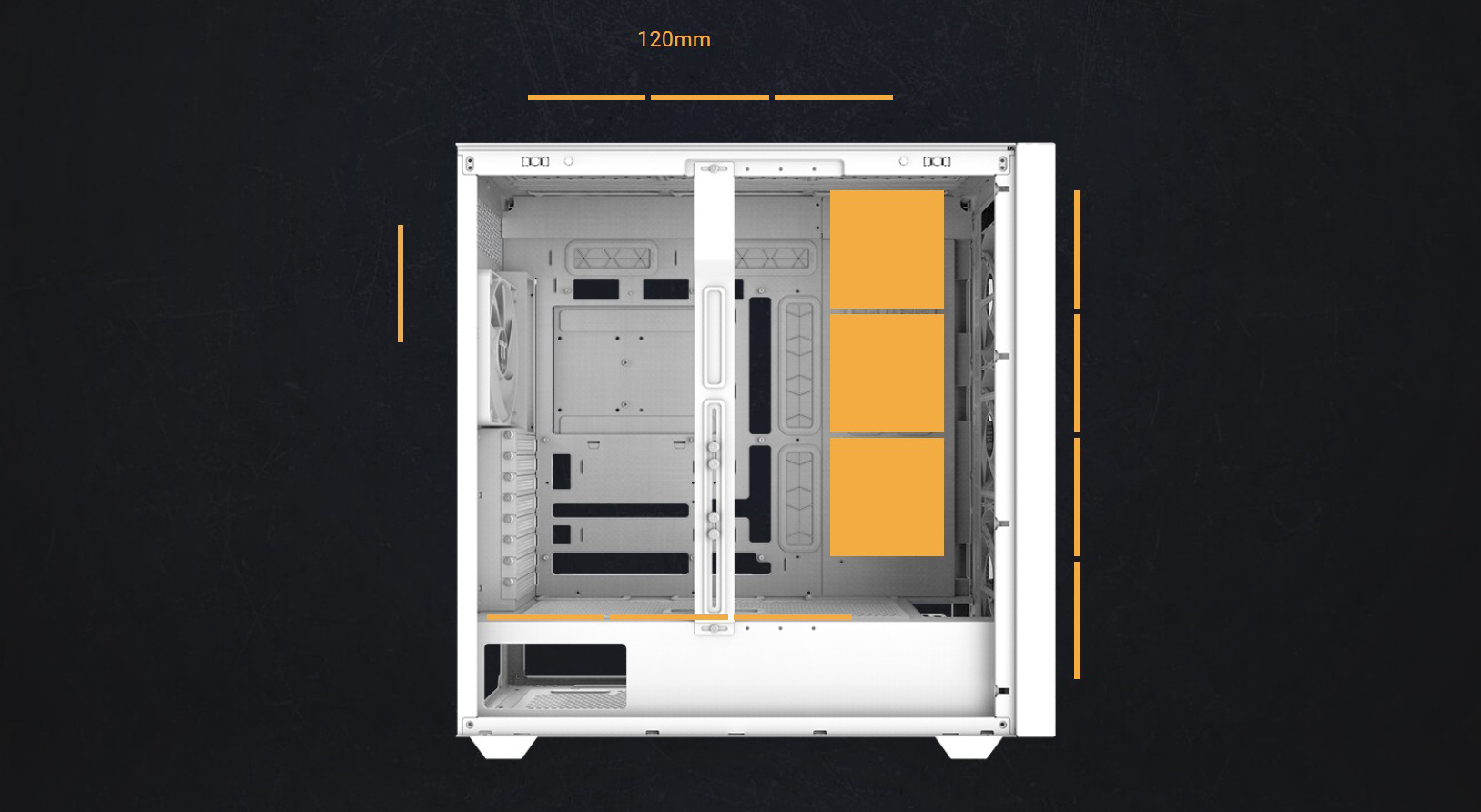

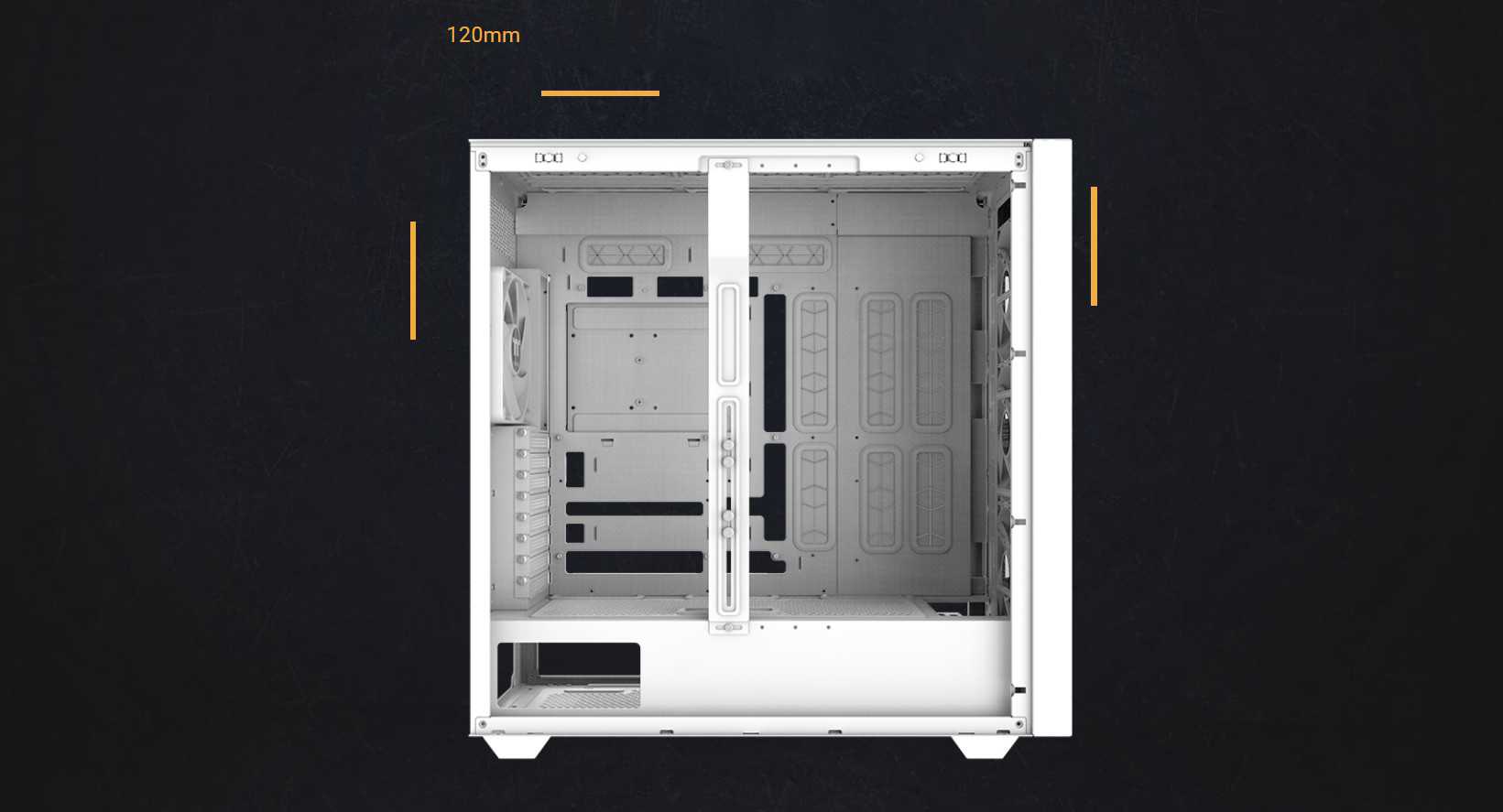

Fan Capacity

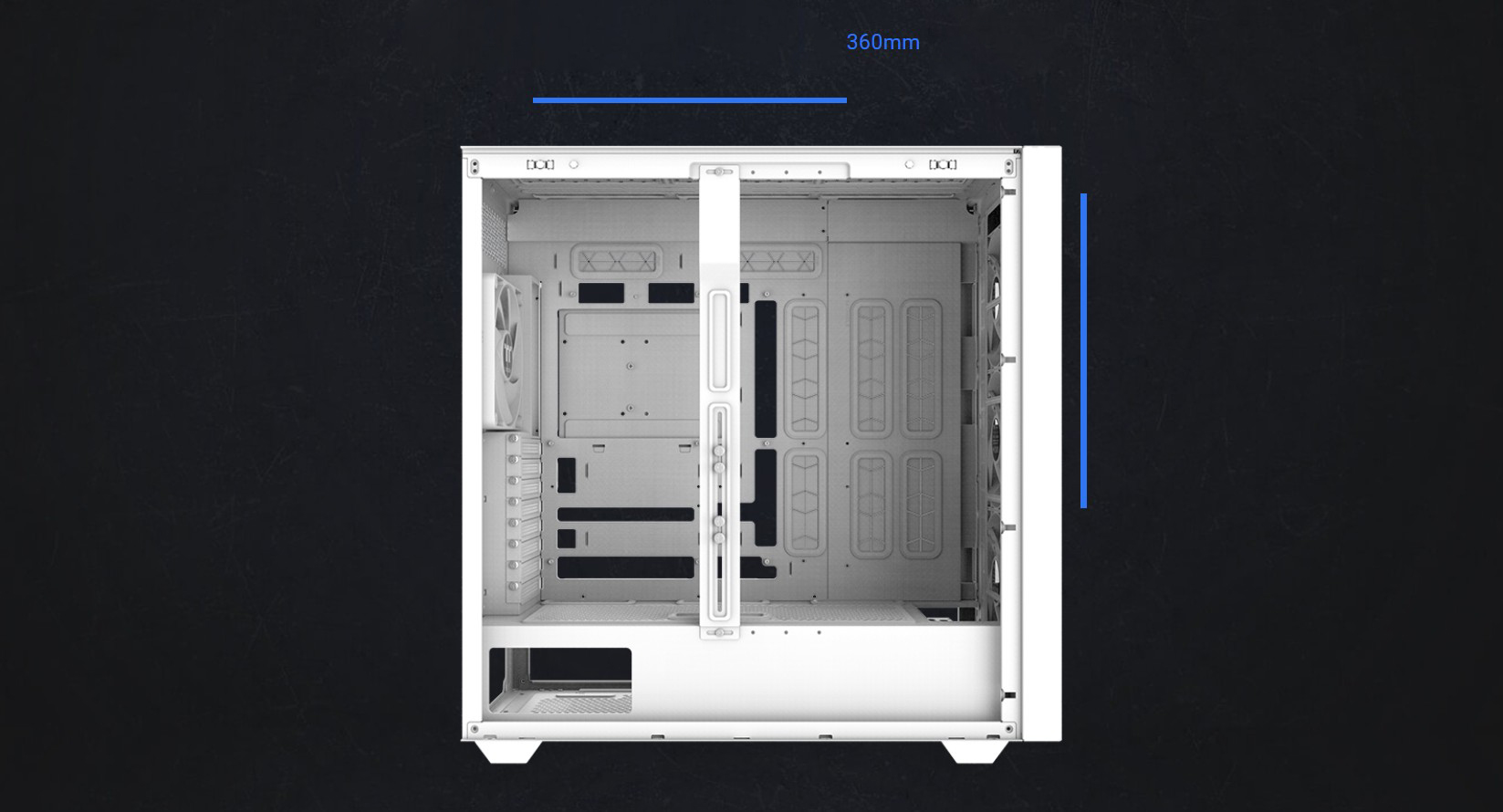

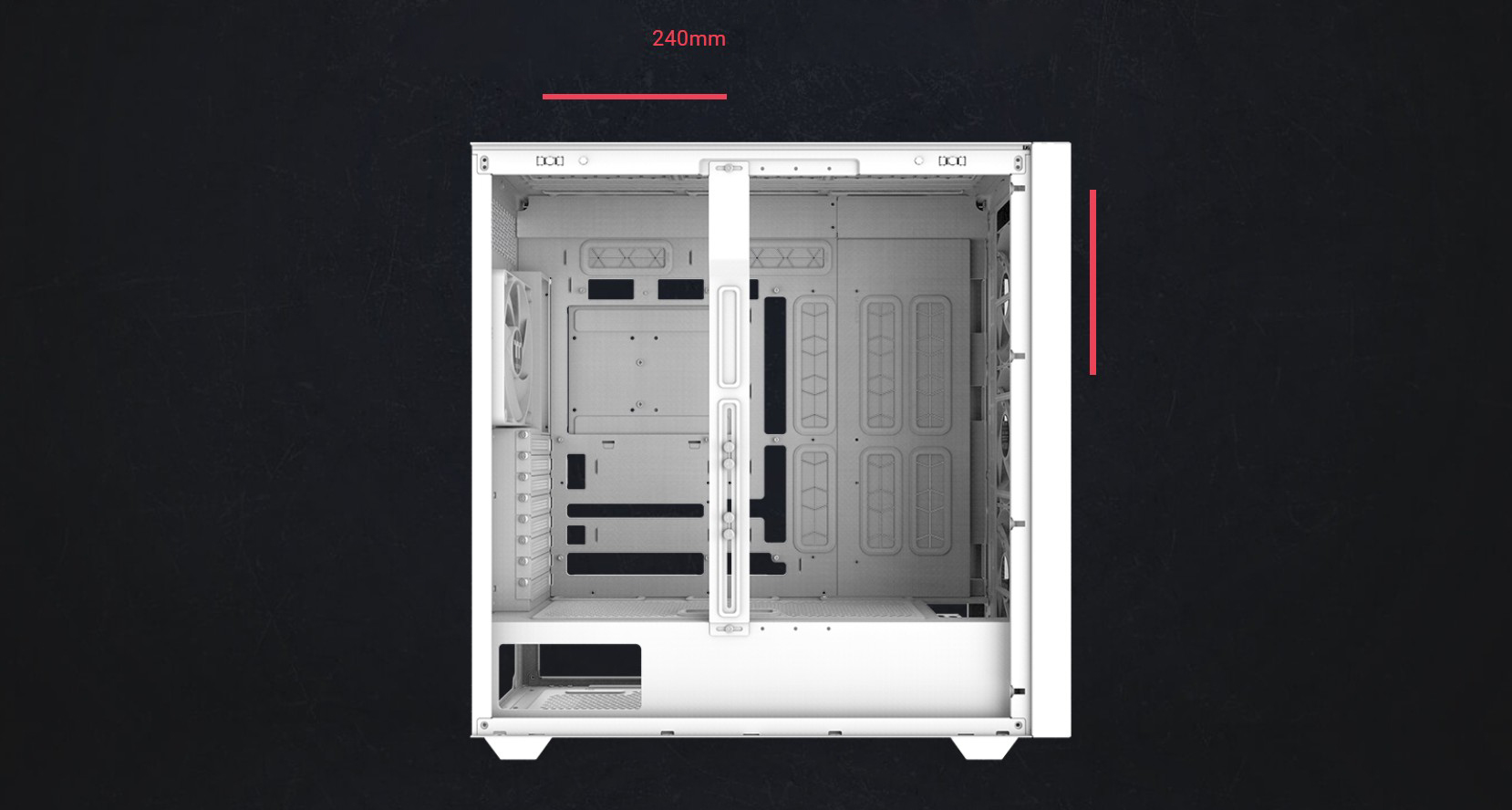

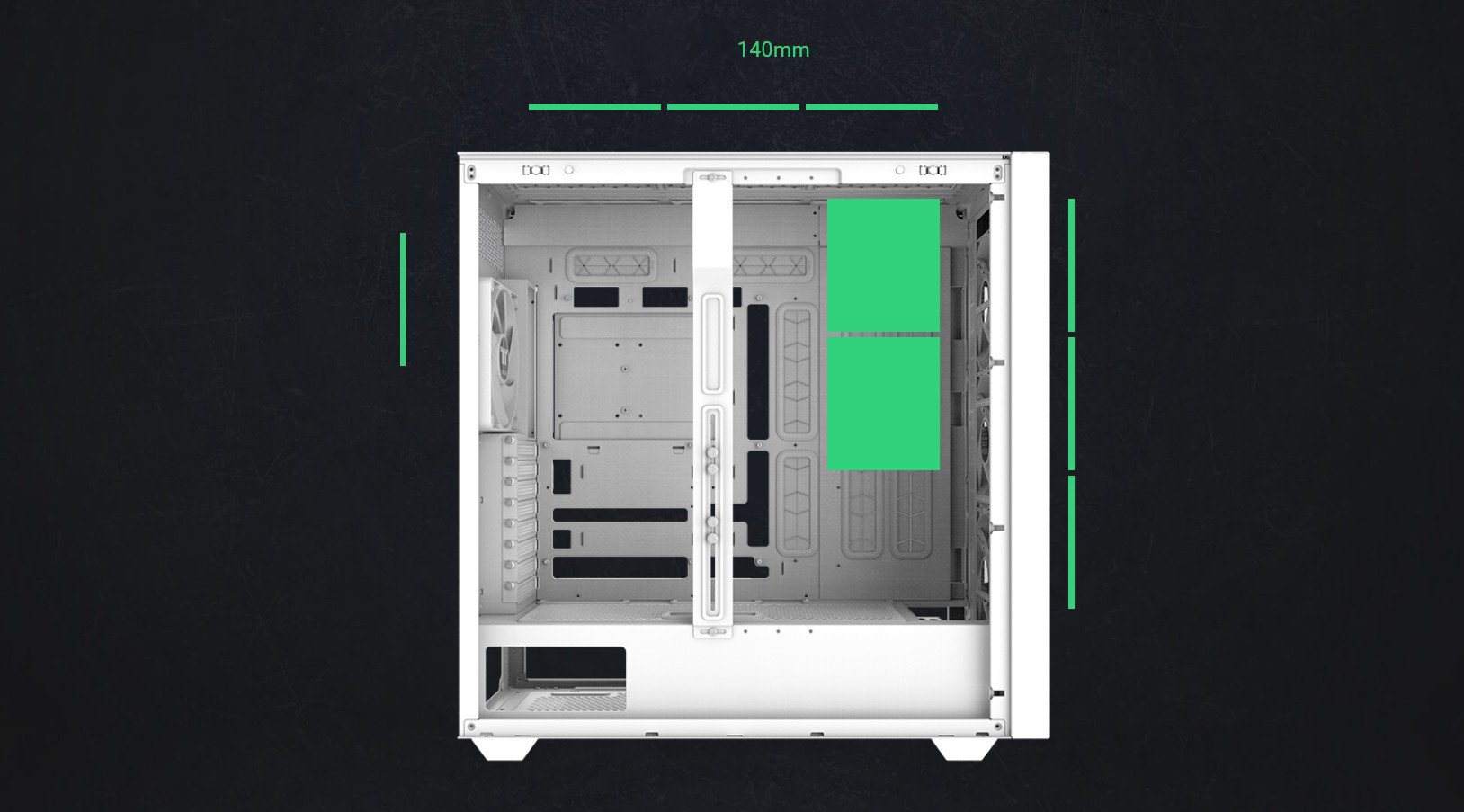

Radiator Capacity

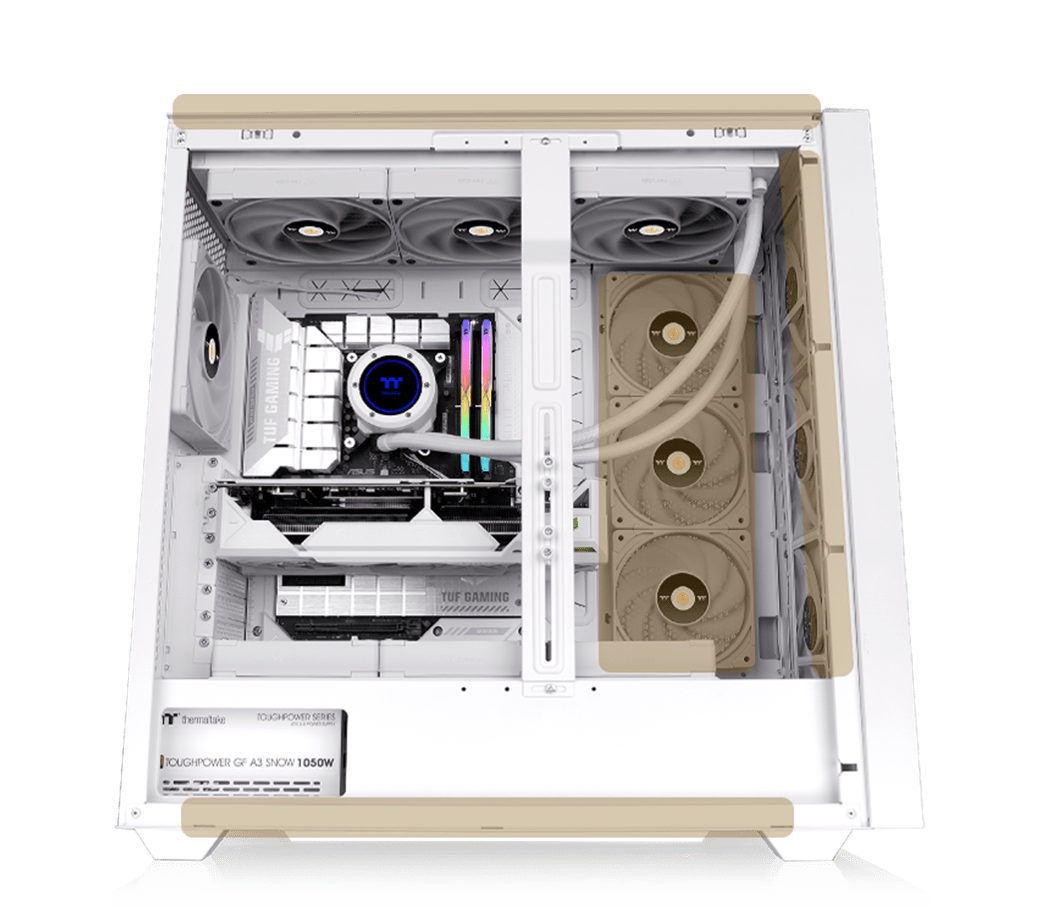

Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
* The image is for reference only

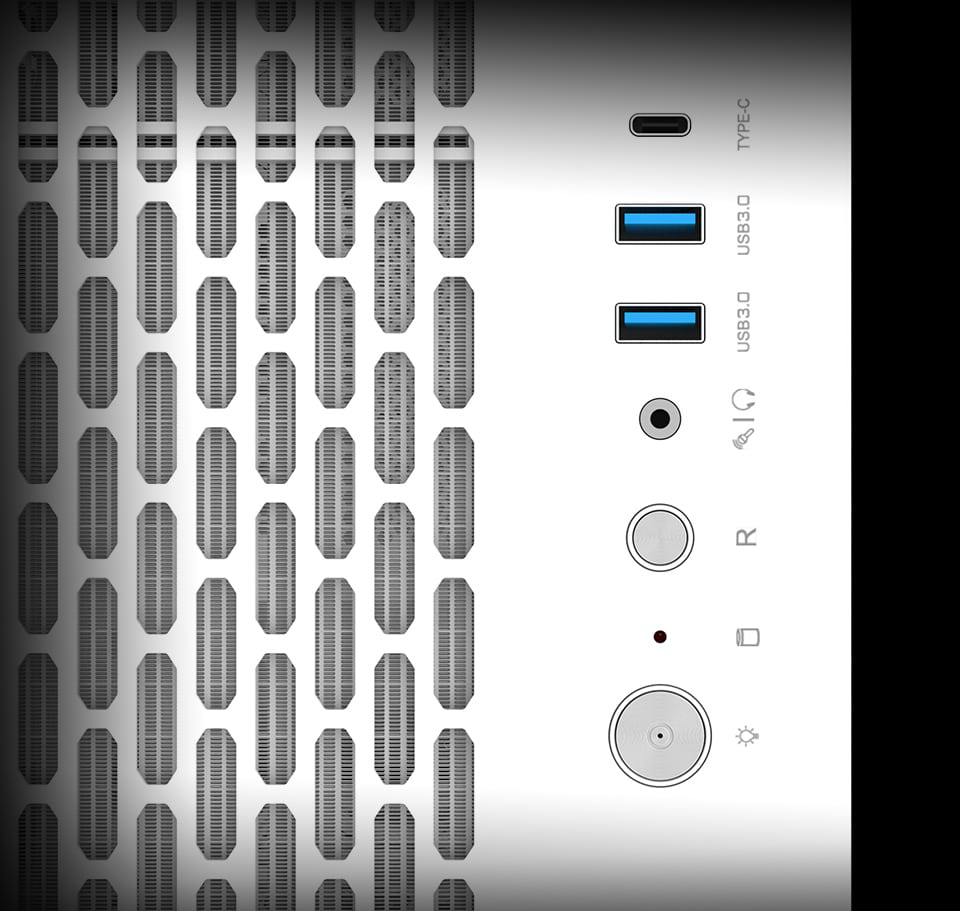

Handy I/O Ports
The top I/O ports include:
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.0 Type-A
HD Audio
Reset Button
HDD LED
Power Button with LED
All-in-One Compatibility List
