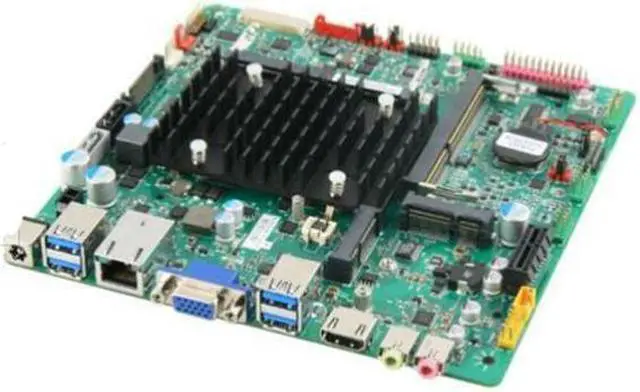

Mitac PD10RI-P Intel Braswell Pentium N3710 Mini-ITX MB w/ On-board 8-24V DC-IN
- Intel Pentium N3710 Quad Processor
- Supports up to 8GB DDR3L Memory
- Supports 3 independent displays
- Supports PCI-E 3.0 (x1)
- Supports 1x mSATA/Mini PCI-E and half length Mini PCI-E
- On-Board 8~24V DC-IN
- The MITAC PD10RI-P features the Intel Braswell Pentium N3710 Quad Core Processor. Features a Realtek Gigabit LAN port, legacy serial and parallel headers, Triple Display and Fan-less operation. The motherboard has a 2.5/5.5mm barrel DC-IN connector that supports wide input of 8~24V.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Manufacturer MITAC Model Number PD10RI Part Number PD10RI-P CPU Intel Pentium N3710 1.6 - 2.56GH z Quad Core 4 Cores / 4 Threads 6W TDP, 2MB Cache, 64-bit Chipset SoC Memory 2 204-pin DDR3L SODIMM Maximum 8GB capacity 1600MHz Minimum Video Intel HD Graphics 405 Intel Gen8 Intel Graphics DX 11, OGL 3.2 400 - 700 MHz Supports three independent displays Audio Realtek ALC888S HD Audio 2 + 2 Channel Storage 2 SATA3 6.0G b/s 1 mSATA/Mini PCI-E slot
Tip: mSATA is multiplexed with SATA port Connectivity 1 Realtek RTL8111G-CG GbE 10/100/1000 Expansion Slots 1 PCI-E x1 ( 3.0 ) 1 mSATA/Mini PCI-E slot (full size) 1 Mini PCI-E slot (half size) Power 8~24V Barrel DC-IN ( 2.5 mm/ 5.5 mm) Rear Panel I/O 1 8~24V DC-IN 4 USB 3.0 1 RJ45 1 VGA 1 HDMI 2 Audio I/O Onboard I/O Headers 1 USB 2.0 header (Supports up to 2 ports) 1 USB 2.0 header (Supports 1 port) 2 Serial COM header (RS232) 2 Serial COM header (RS232/RS422/RS485) 1 Parallel port header 1 MiAPI header 1 LVDS 40-pin header 1 eDP 40-pin header 2 Fan header Special Features Supports Wake on LAN, Wake on RTC, USB remote wake Form Factor Thin Mini-ITX 170mm x 170mm ( 6.7" x 6.7" ) BIOS 64Mb AMI UEFI BIOS ACPI 2.0 Support, PnP, DMI 2.0, WfM 2.0, Power Management Warranty 1-Year Manufacturer's Warranty Compliance CE, FCC, RoHS, REACH
Environmental Operating Temperature: 0 ~ 60 C
Storage Temperature: -20 ~ 60 C Included in Box MITAC PD10RI-D Thin Mini-ITX Motherboard 1 x I/O Shield 1 x Thin I/O Shield 1 x Driver Disc 1 x Manual 2 x SATA Cables
Tip: mSATA is multiplexed with SATA port Connectivity 1 Realtek RTL8111G-CG GbE 10/100/1000 Expansion Slots 1 PCI-E x1 ( 3.0 ) 1 mSATA/Mini PCI-E slot (full size) 1 Mini PCI-E slot (half size) Power 8~24V Barrel DC-IN ( 2.5 mm/ 5.5 mm) Rear Panel I/O 1 8~24V DC-IN 4 USB 3.0 1 RJ45 1 VGA 1 HDMI 2 Audio I/O Onboard I/O Headers 1 USB 2.0 header (Supports up to 2 ports) 1 USB 2.0 header (Supports 1 port) 2 Serial COM header (RS232) 2 Serial COM header (RS232/RS422/RS485) 1 Parallel port header 1 MiAPI header 1 LVDS 40-pin header 1 eDP 40-pin header 2 Fan header Special Features Supports Wake on LAN, Wake on RTC, USB remote wake Form Factor Thin Mini-ITX 170mm x 170mm ( 6.7" x 6.7" ) BIOS 64Mb AMI UEFI BIOS ACPI 2.0 Support, PnP, DMI 2.0, WfM 2.0, Power Management Warranty 1-Year Manufacturer's Warranty Compliance CE, FCC, RoHS, REACH
Environmental Operating Temperature: 0 ~ 60 C
Storage Temperature: -20 ~ 60 C Included in Box MITAC PD10RI-D Thin Mini-ITX Motherboard 1 x I/O Shield 1 x Thin I/O Shield 1 x Driver Disc 1 x Manual 2 x SATA Cables
