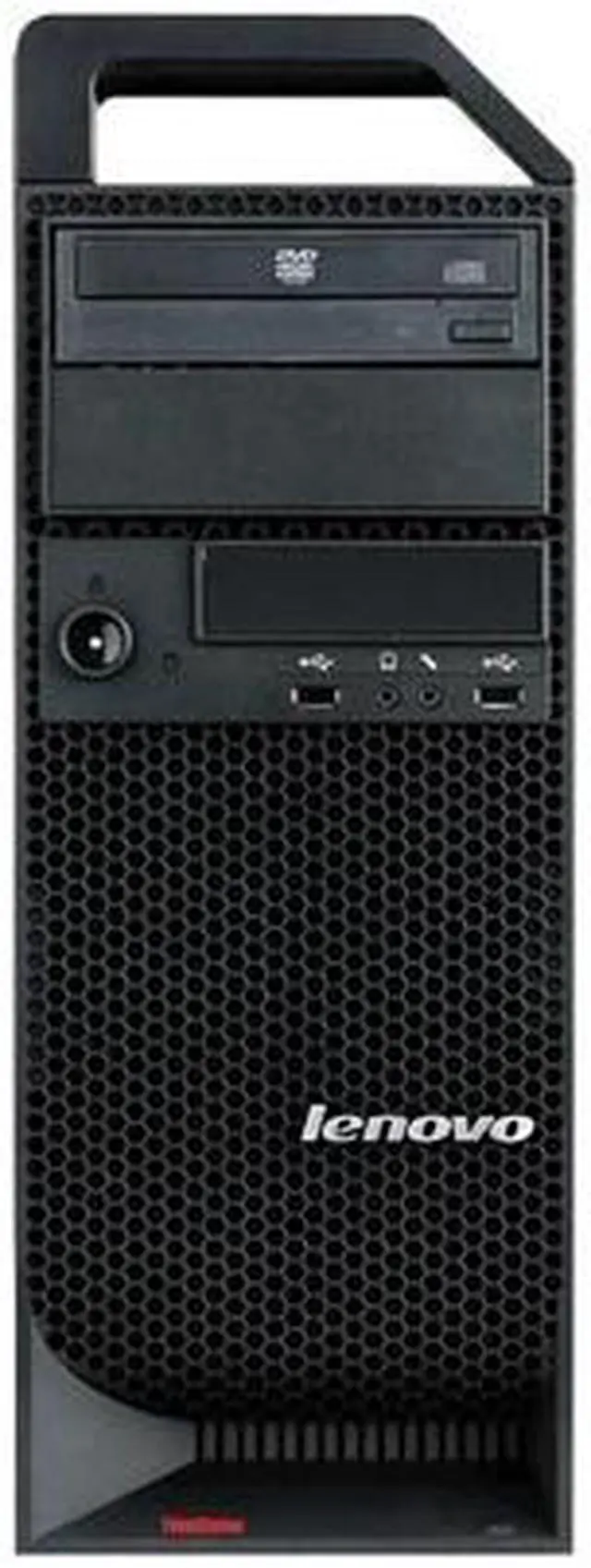

ThinkStation Desktop PC S20 (4105-J3U) Intel Xeon E5507 4GB DDR3 500GB HDD NVIDIA Quadro FX1800 (768MB) Windows XP Professional 32-bit
- Intel Xeon E5507
- 4GB DDR3
- 500GB HDD
- Windows XP Professional 32-bit
- No Screen
- NVIDIA Quadro FX1800 (768MB)
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Lenovo S20 (4105-J3U)
| Brand | ThinkStation |
|---|---|
| Model | S20 (4105-J3U) |
| Type | Business Desktops & Workstations |
|---|---|
| Form Factor | Tower |
| Color | Raven black |
| Processor | Intel Xeon E5507(2.26GHz) |
| Processor Main Features | 64 bit Quad-Core Processor |
| Cache Per Processor | 4MB L3 Cache |
| Memory | 4GB UDIMM 1333MHz DDR3 ECC |
| Storage | 500GB 7200rpm SATA |
| Optical Drive | Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive |
| Graphics | NVIDIA Quadro FX1800 (768MB) |
| Audio | High Definition (HD) Audio, Analog Devices AD1988A codec |
| Ethernet | Gigabit ethernet |
| Power Supply | 625 watts with 120mm bottom-mounted variable speed fan, universal, Climate Savers Computing Bronze, 80 PLUS Bronze qualified |
| Keyboard | Preferred Pro USB Keyboard (USB connector) |
| Mouse | Optical Wheel Mouse (USB connector) |
| Operating System | Windows XP Professional 32-bit |
| Special Features | Rack shelf support |
| Chipset | Intel X58 |
|---|
| CPU Type | Xeon |
|---|---|
| CPU Name | Intel Xeon E5507 |
| L3 Cache Per CPU | 4 MB |
| CPU Socket Type | LGA 1366 |
| CPU Main Features | 64 bit Quad-Core Processor |
| GPU/VGA Type | NVIDIA Quadro FX1800 (768MB) |
|---|---|
| Graphics Interface | PCI Express x16 |
| Memory Capacity | 4GB DDR3 |
|---|---|
| Memory Speed | DDR3 1333 |
| Form Factor | DIMM 240-pin |
| Memory Spec | 2 GB x 2 |
| Memory Slot (Total) | 6 |
| Memory Slot (Available) | 4 |
| Maximum Memory Supported | 24 GB |
| HDD | 500GB |
|---|---|
| HDD Interface | SATA |
| HDD RPM | 7200rpm |
| Optical Drive Type | DVD Super Multi |
|---|---|
| Optical Drive Spec | Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive |
| Screen Size | No Screen |
|---|
| Audio Chipset | Integrated |
|---|---|
| Audio Features | High Definition (HD) Audio, Analog Devices AD1988A codec |
| LAN Chipset | Integrated |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Front USB | 2 |
|---|---|
| Front Audio Ports | 2 |
| Card Reader | 20-in-1 media reader |
| COM | 1 |
|---|---|
| Video Ports | Two DisplayPort, one dual-link DVI-I |
| Rear USB | 8 |
| eSATA | 1 |
| RJ45 | 1 port |
| Rear Audio Ports | 6 ports |
| S/P DIF | 2 port |
| PCI Slots (Available/Total) | Slot 1: full-length, full-height, PCIe 2.0 x16 (75W max) Slot 2: full-length, full-height, PCIe 2.0 x4 Slot 3: full-length, full-height, PCIe 2.0 x16 (75W max) Slot 4: full-length, full-height, PCIe x1 Slot 5: full-length, full-height, 32-bit PCI 2.3 |
|---|
| Keyboard Type | Preferred Pro USB Keyboard (USB connector) |
|---|
| Mouse Type | Optical Wheel Mouse (USB connector) |
|---|
| Dimensions (H x W x D) | 19.00" x 6.90" x 18.80" |
|---|---|
| Weight | 38.50 lbs |
| Package Type | Commercial |
|---|
| First Listed on Newegg | November 09, 2010 |
|---|
