TOPOWER Galaxis MX Series GAPS-500MX 500 W ATX12V v2.3 SLI Ready CrossFire Ready Modular Power Supply
- ATX12V v2.3
- Modular
- 115 / 230 V 50/60 Hz
- +3.3V@16A, +5V1@20A, +12V1@14A, +12V2@14A, [email protected], +5VSB@2A
Specs
Reviews (28)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the TOPOWER GAPS-500MX
| Brand | TOPOWER |
|---|---|
| Series | Galaxis MX Series |
| Model | GAPS-500MX |
| Type | ATX12V v2.3 |
|---|---|
| Maximum Power | 500 W |

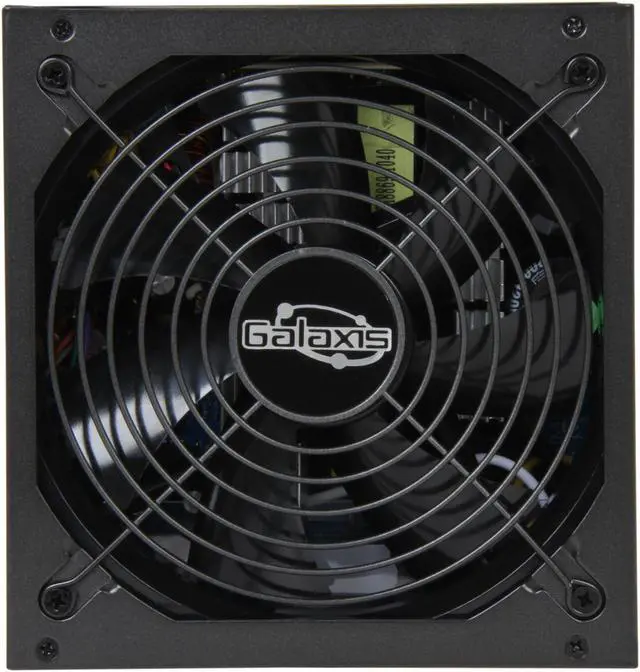

| Fans | 1 x 140mm Fan |
| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 1 x 6-Pin, 1 x 6+2-Pin |
| SATA Power Connector | 6 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | Modular |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |

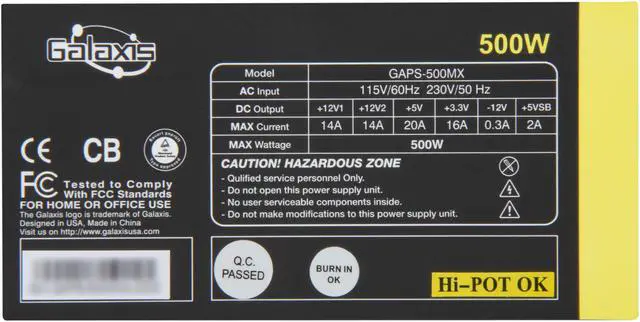

| Output | +3.3V@16A, +5V1@20A, +12V1@14A, +12V2@14A, [email protected], +5VSB@2A |
| Approvals | UL, CB CE, FCC, RoHs |

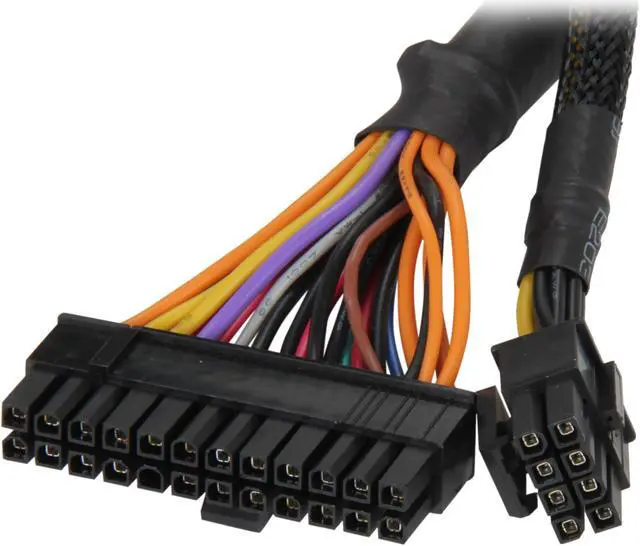

| Connectors | 1 x Main connector (20+4Pin) 1 x 4+4 Pin ATX 12V EPS 12V 6 x Peripheral 6 x SATA 2 x Floppy 2 x PCI-E |

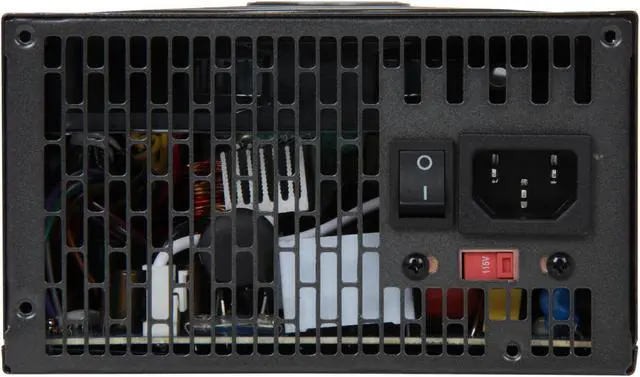

| Features | Manual AC input switch Low ripple and noise Output over voltage protection, Short circuit protection on all outputs 100% Hi-Pot Tested |
|---|
| Dimensions | 6" x 3.38" x 6.25" |
|---|
| First Listed on Newegg | February 28, 2011 |
|---|
