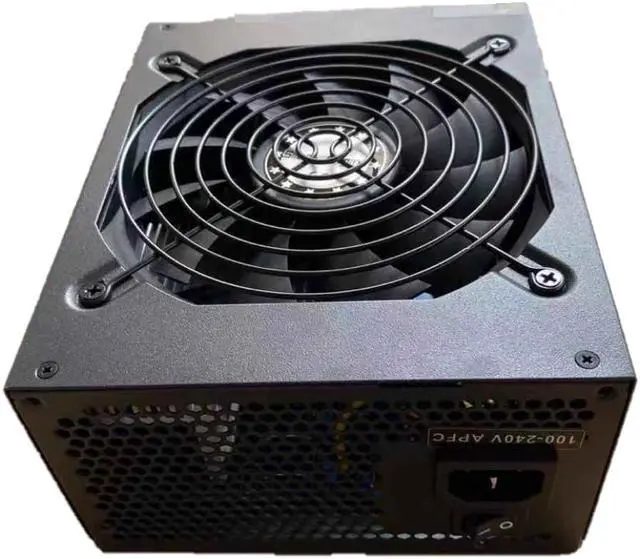

TOPOWER 1800W GPU Mining Power Supply For BTC/BCH/ETC/ETH/LTC/ XMR/XRP/ZEC etc, Ethereum Crypto Coin Mining Miner, Support 6 Graphics Card For ATX Mining Rig, AC Input 100 - 240V, Full Modular
Learn more about the TOPOWER TOP-1800WM2
General
Brand
TOPOWER
Series
MINING
Model
TOP-1800WM2
Details
Color
Black
Type
ATX12V / EPS12V
Maximum Power
1800 W
Fans
1
PFC
Active
Main Connector
24+8Pin
+12V Rails
Single
PCI-Express Connector
12 x 6+2-Pin
SATA Power Connector
8
SLI
SLI Ready
CrossFire
CrossFire Ready
Max PSU Length
185 mm
Modular
Full Modular
Efficiency
> 85%
Input Voltage
100 - 240 V
Input Frequency Range
50/60 Hz
Connectors
12 x 8 pin (6+2) PCIe
Type
ATX 12V / EPS 12V
Power Rating
1800W
PFC
Active
+12V Rails
Single
SLI
Ready
CrossFire
Ready
Modular
Yes
Efficiency
> 85%
Input
Input Voltage
100 - 240 V
Frequency Range
50/60 Hz
Output
+3.3V Max. Current
20A
+5V Max. Current
20A
-12V Max. Current
0.5A
+5VSB Max. Current
3A

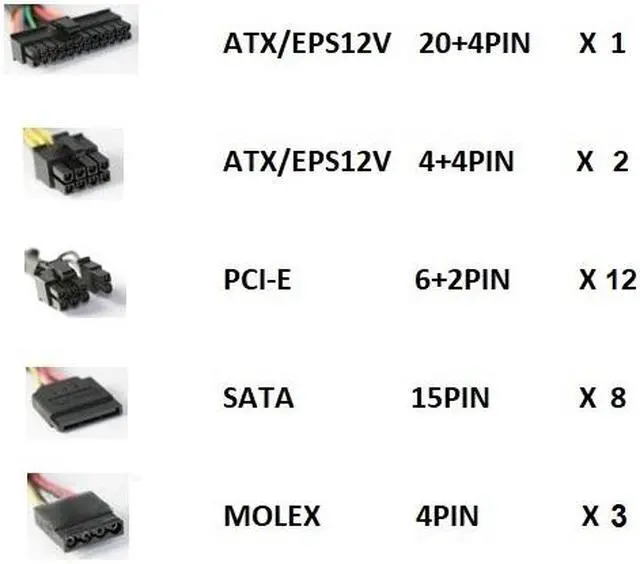

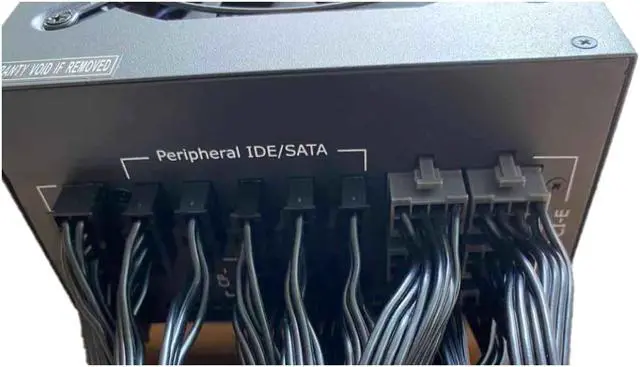

Connectors
Main Connector
20+4 Pin
12V Power Connector
1 x 4+4 Pin ATX/EPS 12V, 1 x 8 Pin EPS 12V
PCI-Express Connector
12 x 6+2P
SATA Power Connector
8
Peripheral Connector
3

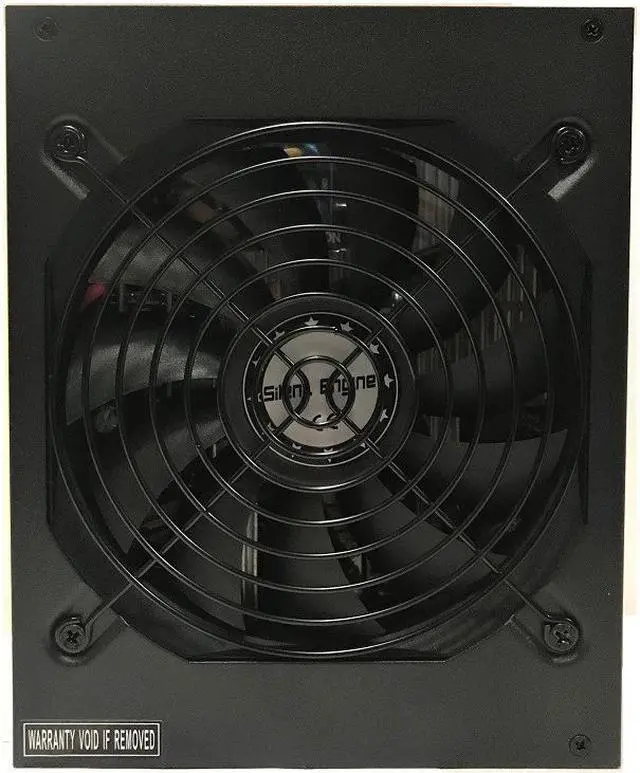

Fans
Fans Total Quantity
1
Top Fans Size
135mm
Top Fans Bearing Type
2 Ball
Details
Size/Dimensions
7.25" x 5.9" x 3.4"
